Triumph RJ-9000 9,000 lb Rolling Bridge Jack

Triumph RJ-9000 9,000 lb Rolling Bridge Jack

See more by Triumph

$2,250.00 - $2,750.00

$2,250.00

$2,250.00 - $2,750.00

$2,250.00

In stock

SKU RJ-9000

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

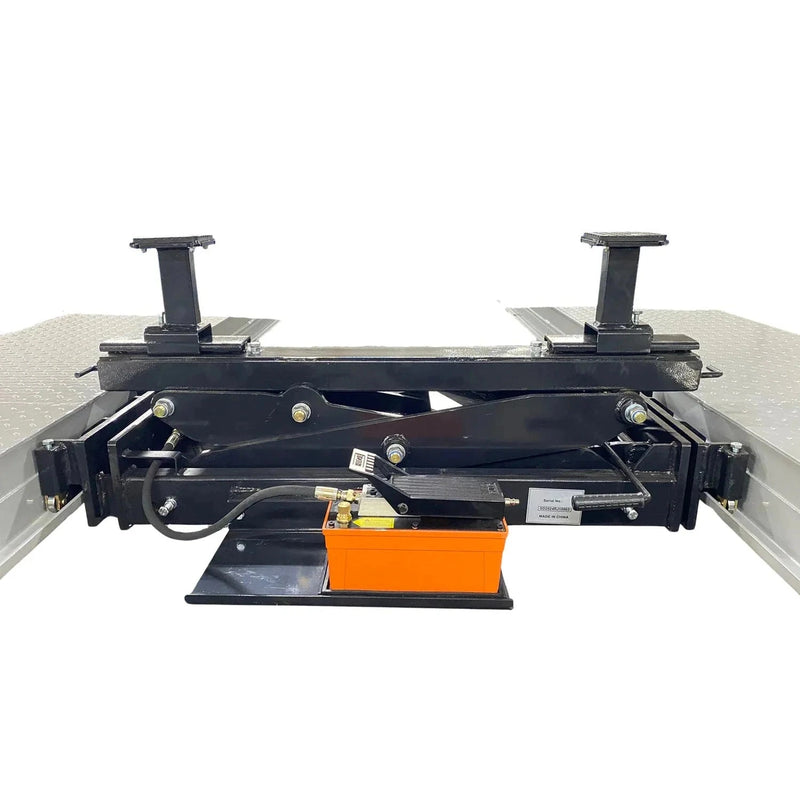

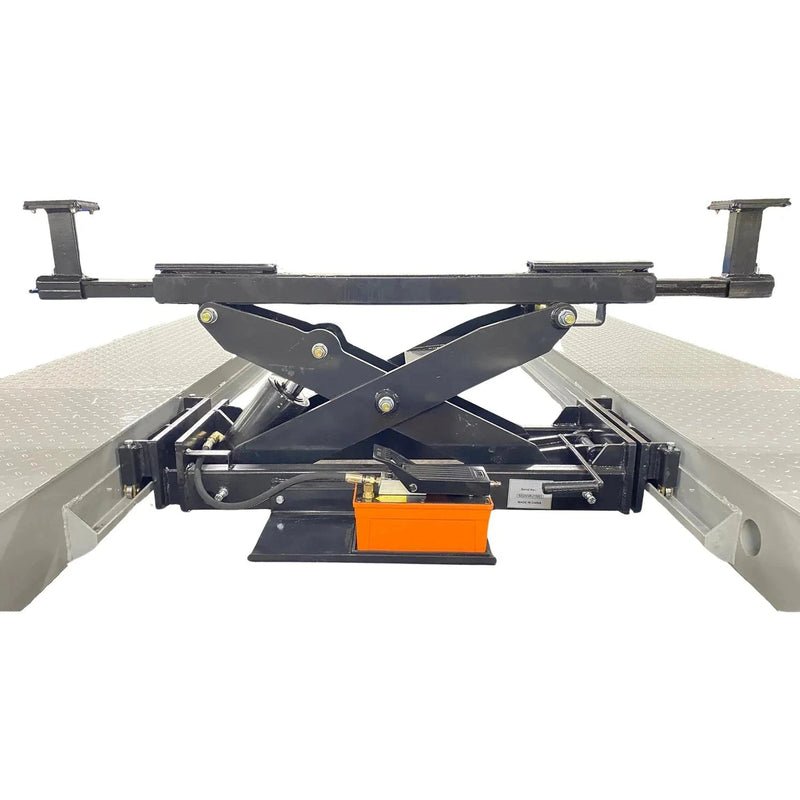

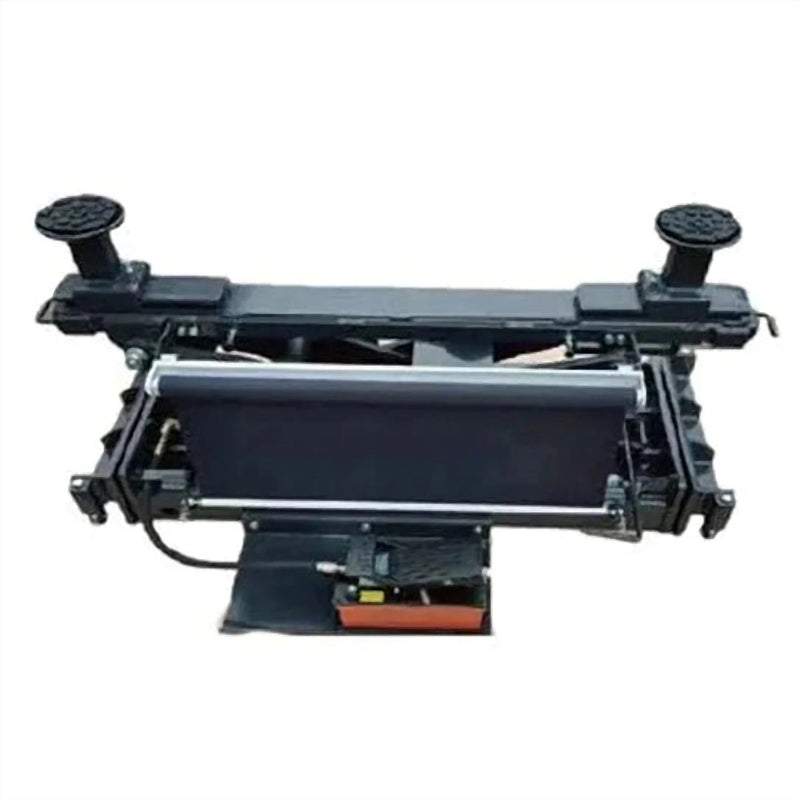

The Triumph RJ-9000 is a 9,000 lb rolling bridge jack that rides on a four-post lift's runways and raises one axle at a time, turning the lift into a wheels-free service bay.

What a rolling bridge jack adds to a four-post lift

A four-post lift holds the vehicle by its tires, which is fine for storage and under-car work but useless the moment you need a wheel off. The RJ-9000 solves that. It sits on the lift's runways, rolls front-to-back over the vehicle, and lifts the front or rear axle clear of the runway so you can pull wheels, swap brakes, rotate tires, or work on suspension without ever bringing the car back down. The hydraulics are driven by a foot pump built into the base of the jack, so both hands stay free to slide the lifting pads onto the vehicle's OE jacking points before you start pumping.

Will it fit your lift?

The RJ-9000 spans runways spaced 43.8" to 52.3" apart, measured inside-to-inside. That covers the Triumph NTR-16, NTR-24, and NTR-32 four-post lifts, plus most other commercial-spec four-post lifts in that range. If you already own a lift and are not certain of its runway spacing, measure inside-to-inside between the two runways before ordering — that single number decides compatibility. On the vehicle side, the lifting pads adjust from 40.1" to 59.8" between contact points, which is what lets the jack reach factory jacking pads on cars, SUVs, and light trucks instead of forcing you to stack wood blocks to bridge the gap.

Reading the 9,000 lb capacity correctly

The 9,000 lb rating is per jack, and because a bridge jack supports one axle at a time, the number that matters is axle weight rather than total vehicle weight. A 12,000 lb truck with both axle weights under 9,000 lbs is within range. Maximum lifting height is 32.4". Two sets of height adapters, 1.5" and 5", are included in the box, so you can add reach on taller vehicles without buying extension blocks separately. Most shops run two RJ-9000s per lift, one for the front axle and one for the rear, so a brake job or tire rotation happens without repositioning the jack mid-service.

What ships and what the warranty covers

Each order includes one Triumph RJ-9000 rolling bridge jack and two sets of height adapters, 1.5" and 5". Shipping weight is 600 lbs and the crate measures 48" x 28" x 16" — plan for freight handling at delivery, though once the jack is on the runways its weight is carried by the lift, not by you. Triumph covers the RJ-9000 with a 1-year parts warranty; labor is not covered. In-warranty parts ship free by ground service after phone troubleshooting, and you handle installation yourself or through a local mechanic. Two exclusions: the rubber lifting pads are wear items and are not covered, and the hydraulic cylinders are covered fully for 30 days, then by a seal kit after that window.

Key features

9,000 lb capacity per jack — rated per axle, so full-frame trucks and SUVs are in range when axle weights stay under the limit
Foot-pedal hydraulics — the pump is integrated into the base of the jack, keeping both hands free to position the lifting pads
Adjustable pad span, 40.1" to 59.8" — reaches OE lift points on cars, SUVs, and light trucks without wood blocks
Fits runways spaced 43.8" to 52.3" apart — covers the Triumph NTR-16, NTR-24, and NTR-32 and most commercial-spec four-post lifts
Two sets of height adapters included, 1.5" and 5" — no separate purchase for extension blocks
32.4" maximum lifting height — enough travel to get wheels well clear of the runway for brake and suspension work
Rolls front-to-back on the runways — reposition from front axle to rear without lowering the vehicle

Specification Table

RJ-9000 · TriumphSKU RJ-9000
Lifting Capacity	9,000 lbs
Maximum Lifting Height	32.4"
Minimum Width Between Pads	40.1"
Maximum Width Between Pads	59.8"
Minimum Width Between Runways	43.8"
Maximum Width Between Runways	52.3"
Height Adapters Included	1.5" and 5" (two sets)
Hydraulic Operation	Integrated foot pump
Lift Compatibility	Four-post lifts with runways spaced 43.8" to 52.3" apart
Shipping Weight	600 lbs
Shipping Dimensions	48" x 28" x 16"
Warranty	1-year parts (labor not covered)

Compare models

	RJ-9000 9,000 lb Rolling Bridge Jack THIS	RJ-5000 5,000 lb Rolling Bridge Jack	SJ-35 3,500 lb Sliding Bridge Jack	RJ-15000 15,000 lb Rolling Bridge Jack
Lifting Capacity	9,000 lbs	5,000 lbs	3,500 lbs	15,000 lbs
Maximum Lifting Height	32.4"	22.5"	31" – 46"	15.3"
Pad Width Range	40.1" to 59.8"	8.6"	39" – 63"	28.3"
Runway Width Range	43.8" to 52.3"	31.4" – 47.2"	4.75"	42.6" – 68.7"
Price	$2,250.00	$1,595.00	$975.00	$3,275.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

Will the RJ-9000 fit my four-post lift?
If your runways are spaced between 43.8" and 52.3" apart, measured inside-to-inside, yes. That range covers the Triumph NTR-16, NTR-24, and NTR-32 and most commercial-spec four-post lifts. Measure your runway spacing before ordering if you are not sure.

Do I need one bridge jack or two?
Most shops use two — one for the front axle, one for the rear — so a tire rotation or brake job stays wheels-free without repositioning mid-service. A single jack works if you only service one axle at a time.

How does the jack lift — air or hydraulic?
Hydraulic, driven by a foot pump integrated into the base of the jack. There is no electrical or air hookup listed for this jack, so nothing to run to the lift.

What vehicles can it lift?
Cars, SUVs, and light trucks within the 9,000 lb per-jack capacity. Because the jack supports one axle at a time, axle weight is the number that matters — a 12,000 lb truck with axle weights under 9,000 lbs is in range.

How high does it lift?
Maximum lifting height is 32.4". Two sets of height adapters, 1.5" and 5", are included to add reach when a vehicle's jacking points sit higher.

Do I need to buy adapters or extension blocks separately?
No. Two sets of height adapters, 1.5" and 5", come in the box with the jack.

Will the pads reach the factory jacking points on a wide vehicle?
The lifting pads adjust from 40.1" to 59.8" between contact points, which covers OE lift points on cars, SUVs, and light trucks without makeshift wood blocks.

How heavy is it and how does it ship?
Shipping weight is 600 lbs with crate dimensions of 48" x 28" x 16". Once in service the jack rolls on the lift runways, so the lift carries the weight.

What does the warranty cover?
Triumph covers the RJ-9000 with a 1-year parts warranty; labor is not covered. Rubber lifting pads are wear items and are excluded, and hydraulic cylinders are covered fully for 30 days, then covered by a seal kit after that.
