Construction Excavator Buckets: Start With the Machine, Not the Bucket

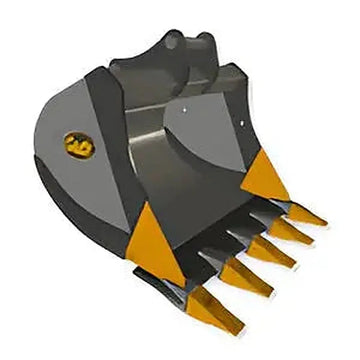

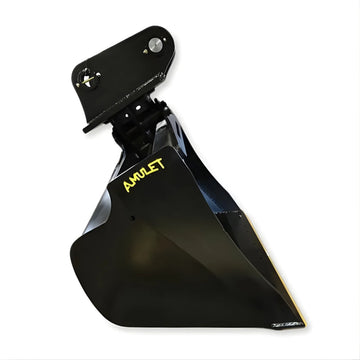

Every bucket in this collection is built for a specific band of machine weight, and that band is the first filter to apply. The Geith Hydraulic Angle Excavator Tilt Bucket (Single Ram) is listed for 1.5–2 ton and 2.0–2.8 ton machines. The Geith Heavy Duty Excavator Digging Bucket is an H14 series bucket built for 10–14 ton excavators. The Amulet Excavator Tilt Bucket covers six weight classes from 1–3 ton up to 10–15 ton machines, and the Amulet High Capacity Excavator Tilt Bucket covers nine classes, from 3–5 ton up to 30–40 ton. Hanging a bucket built for a heavier class on a light machine costs you breakout force and stability at full reach; going the other way puts the whole machine's force into a structure that was not designed for it, and the bucket wears out early.

Digging, Grading and Tilt Buckets: What Each Type Is For

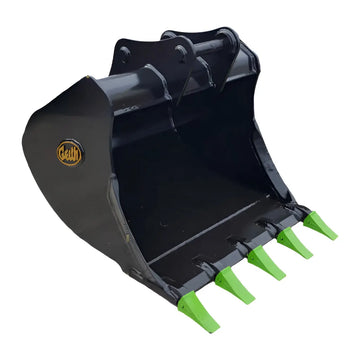

A digging bucket is the narrow, deep, toothed profile you use for trench work, footings and utility runs. Our Geith Heavy Duty Excavator Digging Bucket and the Geith MX Digging Bucket for Mini Excavators sit in this group. Width drives everything here — a narrower bucket concentrates force at the teeth and digs in hard material, a wider one moves more per pass in loose soil.

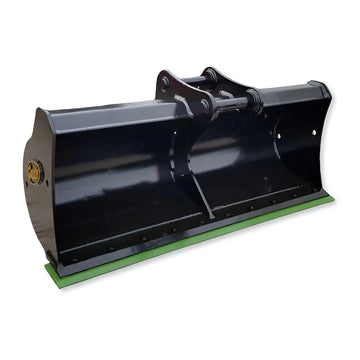

A grading bucket is wide, shallow and normally smooth-edged. The Geith Mini Excavator Heavy Duty Grading Bucket is described in our product data as a wide, shallow grading profile in reinforced high-strength steel with a heavy-duty wear-resistant cutting edge, for grading, leveling and earthmoving; the full-size Geith Excavator Heavy Duty Grading Bucket does the same job on larger machines. Buyers looking for the best excavator grading bucket attachments are usually trying to finish a surface without dragging a dozer onto the site — backfilling, dressing slopes, cleaning ditches, spreading topsoil.

A tilt bucket is a grading bucket that rotates about the stick so the operator can cut a slope without repositioning the machine. Both Amulet tilt buckets and the Geith single-ram hydraulic angle tilt bucket are in this collection. Tilt is what you want for swale and ditch work, road shoulders, pond banks and any grade the tracks cannot sit square to. It costs you an auxiliary hydraulic circuit and more pivot maintenance, so it earns its keep on finish work, not on straight trenching.

Couplers and Mounting: The Detail That Derails Orders

More excavator attachment orders go wrong on the mount than on the bucket itself. Both Amulet tilt buckets are offered with four mount options: blank weld-on plate only, wedge-style coupler, pin-on / pin-grabber style coupler, and Wain-Roy / cross-pin style coupler. That is why the High Capacity model lists 36 configurations and the standard model lists 13 — width and weight class multiplied by mount type. The Geith Mini Excavator Heavy Duty Grading Bucket is listed for standard coupler or pin-on mounting.

Before ordering, have three measurements in hand: pin diameter, the distance between the two pin centers, and the dipper (stick) width at the ears. If your machine runs a proprietary or hitch-brand coupler, the blank weld-on plate option lets a fabricator marry your existing top plate to the bucket. Amulet publishes a fitment chart by excavator make and model — check your machine against it rather than assuming a class match is a fit.

Reading Capacity and Width Numbers Correctly

Bucket volume is a rated figure, not a measurement of the hole. ISO 7451 defines volumetric ratings for hoe-type excavator buckets, and SAE J296 covers the same rating method, both distinguishing struck capacity from heaped capacity — so compare like with like when you put two vendors' spec sheets side by side.

In our own data, the Geith H14 digging bucket range runs from the H14-0300 at 300 mm wide, 0.11 m³, 584 lbs, up to the H14-1100 at 1100 mm wide, 0.52 m³, 1235 lbs. The Geith single-ram tilt bucket starts at the AT02R-0800SR, 800 mm (32") wide at 0.062 m³ / 0.08 cubic yards, and the AT02.8R-1200SR is 1200 mm (48") at 0.112 m³ / 0.15 cubic yards. The Amulet Excavator Tilt Bucket is offered in 36", 42" and 48" widths. Note how fast bucket weight climbs with width — on a hydraulic excavator, attachment weight comes straight off your rated lift at reach, which ISO 10567 addresses for hydraulic excavator lift capacity. Dense material makes this worse: a bucket sized for topsoil will overload the machine in wet clay or aggregate.

Wear Parts, Maintenance and Site Practice

Budget for consumables, not just the bucket. Teeth and adapters, side cutters and heel wear plates are what keep a digging bucket productive; replacing a tooth is routine, rebuilding a worn-through heel is not. On tilt buckets, grease the pivot on schedule, inspect the ram and hose routing for pinch points at full rotation, and confirm the coupler safety pin or lock is engaged every time you change attachments — a dropped bucket is the standard failure mode with quick couplers.

On the site side, OSHA 1926.651 requires that underground installations be located before excavation begins and protected or supported during the work, and OSHA 1926.602 sets requirements for earthmoving and material handling equipment used in construction. If your crew uses the excavator to lift and place pipe or boxes with the bucket, verify that the machine and rigging arrangement are rated for it before you start.

Storing Buckets Between Changes

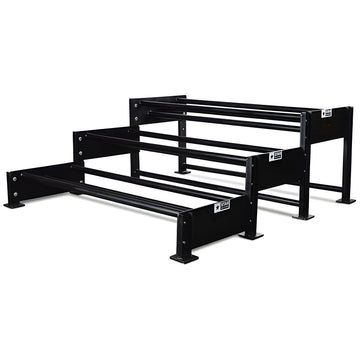

Loose buckets lying in the yard get damaged and are awkward to pick up. The Star Industries 84" Excavator Bucket Rack (model 910B) is built for 84" bucket width compatibility, 84" wide by 35", 62" or 96" overall, in heavy steel with 2.375" diameter tubes. It comes in single (910B-1L), double (910B-2L) and triple (910B-3L) bucket configurations and is designed to be moved by forklift or loader — useful if you run several profiles on one machine and swap by job phase.
