Actuators

Actuators for Machinery: What This Collection Covers

An actuator converts motor or manual input into controlled linear motion. On material handling equipment that motion is usually short and forceful — the stroke that closes a clamp on a pipe, engages a barrier lifter, or drives a screw jack under a load. It is a wear part in the truest sense: it cycles every time the machine picks and sets, which makes it one of the first components a fleet buys twice. This collection holds eight active items across two brands, Kenco and Vestil, priced from $8 to $750, and it is built around two distinct needs: authorized replacement actuators for Kenco lifters, and mechanical jacks for static lifting and equipment support.

Kenco Authorized Replacement Actuators

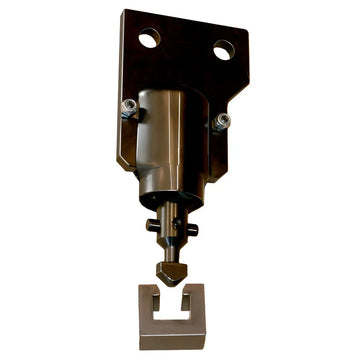

Kenco replacement actuators are listed by size class — Medium, Large and X-Large, plus one additional authorized replacement listing — and each one includes the receiving block, so you replace the engagement assembly as a matched pair rather than mating a new actuator to a worn receiver. The published specifications differ meaningfully between classes. The Medium actuator is a hydraulic-free linear actuator, electric motor driven, listed at a load capacity up to 2000 kg with a stroke length of 100–800 mm and manual or automated control. The Large actuator is a hydraulic-free heavy-duty unit listed up to 5000 kg with stroke up to 1000 mm, built in high-strength steel for vertical lifting. The X-Large actuator is described as an automatic engagement actuator for lifters, mechanically actuated for clamp engagement, with hydraulics required listed as no, and compatible with the KL40K6T12, PL7000 and PL8500 lifter models. If you know your lifter model number, that compatibility line is the fastest route to the right part.

Vestil Mechanical Screw Jacks

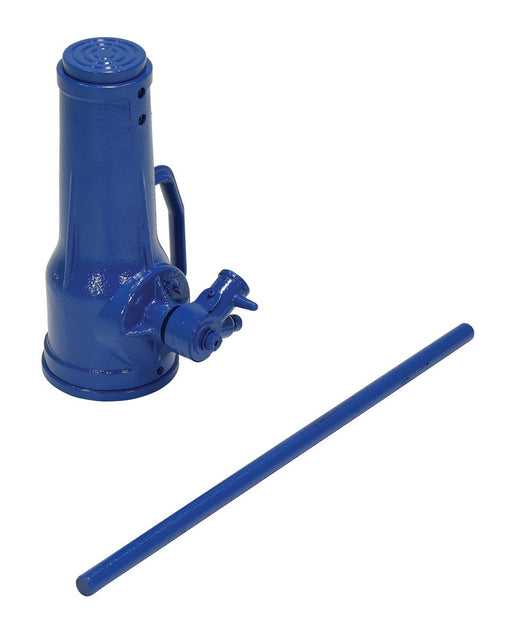

The Vestil Mechanical Screw Jacks (MSJ) listing is a different tool for a different job: static lifting, leveling and load support rather than repeated clamp actuation. Three models are offered, made in the USA by Vestil Manufacturing and carrying a 1-year limited warranty.

A screw jack holds its position mechanically once raised, which is why this class of tool is common for equipment support and shimming work; the hydraulic bottle jack in the same listing trades that behavior for faster travel. ASME B30.1 is the standard that addresses jacks, industrial rollers, air casters and hydraulic gantries, and it is the right reference if your site needs a written inspection procedure for this equipment.

Hardware: Bolts, Washers and Nuts

Two fastener sets are stocked separately because actuator bolts are a consumable, not a permanent part of the assembly. The general set of two bolts, washers and nuts fits Kenco-brand Small, Medium and Large actuators; it is high-strength alloy steel with precision-machined external threads and a corrosion-resistant coating, listed as compatible with standard washers and locking hardware. A second set is specific to the KL40K6T12 actuator. The Kenco PL7K & 85 actuator bolts are listed against the Kenco ML12K14T88V1 Multilift, a 12,000 lb capacity unit with a 14" to 88" outside grip range, a 38" to 112" inside-out grip range, 360° pivoting pads and heavy-duty steel construction. Buy fasteners as a set: replacing one bolt and reusing its mate leaves mismatched thread wear and uneven clamp load.

How to Choose, and What Buyers Get Wrong

Start from the machine, not the part. Identify the lifter model and size class first, confirm stroke and rated load against the published spec, then add the matching fasteners to the same order. Three mistakes come up repeatedly. The first is ordering by photograph instead of model number — size classes look alike in a listing image. The second is replacing an actuator without replacing the receiving block or the bolts, which seats a new part against a worn mating surface and reintroduces the play you were trying to remove. The third is treating a clamp-engagement actuator and a screw jack as interchangeable because both lift. They are not: one cycles, one holds.

On the forklift actuator side, the regulatory picture matters. OSHA 1910.178(a)(4) prohibits modifications and additions that affect capacity and safe operation without the manufacturer's prior written approval, and OSHA 1910.178(a)(5) requires the truck's markings to be changed to reflect attachments. ANSI/ITSDF B56.1 covers low lift and high lift powered industrial trucks, including requirements around attachments. Where a clamp-style lifter is suspended from a crane hook rather than carried on forks, ASME B30.20 covers below-the-hook lifting devices. Using the manufacturer's authorized replacement part keeps that documentation trail simple; a fabricated substitute does not.

Inspection and Service Life

Actuators fail in ways you can see coming. Watch for hesitation or inconsistency in the engagement stroke, elongation at the bolt holes, peening or galling on the receiving block, and fastener heads that no longer seat flat. OSHA 1910.178(q)(7) requires powered industrial trucks to be examined before being placed in service and at least daily, and after each shift where trucks run round-the-clock; OSHA 1910.178(l) requires operator training for powered industrial trucks. Fold the attachment and its actuator into that same walkaround rather than treating it as separate. If downtime costs you a shift, keep one spare actuator and one spare bolt set per machine class on the shelf — within this collection's $8 to $750 range, the hardware sets in particular are inexpensive relative to an idle machine.
