Industrial Cabinets

What an Industrial Cabinet Has to Do on a Working Site

Industrial cabinets are specified by contents first and footprint second. A cabinet holding compressed gas cylinders answers to different rules than one holding shop rags, and a locker in a wash-down food plant needs a different material than one in a dry parts room. This collection carries 18 active Vestil items spanning cylinder storage cabinets, propane exchange cabinets, flammable safety cabinets, bin storage cabinets, stainless steel lockers, tool boxes, work benches, trash cans and dock seal draft blockers. Vestil lists these as made in the USA, and the models with published spec data carry a 1-Year Limited warranty. Prices across the collection run from $101 to $5,176.

Before comparing models, settle four things: what goes inside, whether the enclosure needs ventilation, whether it needs to lock, and whether it will ever be moved. Those four answers eliminate most of the catalog quickly.

Cylinder and Propane Exchange Cabinets

Compressed gas storage is the most rule-bound category here. OSHA 1910.253(b)(4) governs storage of oxygen and fuel-gas cylinders and requires that oxygen cylinders in storage be separated from fuel-gas cylinders by at least 20 feet, or by a noncombustible barrier at least 5 feet high with a fire-resistance rating of at least one-half hour. NFPA 55, the Compressed Gases and Cryogenic Fluids Code, addresses cylinder storage enclosures more broadly, and NFPA 58, the Liquefied Petroleum Gas Code, covers LP-gas cylinder storage including exchange installations. Confirm which of those your local authority having jurisdiction enforces before you pick a cabinet.

The catalog splits this three ways. The Galvanized Cylinder Storage Cabinet is a single model, CYL-T-COMBO, listed for horizontal and vertical storage at $1,822.43. The Propane Exchange Cylinder Cabinets run four models from $887.08 to $1,249.80 in 12- and 18-cylinder capacities, with a choice of solid or mesh door — CYL-EX-12-S (solid door, 12 capacity) at $887.08 against CYL-EX-12-E (mesh door, 12 capacity) at $904.94. Separate USA-sales and Canada-sales cylinder storage cabinet listings are also stocked, which matters if you are buying for a cross-border operation.

Flammable Safety Cabinets and Bin Storage

OSHA 1910.106(d)(3) sets design and construction requirements for flammable liquid storage cabinets and limits a single cabinet to no more than 60 gallons of Category 1, 2 or 3 flammable liquids, or 120 gallons of Category 4. NFPA 30, the Flammable and Combustible Liquids Code, is the companion document most inspectors reference. If you store solvents, paints, adhesives or fuel in a shop, the Flammable Safety Cabinets (FLSC) are not a discretionary purchase — they are usually the difference between a clean inspection and a citation.

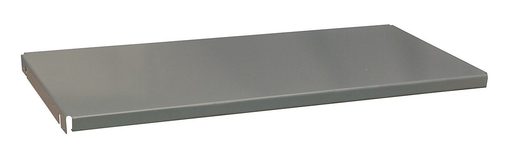

Bin storage cabinets solve a different problem: small-part chaos. The Bin Storage Cabinets (VSC) put bins behind doors, keeping fasteners and fittings sorted without leaving open shelving to collect dust and drift. Buyers commonly under-buy here, sizing to today's part count rather than the count after the next line launches.

Lockers and Tool Boxes: Fixed vs Portable

Stainless Steel Lockers (LOCK) are the deepest line in this collection at 12 models, $1,162.51 to $4,452.70, in sizes listed from 18"×18" to 18"×54". Configuration is by rows and columns: LOCK-1218-SSS1 is a one-row, one-column unit listed at 18 × 12 × 78 for $1,162.51, while LOCK-1218-SSD1 is a two-row, one-column unit on the same footprint. Stainless is the right call in wash-down, food processing, pharmaceutical and coastal environments where painted steel chalks and rusts; it is overkill in a dry maintenance shop.

Tool storage splits by mobility. The Expanded Wire Toolbox (TBS) gives visibility into contents, the Aluminum Tread Plate Portable Tool Boxes (APTS) and Steel Tread Plate Portable Tool Boxes (STTB) travel with a crew, and the Aluminum Tread Plate Trailer Tool Box mounts to a trailer for service fleets. Aluminum saves weight on a trailer and will not rust; steel takes more abuse per dollar.

Work Benches, Waste Handling and Dock Accessories

Work surfaces sit alongside cabinets in most of these buys. The Linear Actuated Adjustable-Height Work Bench (LAW-3636) is listed at $3,072.15 and uses a powered actuator, which suits a station shared across shifts by operators of different heights. The Manual Adjustable Ergonomic Work Benches (EWB) are two models — EWB-6030 at 60 × 30 in for $2,486.29 and EWB-7236 at 72 × 36 in for $2,558.01 — and fit where height is set once per job rather than per task. Heavy Duty Steel Workbenches (WBT) and Plastic Work Benches cover fixed-height duty; plastic is the choice where chemicals or wash-down would attack a steel top. OSHA has no specific ergonomics standard for workstations and cites employers under the General Duty Clause, Section 5(a)(1) of the OSH Act; NIOSH publishes the Revised Lifting Equation as the common reference for evaluating manual lifting tasks.

The Electric Hydraulic Trash Can Dumpers sit at the top of the range, six models from $5,175.81 to $5,639.98. TCD-M-48-AC and TCD-M-48-DC are both listed at 400 lb and 74 in and differ only in power: DC for cord-free battery operation, AC for a fixed station. Dock Seal Draft Blockers (DRAFT) close the gap at the leveler and trailer, cutting air infiltration that drives conditioning cost and ice buildup on refrigerated docks. Trash Cans (TH) round out the waste side; OSHA 1910.141(a)(4) requires that workplace waste receptacles be constructed so they do not leak and can be maintained in a sanitary condition.

Specifying, Installing and Budgeting

Three practical checks before ordering. First, receiving: the larger cabinets and the dumpers ship palletized and need a forklift or pallet truck at the dock. Second, anchoring — OSHA 1910.176(b) requires stored material to be stacked, blocked or interlocked so it is secure against sliding or collapse, and tall narrow enclosures should be fixed to floor or wall. Third, powered units: OSHA 1910.147 requires energy control procedures for servicing equipment where unexpected startup or stored energy could injure a worker, which applies to hydraulic dumpers and powered benches.
