Forklift Attachment Loading Platforms

What Forklift Attachment Loading Platforms Do

A forklift loading platform is a steel deck that slips onto the forks and gives the truck a flat, ramped working surface. Instead of pouring a permanent ramp or dedicating a dock position, you get a deck that a pallet jack, drum dolly, hand cart or loose material can be rolled or set onto, then moved by the forklift to the point of use. Contractors use them for jobsite deliveries and staging, warehouses use them at trailer doors and mezzanine edges, and service shops use them for wheeled loads that cannot be picked cleanly with bare forks.

The three platforms here cover the two common patterns: a plain steel deck with a ramp for rolling loads on and off, and a deck with an integrated towing receiver so the same attachment lets the truck pull a trailer. All three are steel-framed and fork-mounted, so no hydraulics or electrical connections are required at the carriage.

Loading Platforms in This Collection

How to Choose a Forklift Loading Platform

Start with the load, then the deck. The two Star Industries platforms bracket most buying decisions: Model 1385 is rated 1,000 lbs on a 50" x 65" deck, while Model 1388 is rated 3,500 lbs on a 48" x 72" deck. If you are rolling a loaded pallet jack or a drum cart onto the deck, weigh the cart and the payload together, not just the payload.

Add the platform's own weight. Model 1385 weighs 305 lbs empty and Model 1388 weighs 498 lbs empty. That weight sits on the forks before you load anything, and it counts against what your truck can lift.

Account for load center. A forklift's data plate rates capacity at a specific load center measured from the fork face. A platform spreads the load out across the deck, pushing the effective load center forward, so your truck's usable capacity will be lower than the plate figure suggests. Check the truck manufacturer's derating guidance before committing to a deck size.

Match deck size to your pallet or cart footprint. The 48" x 48" deck on the Load-N-Tow Model 1398 accommodates the 48 x 40 inch GMA pallet footprint standardized by the Grocery Manufacturers Association. The longer 48" x 72" and 50" x 65" Star decks give more room for oversized, overhanging or awkward loads.

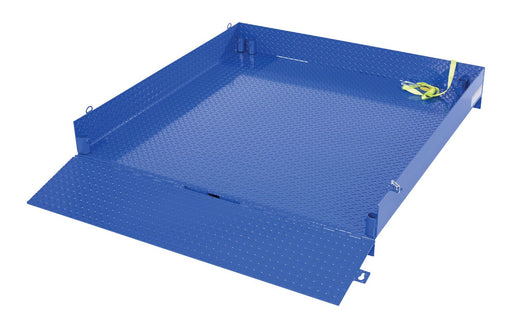

Decide on ramps and rails. The Star Industries platforms use a fixed 15" ramp; the Load-N-Tow uses controlled slow-descent ramps with spring-loaded locking pins, which matters if the deck is being loaded and unloaded repeatedly through a shift. Vestil offers the FTLP-5454 plain and the FTLP-5454-HR with handrails.

Loading Platform vs. Boom, Hopper and Other Forklift Attachments

Loading platforms are one family in a broad attachment category. Fork extensions add reach for long loads. Self-dumping hoppers give the truck a tipping container for scrap and debris. Drum handlers, carton clamps, rotators and side shifters change how the load is gripped or positioned. Jib booms — also called crane arms or fork-mounted cranes, which is why people say "boom forklift" — convert the truck into a light lifting crane with a hook at the end, in fixed, pin-adjusted telescoping and hydraulically telescoping versions.

The distinction that matters for buyers: a loading platform keeps the load low, flat and rolling, while booms and clamps change the lifting geometry and usually cut rated capacity significantly. If your problem is getting wheeled or palletized material on and off a truck bed, mezzanine or elevated slab, a platform is the simpler and cheaper answer.

OSHA and ANSI Requirements for Forklift Attachments

OSHA 1910.178(a)(4) states that modifications and additions affecting capacity and safe operation shall not be performed without the manufacturer's prior written approval, and that capacity, operation and maintenance instruction plates, tags or decals must be changed accordingly — so your truck's data plate should reflect the attachment in use. OSHA 1910.178(l) requires operator training and evaluation for powered industrial trucks, and that training must cover the attachments the operator will actually use.

OSHA 1910.178(m)(12) requires that whenever a truck is used to elevate personnel, a safety platform firmly secured to the lifting carriage or forks be used, with means to protect the person on it. A material loading platform is not a personnel platform unless the manufacturer documents it as one — handrails alone do not make it a man basket. ANSI/ITSDF B56.1, the safety standard for low lift and high lift powered industrial trucks, covers attachment use and capacity marking in more detail.

Site Requirements, Maintenance and Common Mistakes

Loading platforms need reasonably flat, firm ground at both ends of the move. A 15" ramp works well against a level slab; soft gravel, broken asphalt or a cross-slope makes rolling loads unpredictable. Plan the travel path before you plan the purchase.

Inspection is straightforward: check welds and the deck for deflection, check ramp hinges and the spring-loaded locking pins on the Load-N-Tow, check the safety chain and grab hook for stretched links or a deformed hook, and keep the fork pockets clear of debris so the platform seats fully. Steel platforms stored outdoors will surface-rust; keep coatings intact where the ramp and deck flex.

The mistakes we see most often are buying on deck size alone and discovering the rated capacity is short; forgetting the platform's own 305 or 498 lb weight; leaving loads unsecured on the deck during travel; assuming a handrail equipped deck is approved for lifting people; and, on the towing model, exceeding the truck's drawbar rating — that figure comes from the forklift manufacturer, not from the attachment.
