Compressors

Compressors and Compressor Parts at Vovlift

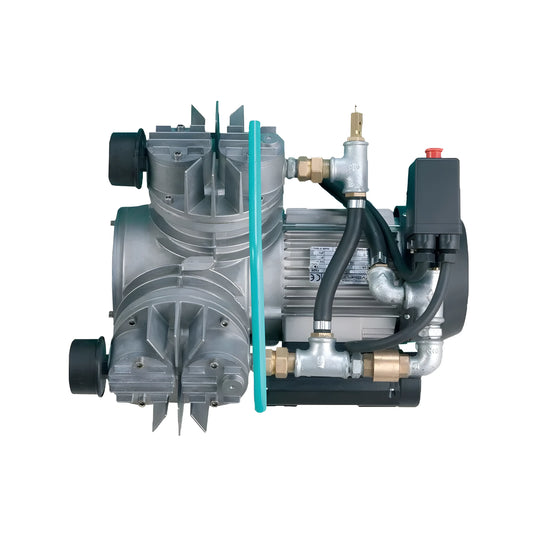

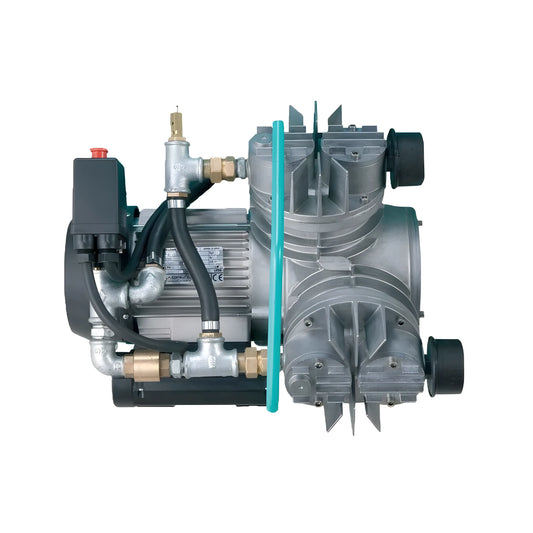

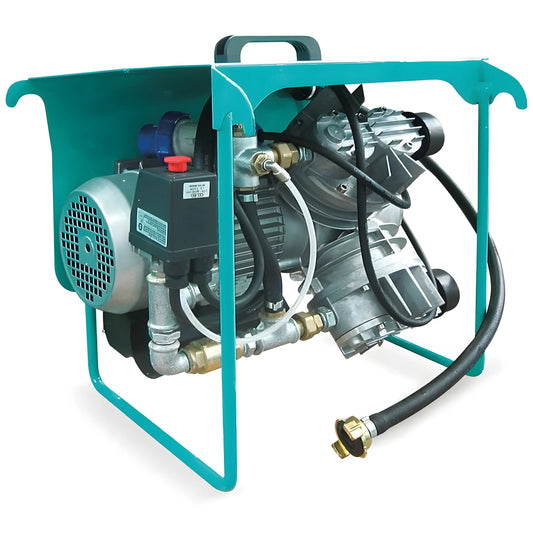

This collection holds nine active items across two brands — IMER (3 items) and BE Power Equipment (6 items) — with prices from $3 to $3,115. The IMER listings are the compressors themselves: the IMER 1107602 Dual Diaphragm Air Compressor, the IMER 1107546 Mighty Small 50 Modular Air Compressor, and the IMER 1107680 KOINE 4 Dual Diaphragm Compressor. The other six items are the air-line hardware that compressed air systems actually leak at: quick-connect couplers, plug kits, and a stainless steel swivel for hose reels.

Diaphragm, Piston and Rotary Screw: How Air Compressors Differ

A diaphragm compressor moves air with a flexing membrane driven by an eccentric, rather than a piston sliding in a lubricated bore. Nothing in the air path touches crankcase oil, so the discharge is inherently oil-free. That is why diaphragm units are common on plastering, rendering and mortar-spraying equipment, where an oil film would ruin adhesion, and in light pneumatic and laboratory work. Dual diaphragm designs drive two heads from one motor to raise flow and smooth the pulsation a single head produces.

Reciprocating piston compressors are the general shop standard: inexpensive per unit of flow, tolerant of stop-start use, and loud. They are built to rest between cycles, and running one under sustained load shortens valve and ring life. Rotary screw compressors compress air continuously between two meshing rotors, run quieter, and are intended for long run times, but they cost more up front and do not like being lightly loaded for extended periods. Choose by how many hours per shift the machine will actually be making air, not by peak demand alone.

Sizing an Air Compressor: Pressure, Flow and Duty Cycle

Pressure gets the attention, but flow decides whether the tool works. Every pneumatic tool nameplate states a required air flow at a given pressure. Add the demand of every tool that will run simultaneously, then leave headroom for leakage and for pressure drop across hose, couplers, regulators and filters. Undersized flow shows up as a tool that starts strong and fades as the receiver empties faster than the pump can refill it. Long or narrow hose runs and undersized quick-connects make this worse, which is why fitting selection is a sizing decision, not an afterthought.

Duty cycle is the other half. A machine specified for intermittent service that gets used continuously will overheat, carbon up its valves and fail early, and no amount of tank volume fixes that. If the application is continuous — a spraying rig fed all shift, for example — specify a compressor built for continuous duty rather than a larger intermittent one. Air quality matters too: ISO 8573-1 defines compressed air purity classes for particulate, water and oil content, and it is the standard to cite when a process such as coating, instrumentation or food contact has a contamination limit.

Couplers, Plugs and Fittings: Match the Profile

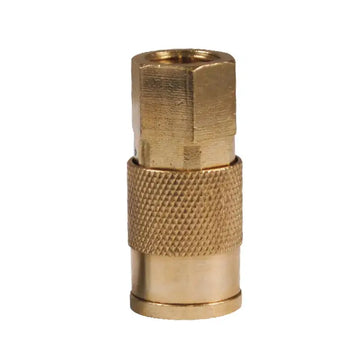

Quick-connect couplers are not universal. Industrial 'M' style (the industrial interchange found across most US shops) and automotive style use different plug geometry and different sealing surfaces. A plug from one profile may push partway into a coupler from another without ever sealing or locking, which produces a leak that looks like a compressor problem. Standardize the whole shop or truck on one profile and keep a small stock of spares; mixed profiles are one of the most common causes of chronic air loss.

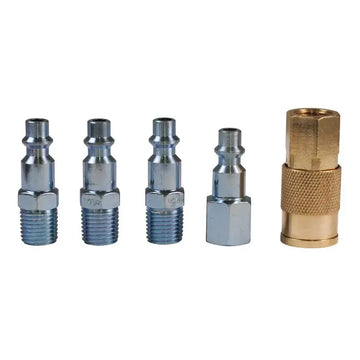

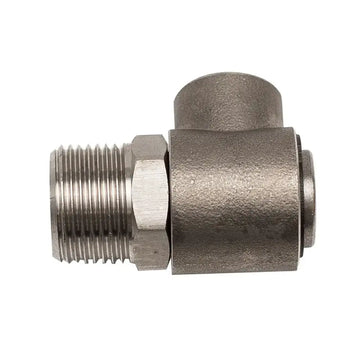

Thread designation is separate from coupler profile. MNPT is male pipe thread and FNPT is female pipe thread, and the coupler or plug has to match the fitting it screws into, not the one it clicks onto. This collection carries both in 1/4", including two-piece plug kits and a five-piece industrial 'M' kit, so a hose end, a tool whip and a manifold port can all be brought onto the same profile at once. A stainless steel reel swivel serves a different failure point: it lets the hose rotate at the reel instead of twisting the connection, and stainless holds up better than plated steel in washdown and outdoor service.

Power, Site and Safety Requirements

Compressed air is a regulated energy source in US workplaces. OSHA 1910.242(b) prohibits using compressed air for cleaning unless it is reduced to less than 30 psi and used with effective chip guarding and personal protective equipment. OSHA 1910.169 covers air receivers and requires a drain at the low point, an indicating pressure gauge and a safety relief valve, and it references construction to the ASME Boiler and Pressure Vessel Code, Section VIII. Where compressor noise pushes exposure to or above the OSHA 1910.95 action level of 85 dBA as an 8-hour time-weighted average, a hearing conservation program applies.

On the electrical side, motor branch circuits and overcurrent protection are covered by NFPA 70 (NEC) Article 430; have an electrician confirm the circuit before assuming an existing outlet is adequate. Site-wise, plan for intake air that is clean, cool and dry, clearance for airflow around the unit, and a route for condensate. Condensate from oil-lubricated machines can carry oil and is often not permitted down a floor drain — check with the local sewer authority before disposal.

Maintenance and What Buyers Get Wrong

Drain the receiver on a regular schedule; standing water corrodes the tank from the inside and carries moisture downstream into tools and coatings. Keep intake filters clean, since a restricted inlet costs flow and raises discharge temperature. On diaphragm machines, the diaphragm and valve plates are consumables — budget for them the way you would budget for belts and oil on a piston unit, and check parts availability before you commit to a platform.

The recurring buying mistakes are predictable. Buying on maximum pressure instead of flow at working pressure leaves tools starved. Ignoring duty cycle turns a correctly sized machine into a warranty conversation. Running a big tool through a small coupler throttles the whole system at a $3 part. And mixing coupler profiles across a fleet guarantees leaks and lost fittings. Decide the application, the run time and the connection standard first; the model number follows from those three answers.
