Loading Ramps

How to choose a loading ramp for your site

The right loading ramp is decided by two things: what the ramp lands on, and what crosses it. A ramp that bridges the ground to a shipping container floor is a different structure from one that bridges a dock edge to a trailer, and both differ from a pair of ramps that let a hand truck roll into a pickup. Start by measuring the vertical rise at the loaded working height, confirm the heaviest single unit that will cross — vehicle plus operator plus load — and only then look at length, width and deck surface. Everything in this collection is Vestil, made in the USA, and runs from $192.48 to $6,083.76.

Walk ramps: aluminum plank or grip-strut deck

Walk ramps are the workhorse of the category. Aluminum construction keeps weight down, so shorter ramps can be repositioned without a lift truck, and they are intended for hand trucks, manual pallet jacks, drum carts and foot traffic rather than for counterbalanced forklift traffic. We stock the Vestil Aluminum Walk Ramps (AWR) family in 76 models spanning 96 x 28 in. to 192 x 38 in., priced from $431.62 to $2,745.63, and the Aluminum Grip-Strut Walk Ramps in 34 models from $713.85 to $3,098.71, starting with the AWR-G-28-6A at 72 in. long by 28 in. wide.

The deck surface is the real decision. A solid plank deck rolls small hard casters smoothly and is easy to sweep clean. A grip-strut deck is open grating: it drains rain and snowmelt, sheds mud and dust instead of packing it, and gives better underfoot traction outdoors, at the cost of a rougher ride for small wheels. If the ramp lives outside year-round, grip-strut usually wins. Size width to the widest load plus clearance for the operator's hands, not just to the pallet; the AWR-HR-6-RF handrail retrofit adds edge protection on 6 ft aluminum walk ramps where people walk alongside a load.

Container ramps: side rails or a flip-over bridge

Container ramps are built for driving a lift truck up into a sea container or trailer, so they are steel, far heavier, and rated model by model. The Vestil Steel Container Ramps with Side Rails (CRS) come in four models from $1,504.37 to $3,003.45; the CRS-6060-15 is a 60 x 60 in. ramp rated at 15,000 lb and the CRS-6060-20 is the same footprint rated at 20,000 lb. The side rails are run-off protection — they keep a drifting drive wheel from leaving the deck.

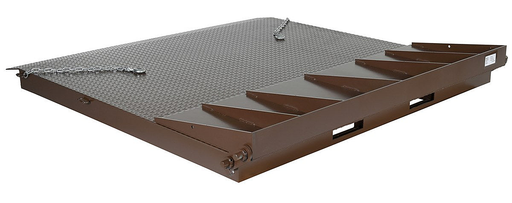

The Steel Container Ramps with Flip-Over Bridge (SCR) address the other problem: the gap and the raised sill at the container door. The bridge folds over onto the container floor so the truck crosses the threshold without dropping a wheel. Two sizes are stocked, the SCR-72 at 98 x 76.5 in. for $3,171.29 and the SCR-84 at 98 x 84 in., with the family topping out at $3,334.20. Rate against the loaded truck, not the pallet — a lift truck's own service weight is usually the larger number.

Approach ramps and dock leveler options

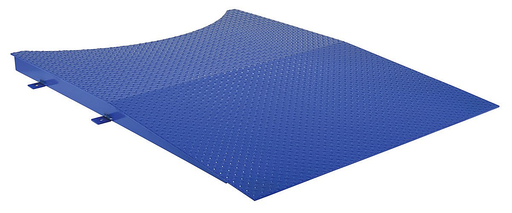

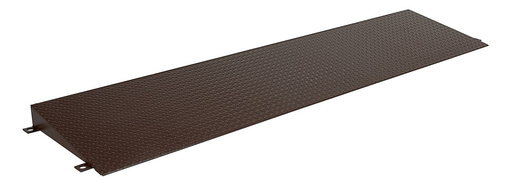

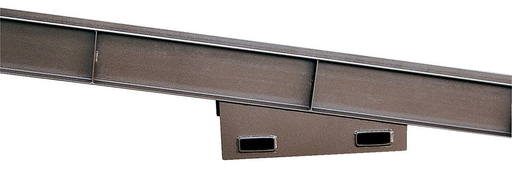

Approach ramps are transition pieces rather than standalone ramps. They take the abrupt lip at the edge of another piece of equipment and turn it into a short grade a pallet jack can cross. We carry steel approach ramps in a 48 x 60 in. size, scissor dock option approach ramps in 8 in., 10 in. and 14 in. heights to match the lowered deck height of a scissor dock lift, and dock leveler approach ramp options in 96 x 24 in. and 96 x 12 in. There is also a yard ramp fork pickup slot option at 7.5 x 2.5 in., which lets a forklift lift and reposition the ramp instead of dragging it. Order these against the model of the equipment they serve: the wrong height simply reintroduces the lip you were trying to remove.

Getting slope, length and capacity right

Slope is the most common ordering mistake. For a given rise, the only way to reduce grade is more length, and a ramp that is too steep will stall an electric pallet truck, drag the underside of a low-clearance vehicle at the transition, or make a hand truck unmanageable on the way down. Measure the rise with the trailer or container loaded and its suspension settled, not empty, because the height moves as you work. Check the powered truck's own operating manual for its maximum grade rating; that limit belongs to the truck, not the ramp. For pedestrian access, the ADA Standards for Accessible Design limit the running slope of an accessible ramp to 1:12 — an accessibility rule that does not govern industrial walk ramps, but a useful sense of how much length a gentle grade consumes.

On capacity, use the rating published for the specific model, and treat the landing surface as part of the system: soft asphalt in summer heat, loose gravel or a sloped apron will undermine an otherwise correctly rated ramp.

Safety, compliance and what to confirm before ordering

OSHA 1910.26 covers dockboards and requires that they be capable of supporting the maximum intended load, be secured in position by anchoring or another equally effective means, and have run-off protection at the sides unless the design makes it unnecessary. OSHA 1910.178(m)(7) requires that trailer brakes be set and chocks or equivalent restraint be in place before a powered industrial truck drives on or off a trailer. OSHA 1910.178(l) requires trained and evaluated operators for powered industrial trucks, and ANSI/ITSDF B56.1 is the safety standard for those trucks — both govern the vehicle using the ramp rather than the ramp itself.

Before ordering, confirm four things: the measured rise at working height, the heaviest crossing unit, the load width plus clearance, and how the ramp will be secured and repositioned. Every ramp in this category is Vestil, made in the USA, and carries Vestil's 1-year limited warranty. These are heavy freight items, so plan how they will be unloaded and moved on site before delivery day.
