What sizes do these walk ramps come in?
They come in two nominal widths, 28 inches and 38 inches, with lengths from 72 to 192 inches. Both widths are offered at 72, 84, 96, 108, 120, 144, 168 and 192 inches long. There are 34 models in the range in total, including handrail versions and two split-ramp models.
What load capacity are they rated for?
A rated capacity is not listed in the specifications for this range, so confirm the figure for the specific model number before ordering. When you check it, size the ramp against the combined weight of the pallet truck or cart plus its load, not the load alone, and choose a length that keeps the slope manageable for that equipment.
Which models include handrails?
Model numbers ending in -HR include a handrail. Rails add to the overall width: a 28-inch ramp measures 29.38 inches across with rails, and a 38-inch ramp measures 39.38 inches. Handrail models are listed from 73.25 up to 191 inches long. For example, AWR-G-28-6A-HR is 29.38 by 73.25 inches at $1,286.11.
What are the ESR split ramp models?
They are the two split-ramp options, both 143.75 inches long. AWR-G-36-ESR-12A measures 35.875 inches wide at $2,294.42, and AWR-G-18-ESR-12A-EXT is an extension split ramp measuring 18.4375 inches wide at $1,095.30. The narrower extension model is the lower-cost way to add width where a single wide ramp is not needed.
How much do they cost, and what drives the price?
Prices run from $713.85 to $3,098.71 across the 34 models. The entry price is AWR-G-28-6A, the 72-inch by 28-inch ramp. Cost rises with both length and width, and handrail versions carry a clear premium: the 192-inch by 38-inch ramp is $1,850.74 without rails and $3,098.71 with them.
Where are they made and what warranty applies?

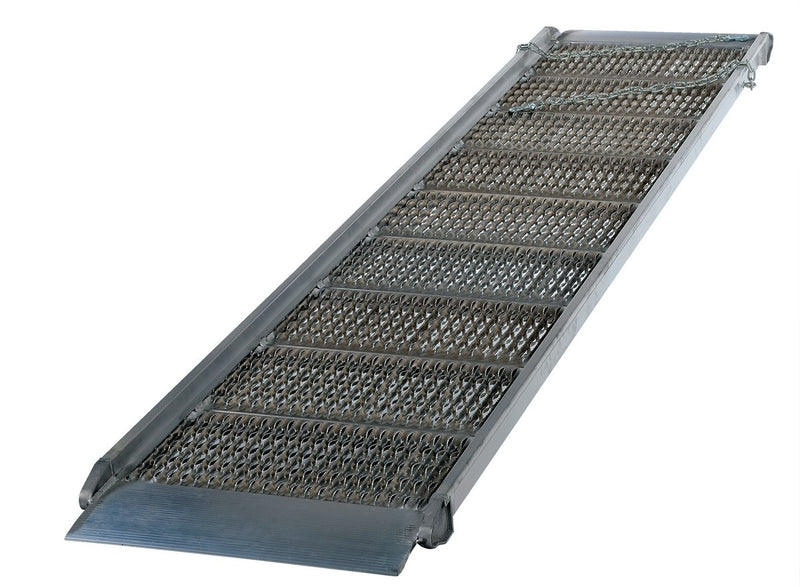

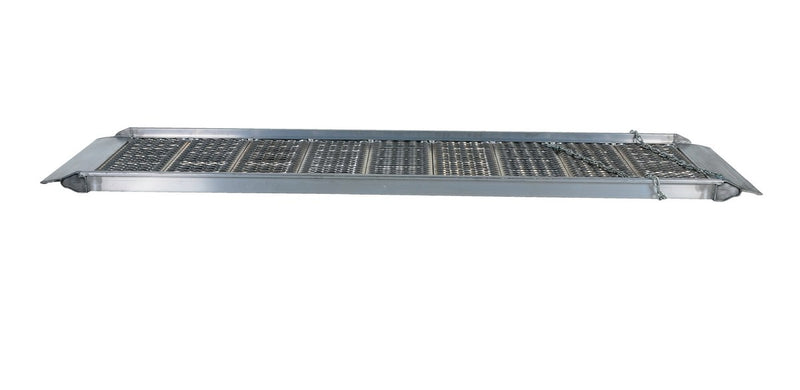

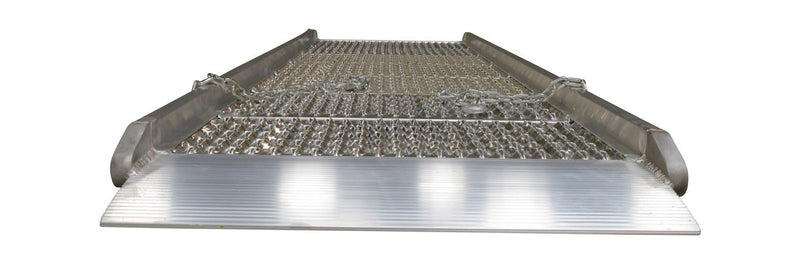

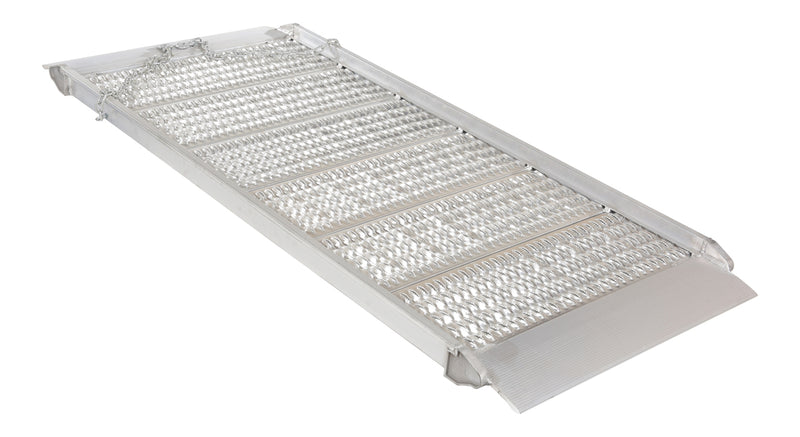

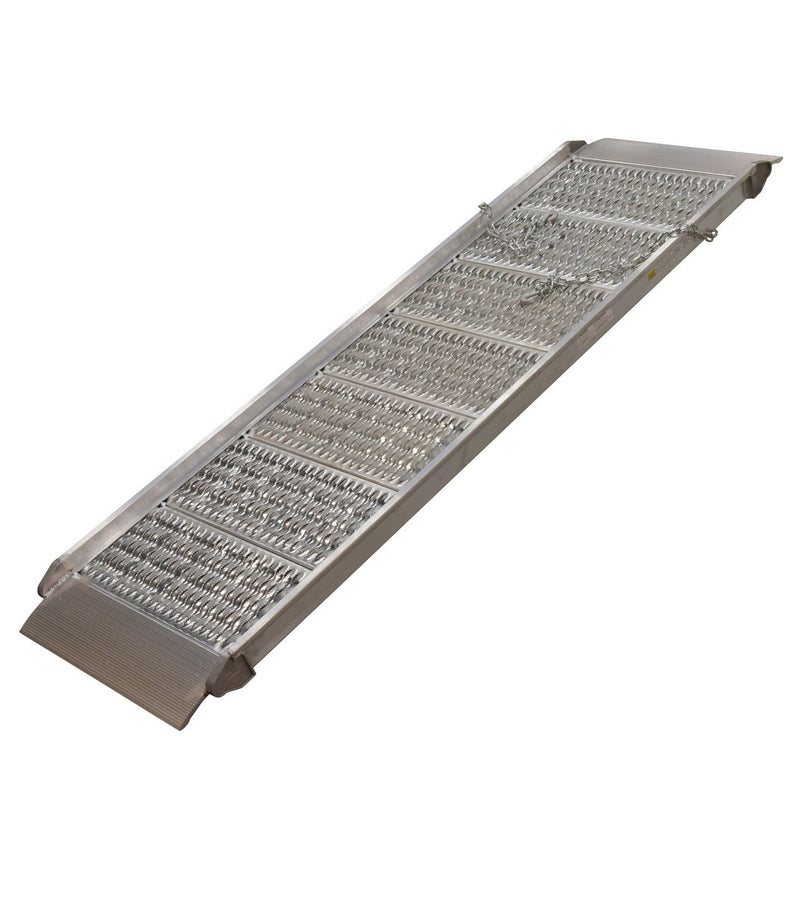

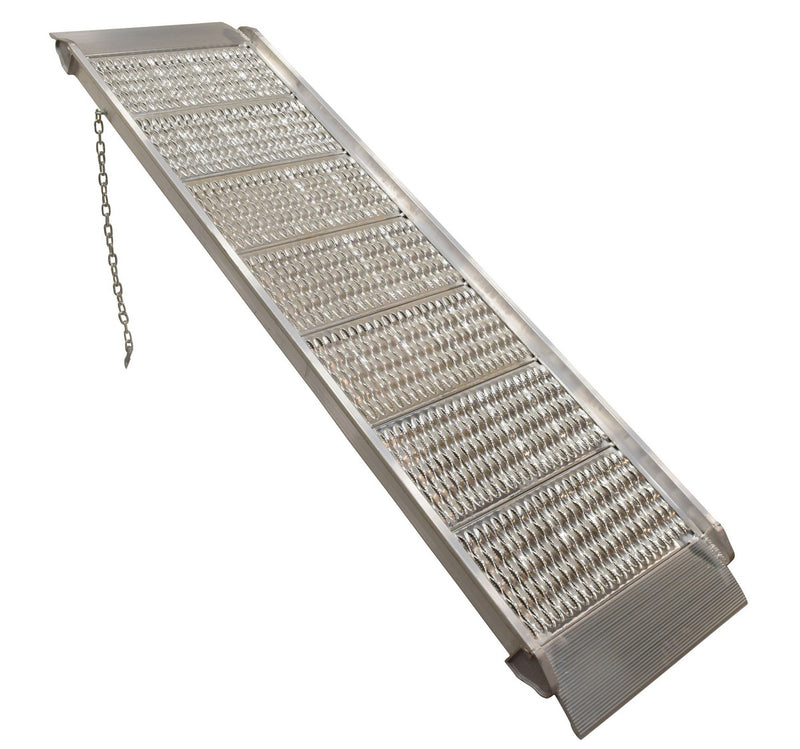

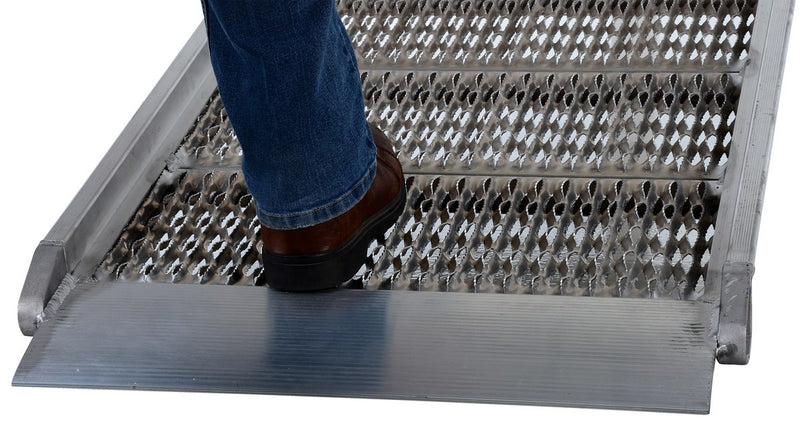

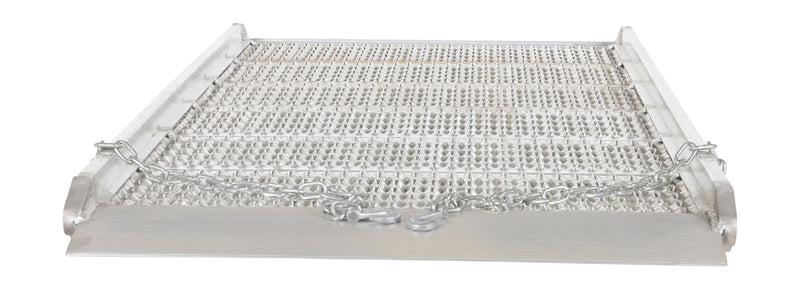

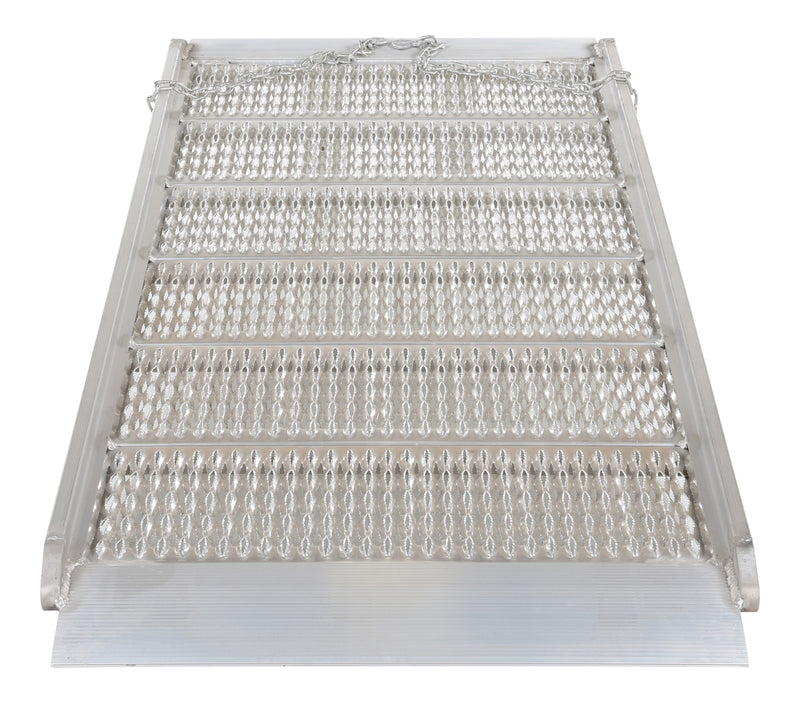

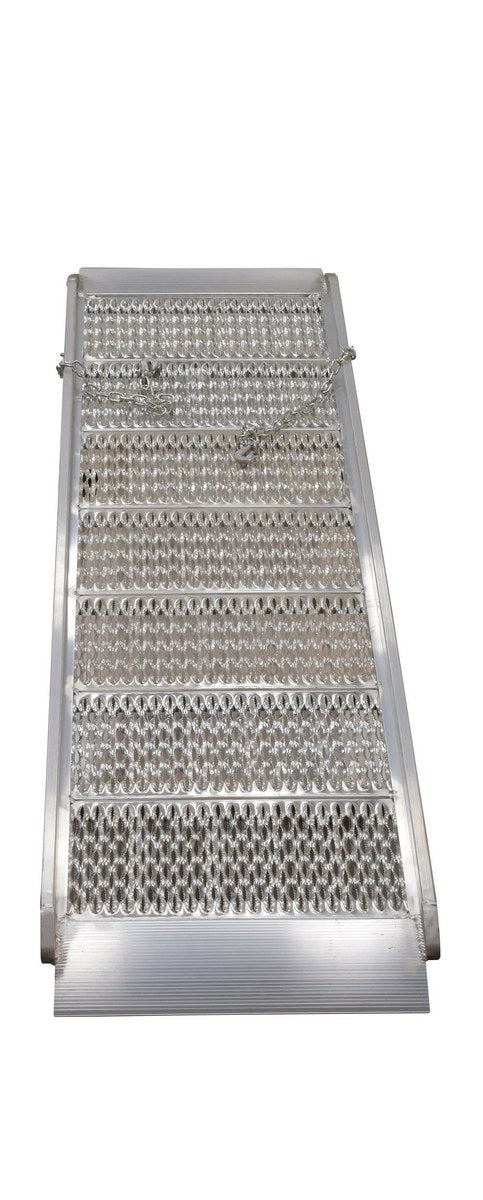

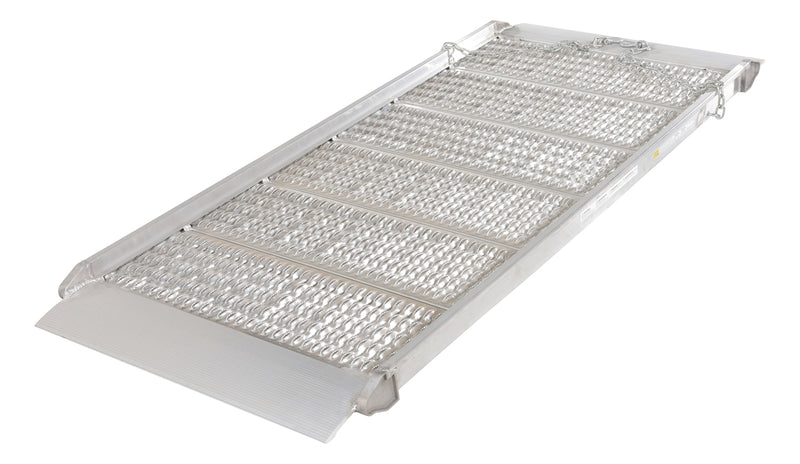

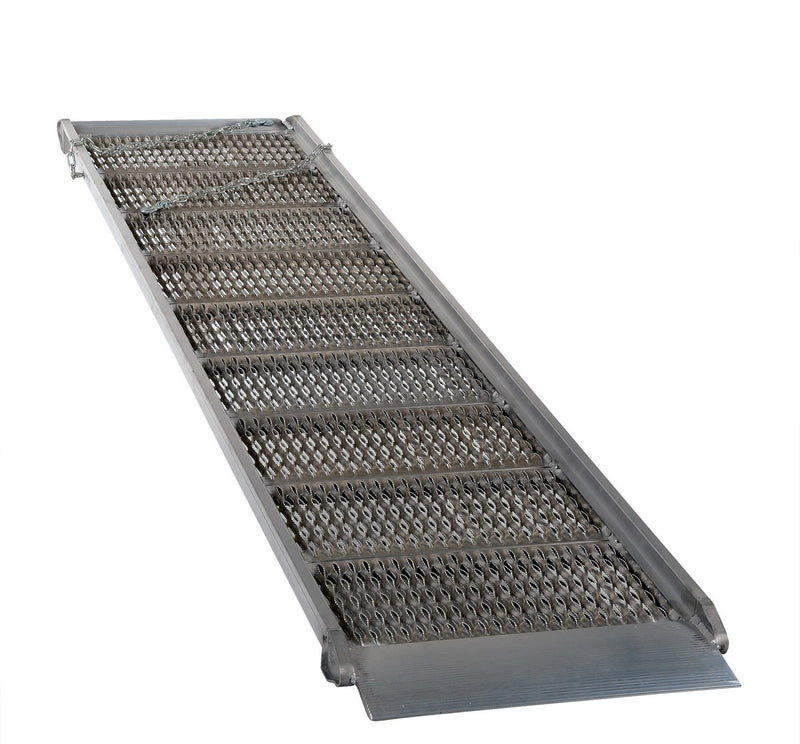

They are made in the USA by Vestil Manufacturing and carry a 1-Year Limited warranty. The construction is aluminum with a grip-strut walking surface, which keeps the ramps lighter to reposition than steel equivalents. No other coverage, service or certification claims are stated in the product data for this range.
