Pipe Hooks: What They Do and Where They Pay Off

A pipe hook is a below-the-hook lifting device that reaches into the bore of a pipe and carries the joint from its inside wall. Instead of choking a sling around the barrel, the operator drops the hook in, picks the joint, swings it over the trench and lowers it onto the bedding. The real payoff is not lifting speed. It is that nobody has to be down in the excavation to rig and unrig each joint, and nobody has to reach under a suspended load to release a sling. OSHA 1926.1425 addresses keeping employees clear of suspended loads on construction crane work, and OSHA's excavation rules in 29 CFR 1926 Subpart P govern who may be in an unprotected trench. A pipe hook is one of the few tools on a sewer or storm crew that reduces both exposures at the same time.

Mechanical vs. Self-Leveling Pipe Hooks

Both styles carry the pipe the same way. The difference is how the hook finds the balance point so the joint hangs level and homes cleanly into the bell.

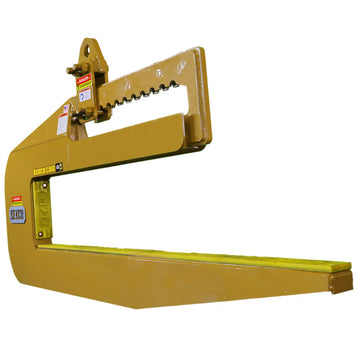

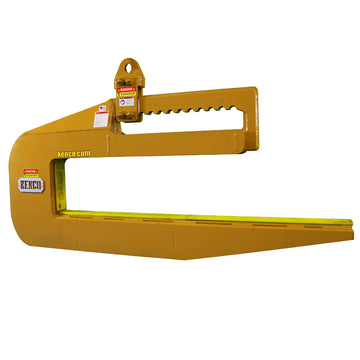

Mechanical hooks use a manual slide balance. The Kenco PH9000M and PH12000 are both listed with manual slide adjustment: the operator sets the balance position by hand for the joint being lifted. That is fast enough when you are running the same size and length of pipe all day, and it means one less system to maintain.

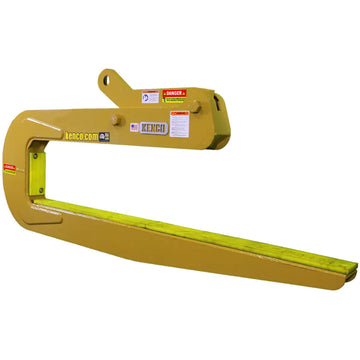

Self-leveling hooks adjust themselves. The PH3500SL uses a built-in automatic balancing cylinder, and the PH9000SL is listed with automatic adjustment built in. These cost more, but they stop the guessing when joint lengths, wall thicknesses and weights change through the day, and they cut the number of pick-and-reset cycles on a tight trench box.

If your work is a mix of storm, sanitary and culvert with varying pipe, self-leveling generally earns its price back in cycle time. If you are laying one size of pipe on long, repetitive runs, a mechanical hook is the simpler buy.

Sizing a Pipe Hook to Your Pipe and Carrier

Two numbers decide the hook: the weight of the heaviest single joint, and the range of pipe openings you actually handle. Get the joint weight from the pipe manufacturer's submittal rather than estimating it, and remember that the carrier is often the real limit. An excavator's rated capacity falls off sharply as the boom extends, so the lift has to be checked at the radius you will actually be working from, not at the machine's best case.

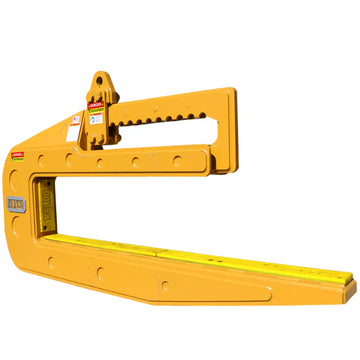

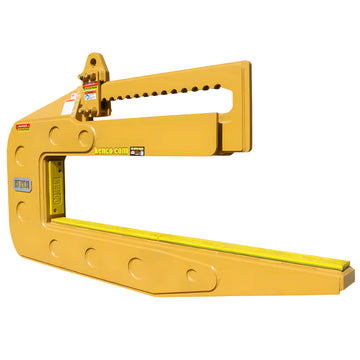

The PH18000 and PH30000 are the larger mechanical frames in this collection. The PH30000 (model number PH30000M) is built in high-strength steel with a mechanical hook and reinforced components, and is listed as compatible with standard lifting equipment. Check the individual product page for the full specification on those two before ordering.

Rigging, Standards and Operator Practice

A pipe hook is only as good as what connects it to the machine. The PH9000SL and PH3500SL are both listed with a shackle and sling assembly as the attachment method, and the PH12000 is listed for excavators and cranes with a rigging assembly. Those components have their own rules: ASME B30.9 covers slings and ASME B30.26 covers rigging hardware such as shackles, while ASME B30.20 covers below-the-hook lifting devices, including marking, inspection and testing. ASME BTH-1 is the companion design standard for below-the-hook devices.

On the job site, OSHA 1926.251 requires rigging equipment for material handling to be inspected before use on each shift and removed from service when it is damaged. In practice that means a walk-around before the first pick: hook tips and bearing surfaces, welds, pins and retainers, the slide or leveling mechanism, and the sling and shackle that carry the load. Operators should also agree on hand signals with the crew before the first joint goes in, because the person guiding the bell is usually outside the operator's sight line.

Coil Hooks and Machine-Specific Hooks in This Collection

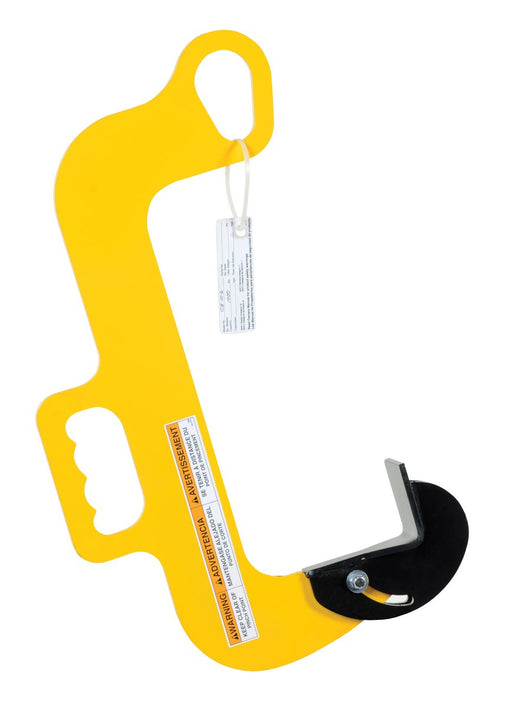

Not everything filed under pipe hooks is a trench tool. The Vestil Overhead Coil Hooks are a different job entirely: they carry steel coils through the eye under an overhead crane or hoist. Three models are offered, rated 1,000 to 2,000 lb and priced from $445.85 to $481.96, sized by coil width. Model CH-10-6 handles a 6 inch coil width at $445.85 and CH-10-12 handles a 12 inch width at $472.92, with a 2,000 lb 8 inch model also available. They are made in the USA by Vestil Manufacturing and carry a 1-year limited warranty. The IMER 1107570 pipe hook is a machine-specific part for the IMER Small 50, not a general-purpose lifting hook.

What Buyers Get Wrong

Three mistakes come up repeatedly. The first is buying for the average joint instead of the heaviest one, which forces a second hook onto the order later. The second is ignoring the minimum pipe opening: a hook sized for large culvert will not seat in small-diameter sanitary pipe, and the PH12000's 18 to 60 inch range is a different job from the PH3500SL's 10 inch minimum. The third is budgeting for the hook but not for the shackle and sling assembly that attaches it, then reusing whatever rigging is on the truck. If you are unsure which frame fits your pipe schedule and carrier, send us the pipe submittal and the machine model and we will point you at the right one.
