Telehandler Grapple Attachments

Grapple attachments for telehandlers, loaders and compact tractors

A grapple is a hydraulic clamping attachment: one or more powered tines close against a bucket, tine bar or frame so the carrier can hold a load rather than balance it. That is the whole difference between a bucket and a grapple bucket attachment — material stays put while you back out of a brush pile, travel across uneven ground, or load a trailer. Everything in this category is powered by the carrier's auxiliary hydraulics, so the buying decision is usually less about the steel and more about whether your machine has the coupler, the circuit and the front-end capacity to run it.

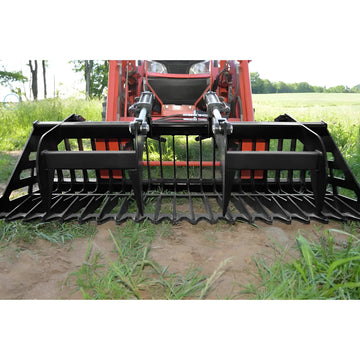

What we currently stock is three units: two compact tractor grapples from Loflin Fabrication and one universal adapter from Star Industries, between $2,390 and $3,202.

Root grapple vs. rock bucket grapple vs. grapple adapter

These three do different jobs, and buyers routinely order the wrong one because both look like "a grapple" in photos.

The short version: a root grapple keeps the soil, a rock bucket grapple sheds it, and the grapple adapter is the low-cost route if your bucket is in good shape and you only need the top clamp. Independently operated tines, as on the rock bucket grapple, matter when you pick up loads of mixed length — one tine can bite a short piece while the other holds a long one.

Matching a grapple to your carrier: mount, flow and couplers

Check three things in this order. First, the interface. The Loflin grapples use a universal mounting system for compact tractor 3-point hitches and quick attach systems; the Star adapter is a quick-tach unit that mounts to the rear of a skid-steer bucket. Universal skid-steer quick-attach plates are the most common attachment interface in North America, and many telehandlers and loaders are fitted with a skid-steer style carrier for exactly that reason — but confirm your carrier plate rather than assuming.

Second, hydraulics. A grapple needs a live auxiliary circuit with its own control. On a loader or tractor that often means a third-function valve or a diverter; a two-function loader alone will not open and close a grapple. A grapple with independently operated tines needs two circuits or a selector to use that capability. Third, couplers. The Star adapter ships with flat-face coupler hoses, and the Loflin rock bucket grapple uses Parker brand hoses and fittings, but coupler bodies still have to match what is on your machine. Mismatched flat-face and pioneer-style tips are the single most common reason a new attachment sits unused for a week.

Capacity, approval and the rules that apply

Adding a grapple adds weight out front and moves the load center forward, which reduces what the machine can safely lift and carry. This is a compliance question, not just a spec question. OSHA 1910.178(a)(4) states that modifications and additions which affect capacity and safe operation shall not be performed without the manufacturer's prior written approval, and that capacity, operation and maintenance instruction plates, tags or decals shall be changed accordingly — that applies to powered industrial trucks including rough terrain machines. ANSI/ITSDF B56.6 is the standard covering rough terrain forklift trucks, and telehandler load charts are attachment-specific for the same reason. OSHA 1910.178(l) requires operator training and evaluation for powered industrial trucks. Practically: get the load chart for your machine with that attachment, and do not read a fork chart and assume a grapple behaves the same way.

Build details that decide service life

Grapples fail at the pivots and at the cylinder mounts long before the plate wears out. Oversized greasable pins, as on the Loflin rock bucket grapple, are worth looking for because a pin you can grease is a pin you can keep tight; a dry, undersized pin ovals its bore and the tines start to wander. Cylinder sizing tells you something too — the 2" x 10" x 1¼" HD welded cylinders on the Star adapter and the 2" x 8" or 2" x 10" cylinders on the Loflin root grapple are the parts doing the clamping work, and a welded cylinder body is a rebuild-or-replace item rather than a field-serviceable one. Steel thickness at 3/8" across all three units is where the abrasion resistance comes from. Also look at hose routing: hoses that run outside the frame get torn off by brush, which is why routing and guarding matter more than hose brand.

What buyers get wrong

Three recurring mistakes. Buying on width alone — a wider grapple picks up more per cycle but adds weight and leverage at the worst possible point for stability. Ignoring the auxiliary circuit until the attachment arrives. And matching a heavy attachment to a light carrier: a compact tractor grapple is engineered around compact tractor front-end capacity, and hanging one on an undersized machine gets you a tractor that will not steer with a full grapple. If you are searching for "grapple attachments for cranes" or "grapple truck attachments," note that boom-tip rotating grapples for knuckleboom loaders use a different mounting and rotation system entirely and are not what this category carries.
