Mini Skid Steer Grapples

Mini Skid Steer Grapples Built for Compact Loaders

A mini skid steer grapple turns a compact loader into a machine that can pick up and carry irregular material instead of just pushing it. Brush, root balls, fence posts, broken concrete, storm debris and rock all move faster when the attachment can clamp down on them. The five attachments in this collection are all Loflin Fabrication units, priced from $825 to $2,366, and every one uses a universal mini skid steer quick attach. Between them they cover three approaches: open rock buckets that sift soil while retaining material, a grapple bucket for mixed loads, and root grapples in curved-tine and vertical-tine layouts.

Rock Bucket, Grapple Bucket or Root Grapple?

The three body styles solve different problems, and picking the wrong one is the most common mistake on a compact skid steer grapple purchase.

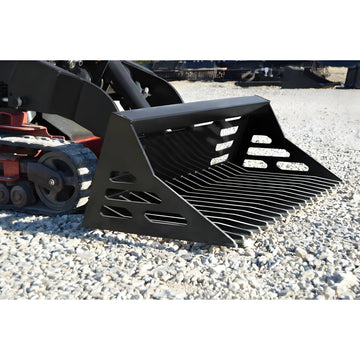

Rock buckets use spaced bars or tines so soil falls through while rock, roots and debris stay in the bucket. The Loflin Fabrication Mini Rock Bucket is built from 3/8" thick steel with a ¾" x 36" welded cutting edge, comes in 36" to 48" sizes, and uses an open skeleton design with three adjustable locking positions. It is the pick for reclaiming a rocky pasture or screening fill.

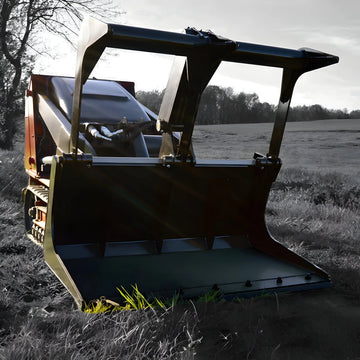

Grapple buckets add a hydraulic lid over a bucket body, so you can scoop loose material and clamp bulky items in the same pass. The Mini Skid Steer Grapple Bucket has a 36.5 in grapple opening width, a reinforced quick attach plate, and Parker hose and fittings included. It is made in the United States and fits compact tractors, compact track loaders and mini skid steers.

Root grapples skip the bucket entirely. Independent tines let the attachment conform to uneven piles and shake dirt loose as you lift. The Mini Skid Steer Root Grapple uses 3/8" steel tines, dual 2" x 10" hydraulic cylinders and curved, independent heavy-duty tines in 36", 42" and 48" working widths. The Mini Vertical Root Grapple runs the same width options with a 33" maximum opening and dual 2" x 8" vertically-oriented cylinders, a layout that keeps clamping force in line with the load for tall, stacked brush.

Mount and Hydraulic Compatibility

Every grapple here mounts on a universal mini skid steer quick attach plate, the pattern shared by most compact utility loaders. That is not the interface used on full-size machines: ISO 24410 defines the attachment interface for full-size skid-steer loaders, and there is no equivalent published standard for the smaller mini plate, so brands converge on a common pattern by convention rather than by specification. Check your machine's plate before ordering, and be aware that a few manufacturers use a proprietary mount that needs an adapter.

Hydraulics matter as much as the plate. Every attachment in this collection is hydraulically actuated, so your loader needs a working auxiliary circuit and couplers that match the attachment hoses. The Mini Skid Steer Grapple Bucket and the Mini Vertical Root Grapple ship with Parker hoses and fittings. Confirm your loader's auxiliary flow and pressure against the attachment before you buy — an undersized circuit closes the grapple slowly, and a mismatched one can overheat oil on long duty cycles.

Build Details That Decide How Long It Lasts

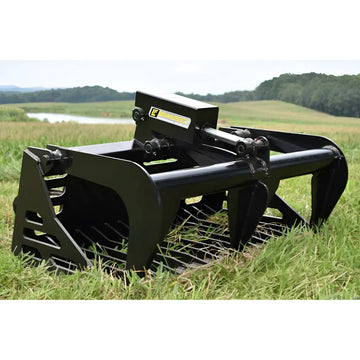

Steel thickness, cutting edge and cylinder size are the honest indicators on a heavy duty grapple for a mini skid steer. Across this collection, tine and plate stock runs 3/8" on the Mini Rock Bucket and both root grapples, while the Mini Rock Bucket Grapple uses 3/16" thick steel with a 3/4" thick x 6" wide welded cutting edge and an optional bolt-on reversible edge — worth having if you work abrasive material, since replacing an edge costs far less than rebuilding a bucket lip.

Look at the details that show up after a season, not on day one. Fully protected hoses on the Mini Skid Steer Root Grapple keep lines out of the brush pile. Greasable hinge points on that same unit mean pivots can be serviced instead of wearing oval. Powder-coated finishes on the root grapples and rock buckets hold up better than paint where limbs drag across the frame. Welded cutting edges and reinforced quick-attach plates are exactly where cheap attachments fail first.

Sizing a Mini Skid Steer Grapple to Your Machine

Width should match your loader, not your ambition. A grapple wider than the machine's track or wheel stance puts extra leverage on the coupler and pushes the load's center of gravity forward, which costs you stability and lift capacity at height. The root grapples here are offered in 36", 42" and 48" working widths, enough range to match most compact loaders. The Mini Rock Bucket Grapple covers a 66" to 96" working width range, aimed at higher-volume cleanup behind larger carriers.

Weigh the attachment against your loader's rated operating capacity as well. Every pound of attachment is a pound you cannot lift, and heavy attachments hurt most at full reach and full height. If you mostly handle light brush, a narrower root grapple will outwork a wide rock bucket. If you are clearing rock and stumps, the extra steel earns its keep.

Safety and Operator Practice

Grapples change how a loader behaves. The attachment is heavy, the load is often unbalanced, and material can shift while clamped. Keep loads low while traveling, approach piles square, and never lift a load over anyone.

On the regulatory side, know which rule set applies to you. OSHA has taken the position in its letters of interpretation that skid-steer loaders are not powered industrial trucks under 29 CFR 1910.178, the forklift standard; in construction work, OSHA addresses loaders under 29 CFR 1926.602, its material handling equipment rule. Either way, the operator's manual for your specific loader governs attachment and capacity limits. Read the loader manual and the attachment documentation together before the first job.
