Dock Seals and Bumpers: What This Collection Covers

Every product in this collection is Vestil, made in the USA by Vestil Manufacturing and covered by a 1-Year Limited warranty. The lineup splits into two jobs. Sealing — dock seals, dock shelters, retractable dock shelters and seal/shelter combinations — closes the gap between the trailer and the building to control conditioned air, weather and debris. Impact protection — laminated dock bumpers, hardened molded bumpers (DBE), specialty molded bumpers, extruded bumpers and fork truck carriage bumpers — absorbs the energy of a trailer backing in or a carriage striking a rack face. Listed starting prices in this collection run $102 to $161; configured model prices go higher depending on size and options. Vestil lists the Dock Shelters series at $160.54 – $2,554.34 across 7 models, for example.

Dock Seals vs. Dock Shelters vs. Retractable Shelters

The choice comes down to how uniform your trailer fleet is and how much of the door opening you need free for forklift travel. A dock seal uses foam pads on the head and both jambs that the trailer compresses against. It gives the tightest seal and the lowest cost per opening, but it works best when trailer widths and heights are consistent, and the compressed pads narrow the usable door opening — a real consideration if you run wide loads or double-pallet handling.

A dock shelter uses a frame with fabric curtains and a head curtain that drape over the trailer rather than compressing against it. That preserves the full door width and tolerates a mixed fleet of trailer heights, at the cost of a slightly looser seal. A retractable dock shelter adds a frame that gives way when a trailer strikes it off-center or backs in at an angle — worth the premium at high-turn doors, at docks with tight approach aprons, or wherever you have already been paying to replace damaged shelter frames. Seal/shelter combinations pair a compression seal with shelter components for openings that need both a tight closure and full-width clearance.

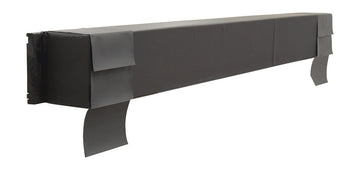

Accessory models in this collection are listed individually, so you can price the upgrade before committing: D-AP armor pleats at $160.54, the D-18H 10 ft width option at $169.90, and the D-BBF bottom bun at $222.42.

Choosing Loading Dock Bumpers: Laminated, Molded and Extruded

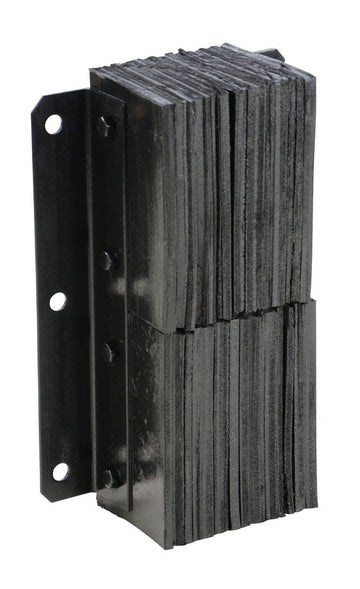

Laminated dock bumpers are built from stacked rubber layers on a steel backing. They are the default for general trailer traffic — high energy absorption, long service life, easy to bolt to a poured dock face. The rubber layers do shift and abrade over years of use, so inspect the retaining hardware, not just the rubber.

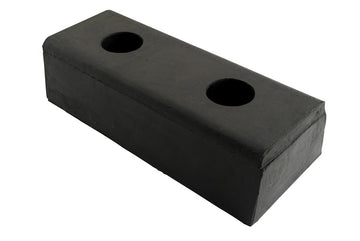

Hardened molded bumpers (DBE) are molded as a single piece rather than laminated. Molded construction resists gouging and delamination better at docks where trailers land hard or drag across the face, and the consistent profile makes it easier to bolt onto uneven or previously repaired concrete.

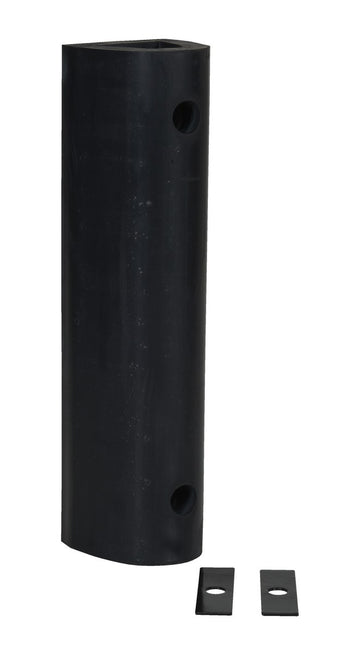

Extruded bumpers come as continuous rubber profiles rather than discrete blocks, which suits protecting a long run — a full door width, a wall face, or a column line — instead of two fixed strike points.

Specialty molded dock bumpers cover the odd geometry cases. Vestil lists model B-1213-4PF, a PVC-face molded rubber bumper described as 4X12X13, at $116.35, and B-1224-6, a rectangle molded rubber bumper described as 6X24X12, at $138.44. The PVC face is the one to look at where trailers slide vertically against the bumper during loading and bare rubber would wear quickly.

Fork Truck Carriage Bumpers

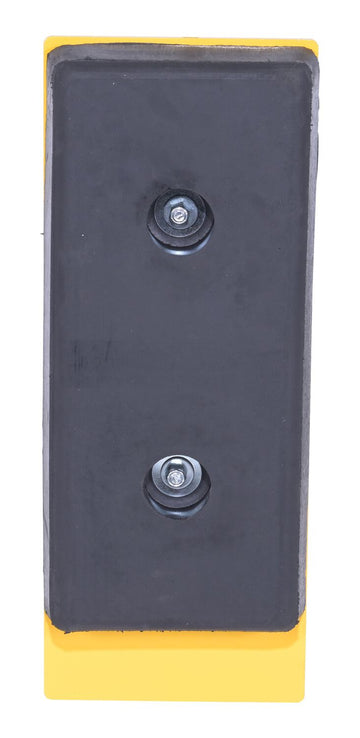

A fork truck carriage bumper mounts on the truck itself rather than on the building, cushioning contact between the carriage and whatever it meets — rack uprights, trailer walls, other equipment. Because it bolts to the carriage, the carriage class has to match. Vestil lists three models in this collection:

Confirm your truck's carriage class from the data plate or the OEM spec sheet before ordering — a Class III bumper will not mount to a Class IV carriage.

Sizing, Installation and Site Conditions

Measure the door opening at the header and both jambs before selecting a seal or shelter, and measure the dock face separately for bumpers. The two most common ordering mistakes are sizing the seal to the door frame instead of the finished opening, and specifying bumper projection without accounting for anything that already protrudes from the dock face — a bumper that sits shallower than the leveler lip assembly or a repaired concrete edge transfers impact straight into the building.

Anchoring matters as much as the bumper itself. Spalled or cracked concrete at the dock edge should be repaired before mounting, because bolts pulling loose under impact are a more common failure than the rubber wearing out. On the traffic side, OSHA 1910.176 addresses safe clearance for aisles and passageways where mechanical handling equipment is used, which is worth reviewing alongside how much of the door opening a compression seal will occupy once a trailer is docked.

Inspection, Replacement and Compliance

Put dock bumpers on the same walkaround as your levelers and restraints. Replace a bumper when the steel backing or mounting angle is exposed, when the rubber has compressed to the point that trailers contact the dock face, or when retaining hardware is loose or missing. For seals and shelters, torn head curtains and flattened side pads are the usual signals; a seal that no longer compresses is doing nothing for your conditioned air.

On the training side, OSHA 1910.178 requires that powered industrial truck operators be trained and evaluated before operating, and ANSI/ITSDF B56.1 covers safety requirements for low-lift and high-lift powered industrial trucks. OSHA 1910.178(m)(7) also requires that dockboards and bridge plates be properly secured — relevant because most dock-face bumper damage traces back to how vehicles are positioned and secured at the opening, not to the bumper spec.
