Motorcycle Lifts & Adaptors

Motorcycle Lift Adapter or Full Lift? Start With the Job

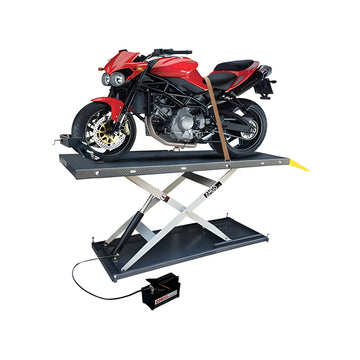

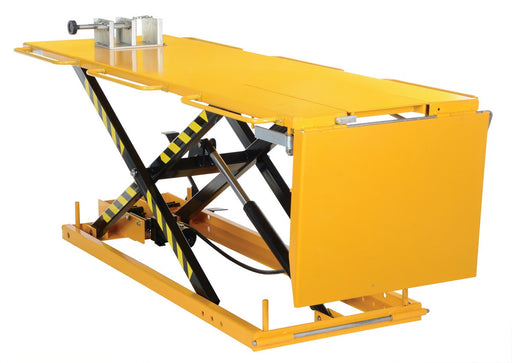

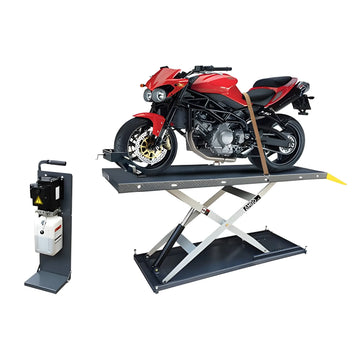

The phrase motorcycle lift adapter gets used for two different products, and confusing them is the most common buying mistake in this category. One meaning is a lift table or jack that raises the whole machine for service, tire removal or detailing. The other is a wheel adaptor: a bolt-on attachment that lets a tire changer or wheel balancer built for passenger car wheels hold a motorcycle wheel, which has different hub bore, offset and clamping geometry. This collection carries both. The AMGO MC-1200 and MC-1200P are motorcycle and ATV lift tables, and the Vestil MOTO-LIFT-1100 is a manual hydraulic motorcycle lift listed at 1,100 lb and built in the USA by Vestil Manufacturing. On the wheel service side, the Katool KT-MC1 adapts tire changers and the KT-MC2 mounts to a balancer shaft. Decide which half of the job you are solving before you compare prices, because the two do not substitute for each other.

Sizing a Motorcycle Lift: Capacity, Power Source and Duty Cycle

Capacity is the first filter. Work from the manufacturer's published wet weight for the heaviest machine you expect to service, not dry weight, and add anything that stays on the bike: full fuel, fluids, hard luggage, crash bars, a trike conversion or a sidecar. Our catalog gives you concrete reference points. AMGO lists the MC005 jack at 1,200 lbs (545 kg), and the Vestil MOTO-LIFT-1100 is listed at 1,100 lb. If your heaviest touring bike or side-by-side is close to a rated number, move up rather than sizing to the edge.

Power source drives both cost and site requirements. The AMGO MC005 is offered in manual and pneumatic air-powered configurations. Pneumatic raises faster and saves the technician's back on a high-volume day, but it needs shop air plumbed to the bay along with a water separator and, where the manufacturer calls for it, an inline lubricator. A manual hydraulic unit such as the Vestil MOTO-LIFT-1100 needs no utilities at all and can be rolled to wherever the work is, at the cost of pump strokes per cycle. A one-bay independent shop lifting a few bikes a week is a different buy than a dealership doing tire work all day.

Wheel Lift Motorcycle Attachment: Match It to the Machine You Own

A wheel lift motorcycle attachment only pays for itself if it actually fits the equipment already on your floor, so check compatibility before capacity here. The Katool KT-MC1 motorcycle wheel adaptor is listed as compatible with the KT-T800, KT-T830 and KT-T850 tire changers and installs as a bolt-on mount to the existing machine, in high-strength steel. The Katool KT-MC2 is built for motorcycle wheel balancing on most standard wheel balancers and mounts on the balancer shaft, so confirm your shaft diameter and cone set before ordering.

Two practical notes from the service side. Motorcycle rims are more easily marred than steel car wheels, particularly polished and painted aluminum, so plan on protective jaw covers and a mount/demount head suited to alloy. Spoked wheels with tube tires, single-sided swingarm hubs and wide low-profile rear tires all change how the wheel wants to be clamped. If you do not own a car tire changer to adapt in the first place, the Katool KT-MOTO1001 manual motorbike tire changer is the standalone route: no compressed air, low footprint, sensible for low-volume shops and race support.

Extension Kits, Jacks and Getting the Wheels Free

A flat lift table gets the bike to working height but does not by itself get a wheel off the deck. That is what the AMGO MC005 jack is for. It is listed for the MC-1200 and MC-1200P, rated at 1,200 lbs (545 kg), with a heavy-duty steel frame, an adjustable lifting saddle and a low-profile rolling floor base, so you can lift one end of the machine clear for wheel, brake or suspension work.

For long-wheelbase machines, the AMGO MC002 length extension kit is listed for the MC-1200 and adds approximately 400 mm (15 3/4 in) as a bolt-on installation, with a PDF installation and safety manual. The AMGO MC001 width extension kit increases platform or carriage width for wider vehicle support and ships with bolt-on hardware in a powder-coated, corrosion-resistant finish; its listing states compatibility with selected AMGO lifts and is model dependent, so verify against your exact model before ordering. Whatever combination you run, plan for a front wheel vise or chock and proper tie-downs, since a bike on a table is only as stable as its restraint.

Safety, Inspection and Standards for Motorcycle Lifts

Two sources are worth knowing before the equipment lands. OSHA 1910.244(a) covers jacks and requires the manufacturer's rated capacity to be legibly marked on the jack and not exceeded, requires that a raised load be blocked, cribbed or otherwise secured immediately, and requires inspection at intervals appropriate to service conditions. For lifting equipment used on vehicles, ANSI/ALI ALOIM is the American National Standard covering automotive lift operation, inspection and maintenance, and it is the reference most shops use when setting an inspection schedule and training operators; ANSI/ALI ALCTV is the companion standard covering construction, testing and validation. Whether any given model carries third-party certification is a manufacturer question, so check the documentation on the individual product page rather than assuming it.

Day to day, the maintenance list is short and unglamorous: confirm the mechanical safety lock engages and holds before anyone puts hands under a machine, watch hydraulic fluid level and check hoses and fittings for weeping, keep the deck and approach ramp clean, and keep casters and rolling bases free of debris. On pneumatic units, drain the water separator on schedule. Warranty terms are stated per product and per manufacturer: Vestil lists a 1-year limited warranty on the MOTO-LIFT-1100, and the Katool KT-MC1 listing states a typical 12-month parts warranty.
