Dock Equipment

Dock Equipment: What the Category Covers

Dock equipment spans several distinct product types that solve different loading problems. Dockboards and dockplates bridge the gap between a raised dock floor and a trailer bed. Edge-of-dock levelers mount to the dock face and stay there, giving you a permanent bridge without the handling of a portable board. Container ramps and walk ramps handle ground-level work, where the load has to come down out of a container or up into a truck standing on the pavement. Yard ramps serve sites with no dock at all. Around those sit the supporting items: approach ramps, safety curbs, tow bar hitches, fork pickup slots and dock loading lights. This collection carries Vestil across all of those types, and the listings show Made in USA origin and a 1-Year Limited warranty.

Dockboards vs. Dockplates: Getting the Bridge Right

The distinction matters more than the names suggest. A dockplate is a flat plate intended for hand trucks and pallet jacks across a small gap. A dockboard is heavier, normally carries raised side curbs, and is built for powered industrial trucks. If a forklift is going to drive across it, buy a dockboard. Substituting a dockplate is the single most common and most dangerous mistake at the dock.

Capacity comes next. OSHA 1910.26(a) requires that dockboards be capable of supporting the maximum intended load. That load is not the forklift's nameplate capacity — it is the truck's service weight plus the payload, plus any attachment, plus the operator. Size the board against that total and read the manufacturer's rating rather than estimating. The aluminum truck dockboards here are listed by capacity and size: BTA-08006630 is an 8,000 lb board at 66"×30" from $955.69, and BTA-12007230 is a 12,000 lb board at 72"×30" from $1,175.19. Other listed board sizes include 78"×36" and 60"×42". Steel truck dockboards (TS), aluminum dockboards with steel safety curbs (TAS), steel truck dockplates and fiberglass dockplates (FGDP) are also in the collection. Aluminum is lighter to reposition; steel takes more abuse and steel curbs resist impact better on high-traffic docks.

Container Ramps, Walk Ramps and Yard Ramps

When there is no dock, the ramp has to create the grade. Vestil steel container ramps with side rails (CRS) are listed in four models — CRS-6060-15 is rated 15,000 lb at $1,504.37 and CRS-6060-20 is rated 20,000 lb at $2,035.03, with sizes running to 84"×72". The steel container ramps with flip-over bridge (SCR) come in two models, SCR-72 at 98"×76.5" for $3,171.29 and SCR-84 at 98"×84", topping out at $3,334.20. The flip-over bridge is the feature to look at if the ramp has to seat against a container sill rather than a flat truck bed.

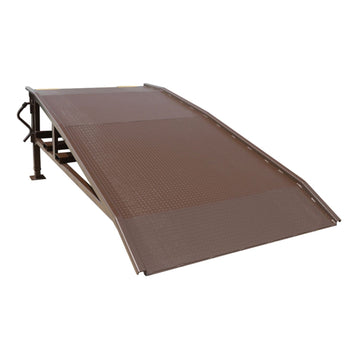

Aluminum walk ramps (AWR) and aluminum grip-strut walk ramps cover pedestrian and pallet-jack traffic where a full dockboard is more than the job needs. For a small mobile ramp, the Vestil Mini Yard Ramp YRM-05-7514 is rated 5,000 lb at 75"×14", listed at $7,811.86. Full yard ramp options are stocked separately: pneumatic tires, manual lift, DC power lift, DC hydraulic lift, tow bar hitch, an 8 in. service height tow bar, fork pickup slots at 7.5"×2.5", yellow safety curb, curb paint, lip lag holes and curb height additions. Decide up front how the ramp will be moved — a manual lift is fine if it is repositioned occasionally, while DC power or hydraulic lift earns its cost when the ramp shifts between doors daily.

Levelers, Approach Ramps and Dock Accessories

Edge-O-Dock levelers give you a fixed bridge at the dock face and remove the handling that portable boards require. Where a leveler or scissor lift sits above floor level, an approach ramp closes the transition: the collection includes scissor dock approach ramps in 8 in., 10 in. and 14 in. heights, dockleveler approach ramp options at 96"×24" and 96"×12", and steel approach ramps at 48"×60". LED dock loading lights and heavy duty LED dock loading lights address the trailer interior, which is the part of the operation with the worst visibility. For weighing at the dock, the low profile scale SCALE-LP-44-5K is listed at 5,000 capacity for $6,083.76.

Safety and Site Requirements

OSHA 1910.26 governs dockboards directly: they must be secured — anchored or equipped with devices that prevent them from slipping — and must have run-off guards on each side unless the dockboard is designed to prevent run-off. That is why side curbs are standard on truck dockboards and why curb options exist for yard ramps.

The vehicle side matters just as much. OSHA 1910.178(k)(1) requires that the brakes of a truck, trailer or railroad car be set and that wheel chocks or equivalent protection be in place before a powered industrial truck drives onto it. OSHA 1910.178(l) requires operator training and evaluation for powered industrial trucks, which includes driving on dockboards and ramps. ANSI/ITSDF B56.1 is the safety standard for low lift and high lift powered industrial trucks and covers ramp and grade operation.

Site conditions decide whether a ramp works at all. Yard ramps and container ramps need firm, level pavement with enough straight approach for a loaded truck to line up. Check the height difference between your floor and the trailer beds you actually service, not the gap, and confirm the door opening gives clearance for the ramp plus the mast height of the lift truck.

What Buyers Commonly Get Wrong

Four errors account for most returns and most near misses. Buying to the forklift's rated capacity instead of its gross loaded weight understates what the bridge has to carry. Measuring the gap instead of the height differential produces a board that is long enough but sits at too steep a grade. Ordering a dockplate for forklift traffic puts equipment on a bridge that was never built for it. And skipping the handling options — tow bar, pneumatic tires, fork pickup slots — leaves a ramp that nobody can reposition, so it stays parked at one door and the other doors go unserved. Decide the capacity, the height difference and the handling method before comparing prices.
