Pressure Washer Fittings & Couplers: What This Category Covers

This collection holds 47 active fittings and couplers, all from BE Power Equipment, spanning $1 to $75. The assortment falls into four practical groups: M22 adapters that translate between machine, hose and gun threads; quick connect couplers, plugs and fittings in 1/4" and 3/8"; garden hose adapters and valves that tie a standard hose into a plug or coupler connection; and accessories such as steel plugs, a 90° adjustable 3-position pivot coupler and a 1/4" & 3/8" female quick connect coupler and fitting kit for outfitting a machine end to end. Most items here are inexpensive relative to the equipment they connect, which is why buyers frequently order a spare of whatever they use most.

Thread Types: M22, NPT and Garden Hose Thread

Three thread families show up on pressure washer plumbing, and they are not interchangeable. M22 is the metric thread used on most consumer and light commercial machine outlets, hose ends and gun inlets. The trap is that M22 comes in two internal sizes, and the catalog reflects both: the ADAPTER, M22F (15mm) x M22M (14mm) is listed as adapting an AR hose for BE Power Equipment pressure washers, while the ADAPTER, M22F (14mm) x M22M (15mm) adapts a BE hose for an AR electric pressure washer. Measure the male stem before you assume; a 14mm and a 15mm M22 will start to thread together and then leak or fail to seal.

NPT is the tapered pipe thread used on quick connect bodies, pump ports and many accessories. ASME B1.20.1 is the standard that defines NPT dimensions and taper, and because the taper itself makes the seal, NPT joints need thread sealant rather than an O-ring. GHT — garden hose thread — is a straight thread that seals on a washer, and ASME B1.20.7 covers it. That is why this category carries dedicated crossover parts such as the EZ-Grip Adapter Garden Hose Hex - Inlet: 3/4" FGHT x 1/2" MNPT and the 3/4" FGHT x Outlet: 3/8" MNPT version: you cannot thread a garden hose onto pipe thread without one.

Quick Connect Couplers vs. Threaded Fittings

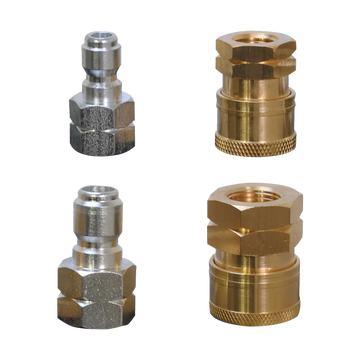

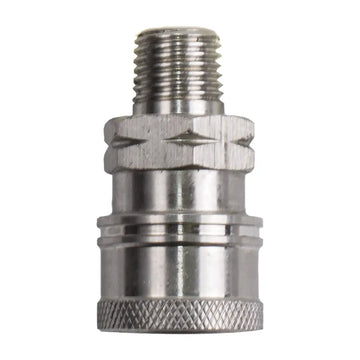

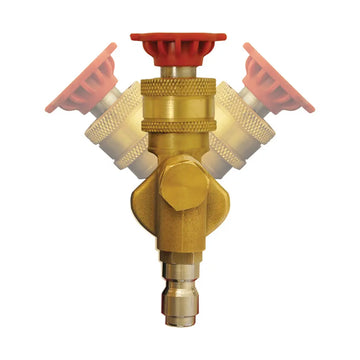

In pressure washer usage the coupler is the female socket with the sliding collar, and the plug or fitting is the male nipple that snaps into it. They are always bought as a matched pair and size — a 3/8" plug will not seat in a 1/4" coupler. Quick connects make sense when you change nozzles, wands, surface cleaners or chemical injectors during a shift; the collar pulls back, the plug drops out, and you are working again in seconds. Threaded M22 or NPT connections make sense where a joint is set once and left alone, because there is no collar or internal O-ring to wear. Many operators run both: threaded at the pump, quick connect at the gun and accessory end. The 1/4" & 3/8" Female Quick Connect Coupler and Fitting Kit in this collection is aimed at that kind of conversion, and the 90° Adjustable 3 Position Pivot Coupler addresses a different problem — relieving hose strain and wrist load when the gun is held at an angle for long stretches.

Brass, Stainless Steel or Coated Steel

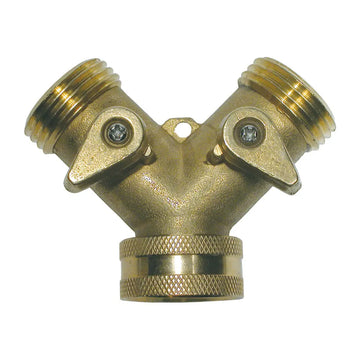

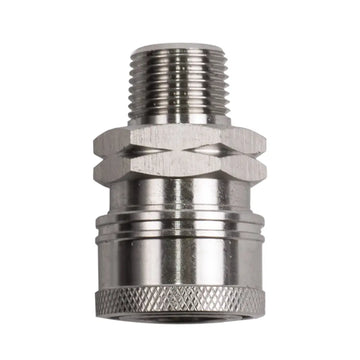

Material choice tracks duty cycle and water quality more than price. Brass is the default for cold-water work: it machines cleanly, resists corrosion in potable water, and this catalog uses it for items like the 1/4" MNPT 4,000 PSI Quick Connect Brass Coupler and the Brass Garden Hose Shut-Off Valve. Stainless steel costs more and holds up better against detergents, salt exposure and repeated connect/disconnect cycles. Coated steel sits between them on price. The listings that carry a pressure rating make the tiering explicit:

Matching Rating, Size and Flow to Your Machine

Every connection point should be rated at or above the machine's maximum working pressure, and the weakest fitting in the line sets the ceiling for the whole assembly. Check the pump's rated pressure on its data plate rather than the marketing figure on the box. Size matters as much as rating: 1/4" connections are typical on lighter machines and short hose runs, while 3/8" is the common choice where higher flow or longer hose lengths would otherwise cause pressure drop. Stepping down to a smaller quick connect in the middle of a 3/8" line creates a restriction the pump has to fight. Also confirm hot-water suitability on the individual product listing before using any fitting on a heated machine — seal material, not just body material, decides that.

Installation and Maintenance

Wrap NPT male threads with PTFE tape or use a liquid pipe sealant, keeping the first thread clear so nothing sheds into the pump or nozzle. Tighten with a wrench on the hex, not by hand pressure on the hose. Garden hose and M22 connections seal on a washer or O-ring instead, so tape does nothing there — replace the seal when it hardens, flattens or cracks. Quick connect couplers hold a plug with spring-loaded balls and an internal O-ring, and both wear; a coupler that weeps under pressure or releases a plug on its own should be replaced rather than tightened. Before disconnecting anything, shut off the machine and squeeze the gun trigger to bleed trapped pressure. Between jobs, blow out or drain fittings, and in freezing conditions store them somewhere water cannot expand inside a coupler body. Keeping a spare coupler, plug and set of O-rings on the truck is cheap insurance against a job stopped by a $5 part.
