Diesel Forklifts

Diesel Forklifts for Yards, Docks and Construction Sites

Diesel lift trucks exist for one reason: sustained outdoor work with heavy loads. A diesel engine makes strong low-end torque, refuels in minutes instead of recharging, and tolerates rain, dust and temperature swings that shorten the life of battery packs and their chargers. That makes a diesel forklift the usual pick for lumber and pipe yards, precast and masonry suppliers, container and trailer loading, agricultural sites and general construction. The trade-off is exhaust, noise and a heavier chassis, which is why most operations that run diesel outdoors keep an electric or LPG truck for indoor picking.

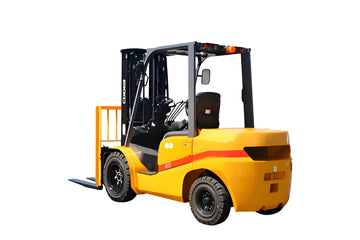

Every unit in this collection is a four-wheel, sit-down rider truck on solid pneumatic tires. EKKO lists the EK35D for outdoor yards, warehouses, construction sites and industrial facilities, the EK20D for warehouses, industrial yards, construction sites and loading docks, and the EK30D for warehouses, industrial facilities and outdoor yards, so the intended duty is heavy-surface work rather than smooth-floor aisle picking.

Diesel, LPG or Electric: Picking the Power Source

Compare on three things: where the truck runs, how many hours per shift, and what refueling or recharging looks like on your site. Electric trucks are quiet and emission-free at the point of use but need charging infrastructure, a battery change or opportunity-charging plan, and reasonable floors. LPG suits mixed indoor and outdoor duty and swaps cylinders quickly, but you carry fuel inventory. Diesel gives the longest continuous run time per fill and the best pulling power on ramps and soft ground, at the cost of exhaust management.

Diesel exhaust is the deciding factor for indoor work. NIOSH classifies diesel exhaust as a potential occupational carcinogen, and OSHA's air contaminant limits in 1910.1000 set a permissible exposure limit for carbon monoxide of 50 ppm as an eight-hour time-weighted average. OSHA 1910.178(b) also defines the D, DS and DY designations for diesel-powered trucks, which determine where a given truck may be operated. If a diesel truck must enter a building, plan for ventilation and monitoring, not just an open dock door.

Capacity, Load Center and Lift Height

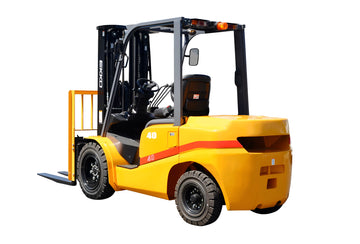

Rated capacity is only meaningful with a load center. The EK40D, EK25D and GD Series are all rated at a 24 in load center, and all three list a 185 in lift height. Long, wide or off-center loads push the effective center of gravity outward and reduce what the truck can safely handle, which is why the data plate governs, not the model name.

Tires, Ground Clearance and Site Access

Solid pneumatic tires are the outdoor standard here: they carry the load of a heavy diesel chassis, resist punctures from rebar, chips and gravel, and never go flat. They ride harder than air pneumatics, so operator fatigue and mast shake matter on long shifts over rough ground.

Check clearances before you buy. The GD Series lists 4.7 in minimum ground clearance at the mast, which is what determines whether the truck clears curbs, dock plates and rutted ground. Width and length decide whether the truck fits your gates, aisles and trailers: the EK25D is listed at 45.2 in overall width and 144.6 in overall length with forks, while the GD Series is 52.9 in wide and 157 in long with forks. For low doorways, compare the lowered mast height, listed at 86.2 in on the EK40D, and remember that overall height with forks raised reaches 234 in on that truck.

Training, Inspection and Compliance

OSHA 1910.178 governs powered industrial trucks in US workplaces. It requires that operators be trained, evaluated and certified before operating a truck, with refresher evaluation at least once every three years. It also requires that trucks be examined before each shift, or after each shift when used around the clock, and that any truck found unsafe be taken out of service. Nameplates and capacity markings must be maintained legibly, and modifications affecting capacity or safe operation require the manufacturer's prior written approval. ANSI/ITSDF B56.1 is the underlying safety standard for low- and high-lift powered industrial trucks and covers operator, user and manufacturer responsibilities.

What Buyers Commonly Get Wrong

Three mistakes come up repeatedly. First, buying to a peak load that occurs once a month instead of the daily load, which means paying for a heavier truck and heavier ground pressure than the site needs. Second, ignoring free lift and lowered mast height, then discovering the mast will not clear a container or a low door. Third, treating diesel as a general-purpose truck and running it indoors without ventilation planning. Sizing the truck to real loads, real doorways and real ground conditions costs nothing at the quoting stage and avoids an expensive mismatch.
