Hand Pallet Jacks with Scales

What a Pallet Jack With Scale Does for Your Operation

A pallet jack with weighing scale puts load cells and a digital indicator into the truck itself. You slide the forks into the pallet, raise it clear of the floor, let the load settle, and read the weight. The payoff is not the scale — it is the handling step you delete. Every pallet you weigh on a separate platform has to be driven there, set down, read, picked back up and driven away. On a receiving dock checking inbound freight against a bill of lading, or a shipping lane confirming carton counts before a truck seals, that round trip is the whole cost. Scale pallet trucks also let you weigh where the work happens: at the mixing station, at the scrap bin, in a trailer where no floor scale can go.

The trade-off is honest. A truck-mounted scale lives in a rougher environment than a floor scale and gets bumped, overloaded and rolled over debris. It needs a zero check before use and a calibration schedule. If you weigh a handful of pallets a day in one fixed spot, a floor scale is simpler and usually cheaper.

Manual vs. Electric Pallet Truck With Weighing Scale

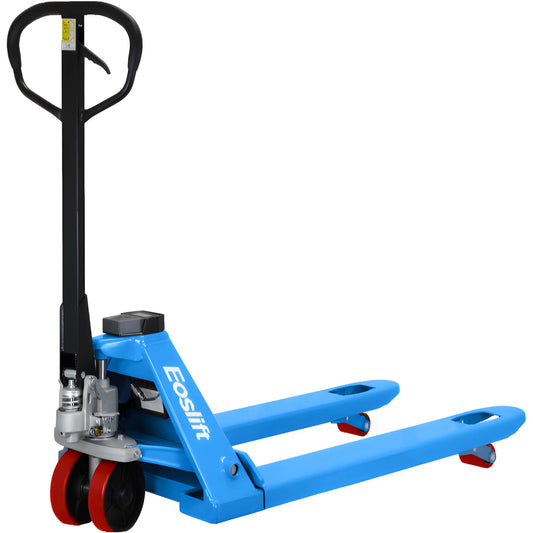

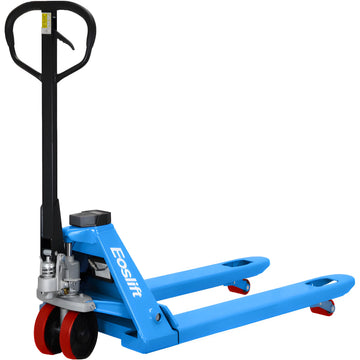

Manual scale pallet jacks are the volume seller in this category and cover most receiving-dock work. In our catalog they include the Vestil PM series with digital scale, the EKKO A25W at 5,500 lb, the Eoslift E20V at 4,400 lb, and the G55WL, which pairs a scale with an onboard printer. Nothing to charge, nothing to schedule around, and the pump handle is the only moving system that wears.

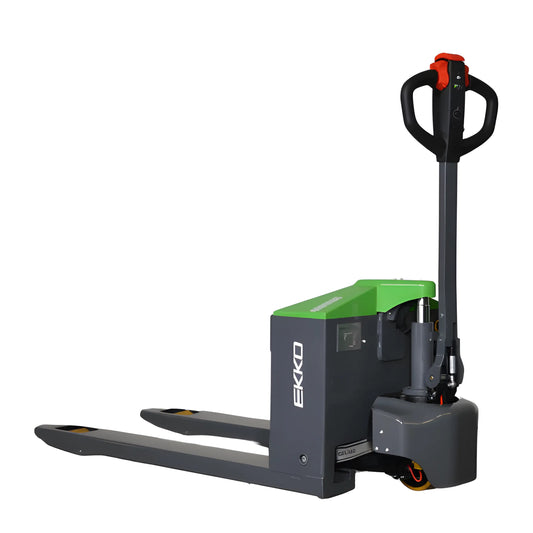

Electric pallet trucks with scales — the RAVAS Ergotruck2 at 3,300 lb here, alongside the EKKO EP18JLIC 4,000 lb lithium walkie — earn their price when travel distance, pallet count per shift or operator fatigue is the constraint. If your team pumps and pushes loaded pallets across a long dock all day, the labor math usually favors powered. If pallets move ten feet from trailer to staging, it rarely does.

One regulatory difference matters at purchase time. OSHA 1910.178 applies to powered industrial trucks, and 1910.178(l) requires employers to train, evaluate and certify operators of those trucks — an electric walkie is covered. A manual hand pallet jack is not a powered industrial truck under that section, so the 1910.178(l) certification requirement does not attach to it. Budget the training time before you switch a manual fleet to electric.

Capacity, Fork Size and Site Fit

Match rated capacity to your heaviest realistic pallet plus a margin, not to your average. Fork length and width matter just as much: the 48 x 40 in. GMA pallet footprint standardized by the Grocery Manufacturers Association is the common case, but drum pallets, skids and custom crates are not. Here is what this collection covers.

Also check the floor. Weighing needs the truck level and the load fully clear of the ground; sloped dock plates, expansion joints and broken concrete all corrupt a reading. Low-profile variants, such as the Vestil PM low-profile economy models, exist for pallets with limited fork clearance — measure your worst pallet before ordering.

Accuracy, Calibration and Legal-for-Trade Weighing

Accuracy is a system property, not a number on a brochure. Zero drift, an unsettled load, a pallet resting partly on the floor, or a truck parked on a slope will all outweigh the load cells' own error. Build the habit: raise fully, pause for the load to stop swinging, check zero, then read.

If you sell or buy by the weight the scale reports, the requirements are formal. NIST Handbook 44 sets the specifications and tolerances that state weights and measures officials enforce for commercial weighing devices, and it defines the accuracy classes that determine which device is acceptable for a given use. Devices intended for that service carry a Certificate of Conformance from the National Type Evaluation Program administered by the National Conference on Weights and Measures. Verify legal-for-trade status on the specific product page before you commit — do not assume a scale truck qualifies because it is digital. For internal control, inventory reconciliation or freight-class sanity checks, a non-certified truck scale is usually fine.

Certified weights matter downstream too: IMO SOLAS Chapter VI, Regulation 2 requires shippers to provide a verified gross mass for packed containers before loading.

When a Floor Scale or Forklift Scale Is the Better Buy

Not every weighing problem is a pallet jack problem. If loads arrive at one fixed station, a floor scale is cheaper per weighment and easier to keep calibrated — this collection carries Vestil's Electronic Digital Floor Scales at 5,000 - 10,000 lb, the VLPFS low-profile floor scales, portable diamond plate models such as the VPFS-3B at 78L x 60W x 2H, and a 24 x 36 in. low-profile bin scale. If your material already moves on a forklift, a carriage- or fork-mounted scale keeps the weighing in the lift truck's workflow: the RAVAS RCS and RCS Hy-Q-52 hydraulic forklift scales and the iCP-32 carriage plate scale all do this. For drum handling, the Vestil DGPS-55-SCL combines a 55-gallon drum gripper with a digital scale.

Training, Maintenance and What Buyers Get Wrong

The most common mistake is buying to average load weight and discovering the outliers. The second is ignoring cable and load cell protection — on a manual truck, the harness routing is what fails first, so ask how it is shielded. The third is skipping calibration entirely, then discovering a year of shipping weights was wrong.

Operators should be shown how the specific truck zeros, how it behaves with an off-center load, and why a partially supported pallet reads light. For powered units, ANSI/ITSDF B56.1 addresses safe practice on low lift and high lift trucks, including load stability and operator positioning. Keep a known test weight on hand for a quick daily verification; it costs nothing and catches drift before it becomes a credit memo.
