Industrial Safety Gates

What Industrial Safety Gates Do

An industrial safety gate is a movable barrier that closes an opening in an otherwise protected area — the top of a stairwell, a ladderway hole in a mezzanine floor, a pallet drop zone, a dock door, or the walkway into a machine cell. Unlike a fixed rail, it opens when people or material need to pass and closes again afterward. The gates in this collection are expandable, accordion-style units: they stretch across the opening and fold back to a fraction of that width when not in use, which is why they show up in facilities where the same doorway is a walkway one hour and a forklift lane the next.

They are also used as warning barriers — closing off a wet floor, a maintenance area, a temporarily de-energized panel, or a section of aisle during a rack repair. In that role the gate's job is to make the boundary obvious and inconvenient to cross, not to arrest a fall. Knowing which of those two jobs you are buying for drives every other decision on this page.

Steel, Fiberglass or Self-Closing: How to Choose

Material is the first decision. Steel handles impact and abuse — the aisle where a pallet jack will eventually clip it, the dock where the gate lives half outdoors. Fiberglass is non-conductive and corrosion-resistant, which is why it tends to go into battery charging rooms, electrical rooms, water treatment areas and washdown environments. If your gate will sit near energized equipment or in a chemically aggressive space, fiberglass is usually the correct specification even though the steel unit is the tougher gate mechanically.

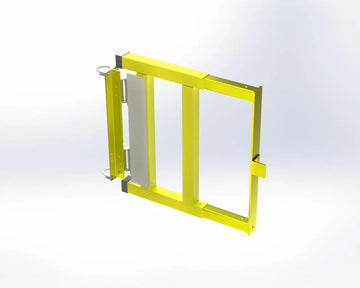

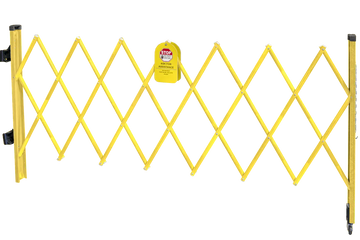

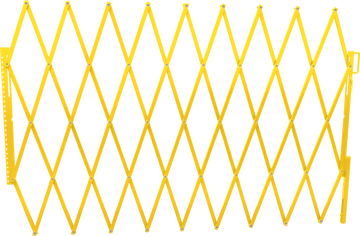

Mounting is the second decision. The Ballymore Steel Safety Gate and the Ballymore Fiberglass Safety Gate are expandable gates that span the opening themselves. The U-Gate Self-Closing Safety Gate works differently: it is a self-closing mechanism that mounts to a separately sold barrier, so that compatible barrier has to be in place before the gate is usable — budget for it before you order. Self-closing designs matter most where you cannot rely on every person latching a gate behind them.

What OSHA Requires at Floor Openings and Ladderways

OSHA 1910.28(b)(1) requires fall protection for general industry employees on a walking-working surface with an unprotected side or edge 4 feet or more above a lower level. OSHA 1910.28(b)(3)(iv) is more specific and more relevant to gate selection: employees must be protected from falling through a ladderway floor hole or ladderway platform hole by a guardrail system with toeboards, and the opening itself must be protected by a self-closing gate that slides or swings away from the hole, or by an offset that keeps a person from walking directly into it. If you are covering a ladderway opening, a self-closing design is not a preference — it is what the rule describes.

OSHA 1910.29(b)(1) sets the criteria for guardrail systems, including a top edge height of 42 inches plus or minus 3 inches above the walking-working surface. Treat that as a separate question from gate height: a tall gate is not automatically a compliant guardrail, and expandable accordion gates are commonly specified as barriers and traffic control rather than as fall protection at an open edge. Confirm the intended application with the manufacturer before installing one where a fall hazard exists. Where lift trucks serve the opening, OSHA 1910.178 governs powered industrial truck operation and operator training, and ANSI/ITSDF B56.1 covers the trucks themselves.

Measuring the Opening and Planning Installation

Measure the clear opening at the point where the gate will mount, not the nominal doorway size, and account for mounting hardware on both jambs. Expandable gates work best when the opening sits comfortably inside their range rather than at the extreme end of it; a gate stretched to its limit sags and the picket geometry opens up. Both expandable models here are listed at 12 ft expanded length, so a 12 ft opening is the ceiling, not the target.

Check the mounting surface as well. Steel jambs, poured concrete, rack uprights and hollow block all take different anchors, and the anchor — not the gate — is usually what fails first. Think about where the folded gate parks: the steel gate folds to 14 in and the fiberglass gate to 10 in, so leave clearance on the hinge side for the stack plus a hand. Finally, decide who opens it. A gate that blocks the natural traffic path tends to get propped open within a week, and a propped gate protects nobody.

Inspection, Maintenance and Common Buying Mistakes

Accordion gates have many pivot points, and every pivot is a wear point. Put them on the same walk-through inspection as your rails and dock equipment: look for loosened pivots, bent or cracked pickets, corrosion or damage at the mounts, and latches that no longer engage cleanly. On self-closing hardware, cycle the gate by hand during each check — the failure mode is a mechanism that swings most of the way shut and stops short.

The mistakes we see most often are ordering an expandable gate to cover an opening it can only just reach; buying a self-closing mechanism without the barrier it mounts to; specifying steel where a battery charging or washdown area calls for fiberglass; and treating a barrier gate as a guardrail at an unprotected edge. Price is rarely the deciding factor at this end of the market — the gates in this collection run $157 to $442 — so specify for the opening, the traffic and the environment first, then compare cost.
