Excavator Thumb Attachments

Excavator Thumbs: What They Do and When to Add One

An excavator thumb is an arm mounted to the stick that closes against the bucket so the machine can grip material instead of only scooping it. That single change turns a digging machine into a handling machine: pulling brush, setting rock, loading demolition debris, feeding a grinder, picking pipe back out of a trench. For most contractors it is the highest-utilization attachment on the machine, because it works with the bucket already on the coupler rather than replacing it. The trade-offs are real, though — added weight out on the stick, some lost clearance when a stowed mechanical thumb sits in the bucket's curl path, and the plumbing a powered thumb requires. The 8 thumbs in this collection span $1,145 to $13,400, and most of that spread is machine size, actuation type and linkage complexity rather than finish quality.

Mechanical vs. Hydraulic Excavator Thumbs

The first decision is actuation, and it drives price, install effort and how the thumb actually works in the dirt.

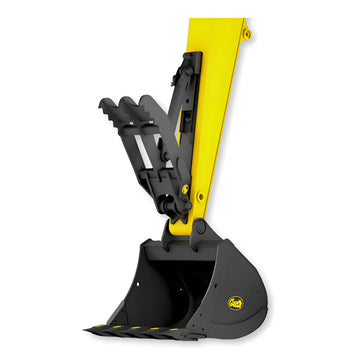

• Mechanical thumbs are positioned by hand into fixed pin settings and grip by curling the bucket against them. No hydraulic circuit, no hoses, lowest cost, fastest install. The operator has one variable — bucket curl — so grip force and opening are linked. Best for occasional grappling, brush work and machines you do not want to plumb. Geith's Easi-Klamp (EK) and Auto-Klamp (AK) are the mechanical options here.

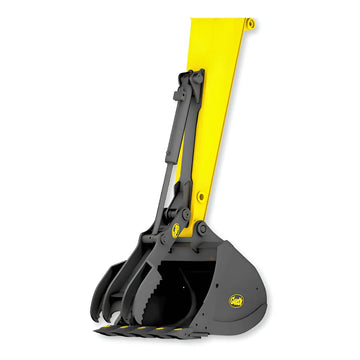

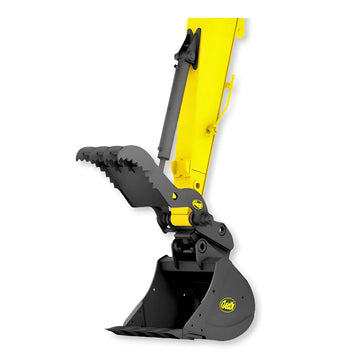

• Hydraulic thumbs move under cylinder control, independent of the bucket. The operator can open and close the thumb while curling, which matters when you are placing rock precisely, sorting mixed debris or holding an awkward load steady. Geith's Hydraulic Klamp (HK), Progressive Linkage (PL) and Main Pin (HT) thumbs and both Amulet models are hydraulic.
• Progressive linkage is a subset of hydraulic worth understanding: the linkage keeps the thumb tips oriented toward the bucket through a much wider arc, so you get usable clamping force near the closed position instead of only in a narrow sweet spot. It costs more and adds pivots to grease.

If you clamp several times an hour, buy hydraulic. If you clamp several times a week, a mechanical thumb does the job for a fraction of the money and gives you nothing extra to maintain.

Excavator Thumb Manufacturers Here: Geith and Amulet

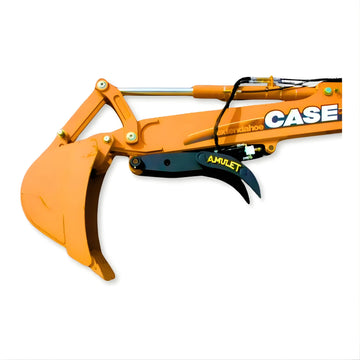

Both manufacturers publish fitment by machine weight class rather than a single universal part, so the model you need depends on your excavator, not just the brand. Amulet lists 11 excavator weight classes for the PowerBrute and PowerClamp, running from 1–3 tons up to 40–50 tons, with 15 configurations and connector options that include a weld-on base plate, a coupler pin-on with weld-on base plate, a thumb-ready existing OEM cylinder mount, and Case and John Deere specific mounts. PowerClamp is further split by clamp style: non-linkage, non-linkage for coupler, linkage, and linkage for coupler. Geith publishes a model-by-model table on each product page. A few verified examples from those tables:

Each Geith product page carries the full table, not just these rows, including base plate width and length, retracted clearance, tip radius and recommended bucket tip radius for every model in the series.

Sizing: Weight Class, Bucket Tip Radius and Couplers

Three checks catch nearly every fitment mistake. First, machine operating weight — find the row that brackets your machine, and if you sit at the boundary between two models, size to the heavier one only if your stick and boom can carry the extra weight without hurting reach-out stability. Second, bucket tip radius. The Geith tables list both the thumb's tip radius and a recommended bucket tip radius, and this is the spec buyers skip. If the bucket is too shallow the tips cross; too deep and they never meet, so material squirts out the gap. Match the thumb to the specific bucket you intend to pair it with, not to your bucket inventory in general. Third, coupler geometry. A quick coupler moves the bucket further from the stick pin and changes the closing arc, which is exactly why Amulet lists separate coupler versions of the PowerClamp and a coupler pin-on connector option. Ordering a non-coupler thumb for a machine that runs a coupler is the single most common return in this category.

Installation, Hydraulic Hookup and Excavator Thumb Parts

Most thumbs in this collection mount on a base plate welded to the underside of the stick, with the thumb itself pinning to that plate. Welding to a stick is structural work: it needs a qualified welder, the correct procedure and preheat for the boom steel, and placement per the manufacturer's template so the pivot lands where the geometry assumes. Pin-on and thumb-ready OEM cylinder mount options exist specifically so you can avoid welding when the machine came prepared for a thumb. Hydraulic models also need a circuit — valve, in-cab control and hoses routed along the stick with enough slack at full extension and enough restraint that nothing chafes or snags on brush. Confirm your auxiliary circuit pressure against the model's rating; the PL065, for instance, lists a maximum operating pressure of 2,500 psi (172.5 bar). For excavator thumb parts, the wear items are predictable: pivot pins and bushings, pin retention hardware, the cylinder and its seals on hydraulic units, and hoses. Record your model number at install so replacements are a lookup rather than a measuring exercise.

Operating and Maintaining a Thumb Safely

Grease the pivots on the interval in the manufacturer's manual — a dry thumb pivot wears an oval into the bushing fast, and once the pin is loose the tips no longer track the bucket. Inspect pin retention, the base plate welds and the cylinder rod daily; check hoses for chafe where they cross the stick. Watch the stowed position on mechanical thumbs, since a thumb left in the digging path gets hammered by the bucket. On the regulatory side, OSHA 29 CFR 1926.602 sets requirements for material handling equipment used in construction, and OSHA 1926.651(j)(2) requires spoil piles and materials to be kept at least 2 feet back from the edge of an excavation — worth remembering when you are using a thumb to stack pipe or rock next to an open trench. If you intend to hoist and place loads rather than move material within the digging envelope, note that OSHA's construction cranes and derricks standard, 29 CFR 1926 Subpart CC, governs equipment used to hoist and lower loads, and hydraulic excavator lift capacity ratings are established under ISO 10567. Confirm with your machine OEM and your safety manager how those apply to your configuration before rigging anything to a thumb or bucket.
