Overhead Storage

What Motorized Overhead Storage Is, and How It Differs From a Fixed Rack

Overhead storage is any system that moves stored goods off the floor and into the space between your parked vehicle and the ceiling. A fixed overhead rack is a static shelf: cheap, simple, and only as useful as your willingness to climb a ladder with a loaded tote. Motorized overhead storage replaces the ladder with a powered platform that lowers to working height, loads at waist level, and lifts back up under motor control. The trade-off is straightforward. Fixed racks cost less and have nothing to service. A motorized garage storage lift costs more and adds a motor, cables and a controller, but it makes the space genuinely usable for items you retrieve several times a year rather than once a decade. If you touch the contents twice a year, a rack is fine. If you are storing kayaks, bikes, holiday bins or camping gear you actually pull down, the lift earns its price.

Sizing a Motorized Garage Storage Lift to Your Ceiling

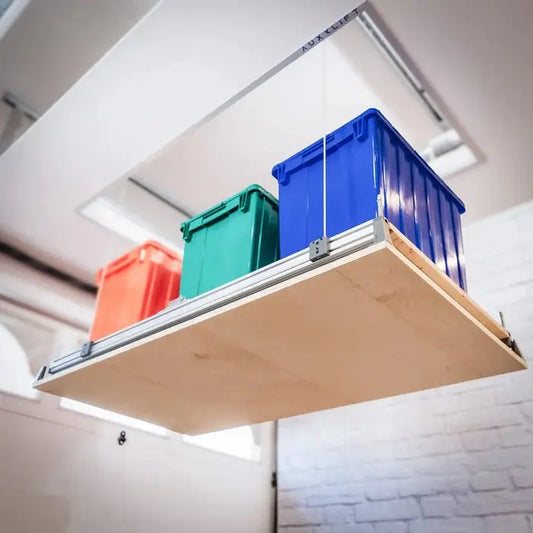

Three measurements decide whether a lift fits: capacity, vertical travel, and the ceiling opening or mounting footprint. Take them before you shop, not after delivery. The Auxx Lift 400lbs Garage Attic Storage Lift System in this collection is specified as follows:

Vertical travel is the distance the platform can descend, not your ceiling height — a lift in a garage with a finished attic above needs enough travel to reach the floor from the attic deck, which is more than the garage height alone. That is why travel is offered at 13 ft, 16 ft and 20 ft rather than one fixed length. Capacity is a total for the platform, and it includes the weight of anything you bolt to the deck. Weigh a representative load rather than estimating it; dense items like tool chests and fluids reach a rating far sooner than bulky, light ones like kayaks.

Matching Accessories to Your System: Auxx-Lift, Attic-Lift and Auxx-One

Most of this collection is parts and accessories, and they are not universally interchangeable. Product data here identifies distinct platforms — Auxx-Lift, Attic-Lift and Auxx-One — and several items are listed specifically for one of them. Cable extensions are a clear example: the Cable Extension and the Cable Extension [for Attic-Lift] are each listed at 18 ft, while the Cable Extension [For Auxx-One] is a 16 ft part that takes that system's standard 12 feet of vertical travel to 16 feet, adding 4 feet. Buying the wrong one is the single most common ordering error in this category. Read the compatibility line on the product page and match it to the nameplate on your existing unit. The Extra Remote Control is listed as wireless and compatible with both Auxx-Lift and Attic-Lift systems, and Motor Assemblies are offered in 400 lbs and 600 lbs versions — replacement motors must match the system they were built for.

Mounting, Joists and Installation Requirements

A ceiling lift transfers its entire load into your framing, so the mounting path matters more than the lift itself. The critical question is joist direction. When ceiling joists run perpendicular to the lift rails, the rails can be fastened across multiple joists directly. When the joists run parallel to the rails, you need to span across them — that is exactly what the Additional Hardware Kit in this collection is for, and it is listed as including 2 strut channels, 8 spring nuts, 8 strut hex head bolt screws and 4 strut brackets. Related hardware is stocked separately: Strut Channel, Strut Channel Brackets, Strut Channel End Caps, Spax lag bolt hex head fasteners, Corner Brackets and Side Brackets. On the electrical side, the Auxx Lift 400 lbs system is rated at 235W with a 2.3 amp draw; confirm the circuit serving your garage and follow the manufacturer's installation manual. Workplace lifting rules such as OSHA 1910.178, which covers powered industrial trucks, apply to forklifts and similar equipment rather than residential ceiling storage lifts — for a garage lift, the manufacturer's instructions and your local building code are what govern the installation. If your ceiling framing is engineered truss rather than conventional joists, or if you are unsure what is above the drywall, have the structure assessed before drilling.

Guards, Decking and Long-Term Serviceability

The accessories that get overlooked are the ones that keep loads on the platform and the system serviceable years later. Auxx-Guard, Auxx-Fence and Auxx-Cover address containment and protection; Auxx-Hook, Round Ring and Carabiner Snap-In Anchors and the Webbing Guide Snap-In Anchor give you tie-down points for irregular loads like bikes and kayaks; Wire Deck, Platform Beam, Platform Rail, Alu Beam T-slot and Mesh Clips build out or repair the deck itself. Wear parts — Wire Rope Clips, Grommets, End Caps, Bumpers and the Controller — are stocked individually, which is what makes a lift a repairable purchase rather than a disposable one. Before buying a system, confirm that its consumables are available separately; a lift whose cable or controller cannot be replaced becomes scrap the day one part fails.

What Buyers Most Often Get Wrong

Four mistakes account for most returns and failed installs. First, measuring garage height instead of required vertical travel. Second, ignoring joist direction until the box is open. Third, sizing capacity to the heaviest single item rather than the full loaded platform. Fourth, ordering accessories by name alone when the same part exists in system-specific versions. Work through those four in order, with a tape measure and a look into the ceiling cavity, and the rest of the decision is mostly budget and how often you plan to use the space.
