Triumph SJ-35 3,500 lb Sliding Bridge Jack for Four-Post Lifts

Triumph SJ-35 3,500 lb Sliding Bridge Jack for Four-Post Lifts

See more by Triumph

$975.00 - $1,250.00

$975.00

$975.00 - $1,250.00

$975.00

In stock

SKU SJ-35F

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

The Triumph SJ-35 is a 3,500 lb sliding bridge jack that rides on the runways of a Triumph service-and-storage four-post lift and raises a vehicle off the drive-on ramps for wheels-free work. It uses a manual hydraulic hand pump — no shop air or electrical hookup.

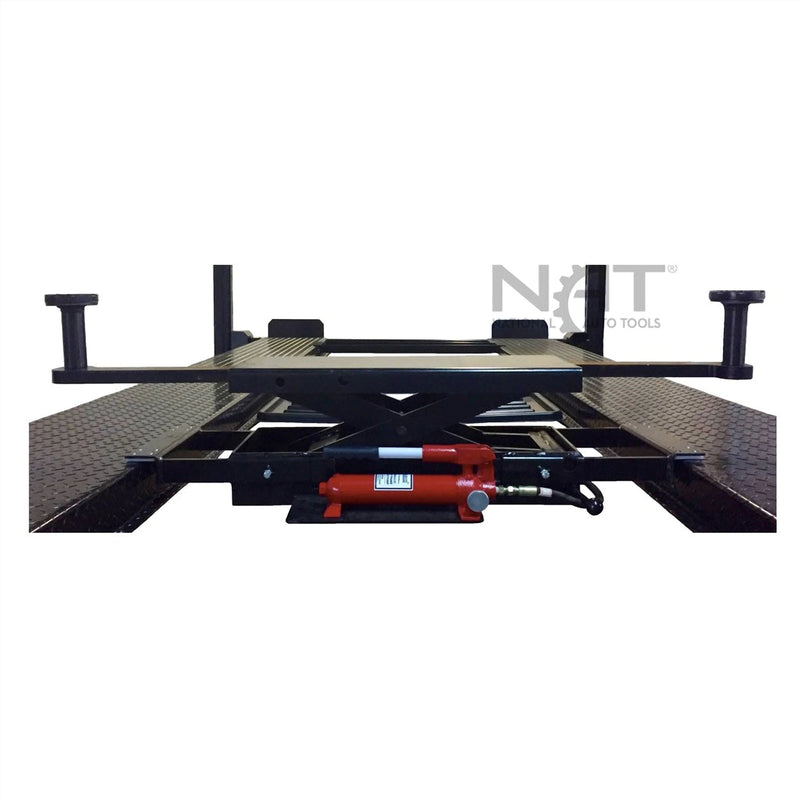

What a sliding bridge jack does

The SJ-35 is a 3,500 lb hydraulic jack that rides on the runways of a Triumph service-and-storage four-post lift and slides fore and aft across the open center of the lift. With the vehicle already up on the ramps, you position the jack under an axle or cross-member, raise that end clear of the runway, and work wheels-free — pull wheels, service brakes, or work suspension — without moving the car to a second lift. That is the practical difference between a storage-style four-post and a working service bay: the jack is what converts one into the other. It lifts one end of the vehicle at a time, within its 3,500 lb rating.

Fitment: gap width, pad reach and heights

Two dimensions decide whether this jack works in your bay. First, the frame: it adjusts across a gap width of 31 to 46 inches so it spans between the lift runways rather than sitting on one of them. Second, the pads: they extend from a 39-inch collapsed width out to 63 inches to reach factory lift points across a range of vehicles, from narrow-track cars to wider trucks and SUVs. Height matters too. Collapsed, the pads sit just 4.75 inches tall, which is what lets the jack slide under low vehicles and store flat under the lift. The jack raises to an 11-inch pad height on its own and reaches up to 16.5 inches with extensions fitted.

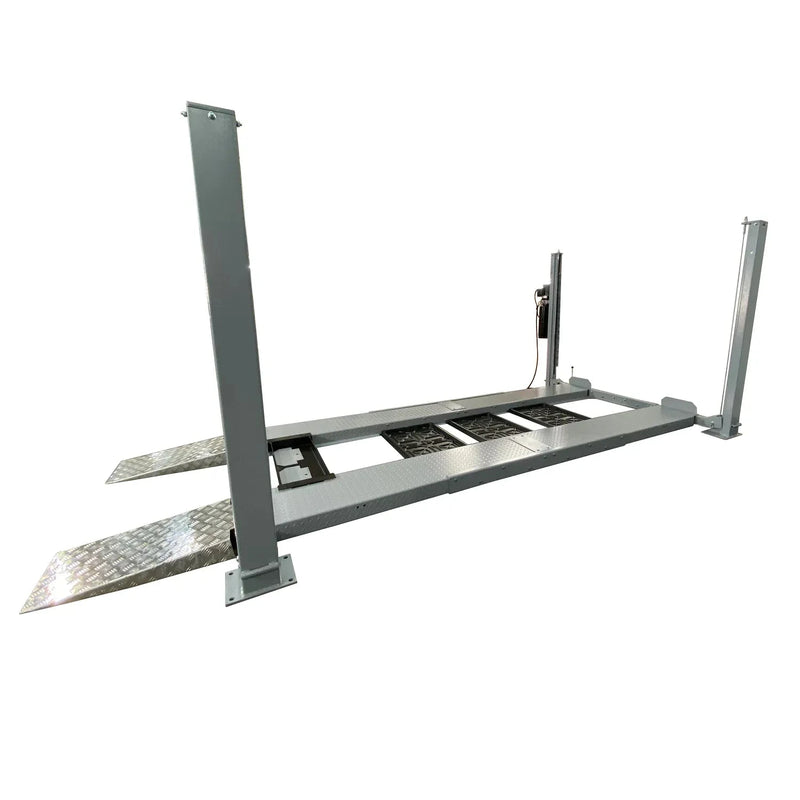

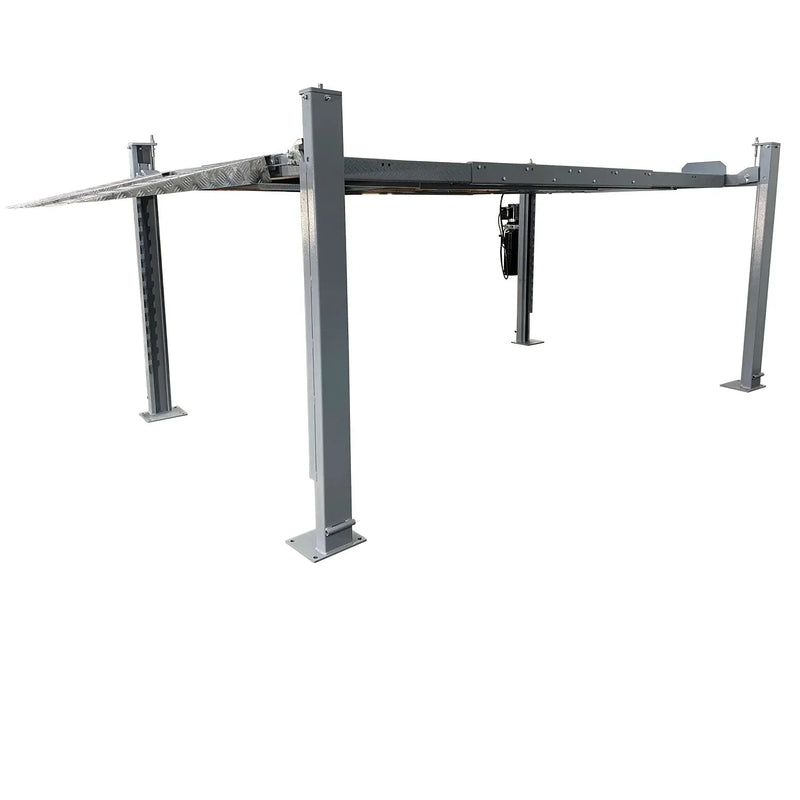

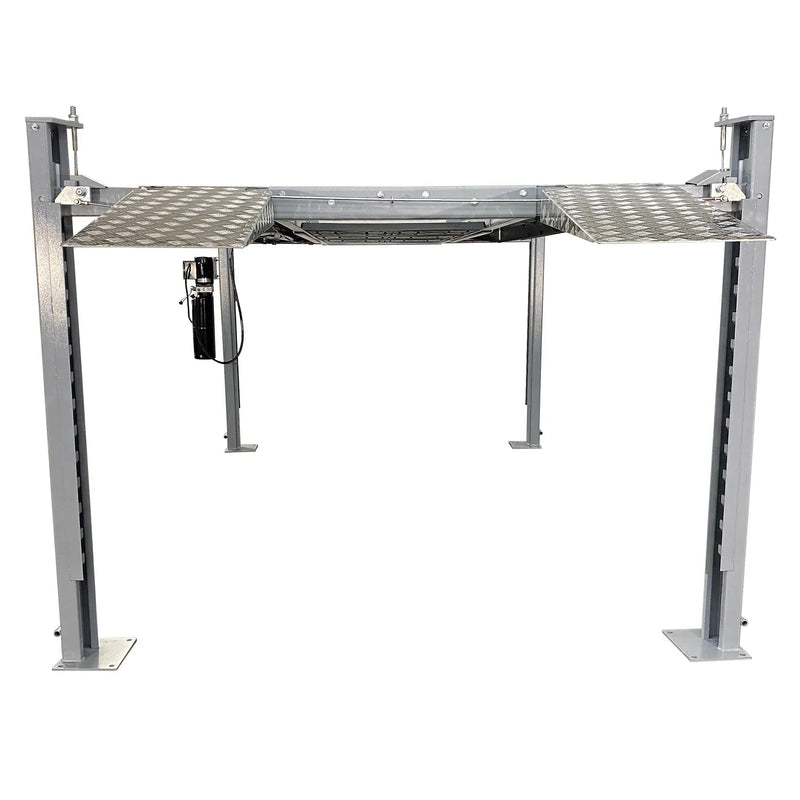

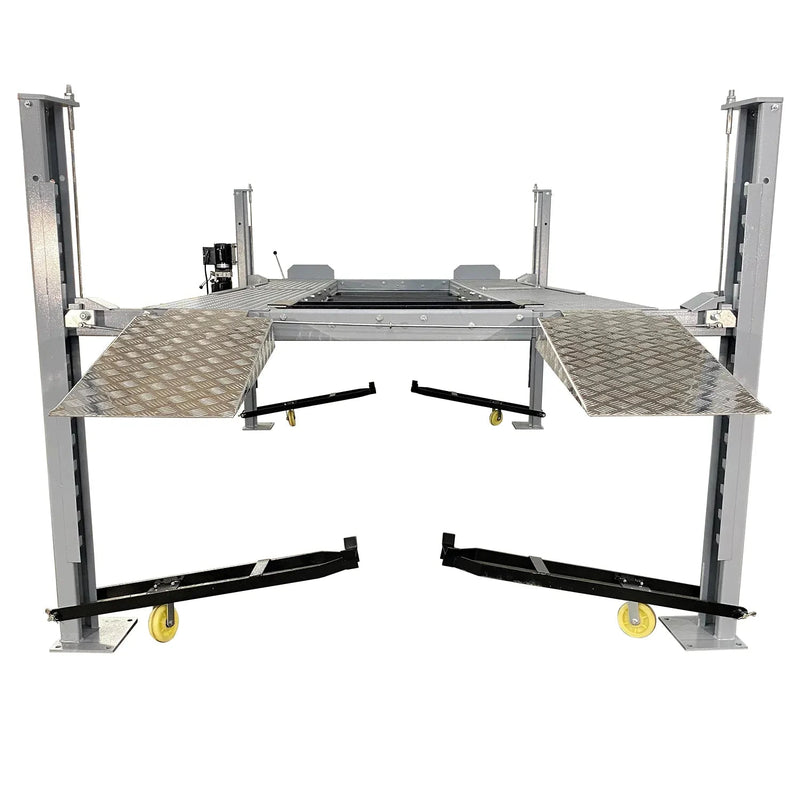

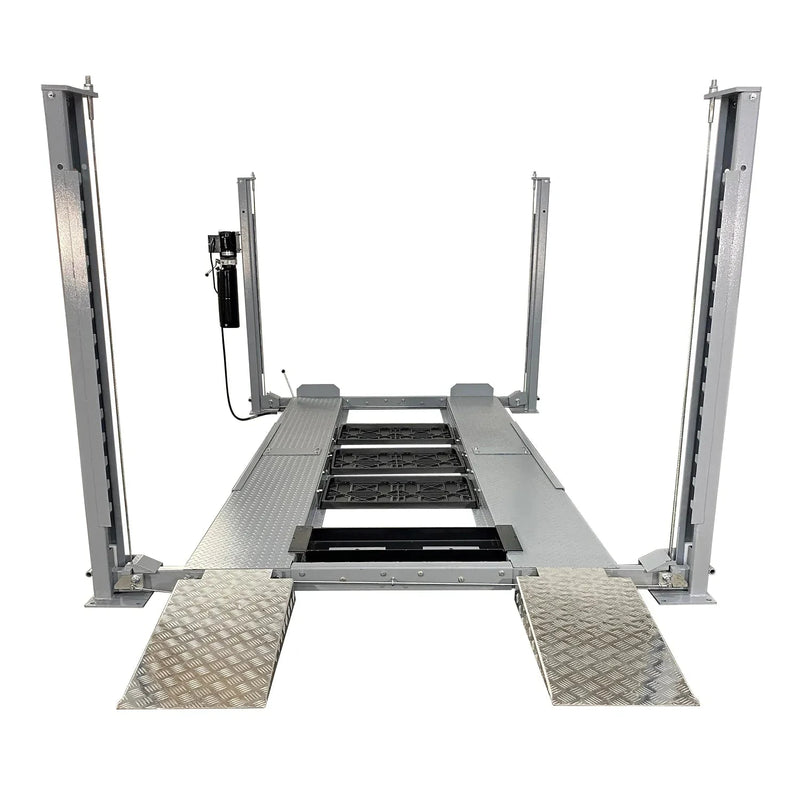

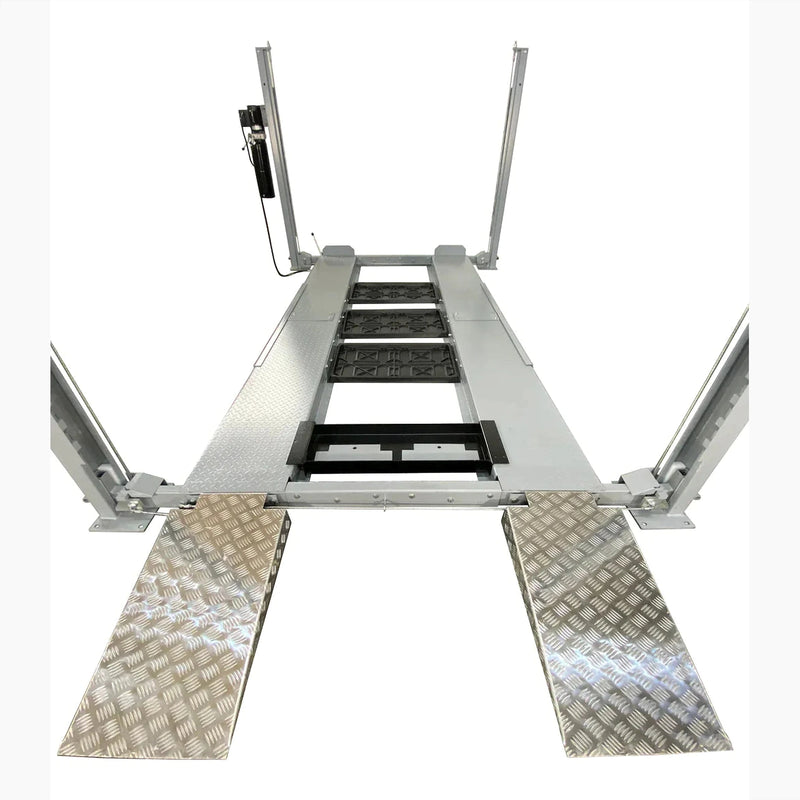

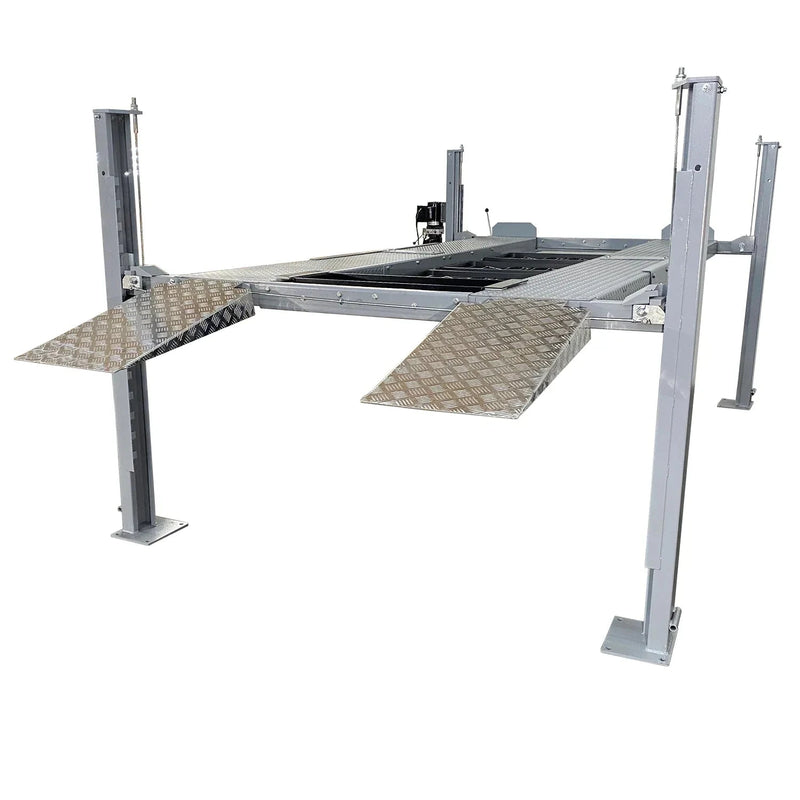

Which lifts the SJ-35 fits

The SJ-35 is built specifically for Triumph service-and-storage four-post lifts, and the compatibility list is closed rather than a general guideline. It fits the NSS-8, NSS-8XLT, USA8000, USA8000XLT, NSS-8 X1 and NSS-8SQ — those models only. It is not compatible with other lifts, so confirm your lift model number before ordering rather than measuring your runway gap and assuming it will drop in. The 31-to-46-inch gap width adjustment exists to accommodate the runway spacing across that Triumph lift family, not to make the jack universal. If your lift is a two-post, a scissor, or a four-post outside the NSS-8 series, this is not the right jack for it.

Manual pump operation and warranty

Lifting is done by a hand-operated hydraulic pump. There is no air line to run and no electrical hookup to plan for, which keeps installation to positioning the jack on the runways and adjusting the frame to your gap width. It also means the SJ-35 works in a garage with no compressor and no dedicated circuit. Triumph covers the SJ-35 with a 1-year parts warranty — parts only, no labor. If a part fails, a phone call and remote troubleshooting get a free replacement shipped by ground service; the labor to install it is not covered. The rubber lifting pads are excluded, and the hydraulic cylinder carries a 30-day full warranty, after which Triumph supplies a seal kit.

Key features

3,500 lb rated capacity — enough to raise one end of a car, truck or SUV off the runways for wheels-free service
Adjustable 31–46 in gap width — spans between the lift runways and adapts to different vehicle wheelbases
Pads extend 39–63 in — reaches factory lift points across a range of vehicle widths
Manual hydraulic hand pump — operates with no shop air line and no electrical connection
4.75 in collapsed pad height — clears low vehicles going in and stores flat under the lift
16.5 in maximum height with extensions — 11 in of pad height on the jack alone, extensions add the rest
Slides fore and aft on the runways — position it under an axle or cross-member without repositioning the vehicle

Specification Table

SJ-35F · TriumphSKU SJ-35F
Lifting Capacity	3,500 lbs
Minimum Gap Width	31"
Maximum Gap Width	46"
Collapsed Pad Width	39"
Extended Pad Width	63"
Collapsed Pad Height	4.75"
Extended Pad Height	11"
Max Height with Extensions	16.5"
Power Type	Manual pump
Compatible Lifts	Triumph NSS-8, NSS-8XLT, USA8000, USA8000XLT, NSS-8 X1, NSS-8SQ only
Parts Warranty	1 year, parts only — no labor
Hydraulic Cylinder Warranty	30-day full warranty, seal kit supplied after
Warranty Exclusions	Rubber lifting pads

Compare models

	SJ-35 3,500 lb Sliding Bridge Jack THIS	RJ-5000 5,000 lb Rolling Bridge Jack	RJ-9000 9,000 lb Rolling Bridge Jack	RJ-15000 15,000 lb Rolling Bridge Jack
Lifting capacity	3,500 lbs	5,000 lbs	9,000 lbs	15,000 lbs
Gap width range	31" – 46"	22.5"	32.4"	15.3"
Pad width range	39" – 63"	8.6"	40.1" to 59.8"	28.3"
Collapsed pad height	4.75"	31.4" – 47.2"	43.8" to 52.3"	42.6" – 68.7"
Price	$975.00	$1,595.00	$2,250.00	$3,275.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

What lifts does the Triumph SJ-35 fit?
It fits Triumph service-and-storage four-post lifts only: the NSS-8, NSS-8XLT, USA8000, USA8000XLT, NSS-8 X1 and NSS-8SQ. It is not compatible with other lifts, so confirm your lift model before ordering.

How much weight can the SJ-35 lift?
It is rated at 3,500 lbs lifting capacity.

Does the SJ-35 need air or electricity?
No. It uses a manual hydraulic hand pump, operated by hand with no shop air or power connection.

Will it fit between my lift runways?
The frame adjusts across a gap width of 31 to 46 inches to span between the runways. That range is designed around the Triumph NSS-8 series lifts it is built for.

How high does the SJ-35 lift?
The pads raise to an 11-inch pad height on the jack alone, and up to 16.5 inches with extensions.

How low does it sit for low-clearance vehicles?
Collapsed pad height is 4.75 inches, which gives clearance under low vehicles and keeps the jack compact for storage.

How wide do the lifting pads spread?
The pads go from a 39-inch collapsed width out to 63 inches extended, so you can reach factory lift points on a range of vehicles.

What does the warranty cover?
Triumph covers the SJ-35 with a 1-year parts warranty — parts only, no labor. The rubber lifting pads are excluded, and the hydraulic cylinder carries a 30-day full warranty, after which Triumph supplies a seal kit.

Is there a manual available for the SJ-35?
A downloadable manual is not available for the SJ-35.
