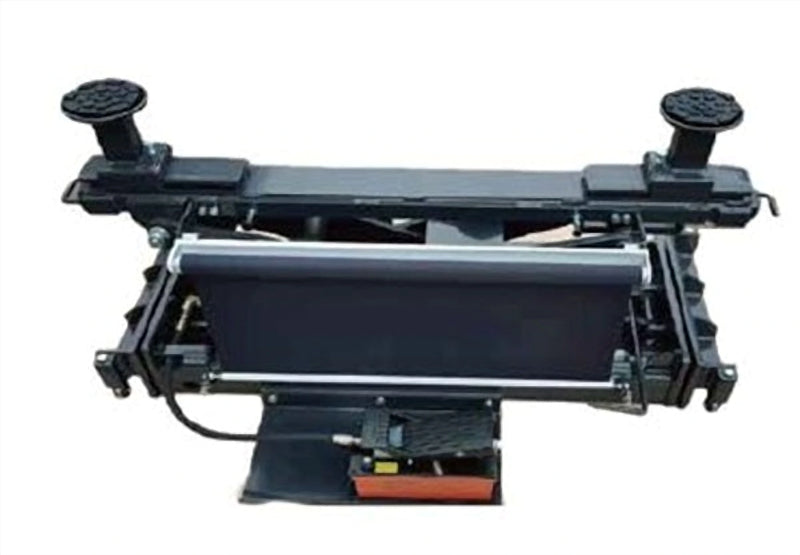

Triumph RJ-15000 15,000 lb Rolling Bridge Jack

See more by Triumph

$3,275.00 - $3,995.00

$3,275.00

$3,275.00 - $3,995.00

$3,275.00

In stock

SKU RJ-15000

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

The Triumph RJ-15000 is a 15,000 lb rolling bridge jack that drops into the runways of a four-post lift and raises one end of the vehicle clear of the deck. It fits four-post hosts with an inside-runway width between 48.7" and 55", and ships with 5" and 6.75" height adapter sets.

What a rolling bridge jack does

The RJ-15000 is a rolling bridge jack — a jack assembly that drops into the runways of a four-post lift, rolls to the axle you need, and lifts one end of the vehicle clear of the runway. That lets a technician pull wheels and work on brakes or suspension without rolling the vehicle off the lift. It is rated at 15,000 lbs, which covers the full-size trucks, work vans, body-on-frame SUVs, and commercial fleet vehicles that justify a heavy-duty four-post in the first place. The unit ships at 661 lbs in a crate measuring 51" x 33" x 17". It is an accessory rather than a standalone lift: it needs a four-post host with runways in the supported width range to work at all.

Runway fit and pad width

Because the jack seats between the runways, the inside-of-runway dimension on your four-post is the number that decides fit. The RJ-15000 works on hosts measuring between 48.7" and 55" inside the rails. Outside that range the jack will not seat correctly between the runways, so measure your existing lift before ordering rather than working from a catalog figure. Triumph's NTR-24 and NTR-32 four-post lifts both fall inside the supported range, and both are sold as standalone lifts or as combos with two RJ-15 rolling jacks already included. Separately, the lifting pads adjust from 42.6" to 68.7" between centers, which covers the frame-rail and pinch-weld spread on most full-size trucks, vans, and SUVs.

Lift range and the included height adapters

Lowered, the jack sits at 15.3", low enough to roll under a vehicle already parked on the runways. Maximum lifting height is 28.3". Two sets of height adapters ship with the unit — 5" and 6.75" — and both are included in the box, not sold separately. They stack on the lifting pads to add reach when a chassis sits high or when the lift points call for extra clearance, so the pads land where the chassis wants them rather than where the jack happens to top out. The 5" set fits most cars and light trucks; the 6.75" set is intended for the taller frame heights found on heavy-duty trucks and commercial vehicles. The lift range suits suspension, wheel, and brake service.

One jack or two, and what is covered

One unit lifts one axle, front or rear, which is enough to pull two wheels at a time. Two units let the front and rear come up independently — useful for full underside service, alignment-adjacent work, or a wheel rotation completed in one cycle. Triumph sells the NTR-24 and NTR-32 four-post lifts as combos with two RJ-15 units already included for buyers who know up front that they want the pair. On coverage: Triumph provides a 1-year parts warranty with no labor. Covered parts ship free as ground freight after phone troubleshooting, and labor to install the replacement is the owner's responsibility. Hydraulic cylinders carry a 30-day full warranty, after which Triumph supplies a seal kit for in-service repair. Rubber lifting pads are wear items and are not covered.

Key features

15,000 lb capacity — rated for full-size trucks, vans, SUVs, and commercial vehicles
Adjustable pad width — pads set from 42.6" to 68.7" between centers to match frame-rail and pinch-weld spreads
Two adapter sets included — 5" and 6.75" height adapters for tuning chassis clearance
15.3" lowered profile — rolls under a vehicle already sitting on the runways
28.3" maximum lifting height — clears the runway for wheel, brake, and suspension work
48.7"–55" runway fit — pairs with Triumph NTR-24 and NTR-32 four-post hosts
1-year parts warranty — free ground freight on covered parts; cylinders carry a 30-day full warranty

Specification Table

RJ-15000 · TriumphSKU RJ-15000
Lifting Capacity	15,000 lbs
Lowered Height	15.3"
Maximum Lifting Height	28.3"
Minimum Width Between Pads	42.6"
Maximum Width Between Pads	68.7"
Minimum Width Between Runways	48.7"
Maximum Width Between Runways	55"
Height Adapters Included	5" and 6.75" sets
Shipping Weight	661 lbs
Shipping Dimensions	51" x 33" x 17"
Parts Warranty	1 year, parts only (no labor)
Hydraulic Cylinder Warranty	30 days full; seal kit after 30 days

Compare models

	RJ-15000 15,000 lb Rolling Bridge Jack THIS	RJ-9000 9,000 lb Rolling Bridge Jack	RJ-5000 5,000 lb Rolling Bridge Jack	SJ-35 3,500 lb Sliding Bridge Jack
Lifting Capacity	15,000 lbs	9,000 lbs	5,000 lbs	3,500 lbs
Lowered Height	15.3"	32.4"	22.5"	31" – 46"
Maximum Lifting Height	28.3"	40.1" to 59.8"	8.6"	39" – 63"
Pad Width Range	42.6" – 68.7"	43.8" to 52.3"	31.4" – 47.2"	4.75"
Price	$3,275.00	$2,250.00	$1,595.00	$975.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

Will the RJ-15000 fit my four-post lift?
It will if the inside-of-runway dimension on your four-post measures between 48.7" and 55". Triumph NTR-24 and NTR-32 four-post lifts both fall in that range. For any other host, measure the inside runway width before ordering.

How much does the RJ-15000 lift?
It is rated at 15,000 lbs. That covers full-size trucks, work vans, body-on-frame SUVs, and commercial fleet vehicles.

How high does it lift and how low does it sit?
Lowered height is 15.3" and maximum lifting height is 28.3".

What is included in the box?
The RJ-15 rolling bridge jack assembly, one set of 5" height adapters, and one set of 6.75" height adapters.

What do the 5" and 6.75" height adapters do?
They stack on the lifting pads to add reach when a chassis sits high or the lifting points need extra clearance. The 5" set fits most cars and light trucks; the 6.75" set is for taller frame heights on heavy-duty trucks and commercial vehicles.

Do I need one rolling jack or two?
One unit lifts one axle so you can pull two wheels at a time. Two units let the front and rear rise independently, which suits full underside service or a wheel rotation in a single cycle. Triumph also sells the NTR-24 and NTR-32 as combos with two RJ-15 units included.

How wide do the lifting pads adjust?
From 42.6" to 68.7" between centers, which covers the frame-rail and pinch-weld spread on most full-size trucks, vans, and SUVs.

What does it weigh and how does it ship?
Shipping weight is 661 lbs and shipping dimensions are 51" x 33" x 17".

What does the warranty cover?
Triumph covers the jack with a 1-year parts warranty, no labor — covered parts ship free by ground and installation labor is the owner's responsibility. Hydraulic cylinders carry a 30-day full warranty, with a seal kit provided for in-service repair after that. Rubber lifting pads are wear items and are not covered.
