Triumph RJ-5000 5,000 lb Rolling Bridge Jack

Triumph RJ-5000 5,000 lb Rolling Bridge Jack

See more by Triumph

$1,595.00 - $1,850.00

$1,595.00

$1,595.00 - $1,850.00

$1,595.00

In stock

SKU RJ-5000

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

The Triumph RJ-5000 (also sold as the RJ-5) is a rolling bridge jack that rides along four-post lift runways and raises a vehicle off the platform, with a 5,000 lb capacity. It ships with one set of 4-inch height adapters.

What a rolling bridge jack does

A four-post lift holds a vehicle by its tires, which is fine for inspection and storage but useless the moment you need a wheel off. The RJ-5000 solves that. It sits across the runways on end rollers, rolls to wherever the lift points are, and then raises the vehicle clear of the runways so the wheels hang free. The platform still supports the rest of the vehicle while the jack carries the load you lifted. That turns a parking or inspection lift into a working service bay for pulling wheels, servicing brakes, or rotating tires. A single unit lifts up to 5,000 lb, which covers the wheels-off load of most cars, trucks, and SUVs a four-post lift is holding.

Will it fit your lift?

Fit comes down to one measurement: the distance between your runways, measured on your own lift rather than taken from a brochure. The RJ-5000 spans runway spacing from 31.4 inches to 47.2 inches. If your lift falls inside that window, the jack rides on it. The second measurement is contact width. Two rubber pads and two threaded saddle posts sit on the cross-beam and adjust across a 32.2 to 59.8 inch width, so you can spread them out to a truck frame or bring them in for a car. The saddle posts thread up to meet the frame, which handles the last bit of reach without stacking anything by hand.

Lift range and reach

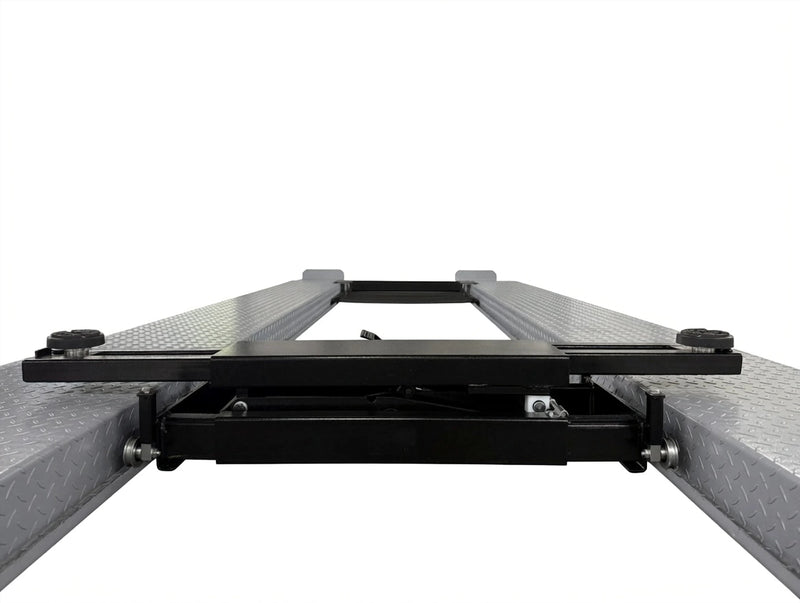

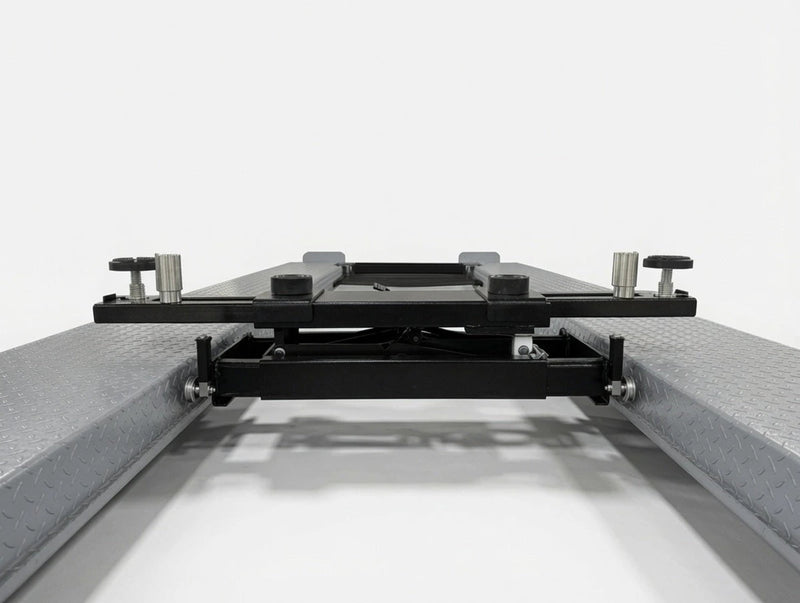

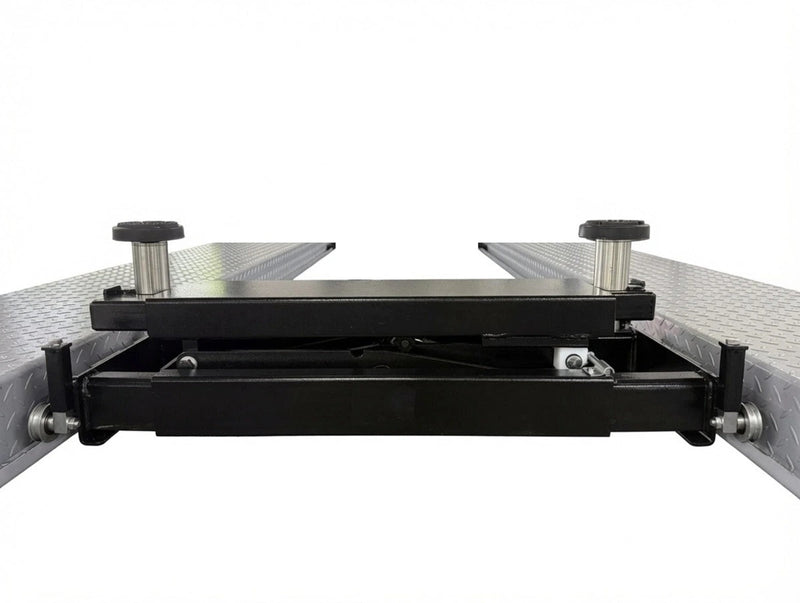

The jack collapses to an 8.6-inch lowered height. That is the number that matters for rolling under a low car already sitting on the runways, since anything taller than the pinch weld clearance simply will not pass. From there it raises to a 22.5-inch maximum lifting height, which is enough to get wheels well clear and give you standing access to the undercarriage while the vehicle is already up on the four-post. One set of 4-inch height adapters is included for vehicles that need extra reach at the contact points. Operation is hydraulic through a foot-pump power unit, so both hands stay free while you set and hold the lift.

Shipping and handling the unit

The RJ-5000 has a shipping weight of 600 lb and ships in a package measuring 48 by 28 by 16 inches. Plan for that before delivery day. This is not a unit one person carries off a truck, and the crate footprint is long enough that a narrow side door or a tight garage aisle is worth measuring in advance. A pallet jack, an engine hoist, or a second set of hands makes the move from curb to bay straightforward. Once it is on the runways, the end rollers do the positioning work and you should not need to lift it again. Manuals and technical documents are available on request from the seller.

Key features

5,000 lb capacity — lifts a wheels-off load clear of the four-post runways
Rolls on end rollers — position it anywhere along the length of the lift

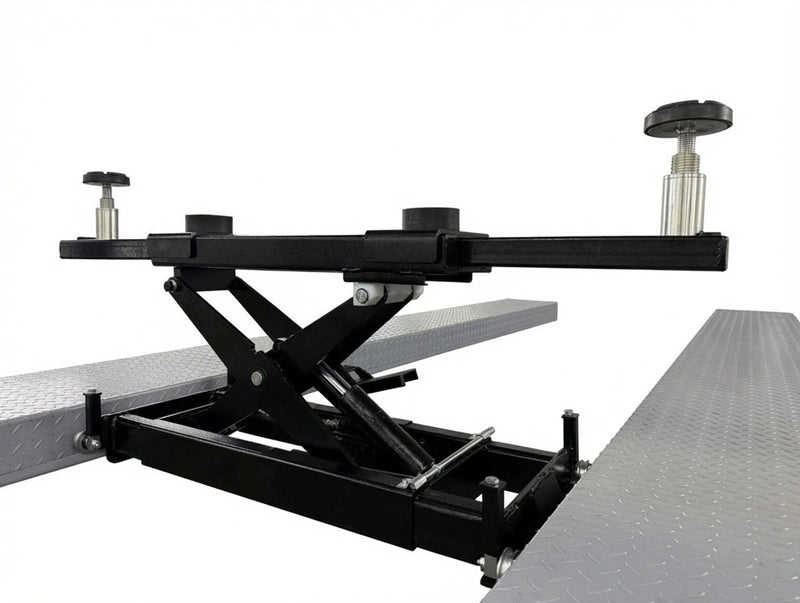

Adjustable contact width — two rubber pads plus two threaded saddle posts adjust across 32.2 to 59.8 inches
Wide runway fit — works on four-post runway spacing from 31.4 to 47.2 inches
8.6-inch lowered height — rolls under low vehicles already sitting on the runways

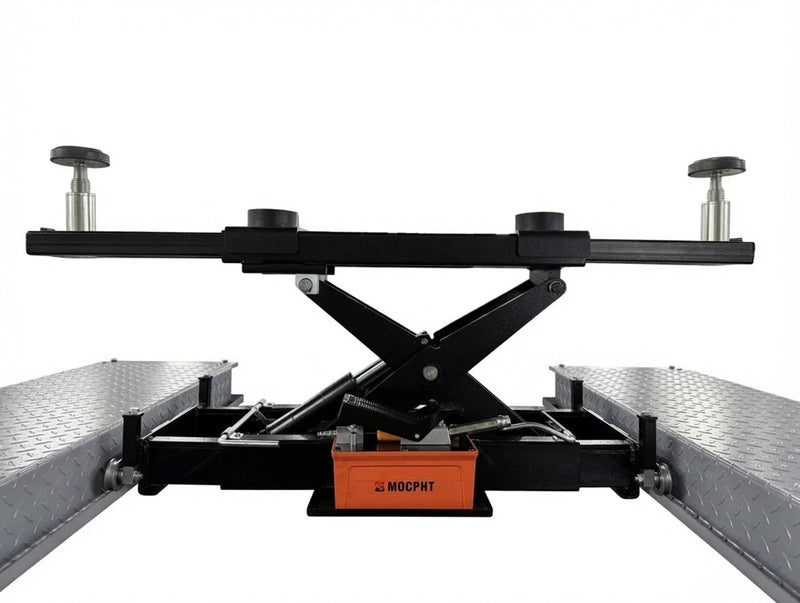

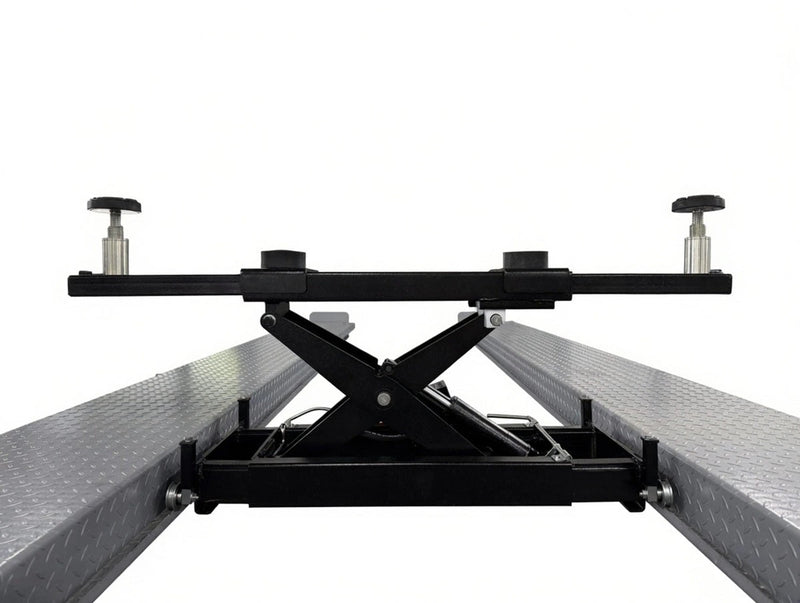

22.5-inch maximum lift height — standing access to the undercarriage

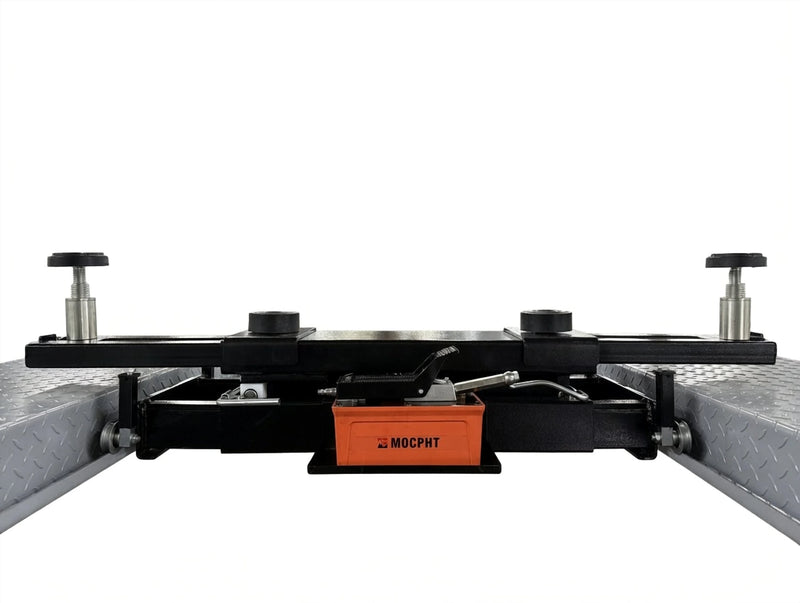

Hydraulic foot-pump power unit — both hands stay free while you raise the vehicle
Includes one set of 4-inch height adapters for extra reach at the lift points

Specification Table

RJ-5000 · TriumphSKU RJ-5000
Model	RJ-5 (RJ-5000)
Capacity	5,000 lbs
Lowered Height	8.6"
Maximum Lifting Height	22.5"
Minimum Width Between Pads	32.2"
Maximum Width Between Pads	59.8"
Minimum Width Between Runways	31.4"
Maximum Width Between Runways	47.2"
Contact Points	Two rubber pads plus two threaded saddle posts
Operation	Hydraulic with foot-pump power unit
Included Adapters	One set of 4" height adapters
Shipping Weight	600 lbs
Shipping Dimensions	48" x 28" x 16"

Compare models

	RJ-5000 5,000 lb Rolling Bridge Jack THIS	SJ-35 3,500 lb Sliding Bridge Jack	RJ-9000 9,000 lb Rolling Bridge Jack	RJ-15000 15,000 lb Rolling Bridge Jack
Capacity	5,000 lbs	3,500 lbs	9,000 lbs	15,000 lbs
Maximum Lifting Height	22.5"	31" – 46"	32.4"	15.3"
Lowered Height	8.6"	39" – 63"	40.1" to 59.8"	28.3"
Width Between Runways	31.4" – 47.2"	4.75"	43.8" to 52.3"	42.6" – 68.7"
Price	$1,595.00	$975.00	$2,250.00	$3,275.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

What runway spacing does the RJ-5000 fit?
It fits four-post lifts with runways spaced from 31.4 to 47.2 inches apart. Measure the gap between your own runways before ordering.

How much does the RJ-5000 lift?
A single unit has a 5,000 lb capacity. That is the wheels-off load it raises clear of the runways while the four-post lift still supports the rest of the vehicle.

Does it need electricity or air?
The source lists hydraulic operation with a foot-pump power unit. No electrical or air supply specification is given for this unit.

How low does it go?
The jack collapses to an 8.6-inch lowered height, which is what determines whether it can roll under a low vehicle already parked on the runways.

How high does it lift?
Maximum lifting height is 22.5 inches, measured from the collapsed position, giving standing access to the undercarriage.

What comes in the box?
The RJ-5000 includes one set of 4-inch height adapters. No other included items are listed.

How wide can the pads spread?
The two rubber pads and two threaded saddle posts adjust across a 32.2 to 59.8 inch contact width to reach lift points on cars, trucks, and SUVs.

How much does it weigh for delivery?
Shipping weight is 600 lbs and shipping dimensions are 48" x 28" x 16". Arrange equipment or help to move it from the truck to your bay.

Is the RJ-5 the same jack as the RJ-5000?
Yes. RJ-5 is a dealer designation for the same machine; RJ-5000 is the Triumph factory designation.
