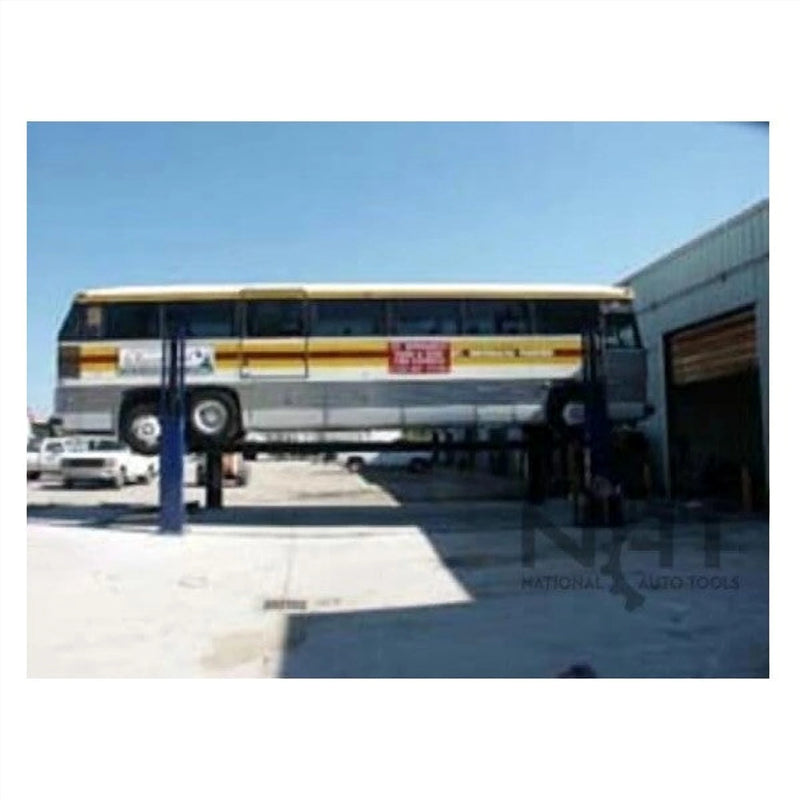

Triumph NTR-50 50,000 lb Four Post Auto Lift

See more by Triumph

$58,850.00 - $60,000.00

$58,850.00

$58,850.00 - $60,000.00

$58,850.00

In stock

SKU NTR-50

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

The Triumph NTR-50 is a four post drive-on auto lift with a 50,000 lb rated capacity, built to order and powered from a 220 volt single-phase supply.

What the NTR-50 is built for

The NTR-50 is a four post lift rated at 50,000 lb, which puts it at the heavy end of the four post category rather than the passenger-car end. A four post design is a drive-on lift: the vehicle rolls onto the runways under its own power and stays on its own wheels, so the load is carried through the tires instead of through frame contact points. That makes it a service and storage lift rather than a wheels-free lift by default. Maximum lifting height is 70 inches. Because the NTR-50 is custom built to order, the exact configuration is settled with the seller before the unit is produced rather than picked off a shelf.

Bay space and ceiling clearance

Plan the bay around the published envelope: 315 inches overall length, 155 inches overall width and 92 inches overall height. Those are the numbers to chalk on the floor before you commit, along with the approach and exit room a vehicle of this size needs at each end. For ceiling height, work from the 70 inch maximum lifting height plus the height of the tallest vehicle you intend to raise, plus whatever clearance you want above it for lights, doors, heaters and sprinkler heads. The lift's own 92 inch overall height is a separate figure and applies with the runways down. If your building is tight in any one dimension, raise it during the ordering conversation.

Power supply

The NTR-50 runs on 220 volt, single phase, 60 Hz power. Single phase matters here: many shops assume a lift in this capacity class will demand three phase service, and this one does not, which can save a service upgrade in a building that only has single phase available. The listing does not publish motor horsepower, full-load amperage or a recommended breaker size, so do not size the circuit from assumptions. Confirm those figures with the seller as part of the build order and have a licensed electrician run a dedicated circuit and disconnect to the lift location based on the numbers supplied with your specific unit.

Custom build and pricing

This lift is custom built to order. The consequence for a buyer is practical: the listed price is an estimate rather than a fixed cart price, and it does not include shipping. Freight on a unit with a 315 inch length and 155 inch width is a real line item and depends on your address, the receiving site and what equipment is available to offload. The published specification covers capacity, overall dimensions, lifting height and power; anything beyond that, including options and installation details, is settled by contacting the seller directly. Expect a conversation about your building, your power and your delivery site before an order is confirmed.

Key features

50,000 lb rated capacity — a heavy-duty four post rating well above standard passenger-car lift classes
70 inch maximum lifting height — the published top of travel for the runways
Four post drive-on design — the vehicle is driven on and supported on its own wheels
220 volt single phase, 60 Hz — no three phase service required for this unit
315 x 155 inch footprint — a large-vehicle envelope you can lay out before ordering
92 inch overall height — the lift's own standing height with the runways down
Custom built to order — configuration confirmed with the seller before production

Specification Table

NTR-50 · Triumph
Type	Four Post Auto Lift
Rated Capacity	50,000 lb
Overall Length	315"
Overall Width	155"
Overall Height	92"
Maximum Lifting	70"
Voltage	220 volt
Phase	1 Phase
Frequency	60 Hz
Availability	Custom built to order

Compare models

	NTR-50 50,000 lb Four Post THIS	NTR-32C 32,000 lb Four-Post	NTR-24 24,000 lb Four-Post	NTR-16 16,000 lb Four-Post
Rated capacity	50,000 lb	32,000 lbs	24,000 lbs	16,000 lbs
Maximum lifting	70"	70.8" (1,800 mm)	70.8"	74.4"
Overall length	315"	295.2" (7,500 mm)	150.1"	161"
Overall width	155"	48.75" – 52.7"	338.9"	134.2"
Price	$58,850.00	$20,695.00	$14,400.00	$7,400.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

How much weight can the NTR-50 lift?
It is rated at 50,000 lb. Do not exceed that figure, and account for anything loaded in or on the vehicle.

What power does the NTR-50 need?
220 volt, single phase, 60 Hz. Three phase service is not required for this unit.

What amperage or breaker size should I run?
The published specification lists voltage, phase and frequency only. Confirm motor amperage and circuit sizing with the seller for your specific build and have a licensed electrician install the circuit.

How much floor space does it take up?
Overall length is 315 inches and overall width is 155 inches. Add approach and exit room at both ends for the vehicles you plan to service.

How high does it lift, and what ceiling height do I need?
Maximum lifting height is 70 inches. Add the height of your tallest vehicle to that figure, plus clearance for lights, doors and sprinklers, to size your ceiling.

How tall is the lift itself when it is down?
Overall height is 92 inches.

Is the NTR-50 in stock?
No. It is custom built to order, so the unit is produced after the order is placed rather than pulled from inventory.

Does the listed price include shipping?
No. The listed price is an estimate and does not include shipping. Contact us to work out freight for your address and receiving site.

Is this a drive-on lift or a frame-contact lift?
It is a four post lift, so the vehicle drives onto the runways and is supported on its own wheels.
