Triumph NOS9000XLT 9,000 lb Four Post Storage and Service Lift

Triumph NOS9000XLT 9,000 lb Four Post Storage and Service Lift

See more by Triumph

$6,645.00 - $6,995.00

$6,645.00

$6,645.00 - $6,995.00

$6,645.00

In stock

SKU NOS9000XLT

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

The NOS9000XLT is a four post automotive lift rated at 9,000 lbs. that works for both vehicle storage and service work. It is a longer and taller version of the standard four post design, with 191.5" runways, 99" drive-thru width, and an 85" lift height.

What the NOS9000XLT is built for

This is a dual-purpose four post lift: park one vehicle over another to double your floor space, or raise a single vehicle for service work. Capacity is 9,000 lbs. The runways are 191.5" long and 18" wide, and the drive-thru width between the posts is 99", so it is sized for full-size cars and trucks rather than compacts only. Maximum lift height is 85", with 80.5" of height under the runway once the lift is at full rise. That under-runway figure is the number to check against the roof height of whatever you plan to store underneath. Lowered height is 5", so the drive-on angle stays reasonable. The design has been in use for over 20 years.

Space and ceiling requirements

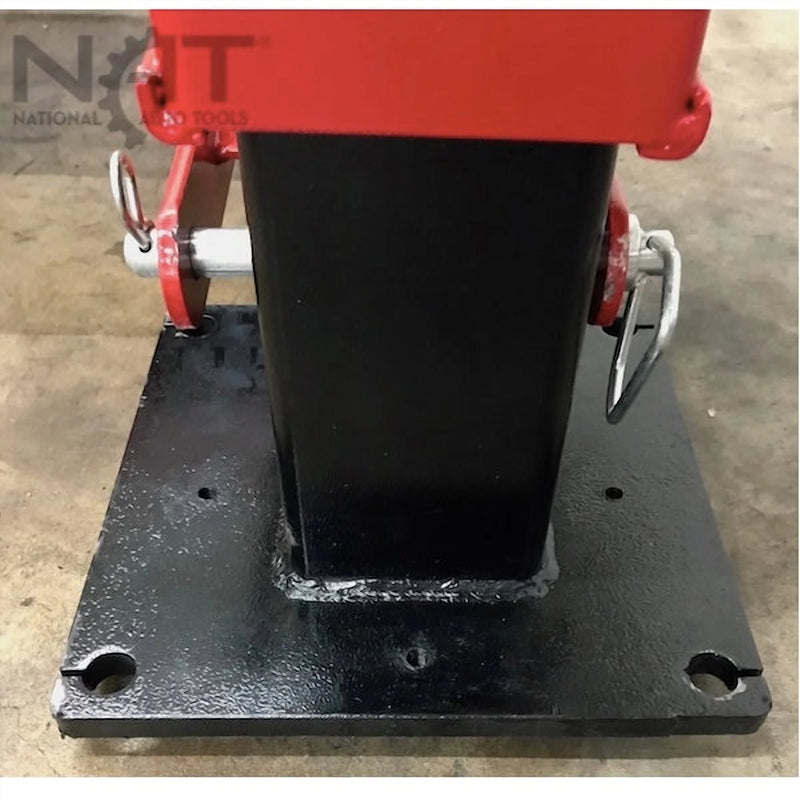

Measure before you buy. Overall height of the lift is 107", so your ceiling has to clear that plus whatever you intend to raise on the runways. Overall length is 239.5" and overall width is 119", which is the true footprint including posts — not just the runway span. Base plate size is 12" x 12" at each post. Drive-thru width is 99", the clear opening you drive through between the posts. If you are working with a standard residential garage, the 107" overall height is usually the limiting number, and the 239.5" overall length determines how much room is left in front of and behind the lift. Confirm all three dimensions against your bay before ordering.

Power, locks, and lift speed

The NOS9000XLT runs on 110 Volts, so it can be plugged into standard household-style power rather than requiring a dedicated 220V circuit — a practical advantage for home garages and rented bays. Full rise takes 40 seconds. Automatic locks engage at 15 different positions as the vehicle goes up, so the lift is supported mechanically at whatever working height you stop at, not just at the top. Lock release is single point, meaning you disengage all four locks from one location instead of walking the lift and releasing each post separately. Together those two things make repeated raise-and-lower cycles quick, which matters more for service use than for long-term parking.

What comes with the lift

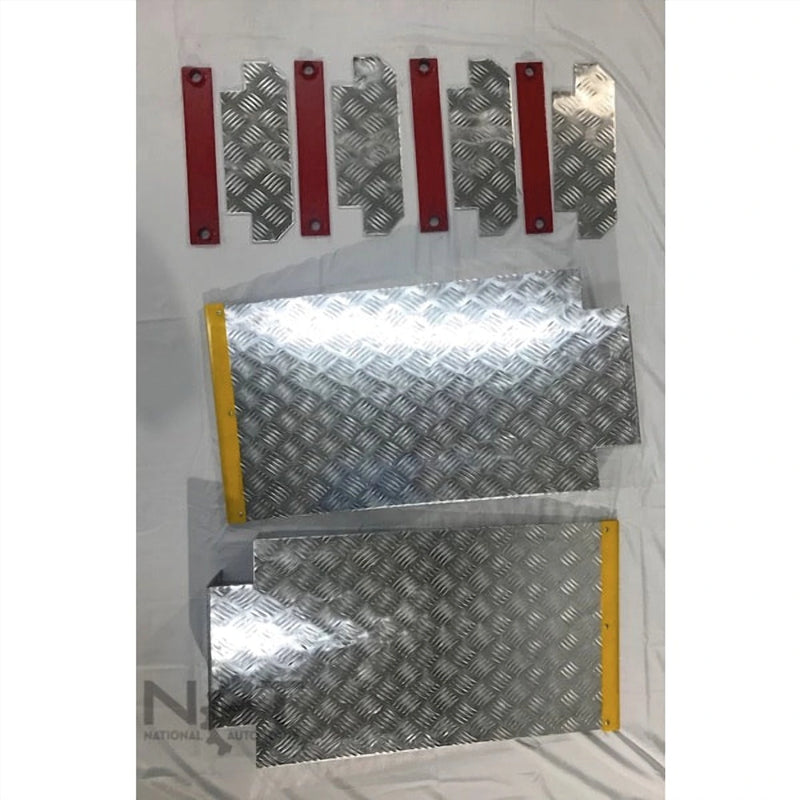

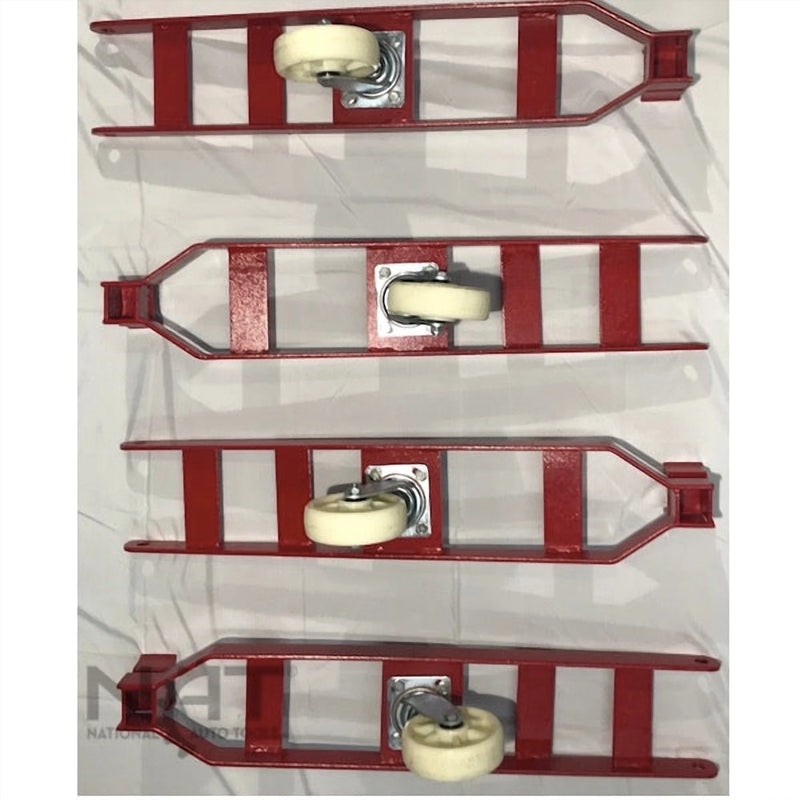

The NOS9000XLT ships with a caster kit, a jack tray, and three drip trays. The caster kit lets you roll the lift around the garage instead of leaving it fixed in one spot, which is what makes this a portable install rather than a permanent one. The jack tray accepts a bottle jack or floor jack so you can lift one end of the vehicle off the runways to pull wheels or work on brakes. The three drip trays sit under the upper vehicle and catch fluid before it lands on the car parked below — worth having if the top slot holds an older vehicle. This is an Outside Slider design. Default standard color is black and red.

Key features

9,000 lb capacity — rated for full-size cars and light trucks in either storage or service duty
15 locking positions — automatic locks engage as the vehicle rises, so it is mechanically supported at any working height
Single point lock release — all locks disengage from one location instead of post by post
110V power — runs on standard voltage, no dedicated 220V circuit required
Caster kit included — the lift is completely portable and can be repositioned in the garage
Jack tray included — use a bottle jack or floor jack to raise one end of the vehicle off the runways
Three drip trays included — keep fluid from the upper vehicle off the one parked below

Specification Table

NOS9000XLT · TriumphSKU NOS9000XLT
Capacity	9,000 lbs.
Overall Height	107"
Overall Length	239.5"
Overall Width	119"
Lift Height	85"
Height Under Runway	80.5"
Runway Length	191.5"
Runway Width	18"
Drive Thru Width	99"
Lowered Height	5"
Locking Positions	15
Base Plate Size	12" x 12"
Lock Release	Single Point
Lift Time	40 Seconds
Voltage	110 Volts
Shipping Weight	2,270 lbs.
Configuration	Four Post, Outside Slider
Standard Color	Black and red

Compare models

	NOS9000XLT 9,000 lb Four Post THIS	NOS9000 9,000 lb Four Post	NSS-9000 9,000 lb Double-Wide Four Post	NOS10000 10,000 lb Four-Post Storage Lift
Capacity	9,000 lbs.	9,000 lbs.	9,000 lbs	10,000 lbs
Lift Height	85"	77.5"	Double-wide four post, two drive-on lanes	Four-post, freestanding, drive-on
Height Under Runway	80.5"	113"	77"	87"
Overall Width	119"	93"	72"	81.5"
Price	$6,645.00	$5,950.00	$7,200.00	$4,450.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

What voltage does the NOS9000XLT need?
110 Volts. It does not require a 220V circuit.

How much ceiling height do I need?
The lift itself is 107" tall overall, so your ceiling must clear that plus the height of any vehicle you raise on the runways. Measure your bay before ordering.

How tall a vehicle can I park underneath?
Height under the runway is 80.5" at full rise. Compare that number to the roof height of the vehicle you want to store on the bottom.

What is the actual footprint of this lift?
Overall length is 239.5" and overall width is 119". Each of the four base plates is 12" x 12".

Will a full-size truck fit between the posts?
Drive-thru width is 99" and the runways are 191.5" long by 18" wide. Check your vehicle's width and wheelbase against those figures.

Is the lift bolted down or can I move it?
A caster kit is included, so the lift can be rolled around the garage. It is easy to set up and completely portable.

What is included with the NOS9000XLT?
A caster kit, a jack tray, and three drip trays are included with the lift.

Can I do wheel or brake work on this lift?
Yes. The included jack tray accepts a bottle jack or floor jack so you can raise one end of the vehicle off the runways.

How fast does it lift?
Full rise takes 40 seconds, and automatic locks engage at 15 positions along the way.
