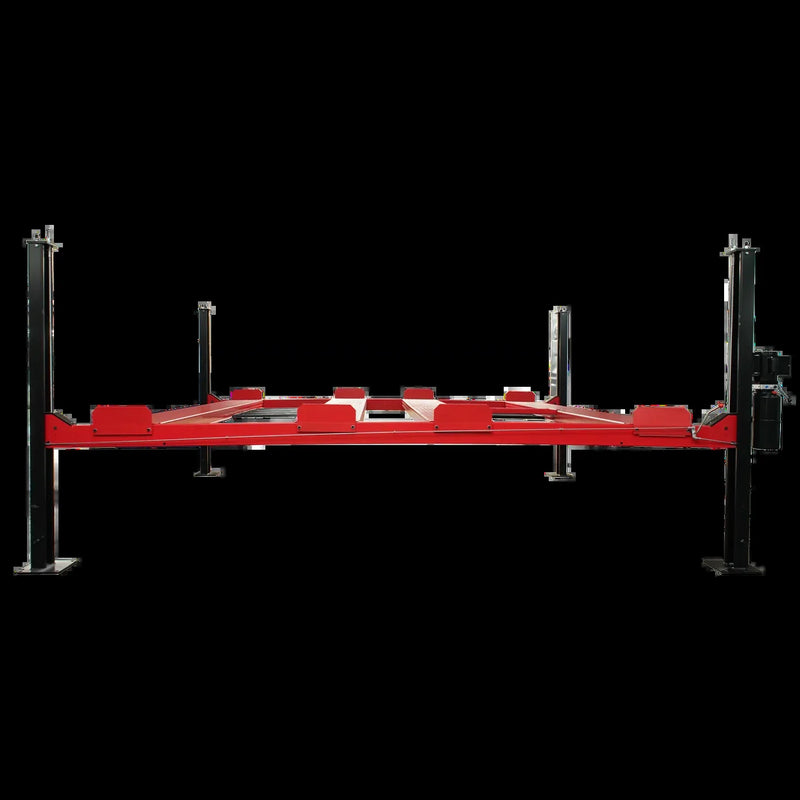

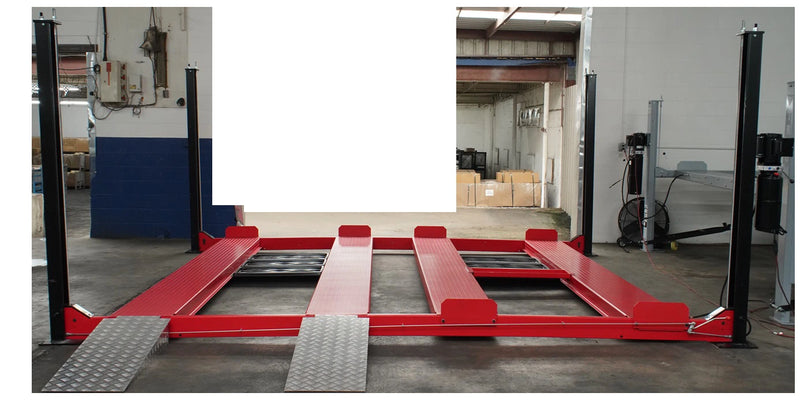

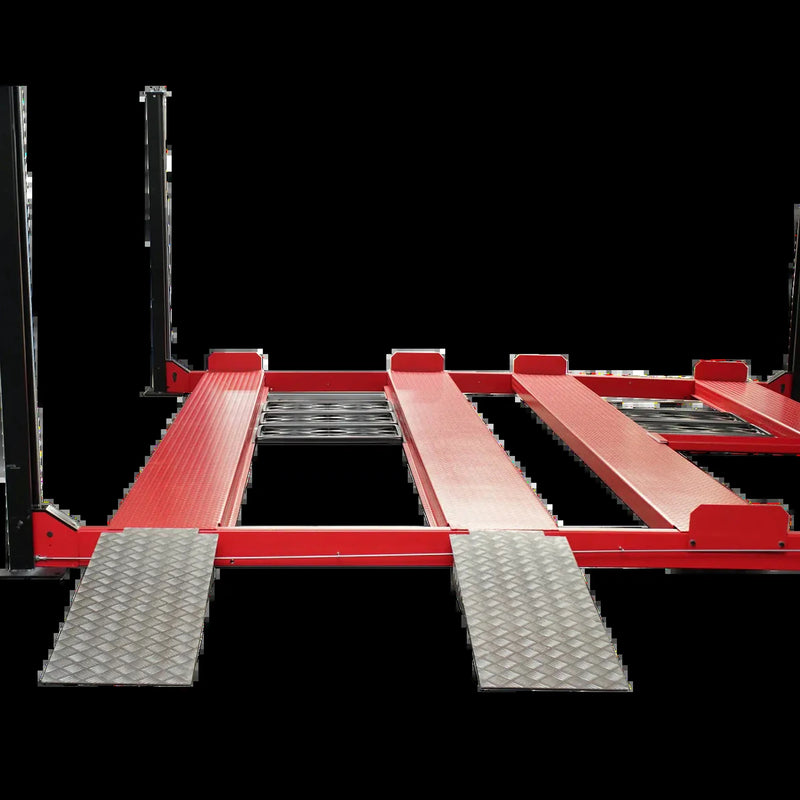

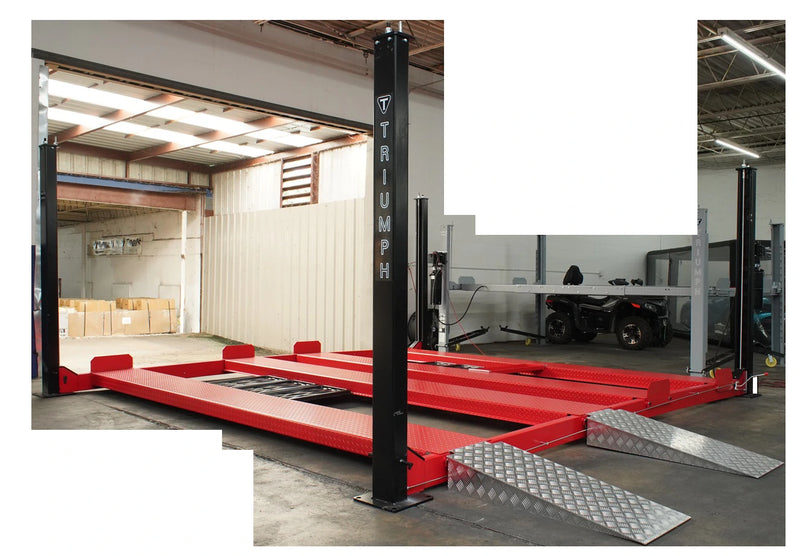

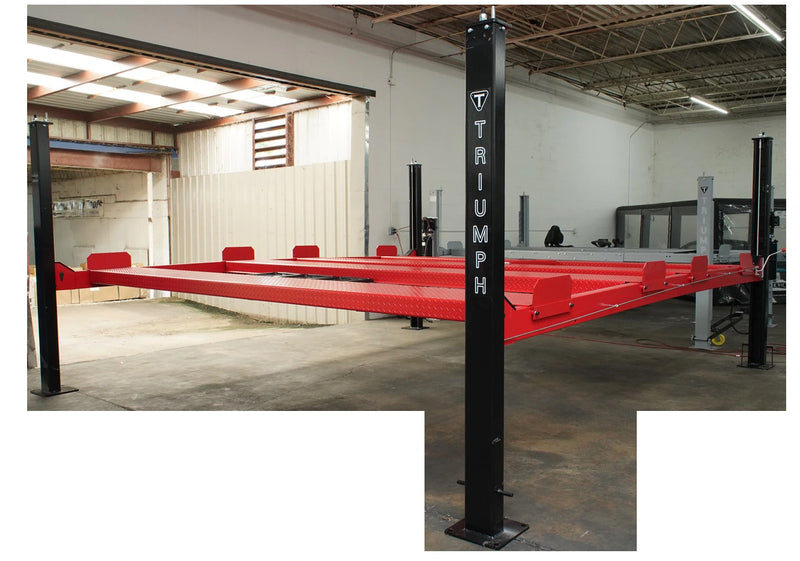

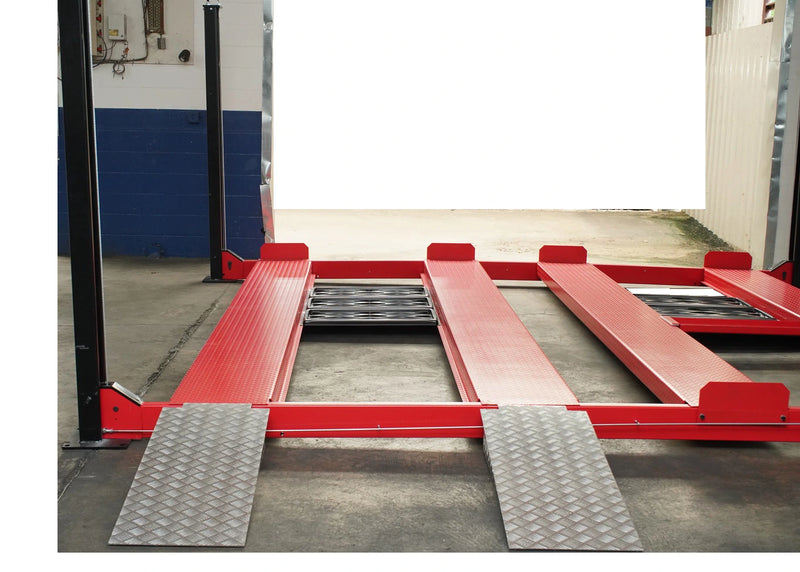

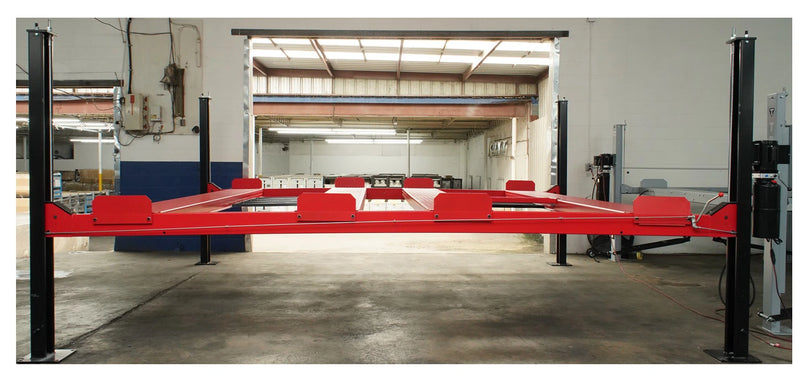

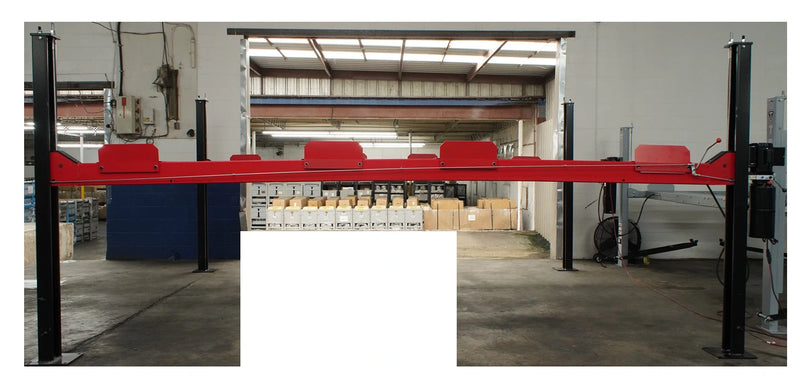

Triumph NSS-9000 9,000 lb Double-Wide Four Post Storage and Service Lift

Triumph NSS-9000 9,000 lb Double-Wide Four Post Storage and Service Lift

See more by Triumph

$7,200.00 - $7,500.00

$7,200.00

$7,200.00 - $7,500.00

$7,200.00

In stock

SKU NSS-9000

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

The Triumph NSS-9000 is a 9,000 lb double-wide four post lift that stores one vehicle overhead while leaving the floor below open to park or service another. It runs on 110 Volts, lowers to 6", and includes a jack tray, three drip trays, and two drive-on approach ramps.

Two vehicles in one footprint

The NSS-9000 is built to do two jobs at once: store a vehicle overhead and keep the floor underneath clear for parking or service. Drive a car onto the deck, raise it, and a second vehicle can occupy the same floor space below. The deck is double-wide, giving two side-by-side drive-on lanes on 18.5" runways, with a rated capacity of 9,000 lbs for cars, trucks, and SUVs within that weight. Three drip trays are included to catch oil, coolant, or brake fluid from the stored vehicle so nothing reaches whatever sits below it. The included jack tray accepts a bottle jack or floor jack, letting you raise one end of a vehicle on the deck for wheel, brake, or underbody work without tying up a second lift.

Space and clearances to check first

This is a wide lift, so measure before you order. Overall width is 208" and overall length is 190", with a drive-through width of 192" between the posts. Runways are 180" long and 18.5" wide, and each post sits on a 12" x 12" base plate. Overall height is 91.5", which is the number to compare against your ceiling, garage door track, and any lighting or storage above the bay. Lifting height is 77", and height under the runway is 72" — that clearance figure determines how tall a vehicle can park or be worked on underneath. Fully lowered, the deck sits 6" off the ground, so low-clearance cars load over the approach ramps without scraping.

Locks, lowering, and daily operation

An automatic locking system engages at 12 positions as the lift rises, so the deck is supported at fixed increments through its travel rather than resting on hydraulic pressure alone. A single-point lock release disengages all four corners together when you are ready to lower, which keeps the deck level instead of requiring you to walk the lift and release each post by hand. Lift time is 60 seconds from the lowered position. Vehicles load over two drive-on approach ramps, and the 6" lowered height keeps the approach angle shallow. The design has been in service for more than 20 years, and the lift is completely portable, so it can be repositioned in the shop or garage rather than being fixed to one bay permanently.

Power, setup, and finish options

The NSS-9000 runs on standard 110V single-phase power, so no dedicated 220V circuit or three-phase service is needed. It installs on a solid, level concrete floor; the included owner's and installation manual covers the manufacturer's concrete thickness and strength requirements along with assembly and operation. The lift is customer-installed and designed to be straightforward to set up — installation labor is not included. Shipping weight is 3,800 lbs, and the crate cannot be unloaded by hand, so plan for equipment such as a forklift, skid steer, or tractor at delivery. The standard finish is black and red. Custom paint is available at no extra charge on all painted parts; drip trays remain black plastic, the power unit remains black, and the aluminum ramps cannot be painted.

Key features

9,000 lb capacity — rated for cars, trucks, and SUVs within that weight
Double-wide deck — two side-by-side drive-on lanes on 18.5" runways
12 automatic lock positions — safety locks engage as the lift rises through its travel
Single-point lock release — disengages all four corners together for a level descent
Jack tray included — accepts a bottle jack or floor jack to raise one end of a vehicle on the deck
Three drip trays — keep fluid from the stored vehicle off whatever is parked below
6" lowered height and drive-on ramps — low-clearance cars load without scraping

Specification Table

NSS-9000 · TriumphSKU NSS-9000
Capacity	9,000 lbs
Overall Height	91.5"
Overall Length	190"
Overall Width	208"
Lifting Height	77"
Height Under Runway	72"
Runway Length	180"
Runway Width	18.5"
Drive-Through Width (Overall)	192"
Lowered Height	6"
Locking Positions	12
Lock Release	Single Point
Base Plate Size	12" x 12"
Lift Time	60 seconds
Voltage	110 Volts
Shipping Weight	3,800 lbs
Standard Finish	Black and red
Included	Jack tray, three drip trays, two drive-on approach ramps

Compare models

	NSS-9000 9,000 lb Double-Wide Four Post THIS	NOS9000 9,000 lb Four Post	NOS9000XLT 9,000 lb Four Post	NOS10000 10,000 lb Four-Post Storage Lift
Capacity	9,000 lbs	9,000 lbs.	9,000 lbs.	10,000 lbs
Configuration	Double-wide four post, two drive-on lanes	77.5"	85"	Four-post, freestanding, drive-on
Lifting Height	77"	113"	80.5"	87"
Height Under Runway	72"	93"	119"	81.5"
Price	$7,200.00	$5,950.00	$6,645.00	$4,450.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

Can I park one vehicle below while another is stored on top?
Yes — that is the core purpose of this lift. Raise a vehicle onto the deck and the floor below stays open to park or service another, and the three drip trays catch fluid from the upper vehicle so it does not reach the one below.

What power does the NSS-9000 need?
It runs on standard 110V single-phase power. No 220V circuit or three-phase service is required.

How much ceiling height do I need?
Overall height of the lift is 91.5", so your ceiling must clear that plus the height of the vehicle you intend to store on the deck. Check garage door tracks, lighting, and overhead storage as well.

How tall a vehicle can park underneath?
Height under the runway is 72" when the lift is raised. That figure, not the 77" lifting height, is what determines whether a vehicle fits below the deck.

How wide a space does it need?
Overall width is 208" and overall length is 190", with a drive-through width of 192" between the posts. Runways are 180" long and 18.5" wide, and each post rests on a 12" x 12" base plate.

What kind of floor does it require?
It installs on a solid, level concrete floor. Review the included manual for the manufacturer's concrete thickness and strength requirements before installation.

What is included with the lift?
The NSS-9000 ships with a jack tray that accepts a bottle jack or floor jack, three drip trays for fluid containment, and two drive-on approach ramps.

Is installation included?
No. The NSS-9000 is customer-installed and designed to be straightforward to set up; the included owner's and installation manual covers assembly and operation. Installation labor is not included.

Can I get it in a custom color?
Yes. Custom paint is available at no extra charge, requested by color name or color code, and all painted parts can be custom colored. Drip trays remain black plastic, the power unit remains black, and the aluminum ramps cannot be painted; custom color orders are non-cancelable once placed.
