Triumph NOS9000 9,000 lb Four Post Service and Storage Lift

Triumph NOS9000 9,000 lb Four Post Service and Storage Lift

See more by Triumph

$5,950.00 - $6,300.00

$5,950.00

$5,950.00 - $6,300.00

$5,950.00

In stock

SKU NOS9000

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

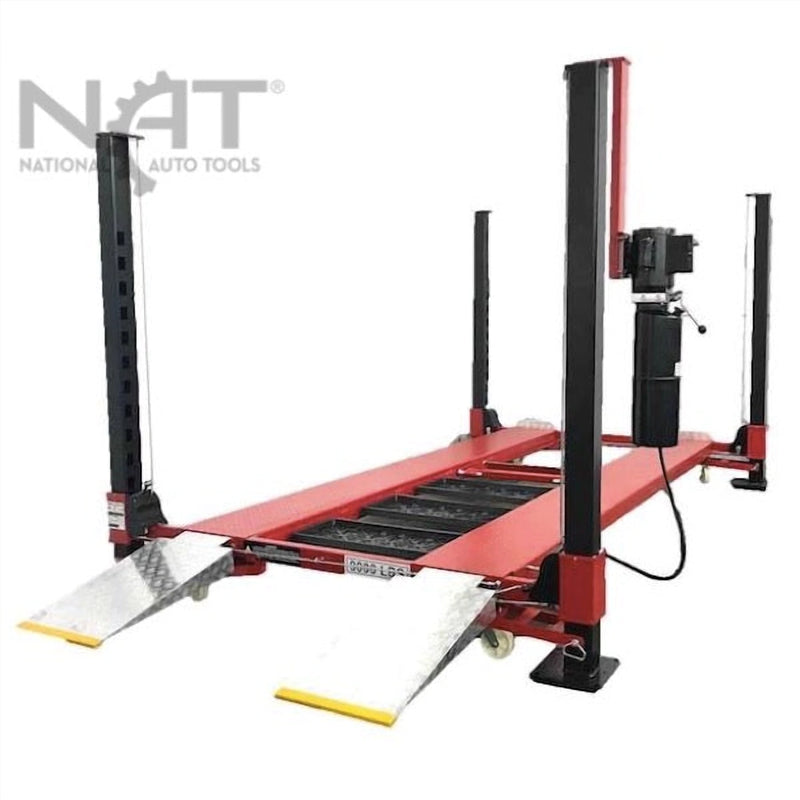

The NOS9000 is a four post service and storage lift rated at 9,000 lbs, running on 110 volts with 12 locking positions and a 77.5" lift height. It uses an outside slider design on 5"x5" posts with boxed runway tracks.

What the NOS9000 is built for

The NOS9000 is a 9,000 lb capacity four post lift intended for both service work and vehicle storage. It uses the outside slider design, with 6"x6" slide collars riding on 5"x5" posts, which gives the lift a rigid stance under load. The runways are boxed tracks for extra strength, measuring 170" long and 18" wide, with 93" of drive thru width between the posts. Rated capacity is 9,000 lbs, so check the curb weight of the heaviest vehicle you plan to put on it before ordering. A rolling jack tray with a drain plug is part of the lift, so the runways are set up for wheels-free work, though the specification list does not include a rolling jack itself. Finish is black and red powder coat.

Space and clearance you need

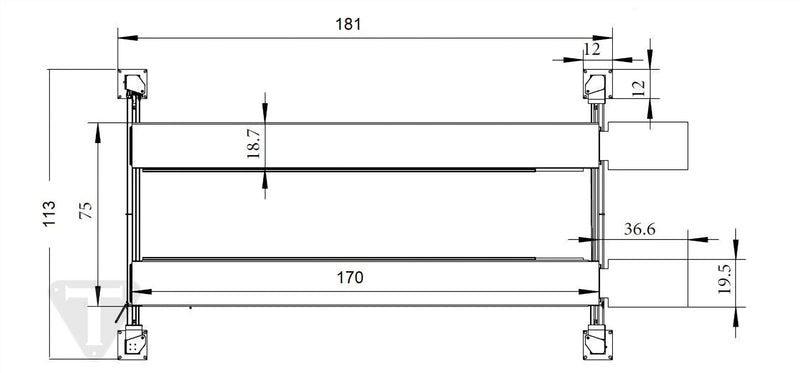

Plan the bay around the lift's outside footprint: 212.5" overall length, 113" overall width and 95" overall height. That 95" figure is the number to compare against your ceiling, garage door track and any lighting or ductwork in the way. Maximum lift height is 77.5", with 73" of clearance under the runway once the lift is raised to the top, which is the working figure if you intend to stand under it. At the bottom, lowered height is 5", so the 36" aluminum ramps carry the vehicle up a short rise. Twelve locking positions let you stop the lift at intermediate heights rather than only at the top. Measure your actual bay before ordering, including the swing of any door that opens into the lift footprint.

Locks, safety and daily operation

The lift uses manual dead bolt locks with an oversized release linkage, and a single point lock release so you disengage all four posts from one place instead of walking the lift. Twelve locking positions are available through the travel range. A secondary redundant safety system backs up the primary locks. Cable keepers are fitted to prevent cable run off, a common source of trouble on cable-driven four post lifts. Lift time is 40 seconds from the lowered position, and the power unit runs on 110 volts, which matters if your shop or garage does not have a 220V circuit available near the lift location. Base plates are 12" x 12" and 5/8" thick where the posts meet the floor.

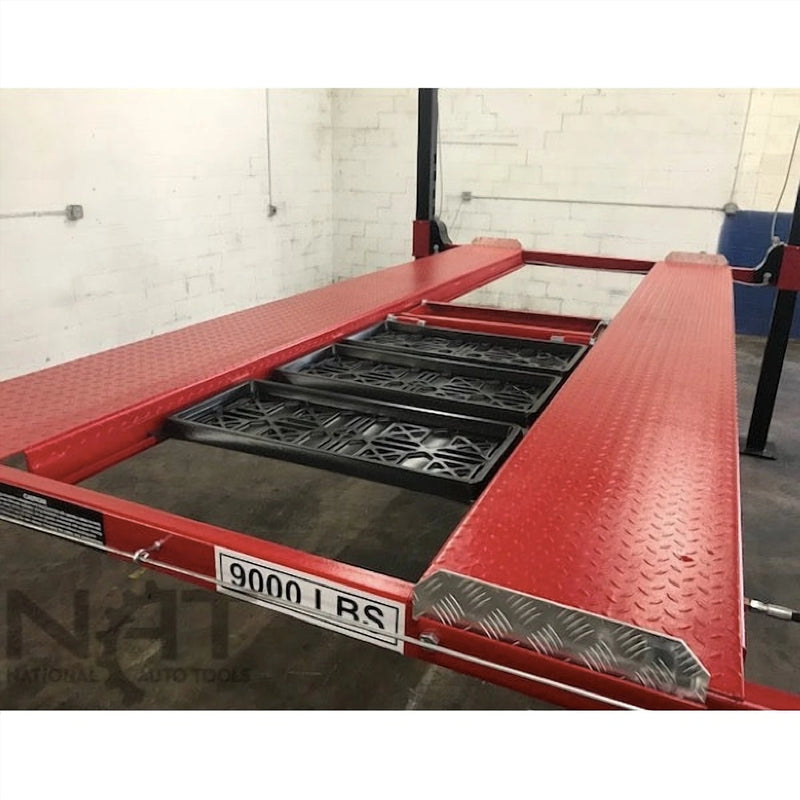

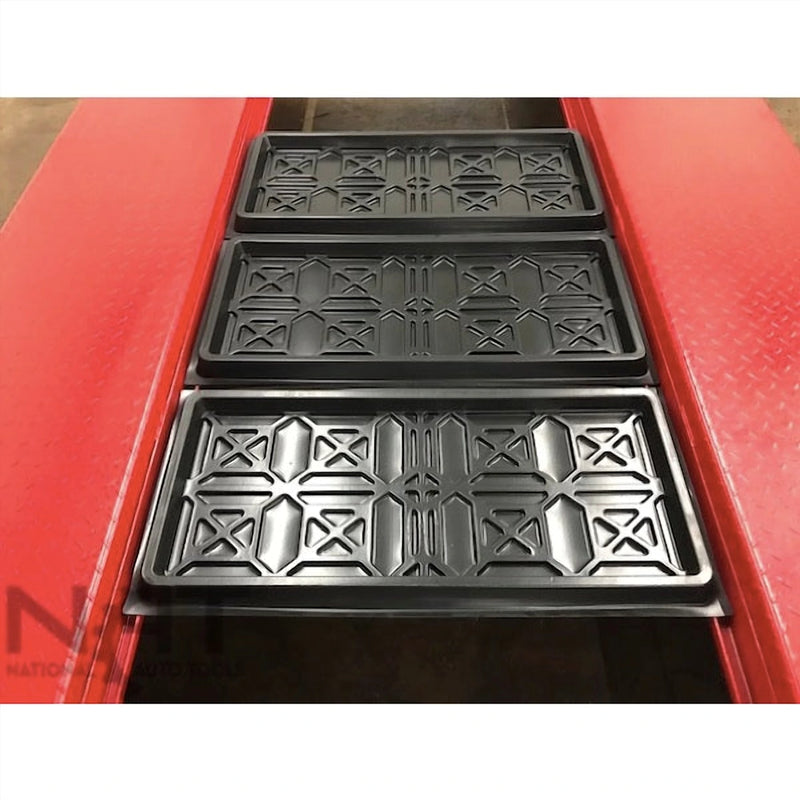

What is included with the lift

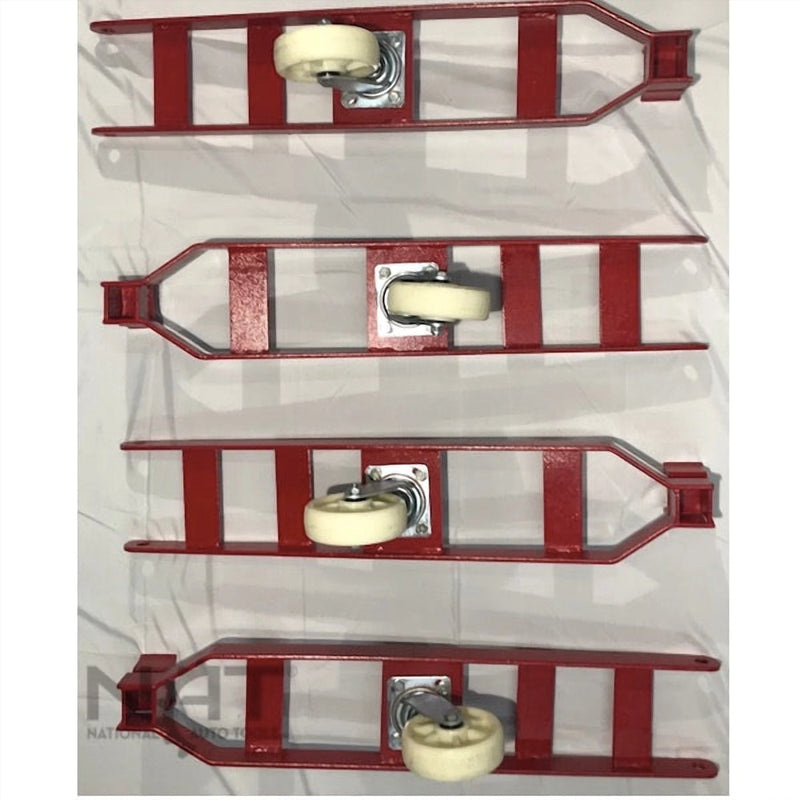

The NOS9000 ships with a set of drip trays, a rolling jack tray with a drain plug, cable keepers, and two 36" aluminum ramps that weigh only 29 lbs each, so one person can move and set them without help. Heavy duty poly coated casters are included as well, which is the relevant accessory if you want the option to reposition the lift rather than treat it as a permanent fixture. Shipping weight is listed at 2,123 lbs, so plan for freight delivery and a way to move the crated components off the truck and into the bay. Freight to the lower 48 states is included in the price on the source listing, and orders are listed as shipping 8-10 weeks after they are placed.

Key features

Outside slider design — 6"x6" slide collars ride on 5"x5" posts for a rigid, sturdy stance under load.
Boxed runway tracks — the runways are boxed rather than open channel, for extra strength across the 170" length.
12 locking positions, single point release — manual dead bolt locks with an oversized release linkage, released from one point.
Secondary redundant safety system — a backup safety in addition to the primary dead bolt locks.

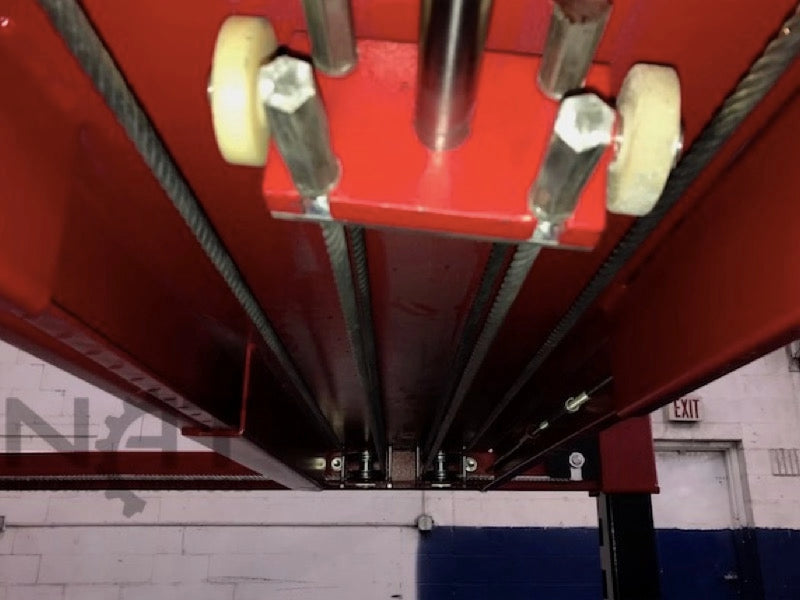

Cable keepers — fitted to prevent cable run off during raising and lowering.

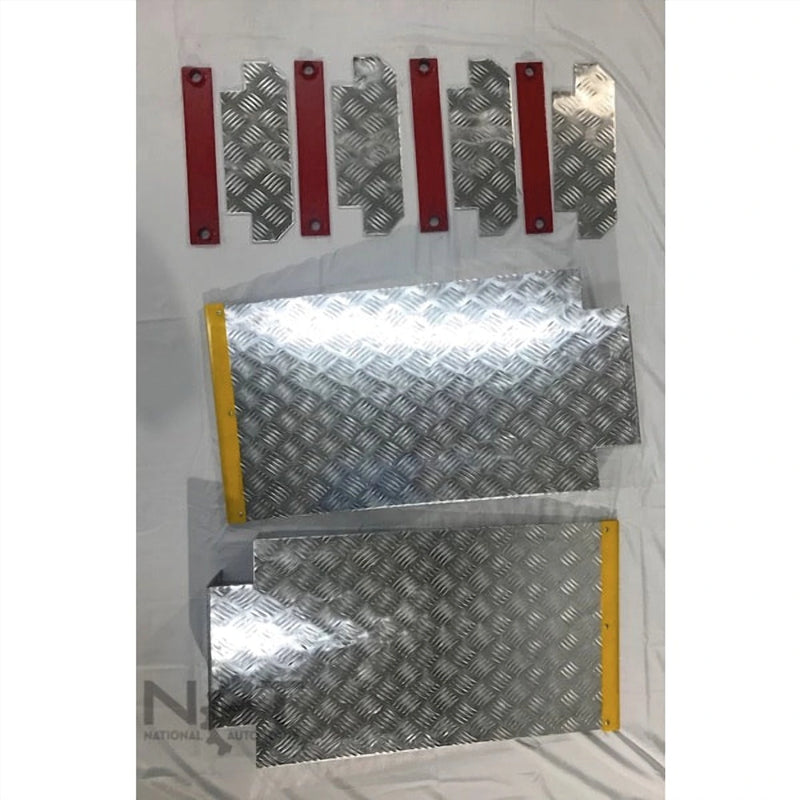

36" aluminum ramps at 29 lbs each — light enough for one person to handle and store.
Included accessories — drip tray set, rolling jack tray with drain plug, and heavy duty poly coated casters.

Specification Table

NOS9000 · TriumphSKU NOS9000
Capacity	9,000 lbs.
Overall Height	95"
Overall Length	212.5"
Overall Width	113"

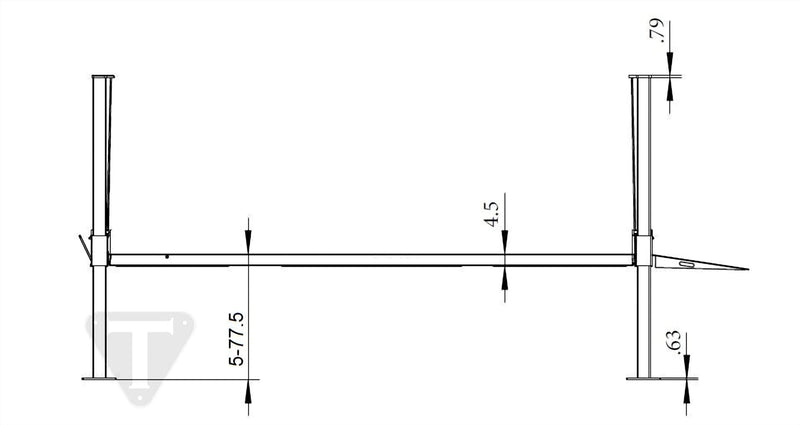

Lift Height	77.5"
Height Under Runway	73"
Runway Length	170"
Runway Width	18"
Drive Thru Width	93"
Lowered Height	5"
Locking Positions	12
Lock Release	Single Point
Lift Time	40 Seconds
Voltage	110 Volts
Base Plate Size	12" x 12"
Base Plate Thickness	5/8"
Post Size	5" x 5"
Slide Collars	6" x 6"
Ramp Length	36"
Ramp Weight	29 lbs. each
Finish	Black and red powder coat
Shipping Weight	2,123 lbs.

Compare models

	NOS9000 9,000 lb Four Post THIS	NOS9000XLT 9,000 lb Four Post	NSS-9000 9,000 lb Double-Wide Four Post	NOS10000 10,000 lb Four-Post Storage Lift
Capacity	9,000 lbs.	9,000 lbs.	9,000 lbs	10,000 lbs
Lift Height	77.5"	85"	Double-wide four post, two drive-on lanes	Four-post, freestanding, drive-on
Overall Width	113"	80.5"	77"	87"
Drive Thru Width	93"	119"	72"	81.5"
Price	$5,950.00	$6,645.00	$7,200.00	$4,450.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

What electrical power does the NOS9000 need?
The lift is listed at 110 volts, so it does not require a 220V circuit. Confirm the circuit near your lift location can carry the power unit before delivery.

How much ceiling height do I need for the NOS9000?
Overall height is 95", so your ceiling must clear that plus anything mounted below it, such as lights, door tracks or ductwork. Maximum lift height is 77.5" with 73" of clearance under the runway.

Will the NOS9000 fit in my garage?
The lift footprint is 212.5" long by 113" wide overall, with 93" of drive thru width between the posts. Measure your bay including any door swing before ordering.

What concrete does this lift require?
The source specifications do not list a concrete thickness or anchoring requirement, so confirm those details with the manufacturer before installation. The listed base plates are 12" x 12" and 5/8" thick.

Can the NOS9000 be moved after it is set up?
Heavy duty poly coated casters are included with the lift, which is the accessory used to reposition a four post lift. Follow the manufacturer's instructions for moving it safely.

Can I do wheels-free work like brakes on this lift?
The lift includes a rolling jack tray with a drain plug, which is the mounting point for a rolling bridge jack. A rolling jack is not listed among the included items.

How fast does it lift?
Lift time is listed at 40 seconds. Lowered height is 5", and the lift stops at any of 12 locking positions through its travel.

What does it weigh for shipping?
Shipping weight is 2,123 lbs, so it arrives by freight. Plan for unloading and for moving the crated components into your bay.

Is freight included and how long does it take?
The source listing states freight to the lower 48 United States is included in the price and that the product ships 8-10 weeks after the order is placed. Confirm current lead times at the time of ordering.
