Triumph X-1 8,000 lb Four Post Storage and Service Lift

Triumph X-1 8,000 lb Four Post Storage and Service Lift

See more by Triumph

$3,750.00 - $4,100.00

$3,750.00

$3,750.00 - $4,100.00

$3,750.00

In stock

SKU X-1

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

The Triumph X-1 is a portable four post lift with an 8,000 lb capacity, built for stacking a second vehicle in storage or for general service work. It runs on 110 Volts, locks automatically at 10 positions, and ships with a caster kit, jack tray and three drip trays.

What the X-1 is built for

The X-1 is a four post lift rated at 8,000 lbs, sold for both vehicle storage and general service work. It uses a time tested design that has been in production for over 20 years. Raising the runways gives 72" of lift height, with 69" of clearance under the runway — enough room to park a second vehicle underneath, or to stand and work beneath the car. Automatic locks engage at 10 different positions as the vehicle goes up, and a single point lock release handles all four corners together. Full travel takes 40 seconds. Lowered height is 5". Three drip trays are included so fluid from the upper vehicle does not land on the one parked below.

Footprint and clearances to check first

Measure the bay before the lift arrives. The overall footprint is 175" long by 106" wide, and the lift stands 84" tall at overall height. Each runway is 165" long and 18" wide, with 93" of drive thru width between the columns — that is the number to check against your widest vehicle and against the door opening you will drive through. Base plates are 12"x12". For two-car storage, compare the roof height of the lower vehicle against the 69" height under runway, then add the height of the upper vehicle to the 72" lift height to work out the ceiling you need. Lowered height is 5", so the runways sit low when the lift is parked down.

Delivery and assembly without a forklift

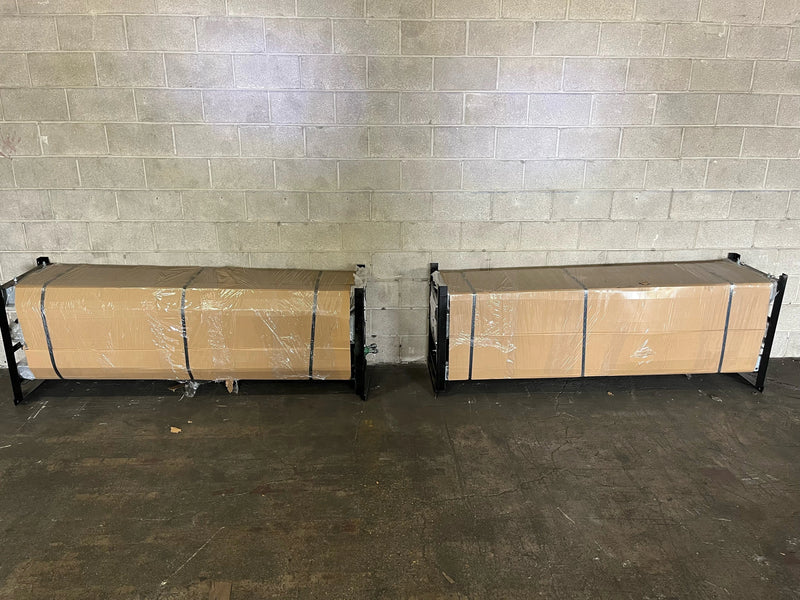

This is one of the practical reasons buyers choose the X-1. The lift is packaged in 2 pieces, with a shipping weight of 1,600 lbs, and it is designed to come off the truck with lift gate service — no forklift or heavy machinery required at your location. The runways and crossrails are reinforced so the structure stays strong even though it is assembled from multiple pieces. Two people can unpackage and assemble it without machinery. Shipping is free to the lower 48 United States. If you are a mobile mechanic or a home garage owner with no loading dock and no equipment on site, this matters more than any single spec on the chart.

What comes with the lift

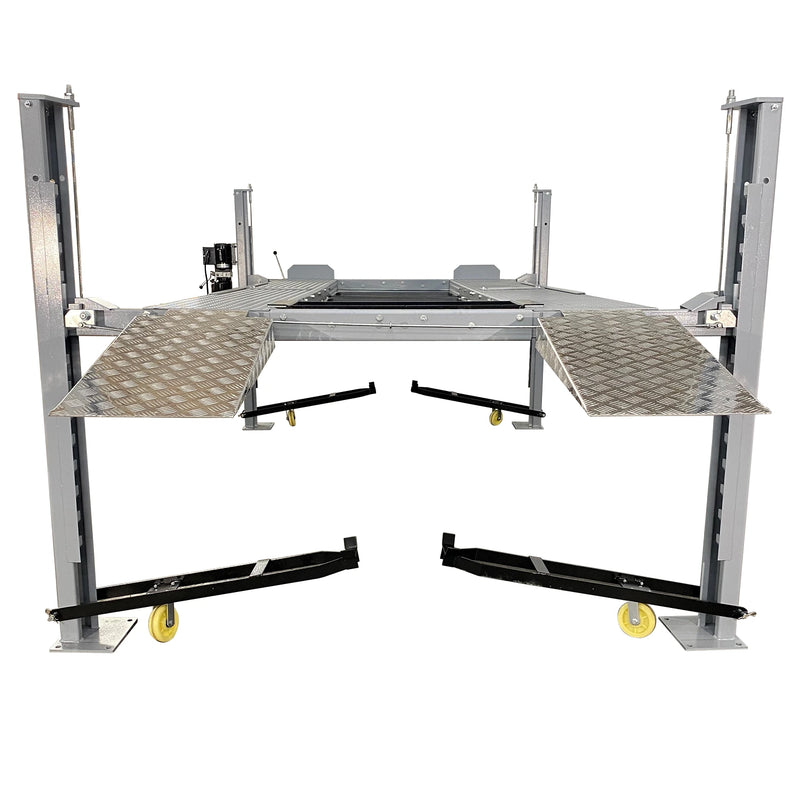

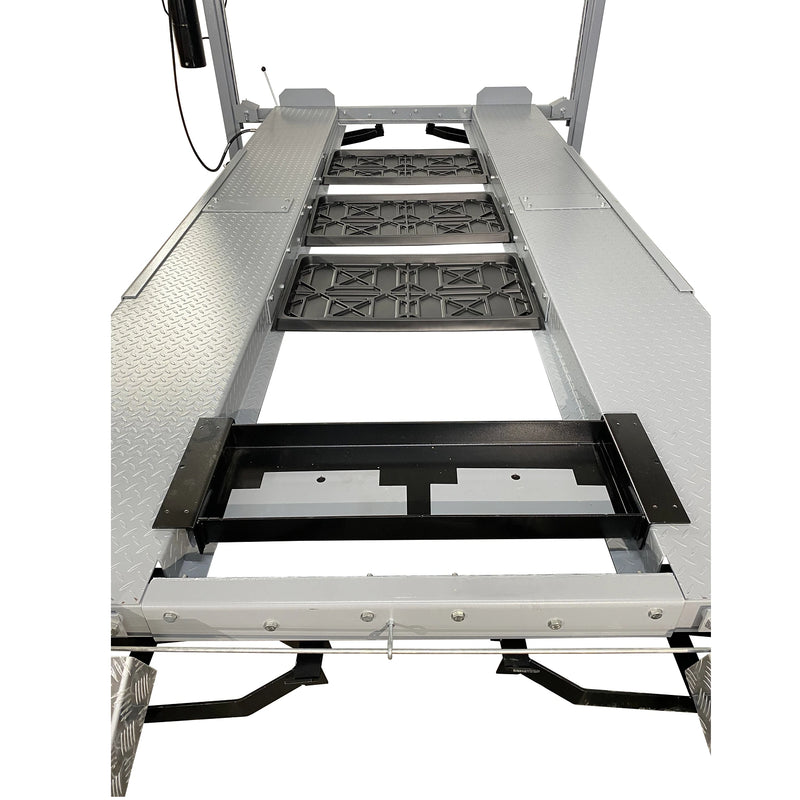

The lift ships with a caster kit, a jack tray and three drip trays. The caster kit lets you roll the assembled lift around the garage, which is what makes this a portable lift rather than a fixed installation — useful if the bay does double duty or if you rent the space. The jack tray sits on the lift and accepts a bottle jack or floor jack, so you can raise one end of the vehicle to pull a wheel while the car is already up. The three drip trays sit under the upper vehicle and catch fluid before it reaches whatever is stored underneath, which is the difference between a storage lift you can leave loaded and one you cannot.

Key features

8,000 lb capacity — rated for storage duty and general service work on a four post platform
10 automatic locking positions — locks engage as the vehicle rises, so you can set working height in stages
Single point lock release — releases all locks from one place instead of walking the four corners
40 second lift time — full travel from the 5" lowered height to 72" of lift height
Caster kit included — roll the assembled lift around the garage instead of anchoring it in one spot
Jack tray included — takes a bottle jack or floor jack to raise one end of the vehicle on the lift
Three drip trays included — keep fluid from the top vehicle off the vehicle parked below

Specification Table

X-1 · TriumphSKU X-1
Capacity	8,000 lbs.
Overall Height	84"
Overall Length	175"
Overall Width	106"
Lift Height	72"
Height Under Runway	69"
Runway Length	165"
Runway Width	18"
Drive Thru Width	93"
Lowered Height	5"
Locking Positions	10
Base Plate Size	12"x12"
Lock Release	Single Point
Lift Time	40 Seconds
Voltage	110 Volts
Shipping Weight	1,600 lbs.

Compare models

	X-1 8,000 lb Four Post THIS	NSS-8F-G 8,000 lb Four-Post Storage Lift	NSS-8XLT 8,000 lb Four-Post	NSS-8SQ 8,000 lb Four-Post (Shorter Length)
Capacity	8,000 lbs.	8,000 lbs	8,000 lbs	8,000 lbs
Lift Height	72"	72"	82"	72"
Height Under Runway	69"	69"	79"	141"
Overall Width	106"	106"	112"	106"
Price	$3,750.00	$2,875.00	$3,150.00	$3,195.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

How much weight can the X-1 lift?
The X-1 is rated at 8,000 lbs. Compare that against the curb weight of the heaviest vehicle you plan to put on it, not against a class average.

What power does the X-1 need?
The lift runs on 110 Volts, so it works from standard household power rather than requiring a 220V circuit run to the bay. No other electrical specification is published for this model.

How much ceiling height do I need?
The lift itself has an overall height of 84". For storage, add the height of the vehicle you park on the runways to the 72" lift height to find your true ceiling requirement.

Can I park two cars on it?
Yes — that is what the height under runway figure of 69" and the three included drip trays are for. Measure the roof height of the lower vehicle against that 69" clearance before you buy.

Do I need a forklift when it is delivered?
No. The lift is packaged in 2 pieces so lift gate service can unload it at your location, with no forklift or heavy machinery needed. Shipping weight is 1,600 lbs.

How wide is the X-1 and will my truck fit between the posts?
Drive thru width is 93" and each runway is 18" wide. The overall width of the lift is 106", which is the number to use when planning the bay.

Can I move the lift after it is assembled?
Yes. It ships with a caster kit so you can move the assembled lift around the garage, and the manufacturer describes it as completely portable.

How long does it take to raise a vehicle?
Lift time is 40 seconds for full travel. Automatic locks engage at 10 positions on the way up, so you can stop and lock at an intermediate working height.
