Triumph NSS-8XLT 8,000 lb Four-Post Storage and Service Lift

Triumph NSS-8XLT 8,000 lb Four-Post Storage and Service Lift

See more by Triumph

$3,150.00 - $3,950.00

$3,150.00

$3,150.00 - $3,950.00

$3,150.00

In stock

SKU NSS-8XLTF-G

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

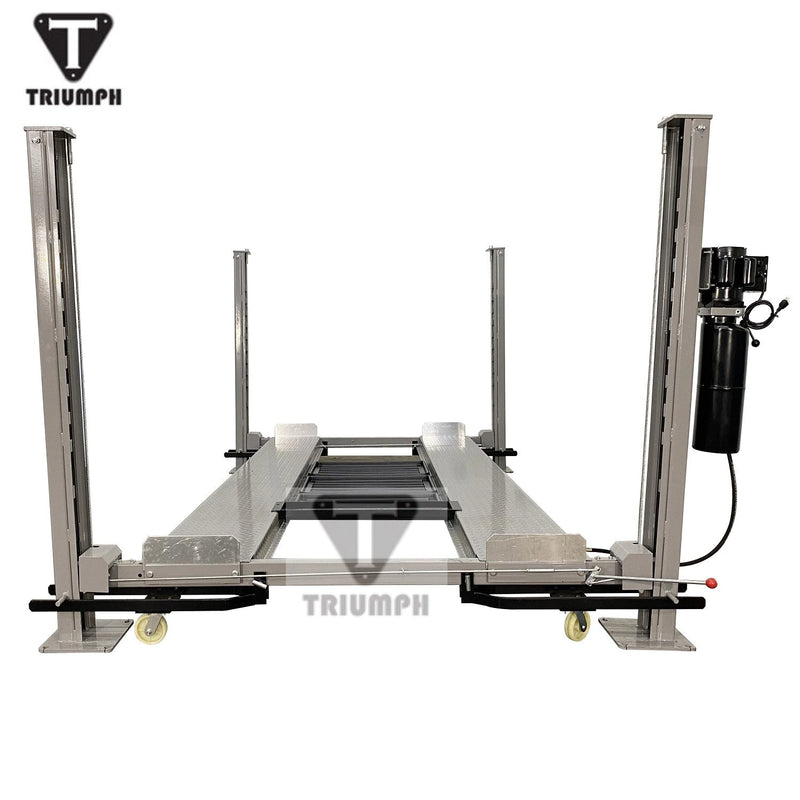

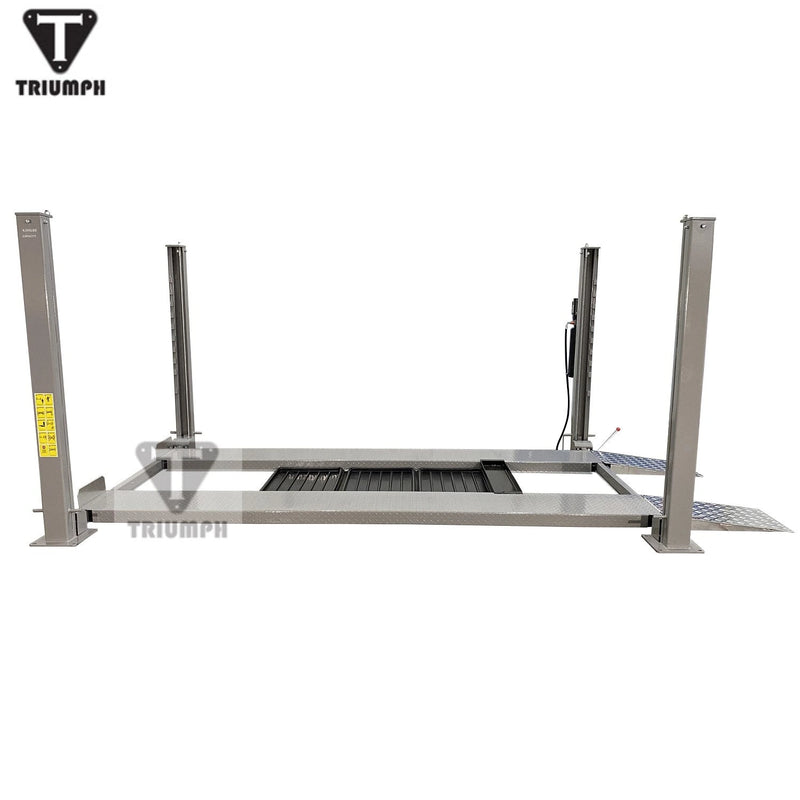

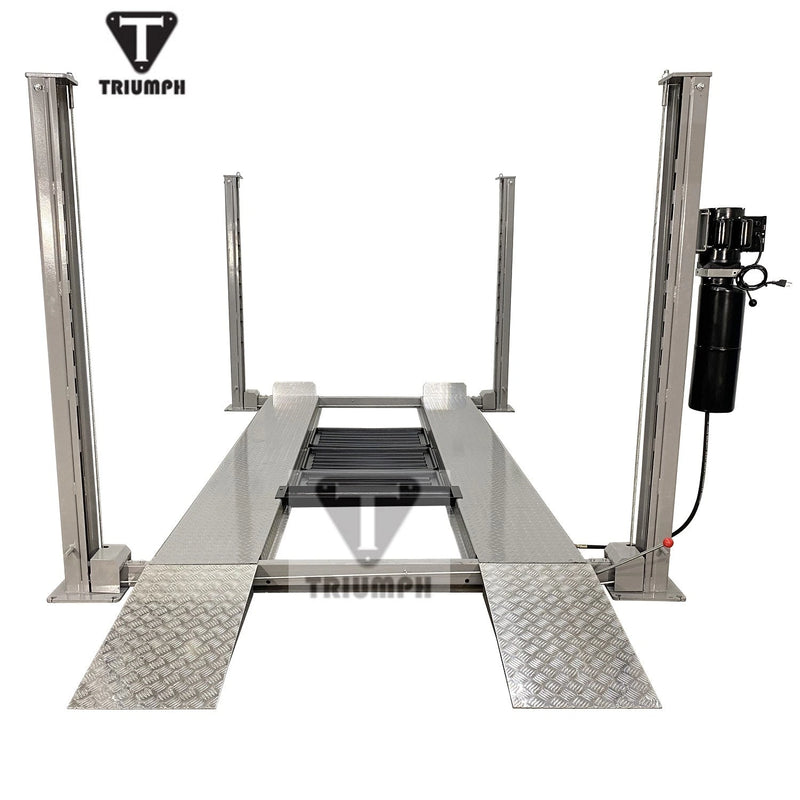

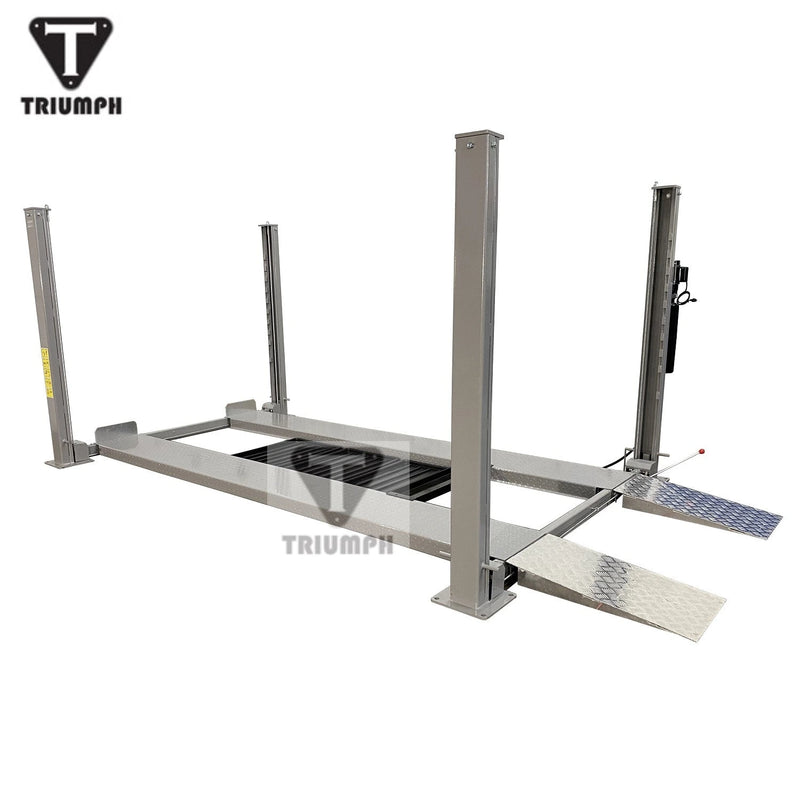

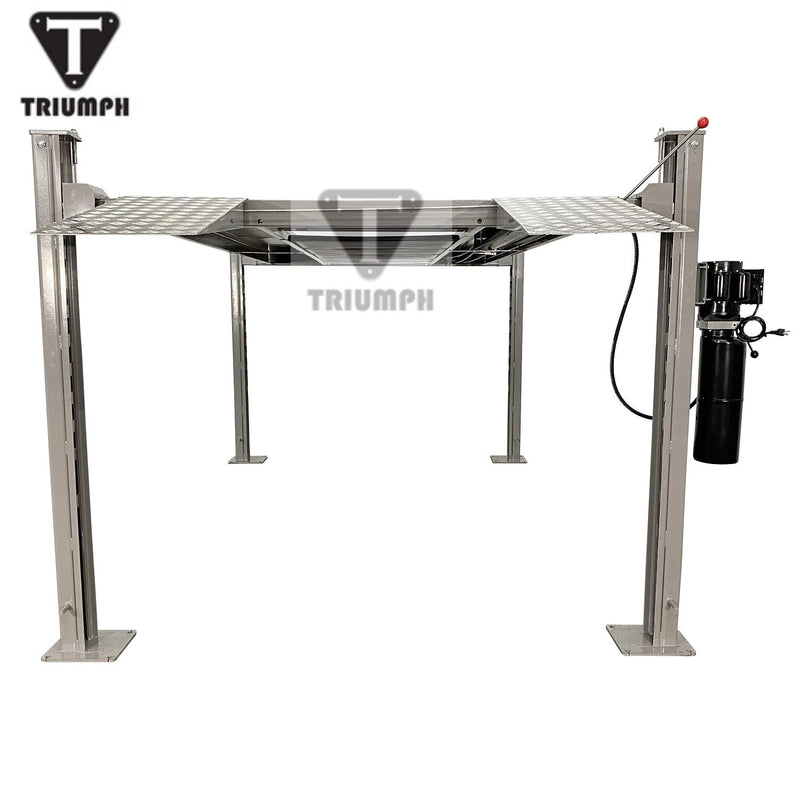

The Triumph NSS-8XLT is a four-post automotive lift with an 8,000 lb capacity that works as both a service lift and a two-car storage lift. It runs on 110-volt household current and includes a caster kit, jack tray, and three drip trays.

Storage and service in one four-post lift

The NSS-8XLT is an 8,000-lb four-post lift built to do two jobs: everyday service work and long-term vehicle storage. Drive a car up the ramps, raise it in about 40 seconds, and either work underneath at the 82-inch lift height or park a second vehicle below to reclaim a full bay. Ten lock positions engage automatically as the runways rise, and a single-point lock release drops them together, so the load rests on mechanical locks rather than on hydraulics while you work or while the car sits parked overhead. Triumph has shipped this same four-post design for more than 20 years. The standard color is grey.

Fit, clearance and loading

The lift is 112 inches wide overall and stands 94 inches tall on its own, which is the number to check against your ceiling before you account for stacked vehicles. Drive-thru width is 99 inches, and the two 18-inch runways sit 37 inches apart over a 180-inch runway length, so full-size trucks and long-wheelbase vehicles have room to load squarely. Lowered height is 5 inches, so low cars clear the approach ramps without scraping. At full height there is 79 inches of clearance under the runways. For stacked storage, measure both vehicles: the ceiling has to clear the lower car, the raised runways, and whatever is parked on top.

Power, fluid and jacking

Power comes from a 110-volt hydraulic power unit that plugs into standard household current on a dedicated 30-amp circuit — no 220V and no three-phase service required. Do not run the lift from a generator; power surges can damage the motor. The unit mounts to a column at the drive-in end and includes a manual lowering lever, a steel oil tank, and a UL-listed plug. Plan on roughly 3 gallons of AW32 hydraulic oil to fill it during setup; the fluid is a separate purchase you should have on hand before assembly day. The center jack tray holds a bottle or floor jack for wheels-free work, and the Triumph SJ-35 rolling bridge jack is a compatible add-on.

What ships, and what it will not do

The NSS-8XLT arrives as a complete four-post kit: four columns on 12-inch by 12-inch base plates, two diamond-plate runways, two cross rails, the 110V power unit and hose, four caster dollies, a steel jack tray, three plastic drip trays, two aluminum drive-on ramps, plus runway stops, lock release rods, cables, and hardware. The caster kit lets you roll the lift to a different spot in the garage when it is empty — it is not rated to move a loaded lift, so never reposition it with a vehicle on the runways. The lift ships LTL freight at about 1,800 lbs crated, and you are responsible for having equipment on site to take it off the truck.

Key features

8,000 lb capacity — rated across four posts for cars, trucks, and SUVs up to that weight
10 automatic lock positions — locks engage as the lift rises, with a single-point release to lower them together

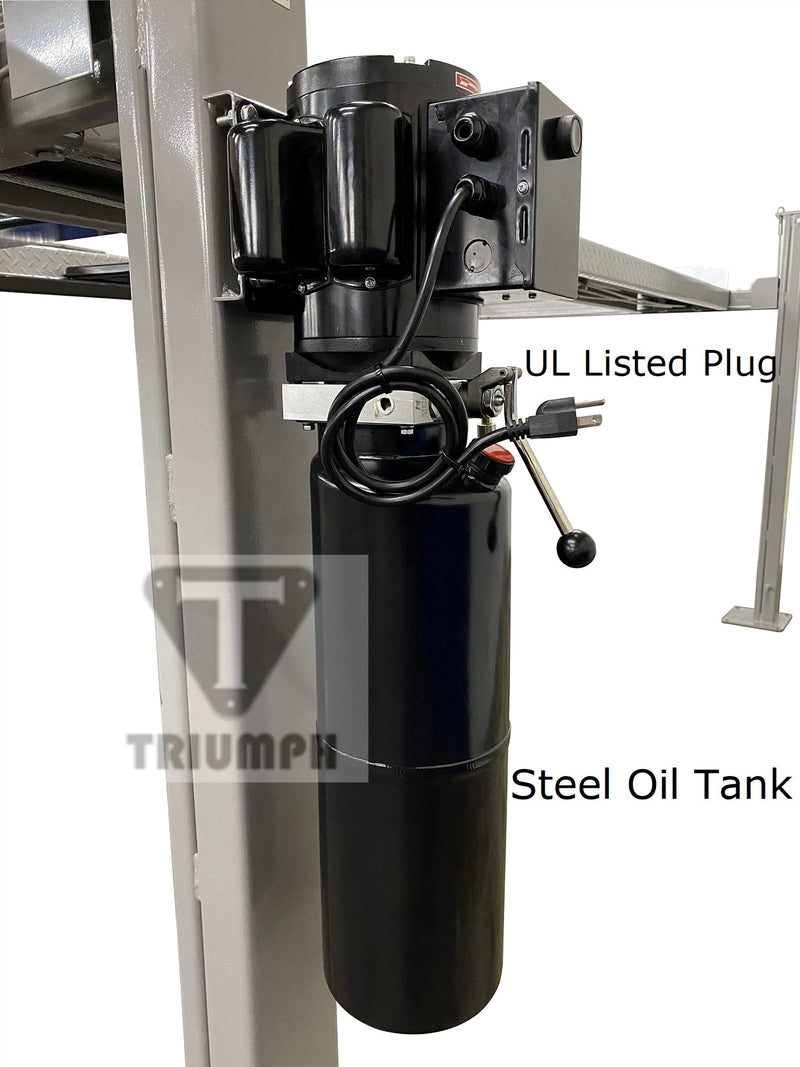

110V power unit — plugs into standard household current on a dedicated 30-amp circuit, with a steel oil tank and UL-listed plug
99-inch drive-thru width — 180-inch runways give full-size trucks and long-wheelbase vehicles room to load

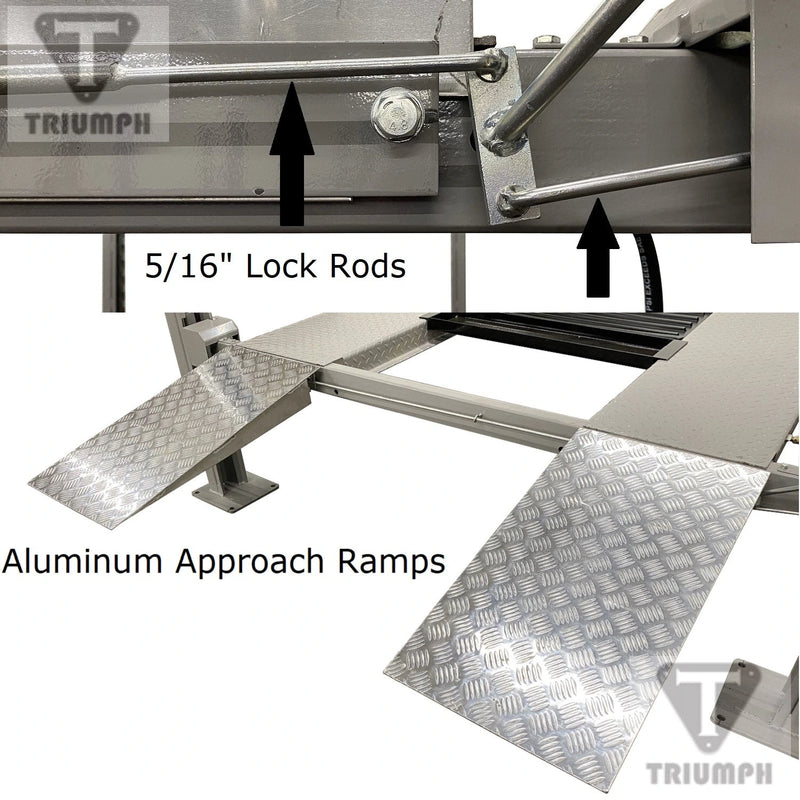

5-inch lowered height — low cars clear the aluminum diamond-plate approach ramps, which are light enough to lift out by hand

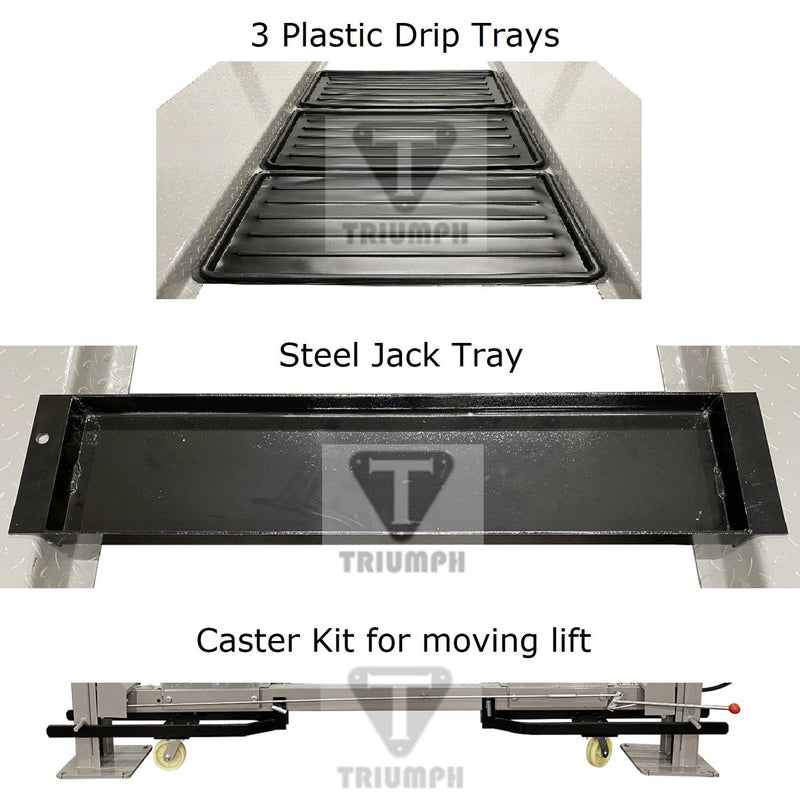

Caster kit included — four caster dollies for repositioning the empty lift around the garage
Jack tray and three drip trays — run a bottle or floor jack for wheels-free work, and keep fluids off the vehicle parked below

Specification Table

NSS-8XLTF-G · TriumphSKU NSS-8XLTF-G
Capacity	8,000 lbs
Overall height	94"
Overall width	112"
Lift height	82"
Height under runway	79"
Runway length	180"
Runway width	18"
Between runways	37"
Drive-thru width	99"
Lowered height	5"
Locking positions	10
Lock release	Single point
Lift time	40 seconds
Base plate size	12" x 12"
Approach ramps	Aluminum diamond-plate
Power	110V, dedicated 30-amp circuit
Hydraulic fluid	AW32 (approx. 3 gallons)
Shipping weight	1,800 lbs
Standard color	Grey

Compare models

	NSS-8XLT 8,000 lb Four-Post THIS	NSS-8F-G 8,000 lb Four-Post Storage Lift	NSS-8SQ 8,000 lb Four-Post (Shorter Length)	USA8000 8,000 lb Four-Post
Capacity	8,000 lbs	8,000 lbs	8,000 lbs	8,000 lbs
Lift height	82"	72"	72"	73"
Height under runway	79"	69"	141"	112" (124" with power unit)
Overall width	112"	106"	106"	102.5"
Price	$3,150.00	$2,875.00	$3,195.00	$4,599.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

What are the electrical requirements for the NSS-8XLT?
The power unit runs on standard 110-volt household current and needs a dedicated 30-amp circuit. No 220V or three-phase service is required, and you should not run the lift from a generator — power surges can damage the motor.

How much ceiling height do I need?
The lift is 94 inches tall on its own, and clearance under the runways at full lift height is 79 inches. For stacked storage you need enough ceiling for the lower vehicle, the raised runways, and the vehicle on top, so measure both cars before ordering.

Do I need to add hydraulic fluid?
Yes. Plan on approximately 3 gallons of AW32 hydraulic oil to fill the power unit during setup.

Will a full-size truck fit on this lift?
The 99-inch drive-thru clearance and 180-inch runways give full-size trucks and long-wheelbase vehicles room to load squarely, up to the 8,000 lb rated capacity.

Is the NSS-8XLT really portable?
The included caster kit lets you roll the empty lift to reposition it in the garage. Do not move the lift with a vehicle on it — the casters are not rated to transport a loaded lift.

What comes in the box?
Four columns on 12" x 12" base plates, two diamond-plate runways, two cross rails, the 110-volt power unit and hydraulic hose, a caster kit with four dollies, a steel jack tray, three plastic drip trays, two aluminum drive-on ramps, and runway stops, lock release rods, cables, and assembly hardware.

Can I lift the wheels off the runways for brake or tire work?
Yes. The center jack tray holds a bottle jack or floor jack to raise one end of the vehicle, and the Triumph SJ-35 rolling bridge jack is a compatible add-on.

How does it ship, and what do I need to unload it?
It ships by LTL freight on a 48-foot semi and weighs about 1,800 lbs crated. The driver will not unload it and liftgate service is not available for auto lifts, so you need a forklift, tractor, Bobcat, tow truck, or similar equipment on site. If you cannot unload at your location, the lift can be routed to the carrier's nearest freight terminal for pickup.

What does the warranty cover?
Triumph covers the NSS-8XLT with a 1-year parts warranty — parts only, no labor. Hydraulic cylinders carry a 30-day full warranty, after which Triumph provides a seal kit; rubber lifting pads are not covered.
