Triumph NSS-8SQ Classic 8,000 lb Four-Post Storage Lift

Triumph NSS-8SQ Classic 8,000 lb Four-Post Storage Lift

See more by Triumph

$3,195.00 - $3,995.00

$3,195.00

$3,195.00 - $3,995.00

$3,195.00

In stock

SKU NSS-8SQ-G Classic

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

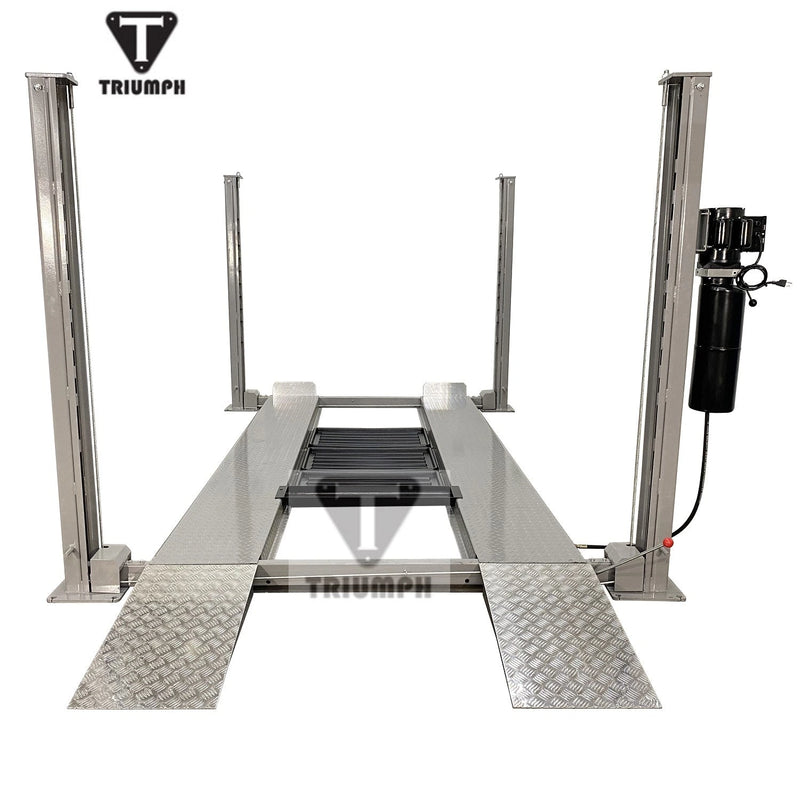

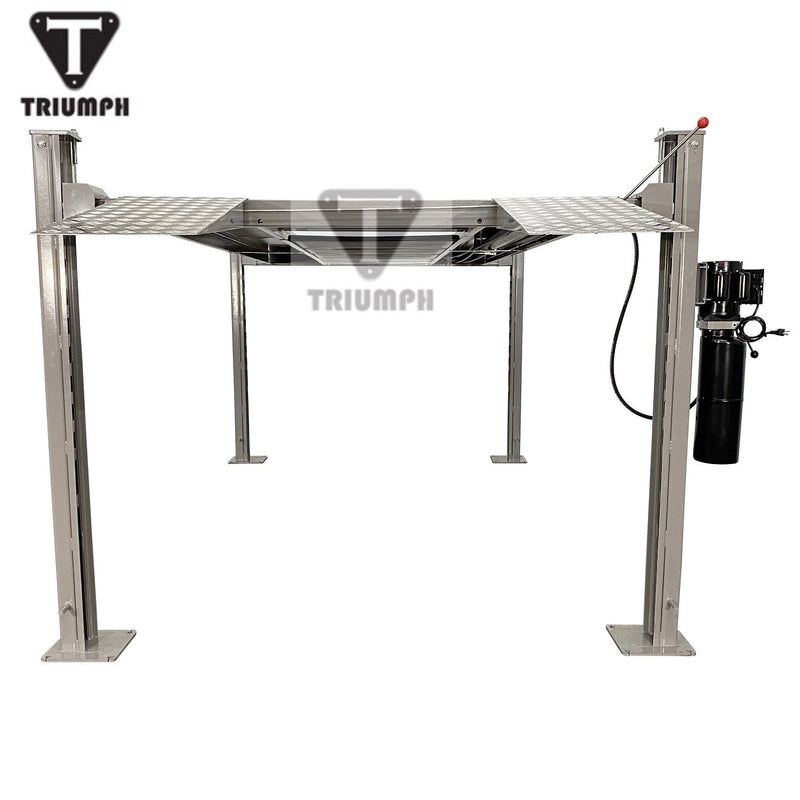

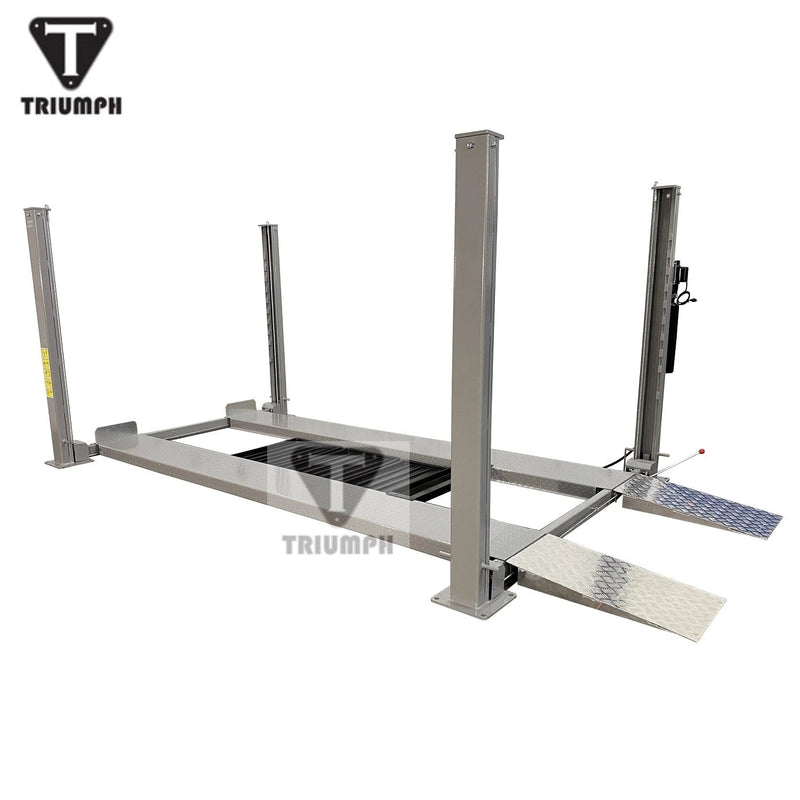

The Triumph NSS-8SQ Classic is a portable four-post lift rated at 8,000 lbs that runs on a 110V supply. It is built for parking a second vehicle overhead and for raising a car for routine service, in a shorter-length footprint of 141" without approach ramps.

What the Classic is built for

The NSS-8SQ Classic does two jobs: it parks a second vehicle overhead to reclaim floor space, and it raises a car for routine service. It is an 8,000 lb four-post lift running a design that has been in the field for over 20 years, and this shorter-length version keeps the full 8,000 lb capacity in a tighter footprint. Two runways carry the vehicle to a 72" lift height, leaving 69" of clearance under the runway so a second car can pull in underneath. Three drip trays sit between the runways to catch anything that weeps from the vehicle up top before it reaches the car below. A steel jack tray holds a bottle jack or floor jack, so you can raise one end of the car on the lift to pull wheels or work on brakes.

Footprint, runways and ceiling height

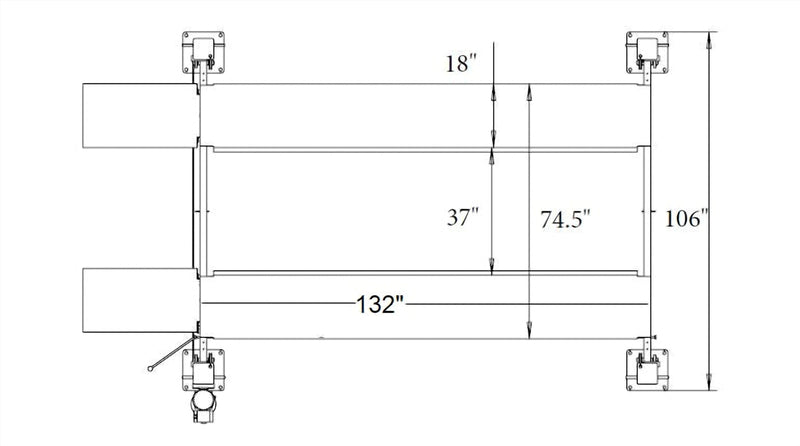

Overall length is 175" with the drive-on approach ramps attached and 141" without them, and overall width is 106". The runways are 132" long and 18" wide, set 37" apart, with 93" of drive-through width between the posts. Base plates measure 12" x 12". Lowered height is 5". Overall height of the lift itself is 84". For ceiling planning, treat that 84" as the lift alone: when you store a vehicle on top, add the height of that vehicle to the 72" lift height and measure your ceiling against the combined figure before ordering. Any vehicle within the 8,000 lb capacity and those runway dimensions will fit on the lift.

Power, locks and portability

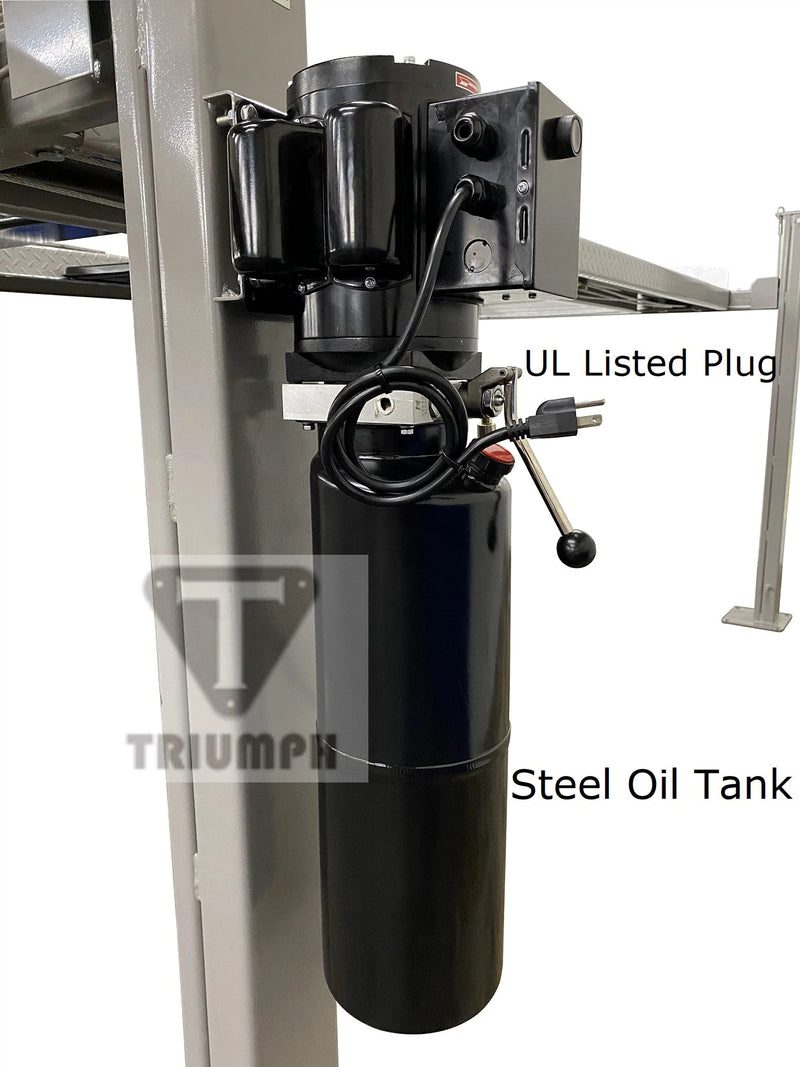

Power comes from a self-contained hydraulic power unit with a steel oil tank and a UL-listed plug, wired for a 110-volt supply. A full raise takes about 40 seconds. Automatic safety locks engage at 10 positions as the lift rises, so the load rests on steel at every stop. A single-point lock release drops all four corners together when you lower, instead of walking the lift column to column. The NSS-8SQ is completely portable — the included four-wheel caster kit lets you roll the whole lift to a new spot in the garage rather than committing it to one bay for good. The standard finish is grey.

What ships and how it arrives

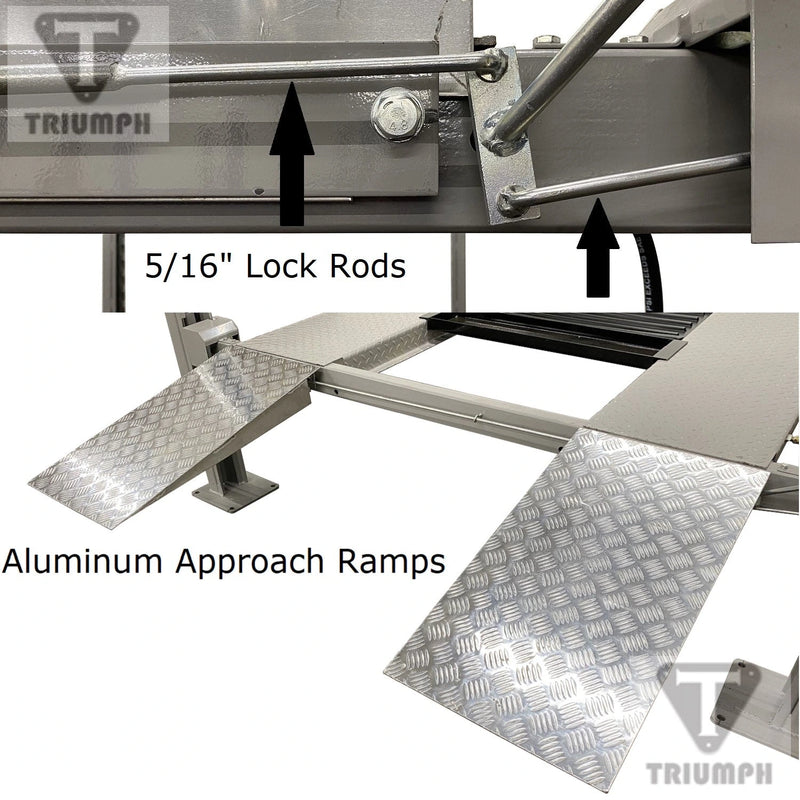

Each NSS-8SQ includes four lifting columns with 10-position automatic locks and column caps, two runways with diamond-plate drive-on approach ramps, the hydraulic power unit and hydraulic hose, a four-wheel caster kit with caster dollies and pins, a steel jack tray, three drip trays, runway stops and lock-release rods, assembly and mounting hardware, and an installation manual plus cable-routing guide. Shipping weight is 1,600 lbs. The lift moves by LTL freight and arrives on a 48-foot semi truck. The driver does not unload it and lift-gate service is not available for auto lifts, so plan on a forklift, Bobcat, tractor, tow truck or backhoe — or have the lift routed to the carrier's nearest freight terminal for pickup. Shipping to the lower 48 United States is free.

Key features

8,000 lb capacity — four-post design for stable overhead parking and service work
72" lift height — leaves 69" of clearance under the runway for a car parked below
10 automatic locking positions — with a single-point lock release that lowers all four corners together
Completely portable — the included four-wheel caster kit rolls the lift around the garage

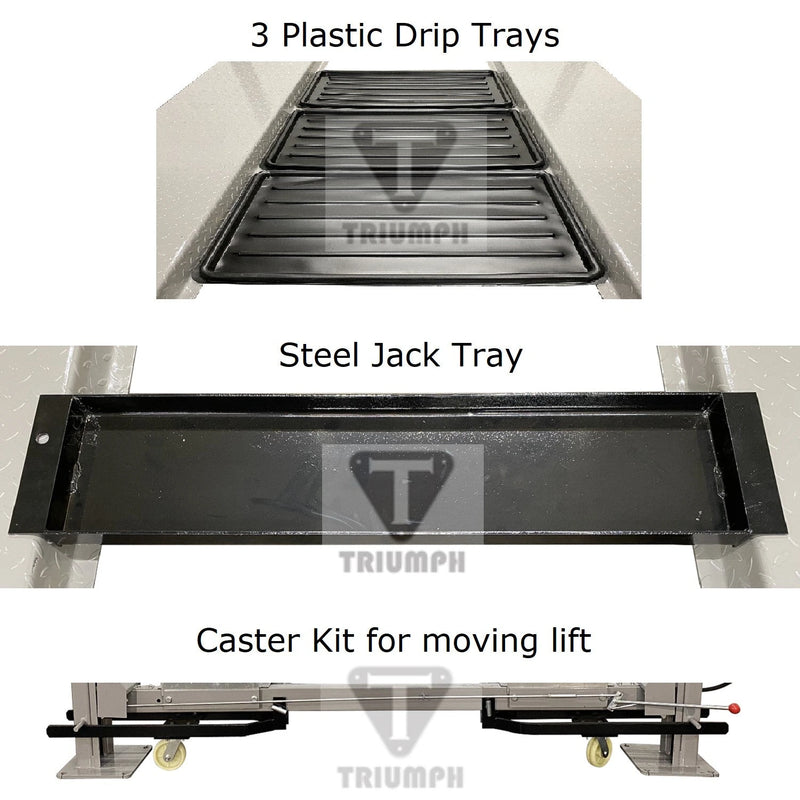

Steel jack tray and three drip trays — raise one end with a bottle or floor jack, and keep fluids off the vehicle below
110V hydraulic power unit — self-contained, with a steel oil tank, UL-listed plug and roughly a 40-second full raise
Shorter overall length — 141" without approach ramps, for tighter garages

Specification Table

NSS-8SQ-G Classic · TriumphSKU NSS-8SQ-G Classic
Capacity	8,000 lbs
Lifting Height	72"
Overall Height	84"
Height Under Runway	69"
Overall Length (with approach ramps)	175"
Overall Length (without approach ramps)	141"
Overall Width	106"
Drive-Through Width	93"
Runway Length	132"
Runway Width	18"
Between Runways	37"
Lowered Height	5"
Base Plate Size	12" x 12"
Locking Positions	10
Lock Release	Single-point
Lift Time	40 seconds
Voltage	110V
Shipping Weight	1,600 lbs
Standard Finish	Grey
Warranty	1-year parts

Compare models

	NSS-8SQ 8,000 lb Four-Post (Shorter Length) THIS	NSS-8F-G 8,000 lb Four-Post Storage Lift	NSS-8XLT 8,000 lb Four-Post	USA8000 8,000 lb Four-Post
Capacity	8,000 lbs	8,000 lbs	8,000 lbs	8,000 lbs
Lifting Height	72"	72"	82"	73"
Overall Length (without approach ramps)	141"	69"	79"	112" (124" with power unit)
Overall Width	106"	106"	112"	102.5"
Price	$3,195.00	$2,875.00	$3,150.00	$4,599.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

What electrical supply does the NSS-8SQ need?
The hydraulic power unit runs on a 110-volt supply and ships with a UL-listed plug.

How much ceiling height do I need for this lift?
The lift's overall height is 84" on its own. When you park a vehicle on top, plan for the 72" lift height plus the height of the vehicle being stored, and measure your ceiling against that combined figure before ordering.

Will my vehicle fit on the runways?
The runways are 132" long and 18" wide, set 37" apart, with 93" of drive-through width between the posts. Any vehicle within the 8,000 lb capacity and those dimensions will fit.

How much floor space does it take up?
Overall width is 106". Overall length is 175" with the approach ramps attached and 141" without them, which is what makes this the shorter-length version.

Can I move the lift after it is set up?
Yes. The NSS-8SQ is designed to be portable, and the included four-wheel caster kit lets you reposition it around the garage instead of fixing it to one spot.

What is the jack tray for?
The jack tray sits across the runways and holds a bottle jack or floor jack, so you can raise one end of the vehicle on the lift to pull wheels or service brakes.

Is a rolling bridge jack available for it?
Yes. The Triumph SJ-35 rolling bridge jack is sold separately and adds wheels-free lifting on the runways.

How does it ship, and will the driver unload it?
It ships by LTL freight on a 48-foot semi truck, and the driver does not unload it — lift-gate service is not available for auto lifts. You will need a forklift, Bobcat, tractor, tow truck or backhoe for the 1,600 lb crated weight, or the lift can be routed to the carrier's nearest freight terminal for pickup.

What does the warranty cover?
The NSS-8SQ carries a 1-year parts warranty; parts only, labor is not covered. Hydraulic cylinders carry a 30-day full warranty, after which a seal kit is provided, and the rubber lifting pads are not covered.
