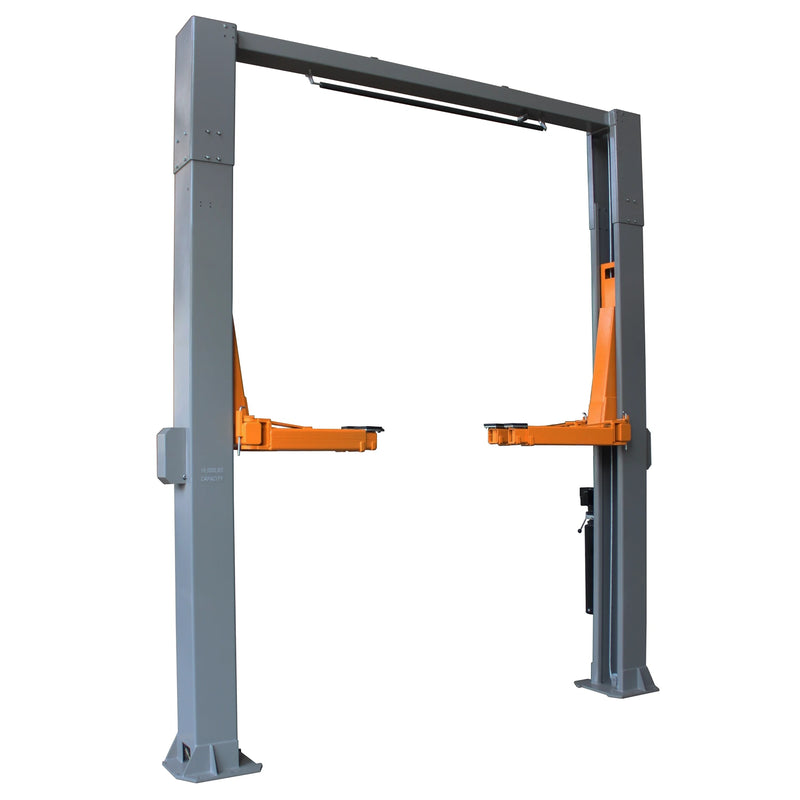

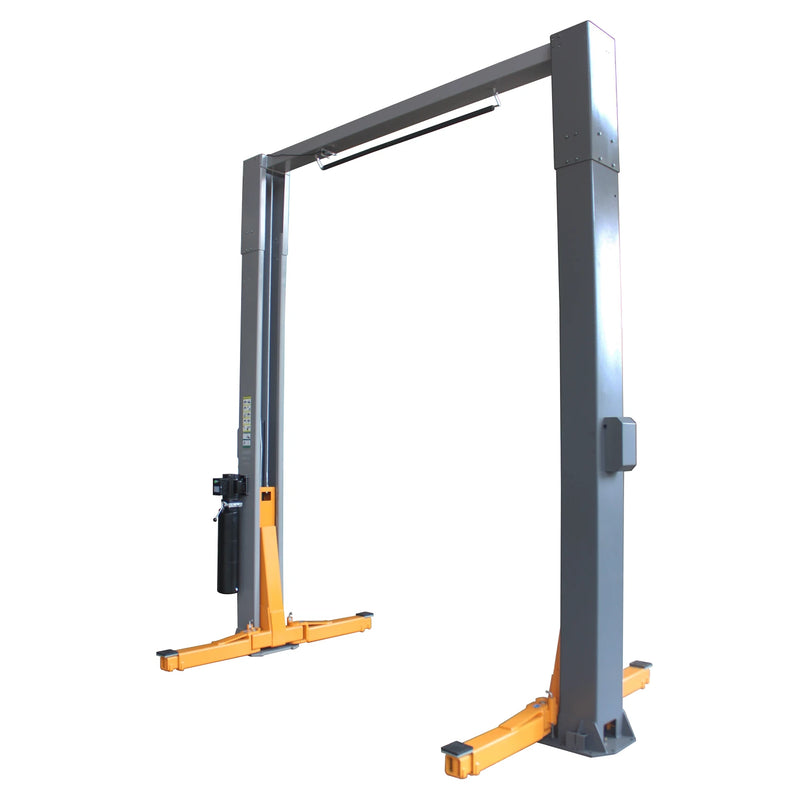

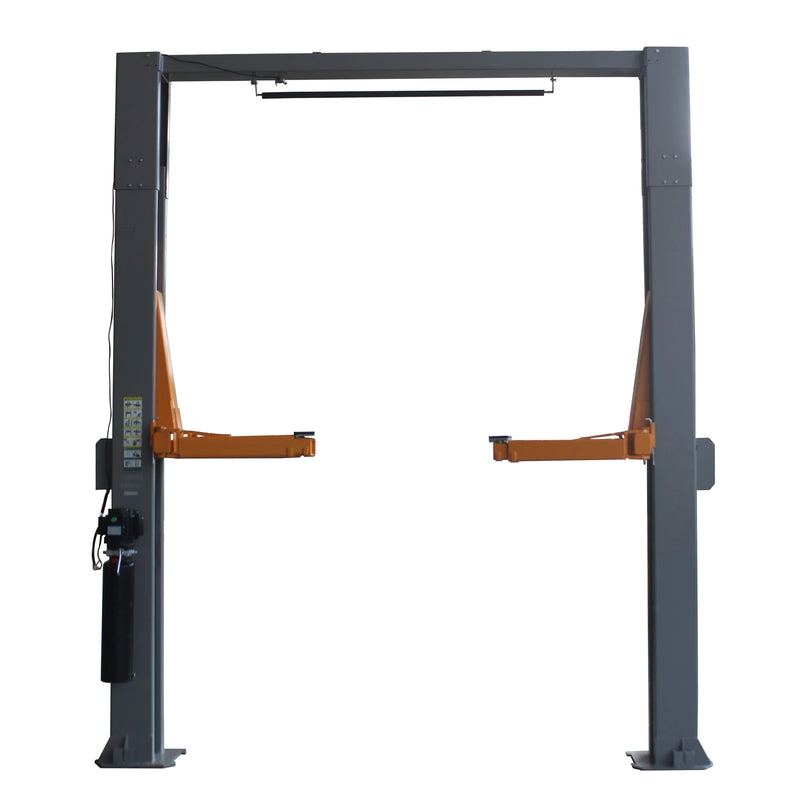

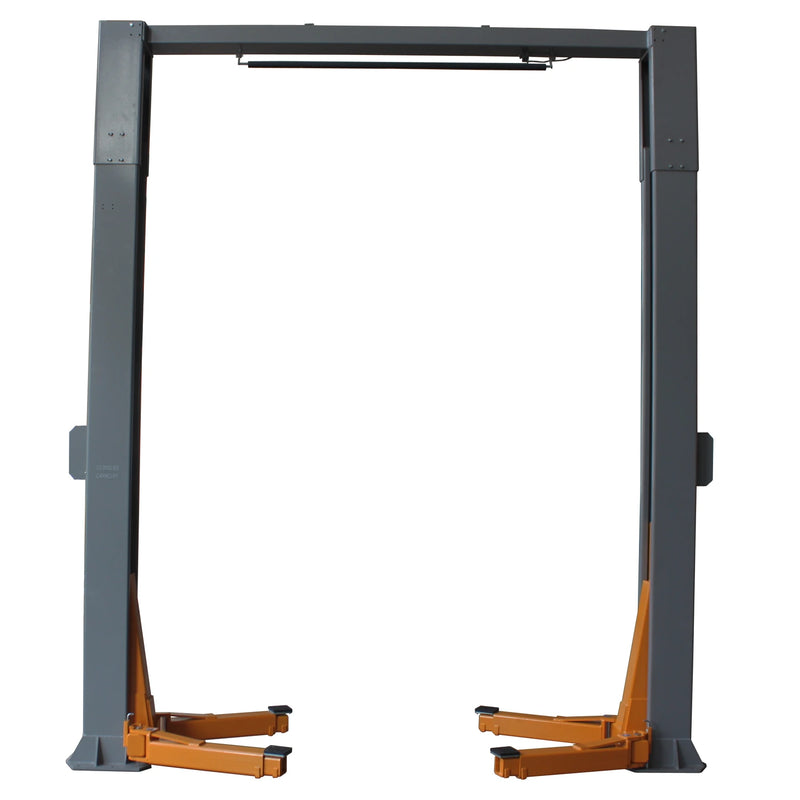

Triumph NTO-16 16,000 lb Two-Post Overhead Auto Lift

What the NTO-16 is built to lift

The NTO-16 is rated at 16,000 lbs, which puts it above the class of lift most general repair shops buy. Triumph positions it for shops servicing heavy trucks, dual-rear-wheel vans, and large diesel pickups — vehicles that put smaller lifts at the edge of their rating. The overhead style carries the safety shut-off bar across the top crossbar rather than running a plate across the floor, so the area between the columns stays clear for a transmission jack, an oil drain, or a creeper. Drive-thru width between the columns is 102", and distance between posts is 116". Those two numbers, more than capacity, decide whether a dual-rear-wheel truck can be driven in squarely and whether the doors will open once it is positioned.

Ceiling, floor and power requirements

Three numbers decide whether the NTO-16 fits your building. Overall height is 165", so the ceiling has to clear 13.75 feet before anything else matters. Overall width at the base is 142", measured across both columns. The floor has to be a 6" slab rated to a minimum of 3,000 PSI — the base plates are 20" × 20" and anchor directly into that concrete using the mounting hardware included in the kit. Power is a 220V circuit for the 3 HP motor. Service type (single-phase versus three-phase) is not listed in the published specifications, so confirm it with the seller for your specific shipment before the electrician runs the circuit. Pulling a new run after the columns are anchored adds cost you can avoid by checking first.

How the lift operates

Lifting is by direct-drive cylinders, so there are no chains or screw drives in the load path and fewer wear items to adjust over time. Lock release is single point: one control disengages both columns in sync instead of making you walk the vehicle to release each side. An electrical override with automatic safety shut-off protects against over-travel, with the shut-off bar positioned across the overhead crossbar where a tall vehicle contacts it first. Full travel takes 40 seconds, from a 7" lowered arm height to a 72" maximum lifting height. That 7" figure matters as much as the top number — the arms slide under most sedans and crossover SUVs without ramps or a floor jack first, which is what makes a heavy-duty lift usable on lighter daily work.

What ships, how it arrives, and warranty

The standard kit includes the lift assembly — two columns, overhead crossbar with safety shut-off bar, and four swing arms with adapters — plus truck adapters, mounting hardware, and the installation instruction manual. Truck adapters and hardware are included at no extra cost, so no separate accessory order is required. The lift ships LTL freight on a 48-ft semi. Lift gate delivery is not available for auto lifts and the driver does not unload, so you need a forklift, Bobcat, tractor, tow truck, or backhoe on site; if you cannot unload, the carrier can hold the lift at the nearest freight terminal for trailer pickup. Warranty is one year on parts covering structural and mechanical components, with no labor coverage. Rubber lifting pads are excluded, and cylinders carry a 30-day full warranty, after which Triumph supplies a seal kit.

Key features

• 16,000 lb capacity — sized for heavy-duty service vehicles, dual-rear-wheel trucks, and full-size diesel pickups
• Direct-drive cylinders — lifting without chain or screw-drive complexity in the load path
• Single-point lock release — one control disengages both columns in sync
• Electrical override with automatic safety shut-off — protects against over-travel
• 102" drive-thru width — clears most dual-rear-wheel trucks between the columns
• Overhead style — shut-off bar rides on the top crossbar, leaving the floor between the columns clear
• Truck adapters and mounting hardware included free in the standard ship kit
