Triumph NT-16 16,000 lb Two-Post Auto Lift

What the NT-16 is built to lift

The NT-16 is a 16,000 lb two-post lift aimed at full-time shop work on full-size trucks, vans, and heavy SUVs rather than passenger cars alone. Its range runs from a 7" lowered height to a maximum lifting height of 72", and a full cycle takes 40 seconds on the 220V AC, 3 HP single-phase power unit. Overall width is 142", with 114" between the posts and a 100" drive-through, so bay layout has to account for the full 142" footprint rather than just the column spacing. Arm reach runs 32" to 49.25". Shipping weight is 2,000 lbs. Triumph states ISO 9001 manufacturing and CE conformity, and the lift carries a 1-year parts warranty.

Floor-plate design and ceiling clearance

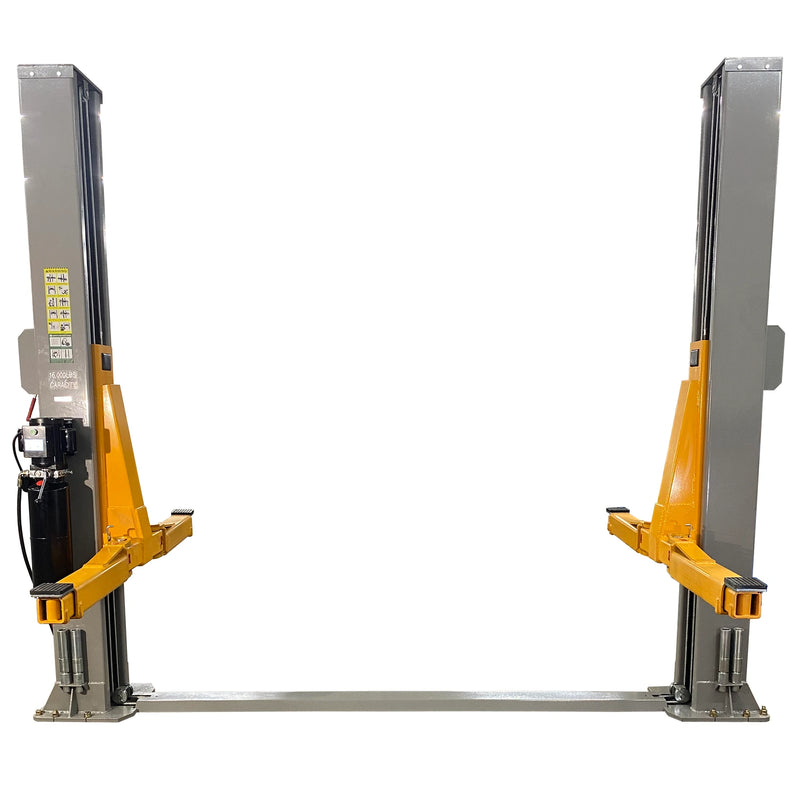

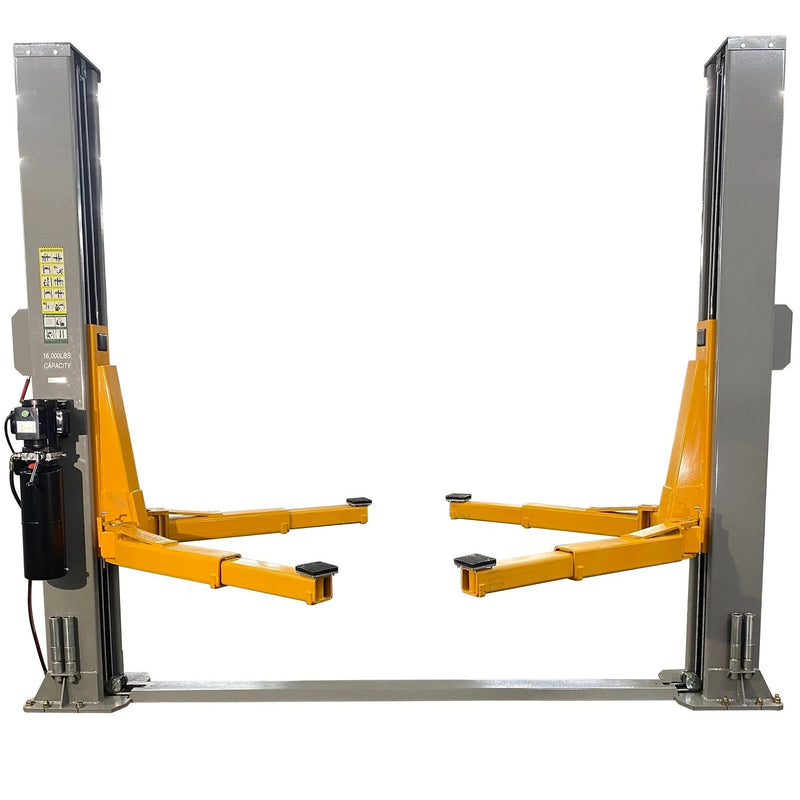

The two columns connect at the floor with a low-profile drive-over plate instead of an overhead crossbar. That matters in bays with limited headroom: there is no bar above the columns eating into ceiling clearance, which is why floor-plate lifts get specified in shops with under nine feet of headroom where an overhead-bar lift would not fit. The trade-off is the plate itself — you drive over it on every entry and exit. Base plate size is listed at 20" × 20", and overall height of the lift is 120", or ten feet. Ceiling planning is not simply that 120" figure, though: you need clearance for the columns plus the height of the tallest vehicle you intend to raise to working position.

Arms, adapters, and safety systems

Lifting is handled by dual hydraulic chain-assist cylinders built to ANSI standards with NOK oil seals. The carriages ride on self-lubricating UHMW polyethylene sliders and bronze bushings. Four symmetric arms — all the same length, with the columns facing each other directly — swing under the vehicle on telescoping inner and outer sections, giving 32" to 49.25" of reach. Symmetric geometry centers the vehicle between the columns rather than setting it back toward the driver's door the way an asymmetric layout does, so plan door-opening clearance accordingly. The arms finish in rubber lift pads, and a stackable adapter set in 1.5-inch, 3-inch, and 6-inch heights covers trucks and SUVs that need extra reach. A single-point safety release with dual safety design holds the lift on lock, backed by an electrical override automatic safety shut-off that cuts power on an out-of-range condition.

Installation, power, and freight delivery

The NT-16 installs on a level, cured concrete floor. Both listings' specification tables give 3,000 PSI minimum with 6" minimum thickness, while the manufacturer's description text states a minimum rated 4,000 PSI — confirm the requirement against the product manual before drilling. Electrical is 220V AC single-phase for the 3 HP unit, with a 30-amp breaker and minimum 10-gauge wire listed as the recommended service. Mounting hardware (anchor bolts, washers, nuts), truck adapters, hydraulic hoses, synchronizing cables, and the product manual ship with the lift at no extra charge. Installation is not included in the base price; the manual covers layout, anchor-bolt installation, hydraulic hook-up, cable adjustment, and test run. The lift ships freight on an LTL carrier, and unloading at the receiving location is the buyer's responsibility.

Key features

• 16,000 lb capacity — sized for full-size trucks, vans, and heavy SUVs, not just passenger cars
• Floor-plate (base-plate) design — the columns connect at the floor with no overhead bar, suiting shops with limited ceiling height
• Dual hydraulic chain-assist cylinders — built to ANSI standards with NOK oil seals; carriages use self-lubricating UHMW polyethylene sliders and bronze bushings
• Symmetric four-arm layout — telescoping inner and outer sections with 32" to 49.25" of reach and rubber lift pads

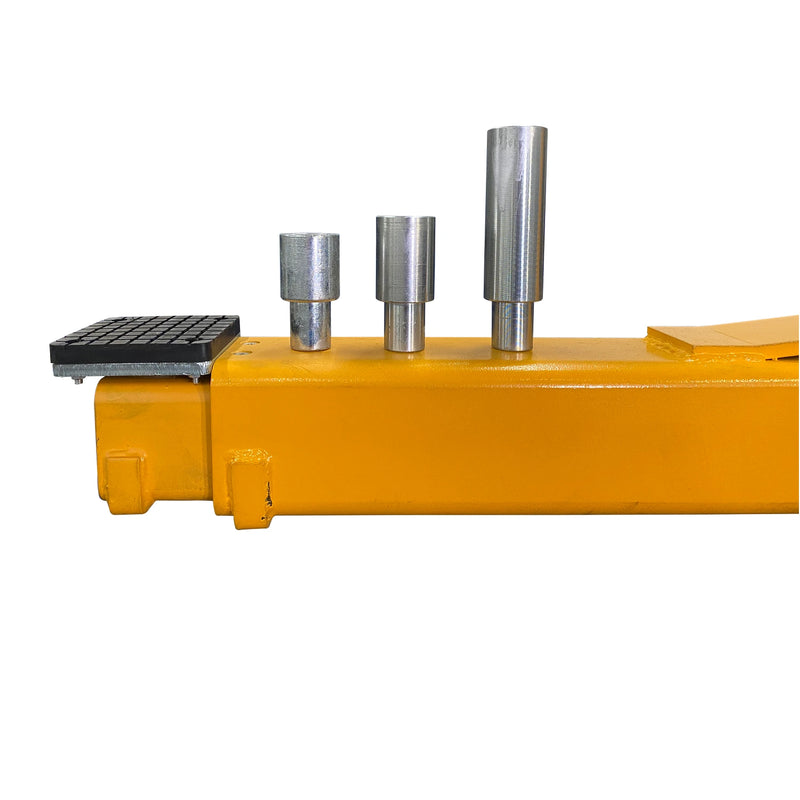

• Stackable adapter set — 1.5-inch, 3-inch, and 6-inch extensions for trucks and SUVs that need extra reach

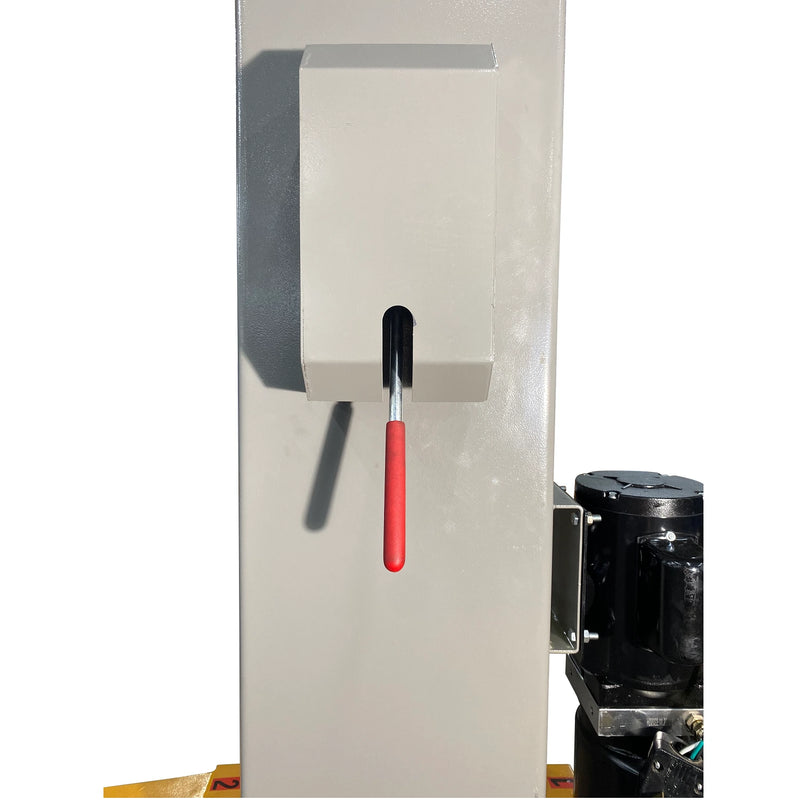

• Dual safety design — single-point safety release plus an electrical override automatic safety shut-off
• Truck adapters and mounting hardware included — anchor bolts, washers, and nuts ship with the lift at no extra charge
