Triumph NTO-13A 13,000 lb Two-Post Auto Lift

Triumph NTO-13A 13,000 lb Two-Post Auto Lift

See more by Triumph

$3,795.00 - $5,450.00

$3,795.00

$3,795.00 - $5,450.00

$3,795.00

In stock

SKU NTO-13A

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

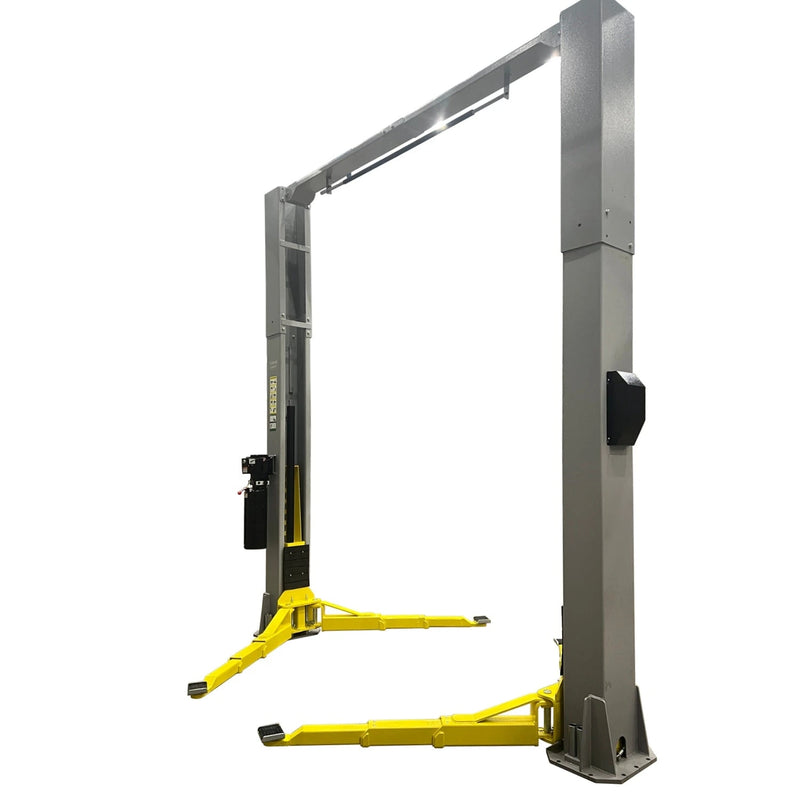

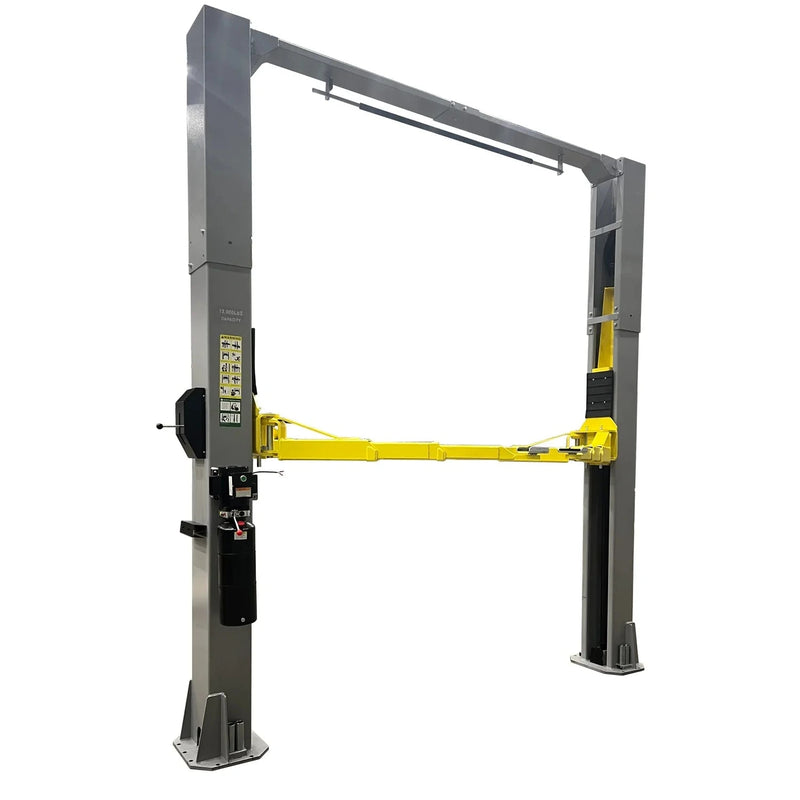

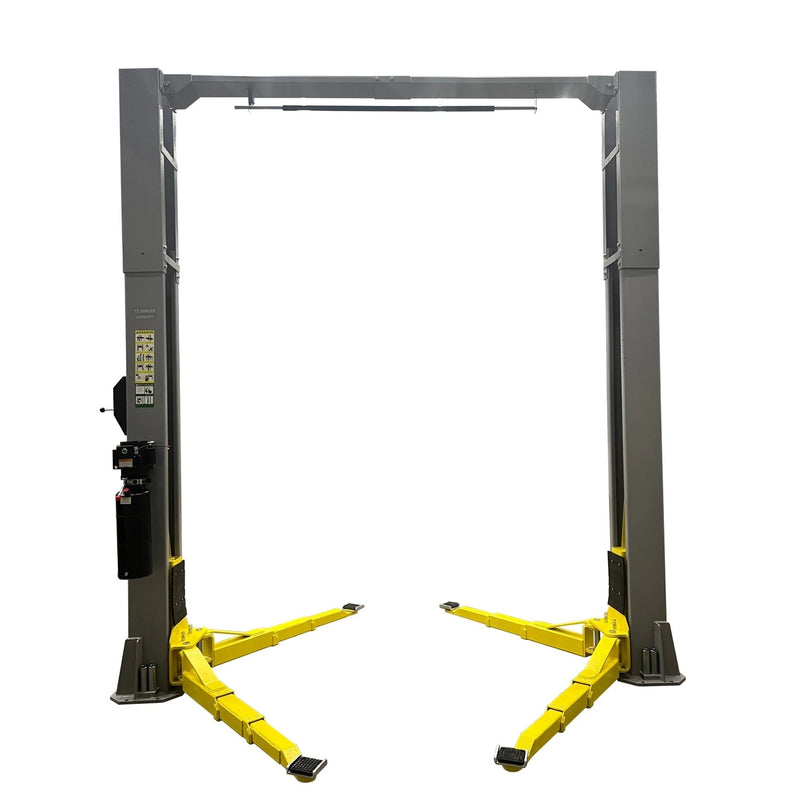

The Triumph NTO-13A is an overhead-style two-post automotive lift with a 13,000 lb rated lifting capacity. It runs on direct-drive hydraulic cylinders, reaches a 74" lifting height in about 55 seconds, and installs on a 6" concrete slab rated to a minimum of 4,000 PSI.

Overhead design and drive-thru clearance

The NTO-13A uses an overhead-style column design: the two posts are joined by a beam across the top rather than a plate across the floor, so the bay between the posts stays clear and vehicles drive straight through. Distance between posts is 122" and drive-thru width is 109", which leaves room to line up wide vehicles on the arms. Overall width is 150" and overall height is 162", so check your ceiling and bay width before ordering. Adjustable swing arms cover a 32"–59" reach range, and the arms come down to a 5" lowered height for low-clearance vehicles. Base plates measure 20" x 20" for anchoring to the slab.

Lifting, locks and safety shut-off

Lifting runs on direct-drive hydraulic cylinders for smooth, even travel. The 3 HP power unit takes the lift to its full 74" lifting height in about 55 seconds. A single-point lock release drops every safety lock together from one lever, so you are not walking between the columns releasing locks individually, and an electrical override automatic safety shut-off stops the lift at the top of its stroke. Rated lifting capacity is 13,000 lbs, which covers passenger cars through heavier light-duty trucks, and a truck adapter set is included at no charge. Every unit is manufactured under ISO 9001 quality standards, and the lift is CE certified and compliant.

Concrete, power and installation

The NTO-13A installs on a concrete slab at least 6" thick, rated to a minimum of 4,000 PSI. Meeting that concrete spec is essential for safe anchoring and for the rated lifting capacity, so it is the first thing to verify in an existing bay. The 3 HP power unit runs on 220V — have a suitable 220V circuit available at the lift location before installation day. Installation itself is not included. The lift ships as freight for installation at your site: you set it on qualifying concrete and anchor it with the mounting hardware that comes in the crate. The 1-year warranty covers parts, not labor, so installation and any later part replacement is handled by you or an installer you arrange.

Delivery, included items and warranty terms

The NTO-13A ships by LTL common carrier on a 48-foot semi. The driver does not unload the lift — unloading is your responsibility, and you will need equipment rated for the full weight, such as a forklift, skid steer, tractor, tow truck, or backhoe. Lift-gate service is not available for auto lifts. If you cannot unload at your location, the lift can be routed to the carrier's nearest freight terminal for pickup with a trailer or moving van, and you call the freight company to set the delivery appointment. Mounting hardware and truck adapters are included at no charge. Coverage is a 1-year parts warranty, parts only, no labor. Rubber lifting pads are not covered; hydraulic cylinders carry a 30-day full warranty, after which Triumph provides a seal kit for cylinder service.

Key features

13,000 lb rated capacity — carries passenger cars through heavier light-duty trucks
Overhead beam design — columns are joined across the top, keeping the drive-through floor clear
Direct-drive hydraulic cylinders — smooth, even lifting travel on both columns
Single-point lock release — drops every safety lock from one lever
Electrical override automatic safety shut-off — stops the lift at full rise
74" lifting height in about 55 seconds, with a 5" lowered height for low-clearance vehicles
Free mounting hardware and free truck adapters included with every lift

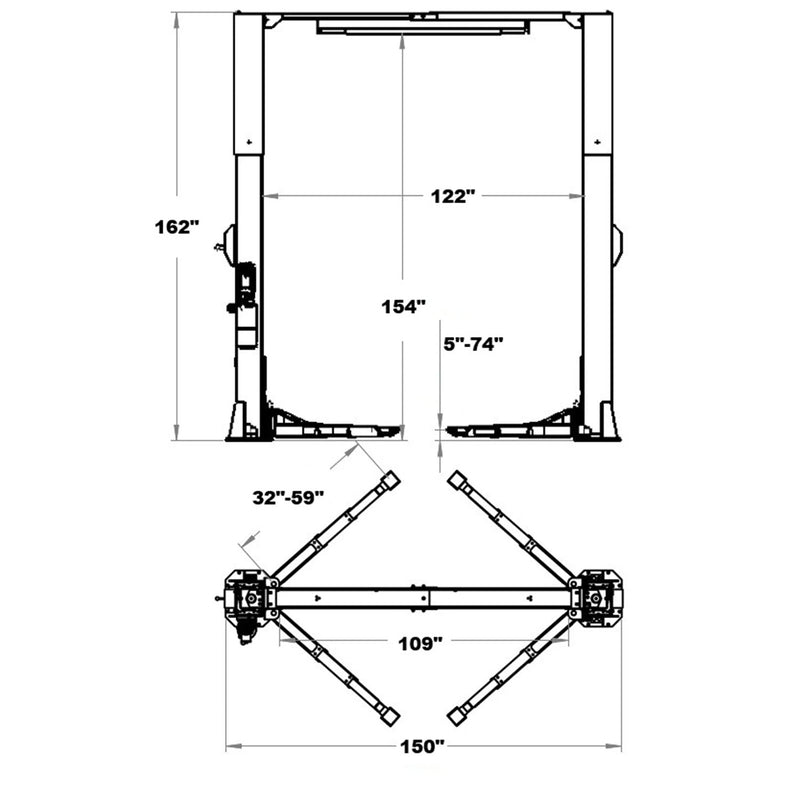

Specification Table

NTO-13A · Triumph
Lifting capacity	13,000 lbs
Lifting height	74"
Lowered height	5"
Overall height	162"
Overall width	150"
Distance between posts	122"
Drive-thru width	109"
Arm length range	32"–59"
Base plate size	20" x 20"
Motor	3 HP
Voltage	220V
Lift time	55 seconds
Lock release	Single point
Electric safety cutoff	Yes
Cylinders	Direct drive
Truck adapters	Included
Column style	Overhead
Concrete requirement	6" slab, 4,000 PSI minimum
Certifications	ISO 9001, CE
Warranty	1-year parts

Compare models

	NTO-13A 13,000 lb Two-Post THIS	NT-11 11,000 lb Two-Post	NTO-11AQ 11,000 lb Two-Post Overhead	NTO-15Q 15,000 lb Two-Post
Lifting capacity	13,000 lbs	11,000 lbs	11,000 lbs	15,000 lbs
Lifting height	74"	Asymmetric, floor-plate (no overhead crossbar)	72"	72"
Overall width	150"	72"	145"	142"
Drive-thru width	109"	138"	145"	102"
Price	$3,795.00	$2,945.00	$3,225.00	$6,595.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

What concrete does the NTO-13A require?
Install it on a concrete slab at least 6" thick, rated to a minimum of 4,000 PSI. Meeting the concrete spec is essential for safe anchoring and for the rated lifting capacity.

What are the electrical requirements?
The 3 HP power unit runs on 220V. Have a suitable 220V circuit available at the lift location before installation.

How much ceiling height do I need for this lift?
The NTO-13A has an overall height of 162", so your ceiling has to clear that plus whatever room you want above the overhead beam. Overall width is 150".

How wide is the drive-thru opening?
Drive-thru width is 109", with 122" between the posts. That leaves room to line up wide vehicles on the arms.

How is the NTO-13A delivered, and who unloads it?
It ships by LTL common carrier on a 48-foot semi, and the driver does not unload it. You need equipment rated for the full weight — a forklift, skid steer, tractor, tow truck, or backhoe — because lift-gate service is not available for auto lifts. If you cannot unload on site, the lift can be routed to the carrier's nearest freight terminal for pickup.

Is installation included?
No. The NTO-13A ships as freight for installation at your site. You set it on qualifying concrete and anchor it with the included hardware, and the 1-year warranty covers parts, not labor.

What comes with the lift?
Mounting hardware and a truck adapter set are both included at no charge.

Is the NTO-13A certified?
Yes. Triumph manufactures the NTO-13A under ISO 9001 quality standards, and the lift is CE certified and compliant.

What does the warranty cover?
A 1-year parts warranty — parts only, no labor. Rubber lifting pads are not covered, and the hydraulic cylinders carry a 30-day full warranty, after which Triumph provides a seal kit for cylinder service.
