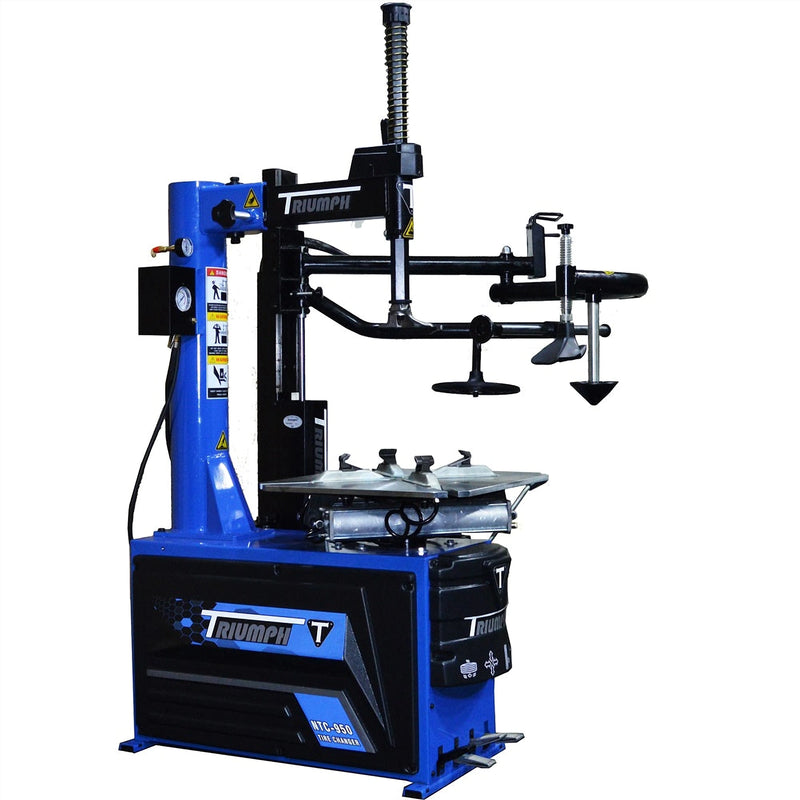

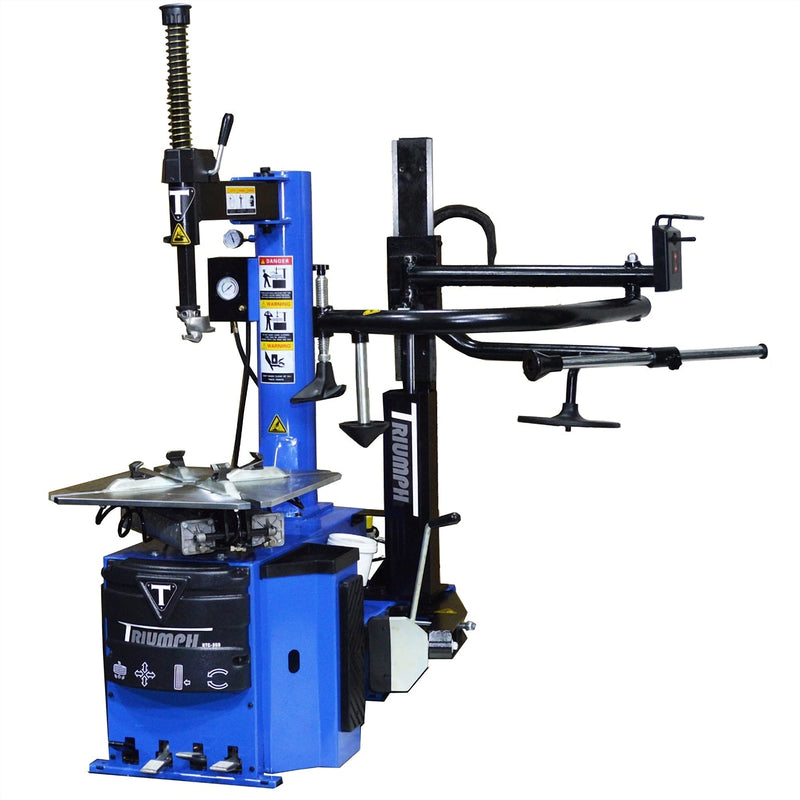

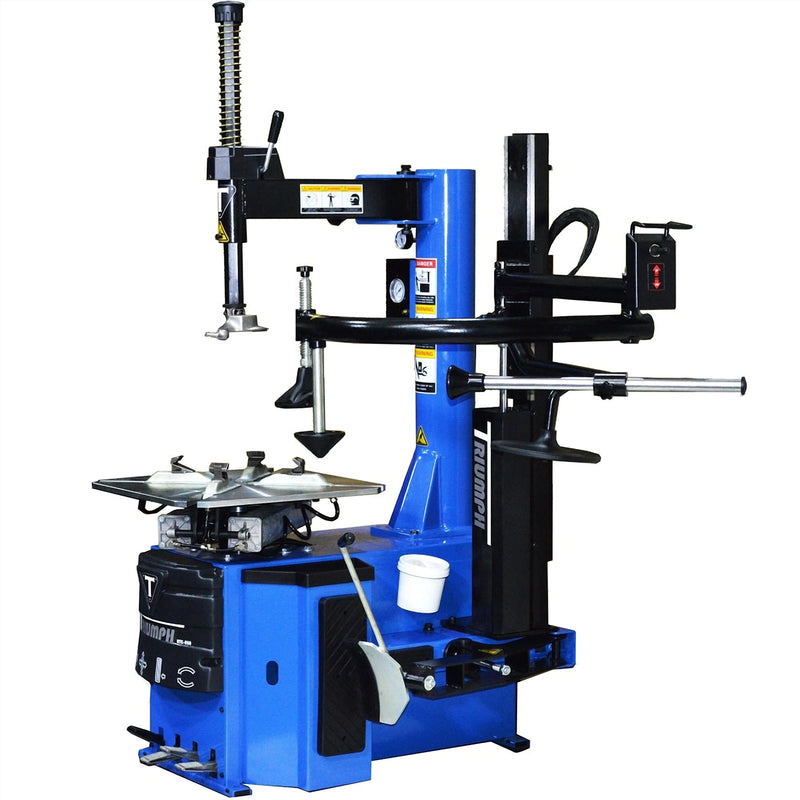

Triumph NTC-950-1 Single Assist Arm Tire Changer, 16–28" Clamping

Triumph NTC-950-1 Single Assist Arm Tire Changer, 16–28" Clamping

See more by Triumph

$2,500.00 - $3,150.00

$2,500.00

$2,500.00 - $3,150.00

$2,500.00

In stock

SKU Combo NTC-950-1

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

The Triumph NTC-950-1 is a swing-arm tire changer with a single assist arm and 16–28" inside clamping, built for passenger-car and light-truck wheels including run-flat and low-profile tires. It runs on a standard 110V single-phase outlet with a 1.5 HP motor and shop air up to 120 PSI.

What wheels and tires it fits

Clamping range is what decides whether a wheel fits, so start there. The NTC-950-1 clamps 16 to 28 inches from the inside and 14 to 26 inches from the outside. It takes wheels up to 15 inches wide and tires up to 43 inches in overall diameter. That range covers almost any passenger and light-truck tire a commercial shop sees in a normal week, from small economy-car wheels at the bottom of the outside range to large-diameter truck and SUV wheels at the top of the inside range. Measure the rim diameter of the largest wheel you expect to service and confirm it lands inside 16–28 inches on the inside clamp before you order, since that is the number that limits the machine.

How the assist arm handles run-flats

Run-flat and low-profile tires are what slow down most swing-arm changers. The stiff sidewall of a run-flat and the short sidewall of a low-profile tire both resist being pushed down into the drop center, and without help the bead fights you the whole way around the rim. On the NTC-950-1 the tower-mounted swing arm carries the mount/demount head over the wheel, and the single assist arm presses and holds the bead through the change so the tire stays seated in the drop center instead of climbing back out. That is the difference that makes run-flat and short-sidewall work manageable on this class of machine rather than a two-person job.

Bead breaking and bead seating

Two separate jobs, two separate systems on this machine. The bead breaker delivers 5,500 lbs of force to break seized and stubborn beads on passenger-car and light-truck wheels, which is the part of the change that punishes an underpowered changer, especially on older wheels that have been on the vehicle for years. On the other end of the job, the built-in bead blast seating system delivers a burst of air to pop the bead onto the rim during inflation. Bead blast is the feature that saves you on wide, low-profile tires that will not seal against the rim on shop air alone. Both are standard on the NTC-950-1, not add-on options.

Power, air, delivery and warranty

The NTC-950-1 plugs into a standard 110V single-phase outlet and runs a 1.5 HP motor, so no three-phase service or special electrical hookup is required. You also need shop air, up to 120 PSI, to feed the bead blast seating system. It ships crated on an LTL freight carrier with liftgate service: the driver lowers it to the ground at the back of the truck but does not move it inside or assemble it. You schedule the delivery appointment with the carrier directly, or hold it at the nearest terminal for pickup. Triumph backs the machine with a 1-year parts warranty, parts only with no labor coverage, and it is also offered as a shop package with the Triumph NTB-550 or NTB-800 wheel balancer.

Key features

Single assist arm — presses and holds the bead through the change, which is what makes run-flat and low-profile tires manageable on a swing-arm machine.
5,500 lb bead breaker — breaks seized and stubborn beads on passenger-car and light-truck wheels.
Bead blast seating system — a burst of air seats the bead onto the rim during inflation.
16–28" inside clamping, 14–26" outside — covers almost any passenger and light-truck wheel a commercial shop handles.
Handles wheels up to 15" wide and tires up to 43" in diameter.
110V single-phase, 1.5 HP — plugs into a standard outlet, no three-phase service required.
Available as a shop package with the Triumph NTB-550 or NTB-800 wheel balancer.

Specification Table

Combo NTC-950-1 · TriumphSKU Combo NTC-950-1
Inside Clamping	16-28"
Outside Clamping	14-26"
Max Wheel Width	15"
Max Tire Diameter	43"
Bead Breaker Force	5,500 lbs
Bead Blast System	Yes
Motor	1.5 HP
Max Air Pressure	120 PSI
Voltage	110V single-phase
Assist Arm	Single assist arm
Assembled Dimensions	Not published by the supplier
Shipping Dimensions	51" x 38" x 51"
Shipping Weight	820 lbs
Warranty	1-year parts warranty (parts only, no labor)

Compare models

	NTC-950-1 Single Assist Arm Tire Changer THIS	NTC-950 / NTB-800 Tire Changer and Balancer Combo	NTC-650 Heavy-Duty Truck Tire Changer	NTC-650 / NTB-1200 Truck Tire Changer & Balancer Combo
Inside clamping	16-28"	16" - 28" inside, 14" - 26" outside	14"–26"	14" - 26"
Outside clamping	14-26"	43"	63"	63"
Max wheel width	15"	5,500 lbs	30.5"	30.5"
Max tire diameter	43"	10" - 28"	120 PSI	10" - 28"
Price	$2,500.00	$3,765.00	$5,995.00	$8,800.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

Can the NTC-950-1 change run-flat and low-profile tires?
Yes. The single assist arm presses and holds the bead through the change, which is what makes stiff run-flat and short-sidewall low-profile tires manageable on this machine.

What size wheels does it clamp?
It clamps 16 to 28 inches from the inside and 14 to 26 inches from the outside. Wheels can be up to 15 inches wide and tires up to 43 inches in overall diameter.

What electrical service does it need?
A standard 110V single-phase outlet. The motor is 1.5 HP and no three-phase service or special hookup is required.

Does it need shop air?
Yes. The bead blast seating system runs on shop air up to 120 PSI. Without compressed air you lose the bead blast function.

How much bead breaker force does it have?
5,500 lbs, which is intended for breaking seized and stubborn beads on passenger-car and light-truck wheels.

What are the crated size and weight, and what does it measure assembled?
It ships crated at 51" x 38" x 51" and 820 lbs. Assembled dimensions are not published by the supplier, so plan your bay space from the crated figures and your own layout.

How does it ship and who unloads it?
It ships crated on an LTL freight carrier with liftgate service, so the driver lowers it to the ground at the back of the truck. The driver does not move it into your shop or assemble it. You schedule the delivery appointment directly with the carrier, or have it held at the nearest terminal for pickup.

What does the warranty cover?
Triumph provides a 1-year parts warranty, parts only with no labor coverage. Needed parts ship free with free ground shipping after phone troubleshooting; labor to install the replacement part is not covered.

Can I buy it packaged with a wheel balancer?
Yes. The NTC-950-1 is also offered as a shop package paired with the Triumph NTB-550 or NTB-800 wheel balancer for shops building out a tire bay from scratch.
