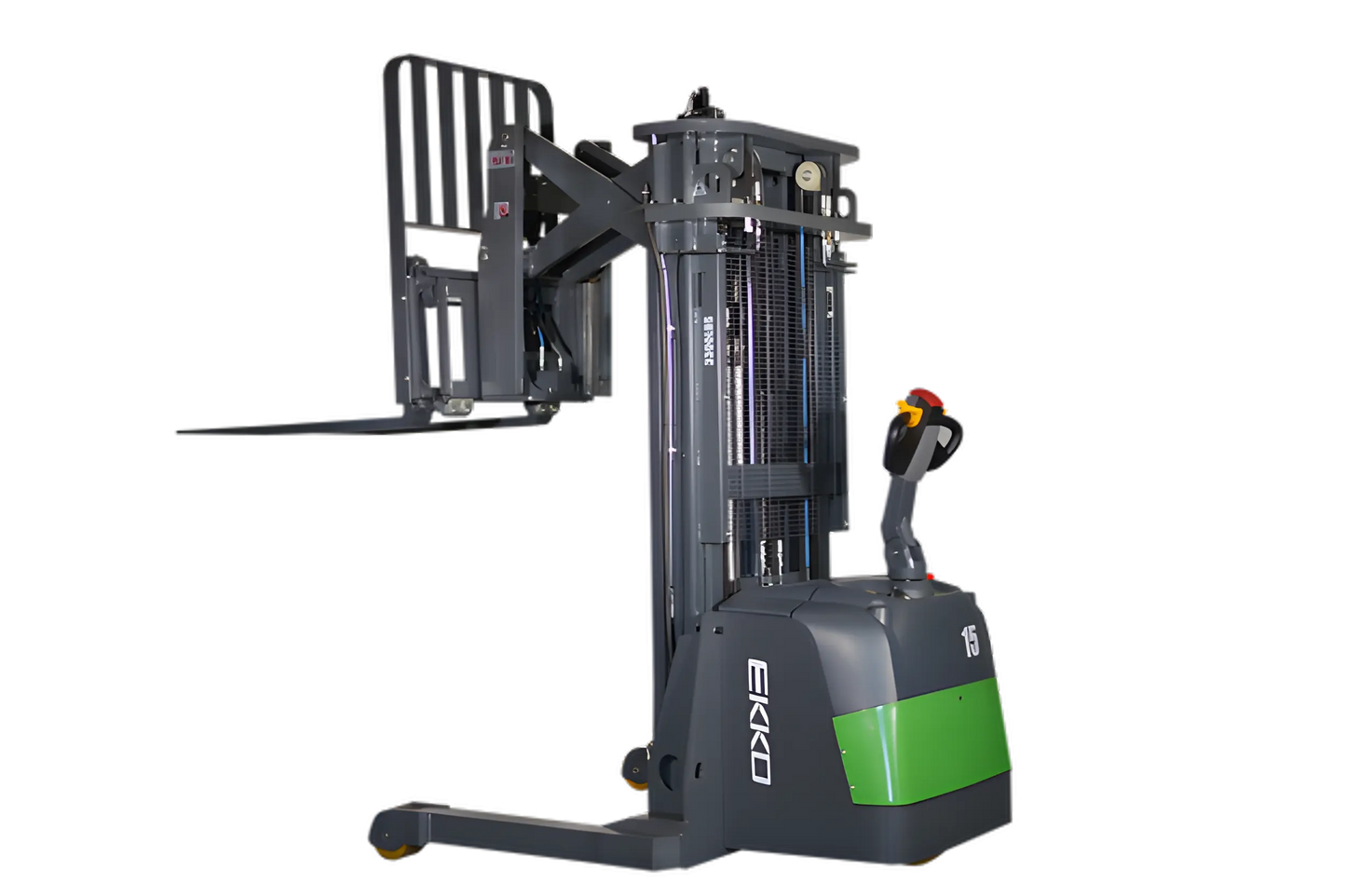

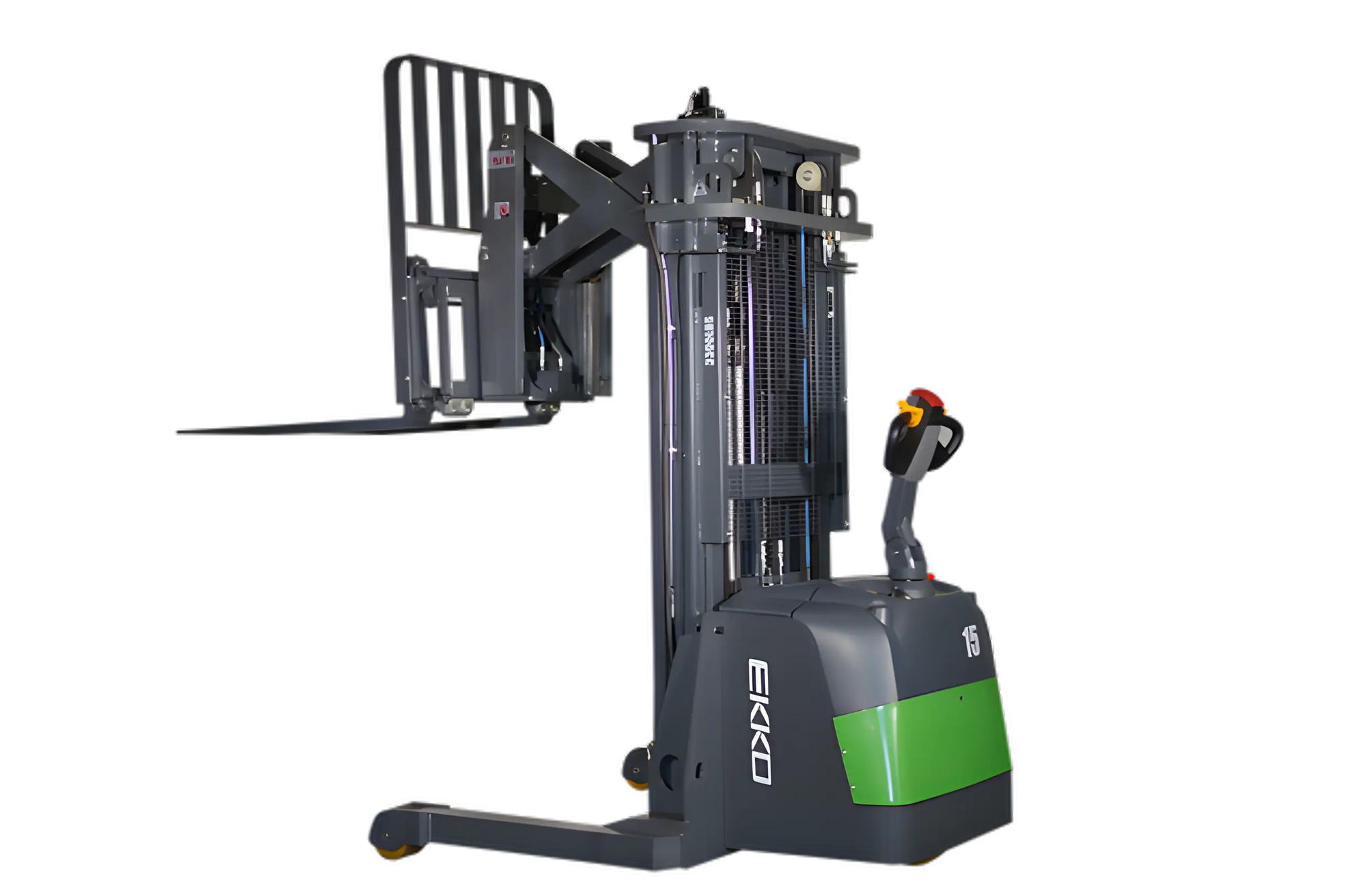

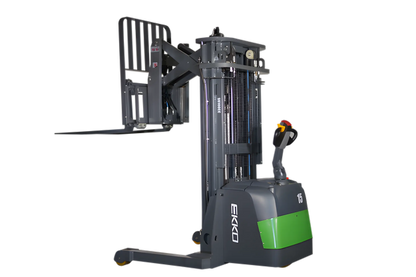

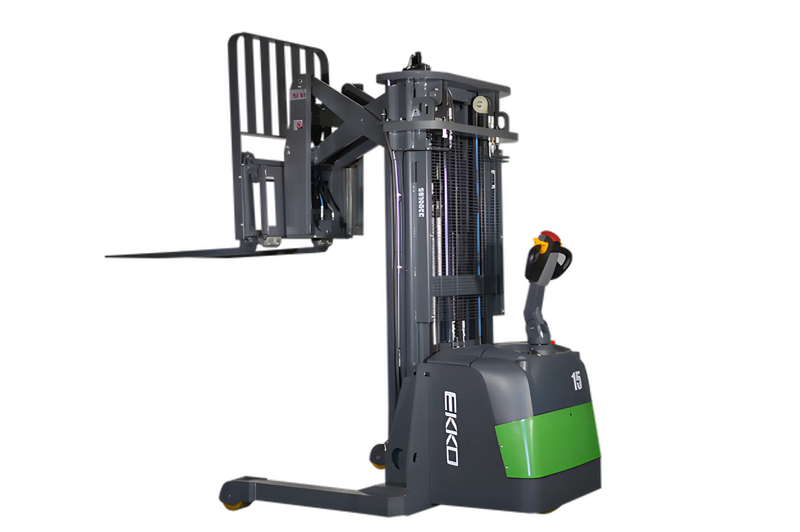

EKKO ER15-177Li electric forklift with green and gray body designed for efficient warehouse lifting

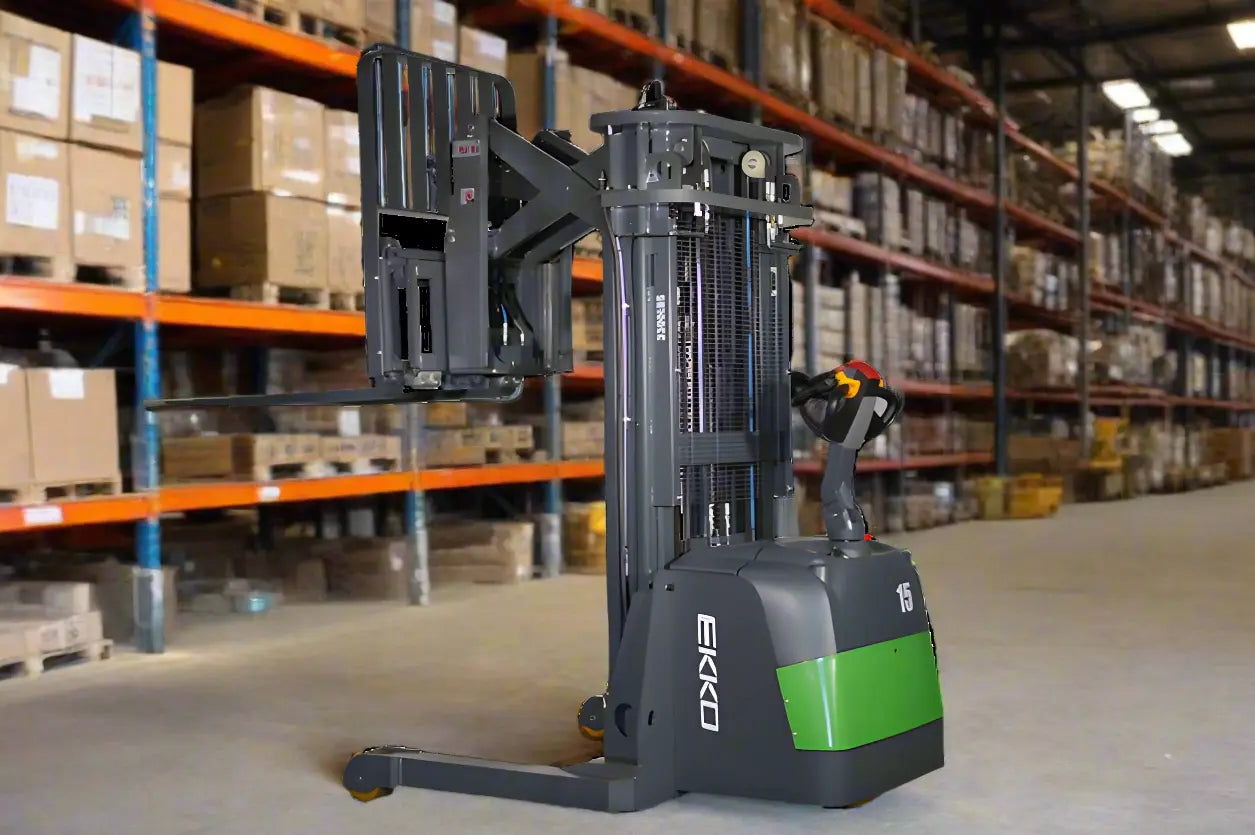

EKKO ER15-177Li electric stacker forklift in warehouse with shelves and boxes

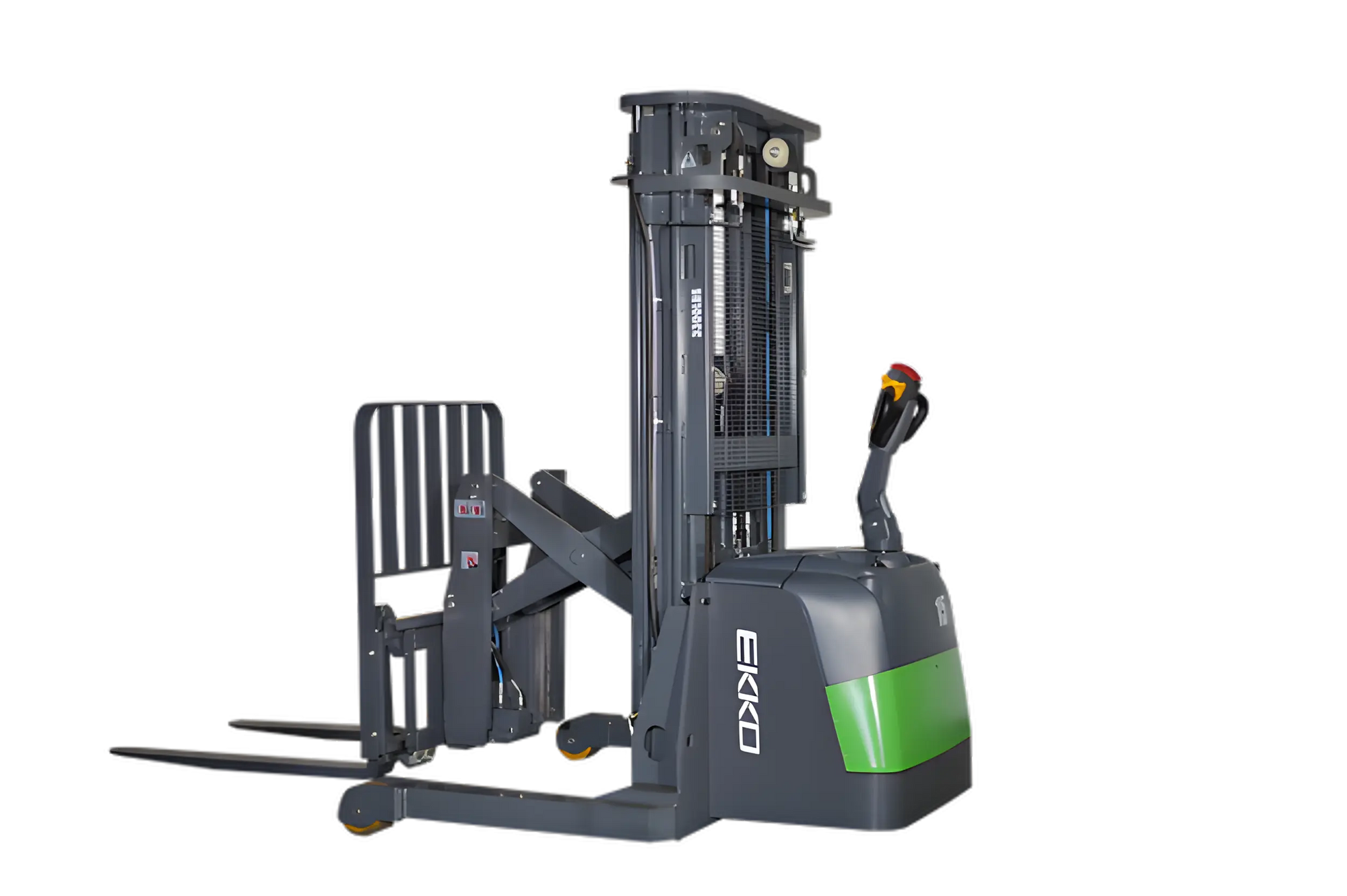

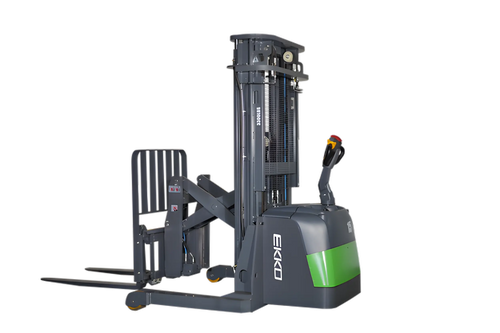

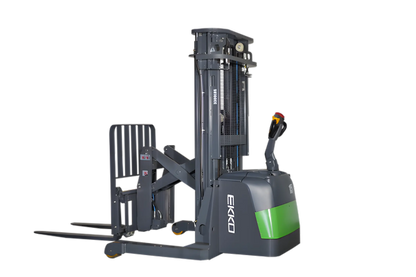

EKKO ER15-177Li electric pallet stacker with grey and green body for warehouse lifting tasks

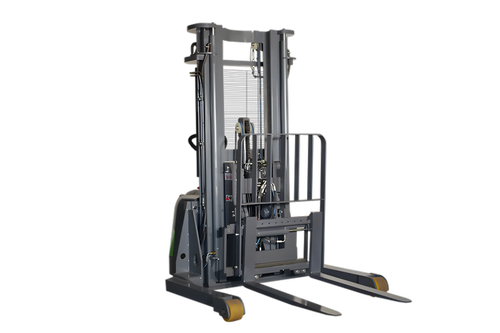

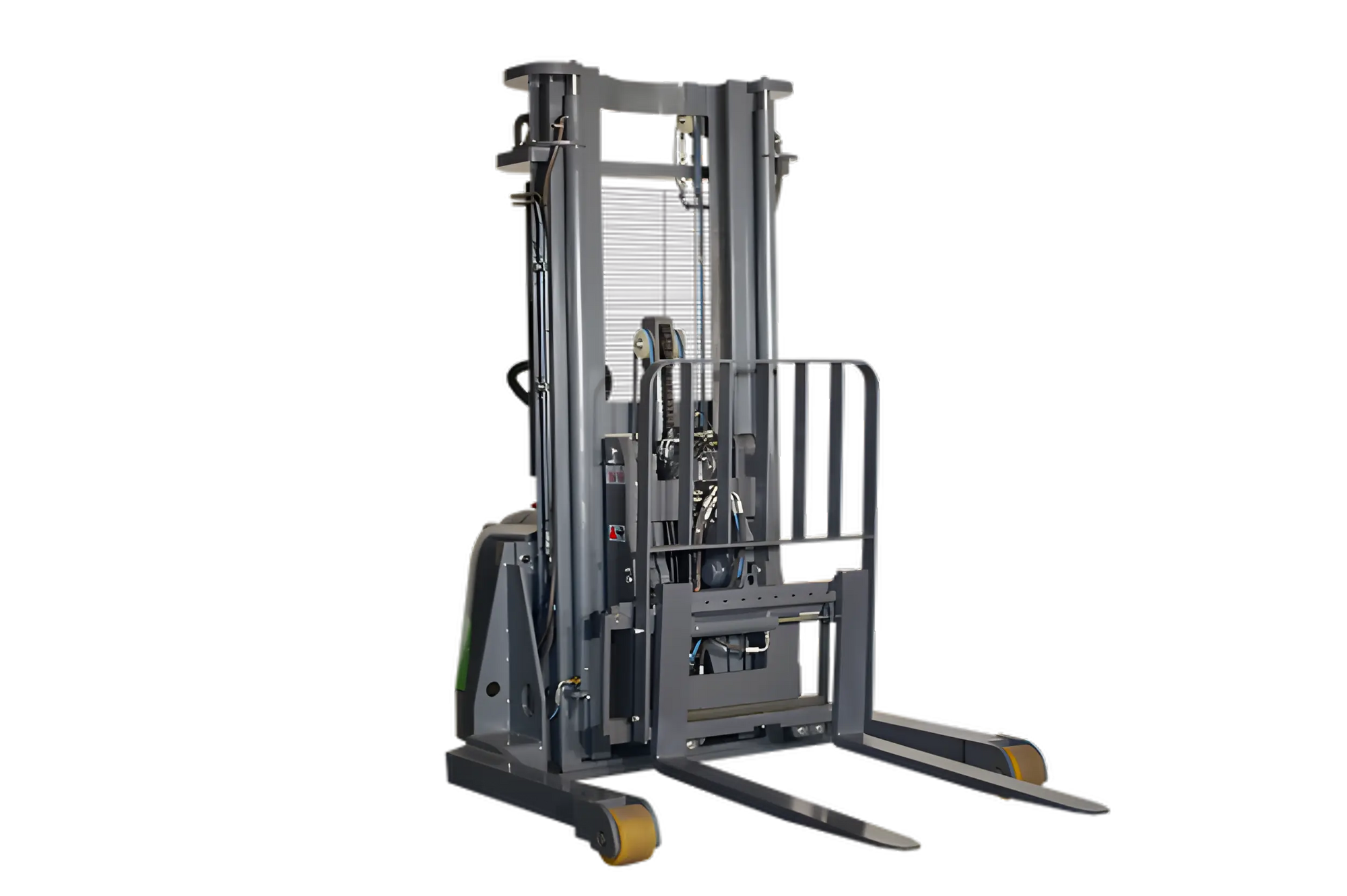

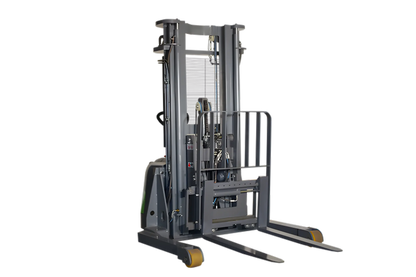

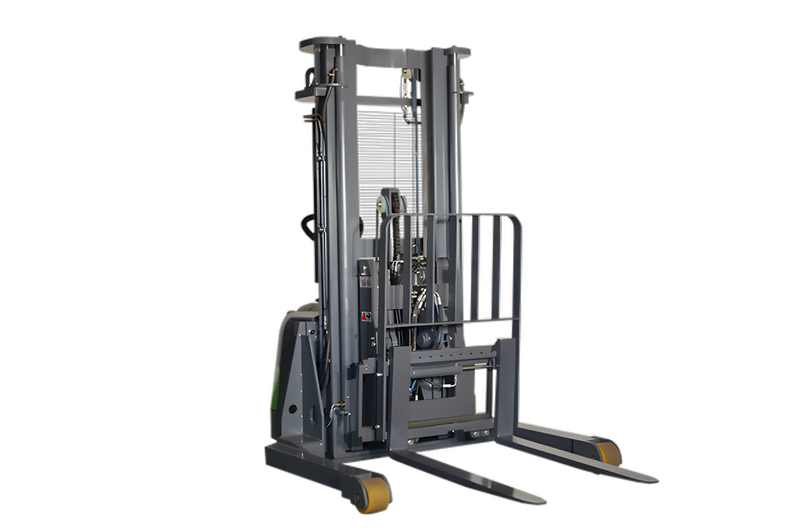

EKKO ER15-177Li electric forklift pallet stacker with metal forks and safety guard

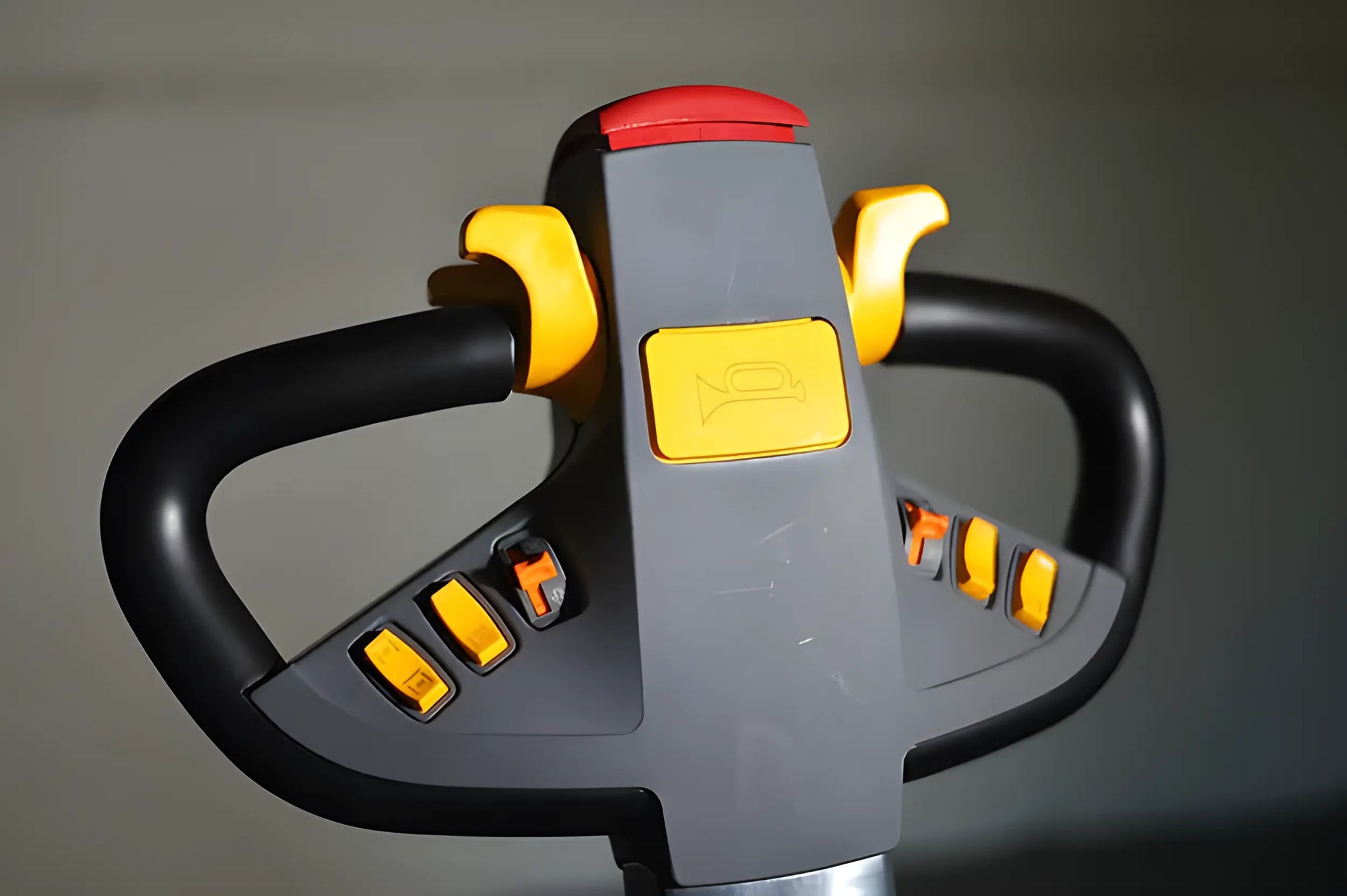

Close-up of EKKO ER15-177Li handle with control buttons in yellow and red on black panel

EKKO ER15-177Li | Lithium Walkie Reach Truck | 3300 lb Cap.| 177" Height

Name: EKKO ER15-177Li | Lithium Walkie Reach Truck | 3300 lb Cap.| 177" Height
Brand: EKKO
SKU: ER15-177LI
Price: 25649.05 USD
Availability: InStock

See more by EKKO

$1,349.95 Off Limited time deal

$26,999.00

$26,999.00 - $26,999.00

$26,999.00

$25,649.05

$25,649.05 - $25,649.05

$25,649.05

In stock

SKU ER15-177LI

Quantity

Product Overview

In short

The EKKO ER15-177Li is an electric walkie reach truck built for narrow-aisle warehousing, stock rooms, and loading dock work. It offers a 3300 lb load capacity, a maximum lift height of 177 inches, and is powered by a 24V/200Ah lithium battery for efficient, low-maintenance operation.

The EKKO ER15-177Li Lithium Walkie Reach Truck is an all-around walkie reach truck that is designed to give you the flexibility and power needed to perform your daily warehouse duties. It has a 3,300 lbs load capacity and can lift up to 177" (14.75') above the floor level making this unit perfect for use in warehouse stockroom environments, loading dock areas, and on manufacturing shop floors. The ER15-177Li is powered by a 24V, 200Ah lithium-ion battery which allows for a long run time and eliminates the need for routine maintenance of the batteries. The electronic power steering system (EPS) and the Curtis instrument controller are used together to provide the best possible feel when operating the truck. The side shift feature and the reach function allow operators to access pallets in tight spaces. The robust AC drive motor and lift motor used in the ER15-177Li also help to provide the best possible reliability in demanding indoor warehouse applications. The overall design of the ER15-177Li includes ergonomic controls to minimize operator fatigue and provides strength, precision and comfort in demanding warehouse applications.

Key Features Include:

3300 lbs Load Capacity - Ideal for Heavy Pallet Handling.
Maximum Lift Height of 177” (14.75’) - With 19.7” Reach Extension.
Included 24V / 200AH Lithium Battery and Charger.
Smooth Maneuverability via Electronic Power Steering (EPS).
Precise Control via Curtis Instrument Controller.

Specification Table

ER15-177LI · Walkie Reach TruckSKU ER15-177LI
Lift	Electric
Drive	Electric
Load capacity	3300 (lb)
Load center distance	24 (in)
Lifting height	177 (in)
Side Shift	Y
Lowered mast height	82.3 (in)
Overall length	86.6 (in)
Overall width (body/legs)	32.3/59.1 (in)
Fork size, Thick/Width/Length	1.38/3.9/45.3 (in)
Fork width	32.2 (in)
Reach Distance	19.7 (in)
Turning radius	63.4 (in)
Charger	24V/50A (V/A)
Driving Motor	AC 1.5 (KW)
EPS Steering Motor	AC Speed Control
Lifting Motor	4.5 (KW)
Battery voltage	24V/200Ah Lithium (V/Ah)
Service Weight	4565 (lb)
Lift Type	Electric Walkie Reach
Drive Type	Electric
Maximum Lift Height	177 in
Free Lift	60.2 in
Battery	24 V / 200 Ah Lithium
Steering System	Electronic Power Steering (EPS)
Wheel Type	Polyurethane

FAQ about this model

What applications and loads is the EKKO ER15-177Li suited for?

This walkie reach truck is designed for loading docks, stock rooms, and general warehousing tasks. With a 3300 lb load capacity at a 24 in load center, it's built to handle standard palletized loads in narrow-aisle environments where reach and lift height are essential.

What do the key specifications mean for day-to-day use?

The ER15-177Li delivers a maximum lift height of 177 in with 60.2 in of free lift, allowing operators to reach high storage racks while keeping the mast compact when lowered (82.3 in lowered mast height). A 19.7 in reach distance lets the truck extend forks into racking without moving the entire chassis, and side shift capability adds precision when placing loads.

How is this truck powered and operated?

The ER15-177Li is an electric walkie reach truck powered by a 24V/200Ah lithium battery, paired with a 24V/50A charger. It uses an AC 1.5 kW driving motor and an AC 4.5 kW lifting motor, along with Electronic Power Steering (EPS) for controlled maneuvering. Polyurethane wheels round out the setup for smooth operation on typical warehouse floors.

How does this model compare within the walkie reach truck category?

Within the walkie reach category, the ER15-177Li stands out for its combination of a 177 in lift height and 3300 lb capacity, making it suitable for taller racking applications while maintaining a manageable turning radius of 63.4 in and overall width (body/legs) of 32.3/59.1 in for maneuvering in constrained aisles. Its lithium battery setup is a distinguishing feature compared to traditional lead-acid powered walkie reach trucks.

Compare models

	3300 Lithium Walkie Reach Truck THIS	3300 Lithium Walkie Reach Truck	3300 Lithium Walkie Reach Truck
Lift Height	177 (in)	189 (in)	216 (in)
Lift Type	Electric Walkie Reach	Electric Walkie Reach	Electric Reach Truck
Service Weight	4565 (lb)	4590 (lb)	4700 (lb)
Battery	24 V / 200 Ah Lithium	24V / 200Ah Lithium	24 V/200 Ah Lithium
Price	$26,999.00 $25,649.05	$28,499.00 $27,074.05	$29,999.00 $28,499.05
	Viewing	Check ›	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
