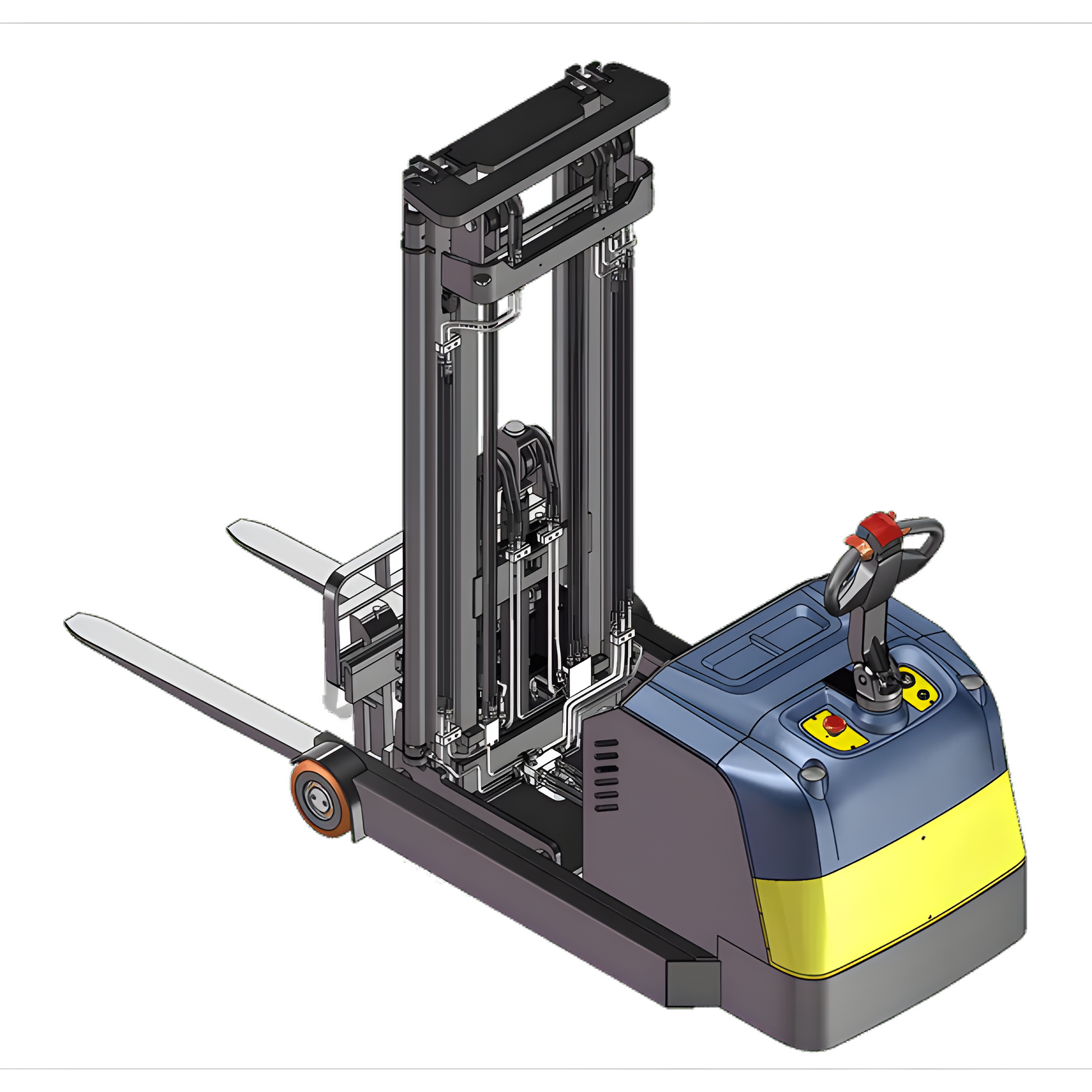

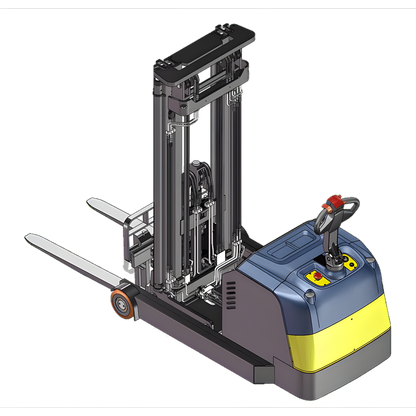

EKKO EH15T 3300lbs Moving Mast Walkie Reach Truck

See more by EKKO

$1,199.95 Off Limited time deal

$23,999.00

$23,999.00 - $23,999.00

$23,999.00

$22,799.05

$22,799.05 - $22,799.05

$22,799.05

In stock

SKU EH15T

Quantity

Product Overview

In short

The EKKO EH15T is a walk-behind, electric moving mast walkie reach truck with a 3300 lb (1500 kg) load capacity and a lifting height of 138 inches. It combines the functions of a forklift, reach truck, and walkie stacker, making it suited for reaching, lifting, stacking, and retrieving pallet loads in warehouses and narrow-aisle racking environments.

The EKKO EH15T Moving Mast Walkie Reach Truck is an efficient pallet handler and rack store, and can be used in a variety of applications such as warehousing, distribution center and narrow-aisle warehouse operations. It is perfect for loading pallets with a weight of up to 3300 lbs in tight aisles and to lift pallets with precision. The Moving Mast Reach is a great advantage when working with pallets as it allows for better positioning of pallets in tight areas and provides for greater control over reach when compared to other walkie stacker designs. This will provide the best opportunity to position pallets on racks and/or in narrow aisles, where mobility is at a premium. The EH15T has been built to provide a solid platform for stable lifting and precise control of the load that is being lifted. The EH15T also features smooth travel and accurate control, which provides the operator with a high degree of confidence in its reliability to perform throughout the day. The walkie design of the EH15T, provides the operator with a clear view of the surrounding area and allows for the greatest level of control, which enhances safety and the flow of work.

Features:

3300 Lb Load Capacity - suitable for all general purpose warehouse lifting and racking applications.
Moving Mast Reach Design - enables the operator to achieve the greatest possible pallet positioning and reach capability.
Walkie - compact handling and operation to enhance the overall mobility of the truck.
Stable Lift & Precise Load Control - ensures safe stacking and retrieval from elevated locations.
Ideal for Narrow Aisle Operations - maximizes space and increases productivity.

Specification Table

EH15T · Walkie Reach TruckSKU EH15T
Lift	Electric
Drive	Electric
Load capacity	3300 (lbs)
Load center distance	24 (in)
Lifting height	138 (in)
Lowered mast height	93.3 (in)
Overall length	111.6 (in)
Overall width	41 (in)
Fork size, Thick/Width/Length	1.4/4/45.2 (in)
Fork adjust width	8.7-28 (in)
Reach Distance	19.7 (in)
Turning radius	67 (in)
Charger	24V/40A
Driving Motor	AC 24V/2.5kw
Steering Motor	24/0.2kw
Lifting Motor	24V/3kw
Battery voltage	24V/270AH
Service Weight	4200 (lbs)
Brand / Model	EKKO EH15T
Operation Style	Walk-Behind
Mast Type	Moving Mast / Reach Design
Primary Function	Reach, lift, stack, and retrieve pallet loads
Primary Applications	Warehouse, Distribution Centers, Narrow Aisle Racking
Best Use Case	Pallet storage/retrieval in racks and confined spaces
Handling Advantage	Improved positioning and reach performance
Key Benefits	Higher productivity, reduced manual effort, safer racking operations

FAQ about this model

What is the load capacity of the EKKO EH15T, and does it change with load center?

The EH15T is rated for 3300 lbs at a 24 in load center. If your pallets are loaded further from the fork face than 24 in, actual safe capacity will be lower, so check your load dimensions against this rated load center before ordering.

What are the mast heights and overall size of this reach truck?

Lifting height is 138 in and lowered mast height is 93.3 in, so measure your doorways and overhead clearances against the 93.3 in figure. Overall length is 111.6 in, overall width is 41 in, and turning radius is 67 in for aisle planning.

How much reach does the moving mast provide for rack storage?

The reach distance is 19.7 in, which lets the moving mast extend forks into racking without driving the whole truck forward. This is the reach-design feature that separates it from a standard walkie stacker.

What power system and battery does the EH15T use?

It runs on a 24V/270AH battery charged with a 24V/40A charger. The driving motor is AC 24V/2.5kw, the lifting motor is 24V/3kw, and the steering motor is 24/0.2kw. Service weight of the truck itself is 4200 lbs.

What fork sizes and adjustment range does it have?

Forks measure 1.4 in thick, 4 in wide, and 45.2 in long, with fork spacing adjustable from 8.7 to 28 in. This range covers most standard pallet widths used in warehouse and distribution center racking.

Is this truck operated by riding on it or walking alongside?

The EH15T is a walk-behind unit, meaning the operator walks alongside or behind the truck to control it rather than riding on a platform. It's built for pallet storage and retrieval in narrow aisle racking and confined warehouse spaces.

Compare models

	3300 Walkie Reach Truck	3300 Moving Mast Walkie Reach	4000 Stand-Up Reach Truck	3300 Lithium Walkie Reach Truck	EH15T EKKO 3300lbs Moving THIS
Capacity	3300 (lb)	3300 (lb)	4000 (lb)	3300 (lb)	3300 (lbs)
Forks	1.38/3.9/45.3 (in)	1.4/4/42 (in)	1.58/4.72/42 (in)	1.38/3.9/45.3 (in)	1.4/4/45.2 (in)
Lift Height	177 (in)	216 (in)	196 (in)	138 (in)	138 (in)
Power / Voltage	24V/200Ah Lithium (V/Ah)	24V/270Ah (V/Ah)	48V/420Ah (V/Ah)	24V/200Ah Lithium (V/Ah)	24V/270AH
Price	$23,998.00 $21,999.00	$25,499.00 $24,224.05	$46,199.00 $43,699.05	$25,499.00 $24,224.05	$23,999.00 $22,799.05
	Check ›	Check ›	Check ›	Check ›	Viewing

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
