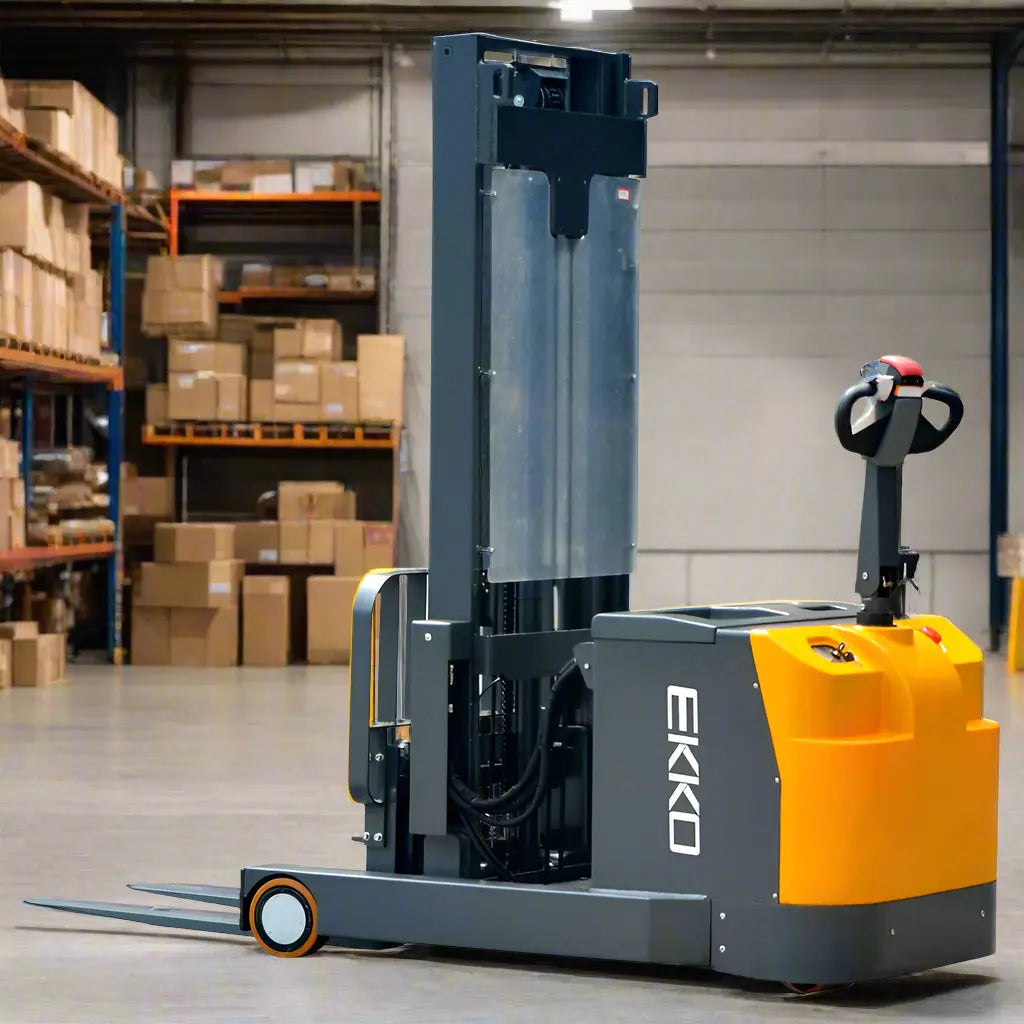

EKKO EH15TH electric pallet stacker with yellow and gray body in warehouse setting

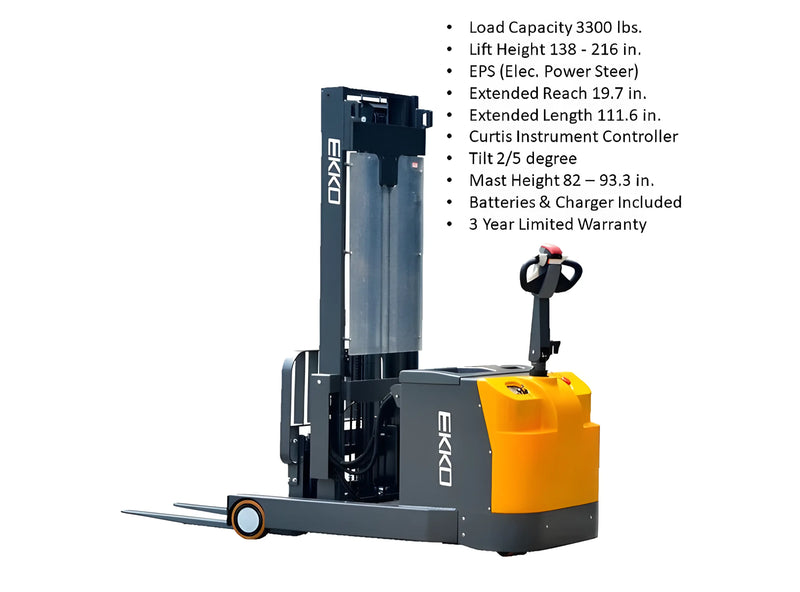

EKKO EH15TH electric stacker forklift with 3300 lbs load capacity and 216-inch lift height

EKKO EH15TH electric walkie stacker forklift with yellow and black body for warehouse lifting

EKKO EH15TH industrial pallet jack handle and control panel with yellow and black design

EKKO EH15TH electric forklift stacker with extended mast and orange black body

EKKO EH15TH electric pallet jack with compact design and durable build for material handling

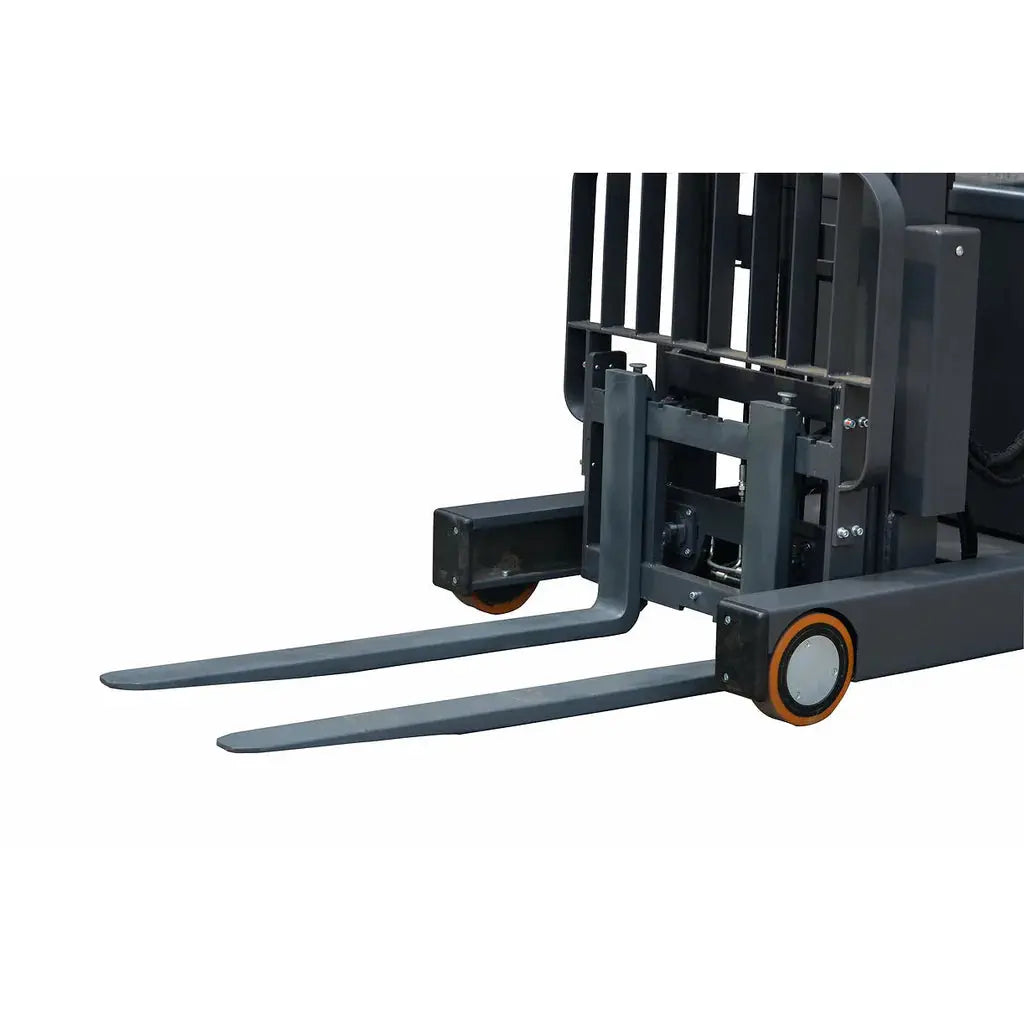

Close-up of forklift forks and wheels on EKKO EH15TH industrial pallet truck

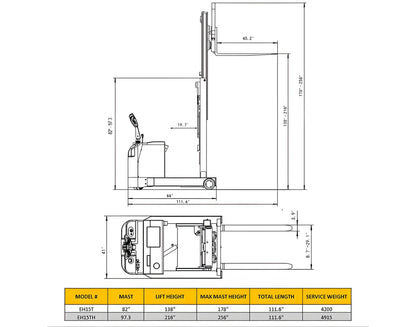

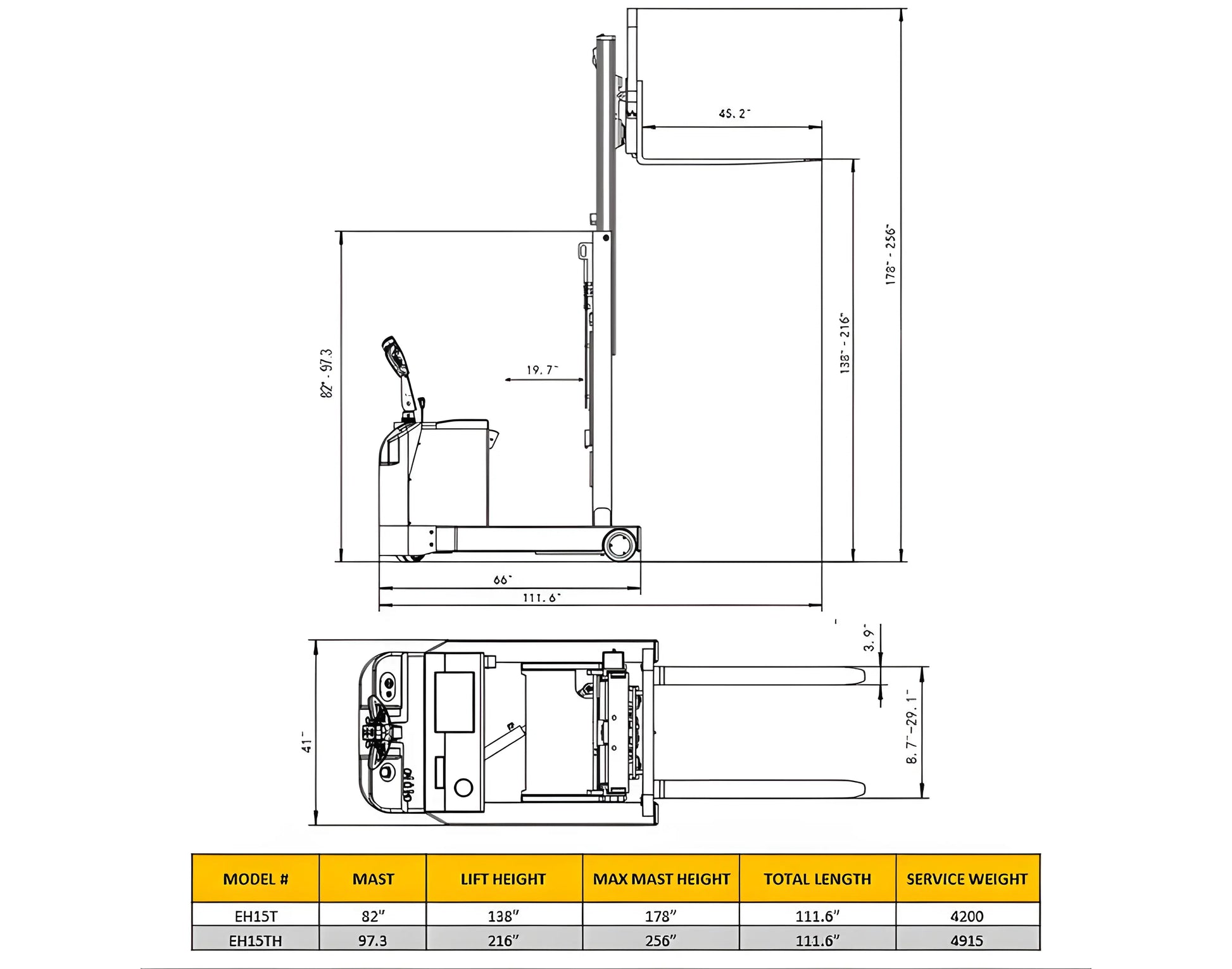

Technical drawing and dimensions of the EKKO EH15TH electric pallet stacker with lift height and max mast height

EKKO EH15TH | Moving Mast Walkie Reach Truck | 3300 lb Cap. | 216" Height

Name: EKKO EH15TH | Moving Mast Walkie Reach Truck | 3300 lb Cap. | 216" Height
Brand: EKKO
SKU: EH15TH
Price: 24224.05 USD
Availability: InStock

See more by EKKO

$1,274.95 Off Limited time deal

$25,499.00

$25,499.00 - $25,499.00

$25,499.00

$24,224.05

$24,224.05 - $24,224.05

$24,224.05

In stock

SKU EH15TH

Quantity

Product Overview

In short

The EKKO EH15TH is a moving mast walkie reach truck built for narrow-aisle warehouse and distribution center use, offering a 3,300 lb load capacity and a maximum lift height of 216 inches. It uses a walk-behind (walkie) operation style with an electric hydraulic lift system for stable stacking and smooth lift/lower control.

The EKKO EH15TH Moving Mast Walkie Reach Truck is built for warehouses and distribution centers that demand precise stacking and efficient narrow-aisle operation. With a 3,300 lb load capacity and a 216-inch maximum lift height, it enables safe, high-level storage in racking systems. Its electric drive and moving mast reach design make it a practical, space-saving solution for high-density storage environments.

Key Features & Benefits

High Lift Capacity: Handles loads up to 3,300 lb at a 24-inch load center, supporting standard palletized loads.
Impressive Lift Height: Reaches up to 216 inches, with 68 inches of free lift, allowing high stacking in tall racking systems.
Moving Mast Reach Mechanism: Provides a 19.7-inch reach distance for accurate load positioning and better use of storage space.
Compact Maneuverability: A 67-inch turning radius and 41-inch overall width allow smooth operation in narrow aisles.
Electric Power System: Powered by a 24V/2.5kW AC drive motor and 24V/3000W lifting motor, paired with a 24V/270Ah battery and 24V/50A charger for reliable daily performance.
Operator Safety Features: Equipped with an emergency stop, stability system, and operator safety controls for secure walk-behind operation.

The EH15TH is well suited for warehouses, distribution centers, and narrow-aisle storage environments where efficient stacking and reliable load handling are essential. Its walkie (walk-behind) operation and moving mast reach design make it ideal for operators who need precise control in tight spaces without sacrificing lift height or load capacity. This makes it a strong fit for backroom storage, high-density racking, and general warehouse material handling tasks.

Specification Table

EH15TH · Walkie Reach TruckSKU EH15TH
Lift	Electric
Drive	Electric
Load capacity	3300 (lb)
Load center distance	24 (in)
Lifting height	216 (in)
Free Lift	68” (in)
Lowered mast height	97.3 (in)
Overall length	111.6 (in)
Overall width	41 (in)
Fork size, Thick/Width/Length	1.4/4/45.2 (in)
Fork adjust width	8.7-28 (in)
Reach Distance	19.7 (in)
Turning radius	67 (in)
Charger	24V/50A (V/A)
Driving Motor	AC 24V/2.5kw (V/W)
EPS Steering Motor	24/200W (V/W)
Lifting Motor	24V/3000W (V/W)
Battery voltage	24V/270Ah (V/Ah)
Service Weight	4915 (lb)
Brand	EKKO
Maximum Lift Height	216 inches
Reach Design	Moving Mast Reach Mechanism
Operation Type	Walk-Behind (Walkie)
Power Type	Electric Powered
Drive System	Electric Drive Motor
Lift System	Electric Hydraulic Lift System
Application	Warehouses, Distribution Centers, Narrow Aisle Storage
Load Handling	Stable Stacking and Smooth Lift/Lower Control
Construction	Heavy-Duty Industrial Frame
Safety Features	Emergency Stop, Stability System, Operator Safety Controls

FAQ about this model

What applications and loads is the EKKO EH15TH suited for?

The EH15TH is designed for warehouses, distribution centers, and narrow aisle storage environments. It handles loads up to 3,300 lbs with a load center distance of 24 inches, and its moving mast reach design supports stable stacking and smooth lift/lower control.

What are the key specifications of the EH15TH?

The EH15TH has a maximum lift height of 216 inches with 68 inches of free lift, a lowered mast height of 97.3 inches, and an overall length of 111.6 inches and width of 41 inches. Its forks measure 1.4 inches thick, 4 inches wide, and 45.2 inches long, with an adjustable fork width of 8.7 to 28 inches. The reach distance is 19.7 inches, and the turning radius is 67 inches. Service weight is 4,915 lbs.

What power and operation type does the EH15TH use?

The EH15TH is a walk-behind (walkie) electric powered truck. It uses an AC 24V/2.5kw electric drive motor, a 24V/3000W lifting motor, and a 24/200W EPS steering motor. The battery is rated 24V/270Ah, and it comes with a 24V/50A charger.

How does the EH15TH compare within the moving mast walkie reach truck category?

As a moving mast reach truck, the EH15TH uses a reach mechanism where the mast itself moves to extend and retract, rather than just the forks, which is a defining trait of this equipment category. It combines this with a heavy-duty industrial frame construction and safety features such as an emergency stop, a stability system, and operator safety controls, positioning it as a stable option for narrow aisle stacking tasks.

Compare models

	3300 Walkie Reach Truck	3300 Moving Mast Walkie Reach THIS	4000 Stand-Up Reach Truck	3300 Lithium Walkie Reach Truck	EH15T EKKO 3300lbs Moving
Capacity	3300 (lb)	3300 (lb)	4000 (lb)	3300 (lb)	3300 (lbs)
Forks	1.38/3.9/45.3 (in)	1.4/4/45.2 (in)	1.58/4.72/42 (in)	1.38/3.9/45.3 (in)	1.4/4/45.2 (in)
Lift Height	177 (in)	216 (in)	196 (in)	138 (in)	138 (in)
Power / Voltage	24V/200Ah Lithium (V/Ah)	24V/270Ah (V/Ah)	48V/420Ah (V/Ah)	24V/200Ah Lithium (V/Ah)	24V/270AH
Price	$23,998.00 $21,999.00	$25,499.00 $24,224.05	$46,199.00 $43,699.05	$25,499.00 $24,224.05	$23,999.00 $22,799.05
	Check ›	Viewing	Check ›	Check ›	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@vovlift.com

More information on shipping and returns can be found here.

Warranty

EKKO 3-Year Limited Warranty. EKKO covers the frame, forks and mast for three (3) years. Electrical and drive components — including the transmission, weldments, traction motor, steering (SBW) motor and decoders, wheel controller and charger — are covered for one (1) year. Where equipped, lithium battery packs carry a five (5) year warranty against defects. Warranty excludes normal wear and tear, abuse, improper storage and labor.

Documents

EKKO EH15TH Operation & Maintenance Manual
