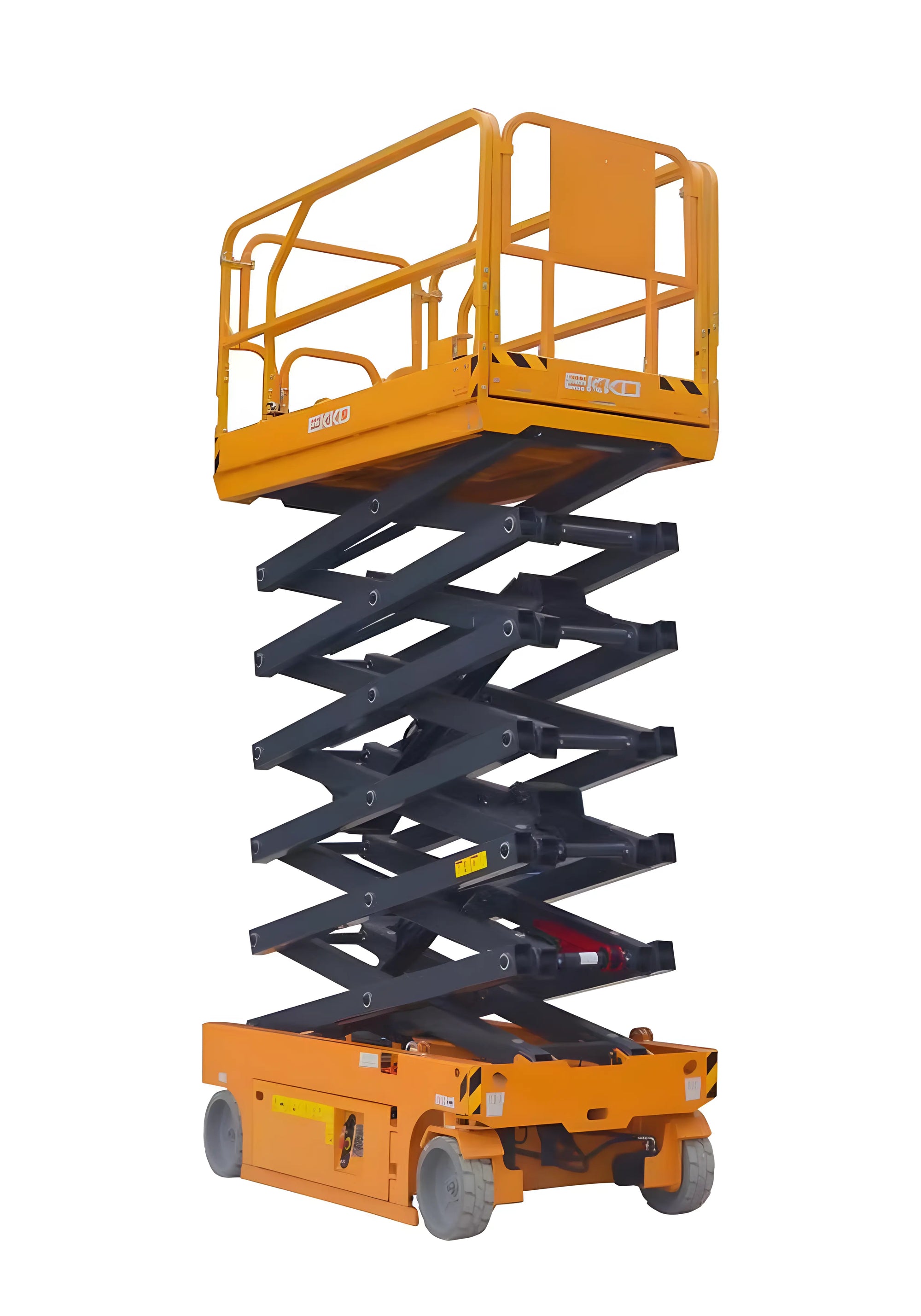

EKKO ES80E orange and black scissor lift platform for elevated work

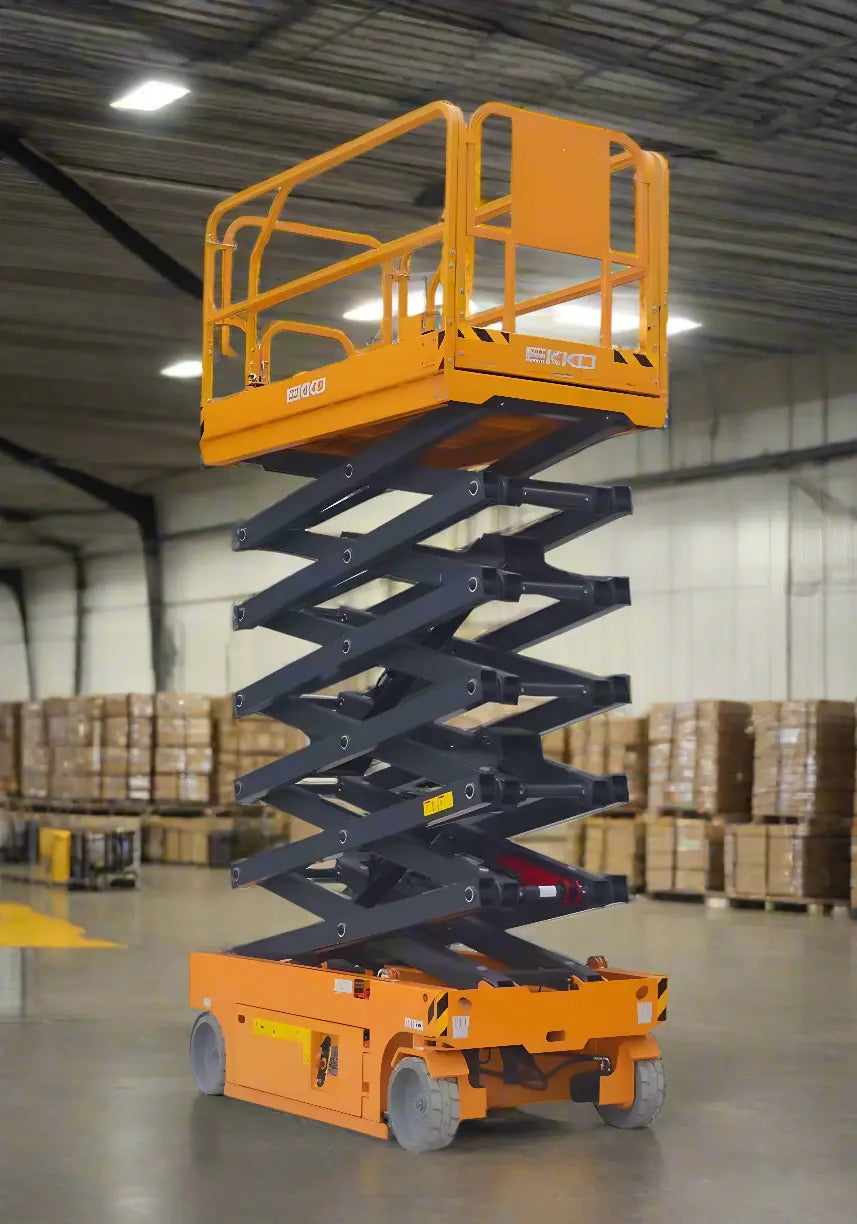

EKKO ES80E orange electric scissor lift with extended platform inside warehouse

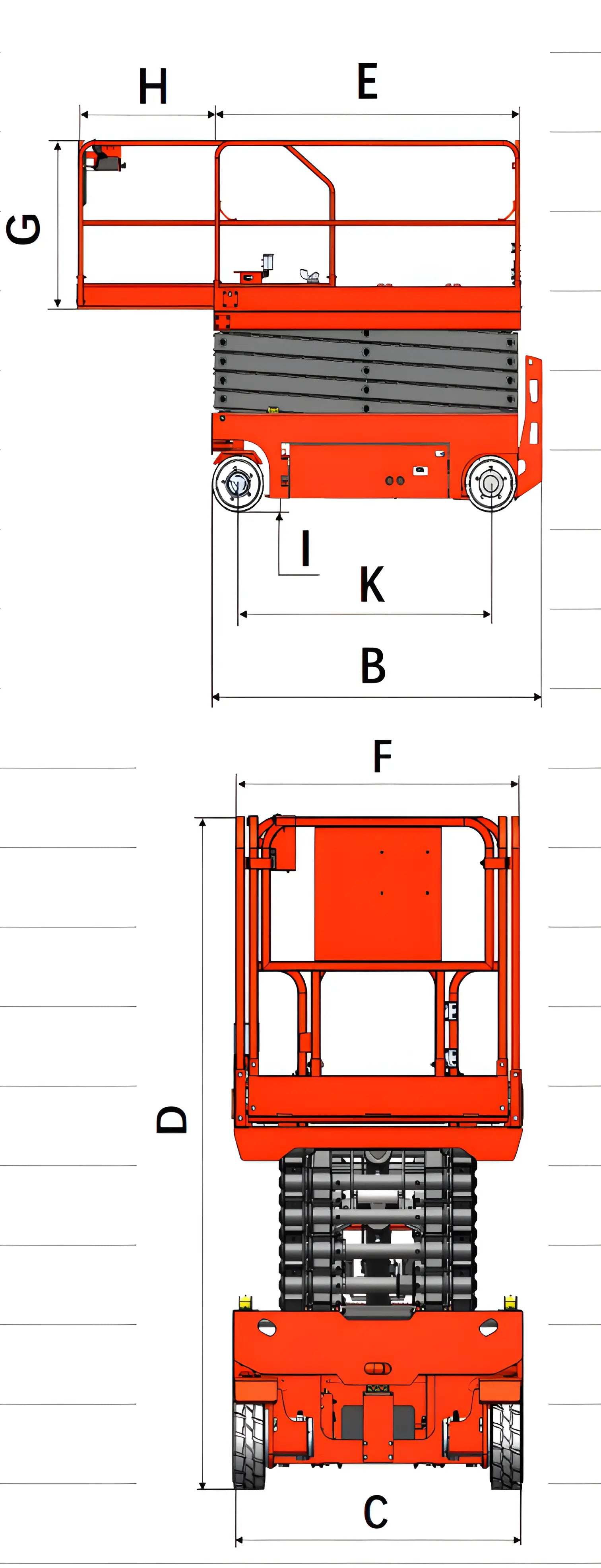

Technical drawing of EKKO ES80E scissor lift showing side, front, and top views with dimensions

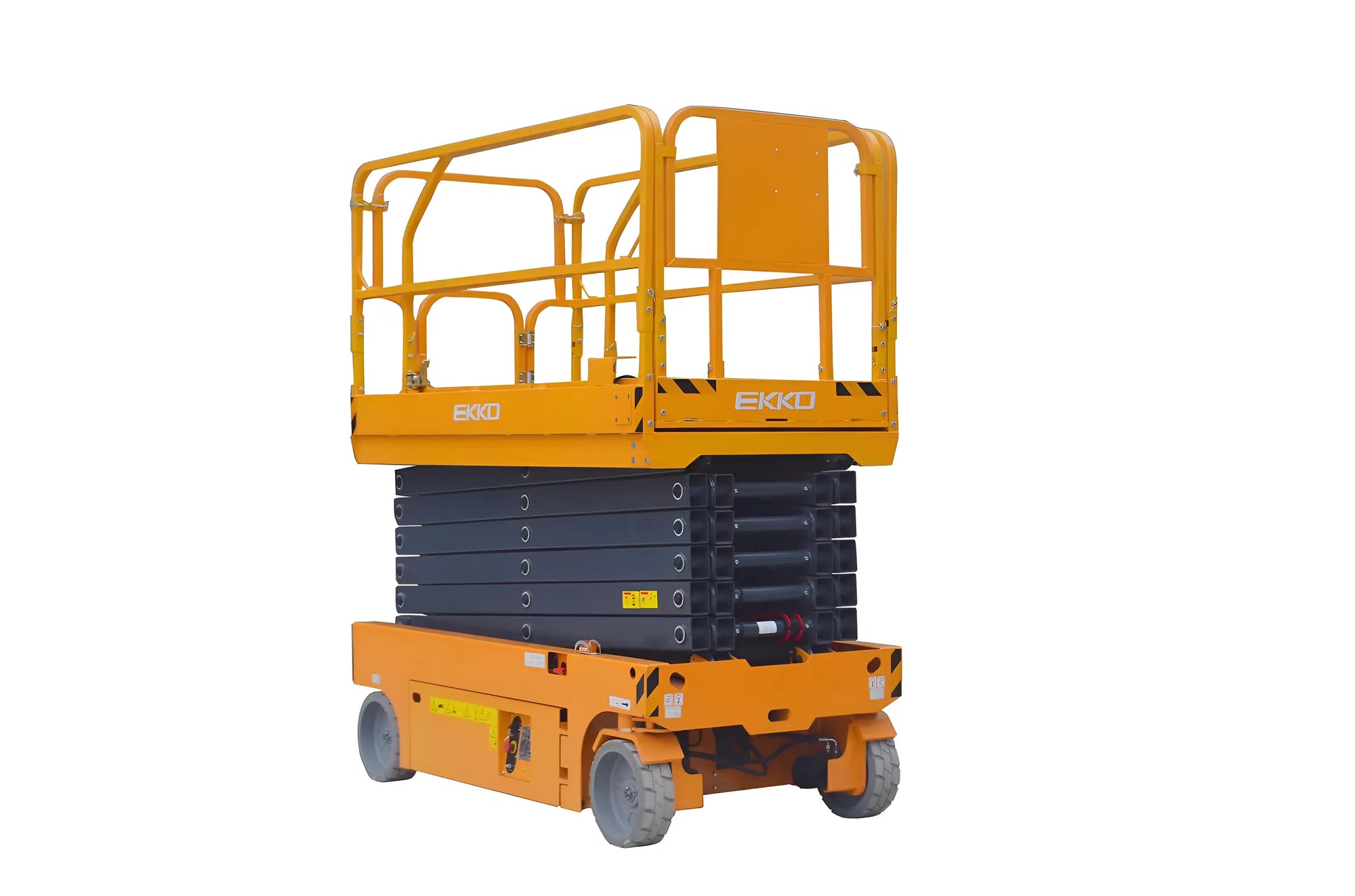

EKKO ES80E electric scissor lift with yellow platform and black base for elevated work

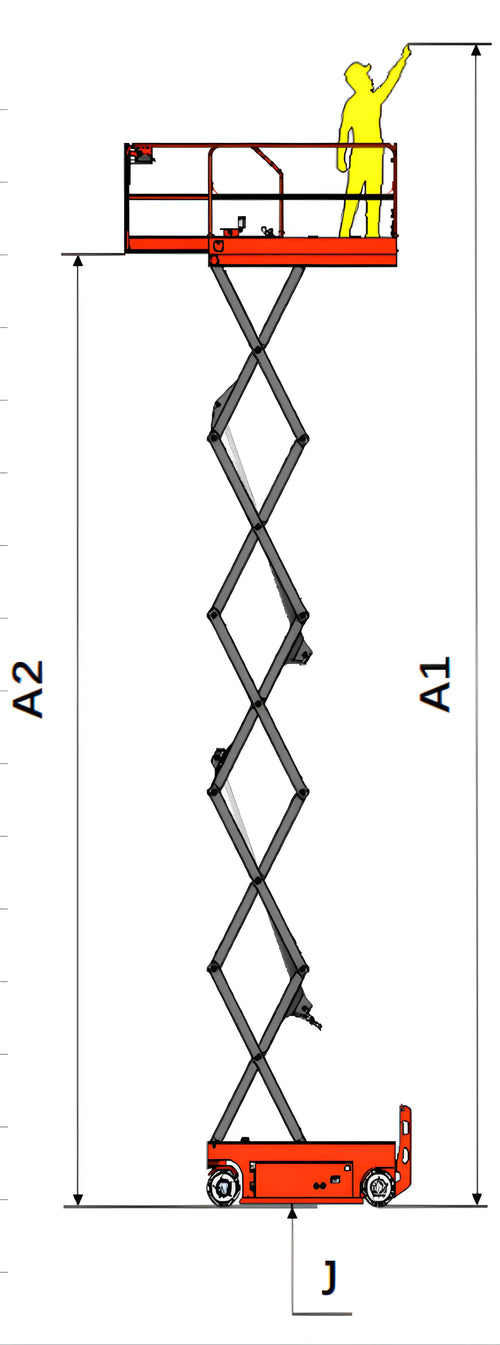

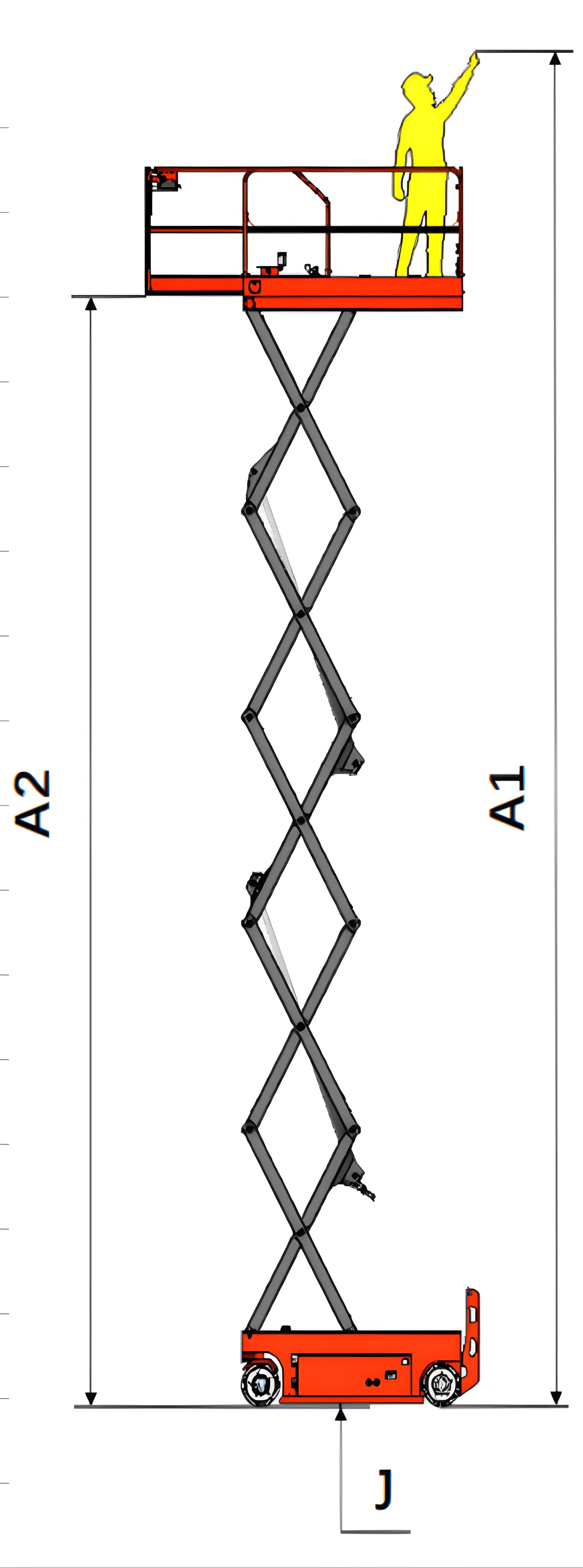

Diagram of EKKO ES80E scissor lift with extended platform height and safety railings

EKKO ES80E | Aerial Work Platform | Lift Height 26.2' (315'')

Name: EKKO ES80E | Aerial Work Platform | Lift Height 26.2' (315'')
Brand: EKKO
SKU: ES80E
Price: 30398.1 USD
Availability: InStock

See more by EKKO

$1,599.90 Off Limited time deal

$31,998.00

$31,998.00 - $31,998.00

$31,998.00

$30,398.10

$30,398.10 - $30,398.10

$30,398.10

In stock

SKU ES80E

Quantity

Product Overview

In short

The EKKO ES80E is a scissor-type Aerial Work Platform built for heavy-duty elevated access tasks such as repairs, installations, and inspections. It offers a maximum platform height of 26.2' (315'') and a load rating of 990 lbs, making it suitable for warehousing, facility maintenance, retail, and industrial service applications.

This EKKO ES80E aerial work platform is an excellent and reliable elevated-access platform that can be used for performing a variety of overhead works safely and efficiently within warehouse operations, maintenance areas, retail facilities and other industrial settings. The ES80E has a maximum lift height of 26.2 ft (315 in.) and allows operators to perform many types of overhead works including replacing lighting fixtures, servicing HVAC systems, repairing ceilings, inspecting elevated components, and elevating inventory to be placed on shelving. It was also built to provide a stable and controlled lift with its emphasis on increasing operational efficiencies while decreasing risks associated with ladder and scaffold usage. Additionally, this aerial work platform is designed with easy-to-use controls allowing the operator to smoothly elevate and accurately position the work platform to working height. This heavy-duty aerial work platform is intended for use on a regular basis and will provide reliable operation, safer working conditions and increased workflow efficiencies for all of your elevated maintenance and installation needs.

Key Features

26.2 ft (315”) lift height for all your overhead maintenance and installation projects.
Stable work platforms to ensure you have a safe place to stand while performing elevated tasks.
Smooth powered lift system for controlled vertical movements.
Operator-friendly controls for quick and accurate positioning and ease of operation.
Heavy-duty construction for years of reliability in both warehouse and industrial environments.

Specification Table

ES80E · Platform Scissor LiftSKU ES80E
A1 Max working height	32.8' (394'') Inch
A2 Max platform height	26.2' (315'') Inch
B Length	94.5 Inch
C Width	45.27 Inch
D Overall height (guardrail not folded)	91.5" Inch
Overall height (folding guardrail)	67" Inch
Platform size (length EX width FX height G)	88.58x45.27 Inch
G Guardrail height	43.3 Inch
H Platform extension size	39.37 Inch
I Ground clearance (closed state)	3.74 Inch
J Ground clearance (lifting state)	0.78 Inch
K Wheelbase	72.83 Inch
Maximum number of workers (indoor/outdoor)	2 / 1
load rating	990 LBS
Extended platform load rating	265 LBS
Driving speed (folding state)	0-3.2 km/h
Driving speed (lifting condition)	0~0.8 km/h
Minimum Turning radius (inside)	0 Inch
Minimum turning radius (outside)	86.61 Inch
Rise/fall time	32/35 s
Maximum allowable tilting Angle (front/left/right)	3°/1.5°
Maximum allowable wind speed (indoor/outdoor)	0/12.5 m/s
Maximum allowable lateral force (indoor/outdoor)	400/200 N
Gradeability	30 %
control	proportional control
actuator	Double front wheels
braking	Double rear wheels
Tyre specification/type	15*5 Inch
Lift/drive motor	3.3/0.7x2 kw
Battery voltage/capacity	25.6V/230AH V/Ah
Charger input voltage	25.6V VAC
Charger output current	36A
control voltage	24 VDC
Hydraulic tank capacity	22 L
total weight	5512 lbs
Brand / Model	EKKO ES80E
Maximum Lift Height	26.2 ft (315 in)
Maximum Lift Height (Metric)	Approx. 8.0 m
Application	Warehousing, Facility Maintenance, Retail, Industrial Service
Primary Use	Elevated access for repairs, installation, and inspections
Lift Operation	Powered Lift System
Platform Type	Elevated Work Platform
Key Benefits	Improved safety, stable positioning, increased productivity
Typical Tasks	Lighting, HVAC, ceiling work, inspections, stock access

FAQ about this model

What applications and load capacities is the EKKO ES80E designed for?

The ES80E is designed for elevated work tasks such as lighting, HVAC, ceiling work, inspections, and stock access across warehousing, facility maintenance, retail, and industrial environments. It has a load rating of 990 lbs, with an extended platform load rating of 265 lbs, and supports up to 2 workers indoors or 1 worker outdoors.

What are the key height and platform specifications of the ES80E?

The ES80E reaches a maximum platform height of 26.2' (315'') and a maximum working height of 32.8' (394''). The platform size measures 88.58 x 45.27 inches, with a guardrail height of 43.3 inches and a platform extension size of 39.37 inches, providing ample space and reach for elevated tasks.

How is the ES80E operated and controlled?

The ES80E uses a powered lift system with proportional control for smooth, precise positioning. It is equipped with Curtis controllers, double front wheel actuators, and double rear wheel braking, offering simple and efficient operation for lifting and transportation tasks.

How does the ES80E compare within the aerial work platform category?

As a scissor-type Aerial Work Platform, the ES80E is built for heavy lifting jobs, combining a solid 990-lbs load rating with a 26.2' lift height. Its proportional control system and dual-wheel actuator/brake setup support stable positioning and improved safety, making it a dependable choice for facilities needing elevated access equipment.

Compare models

	ES60E Aerial Work Platform Lift	26.2 Aerial Work Platform Lift THIS	32.8 Aerial Work Platform Lift	ES40E Aerial Work Platform Lift	ES120E Aerial Work Platform Lift
B Length	72.44 Inch	94.5 Inch	94.5 Inch	57.1 Inch	94.5 Inch
C Width	29.92 Inch	45.27 Inch	45.27 Inch	29.9 Inch	45.27 Inch
Charger output current	36 A	36A	36A	10 A	36 A
D Overall height (guardrail not folded)	85.75 Inch	91.5" Inch	96" Inch	76.8 Inch	102.36 Inch
Price	$23,998.00 $22,798.10	$31,998.00 $30,398.10	$35,198.00 $33,438.10	$12,798.00 $10,638.10	$36,798.00 $34,958.10
	Check ›	Viewing	Check ›	Check ›	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
