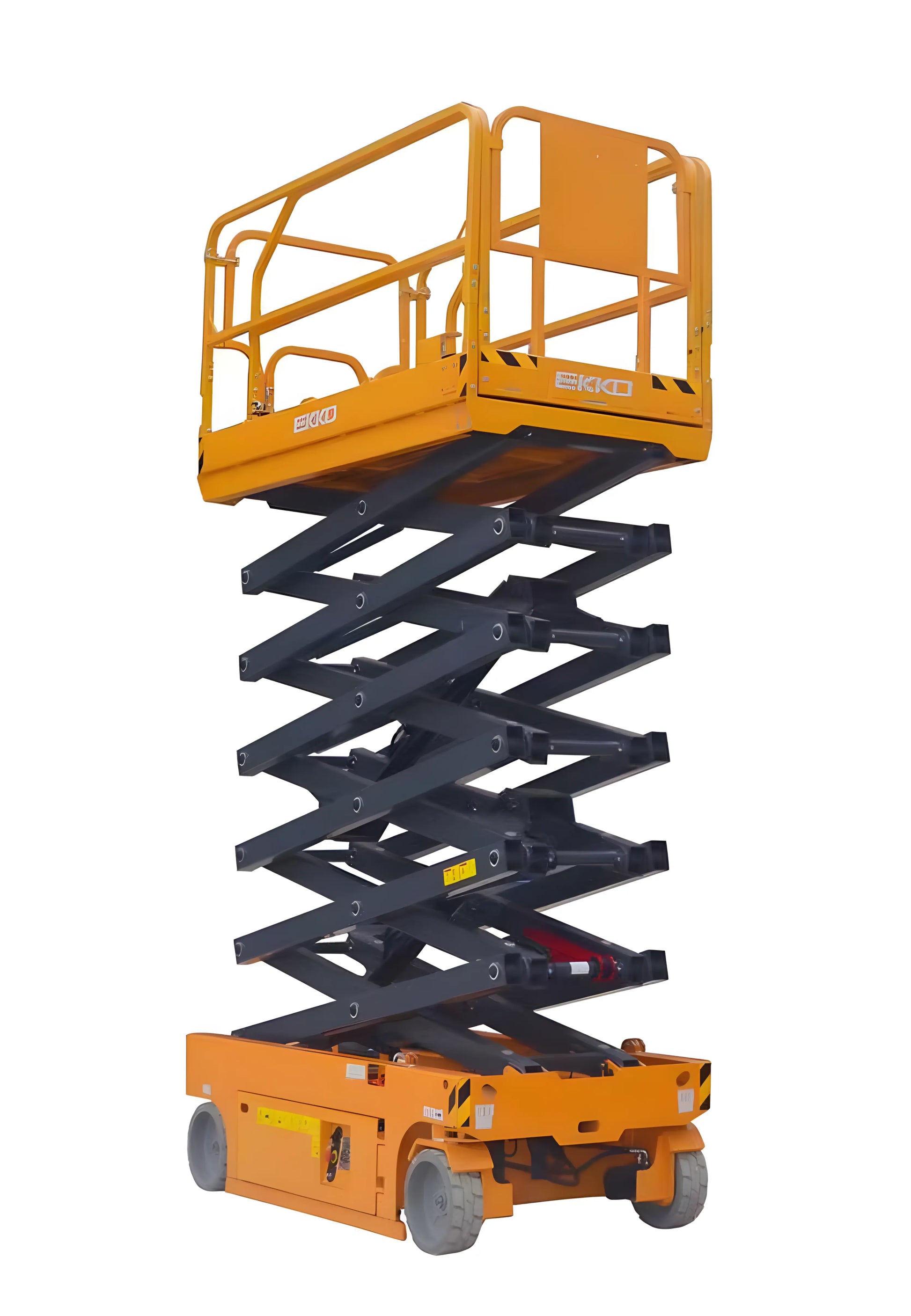

EKKO ES120E electric scissor lift with extended platform and safety rails in yellow

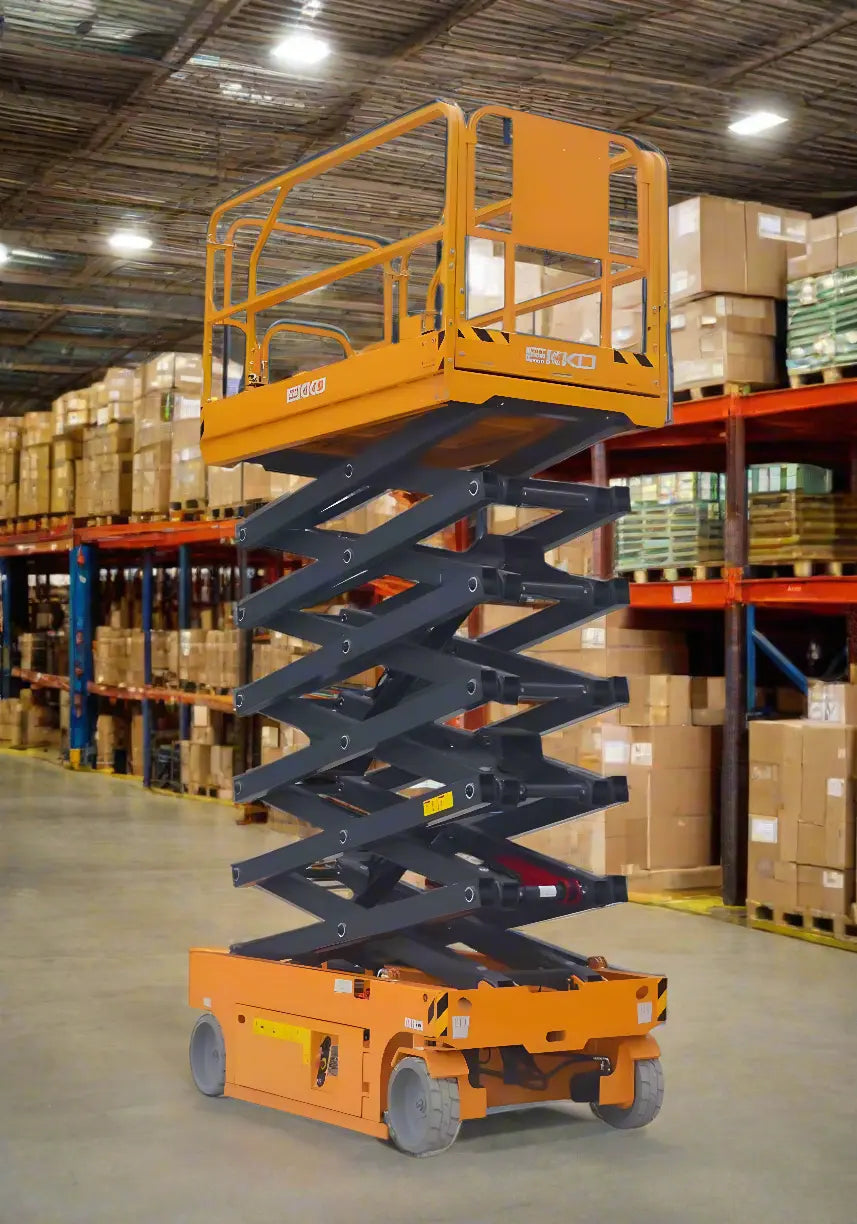

Orange EKKO ES120E scissor lift extended inside warehouse with stacked boxes on shelves

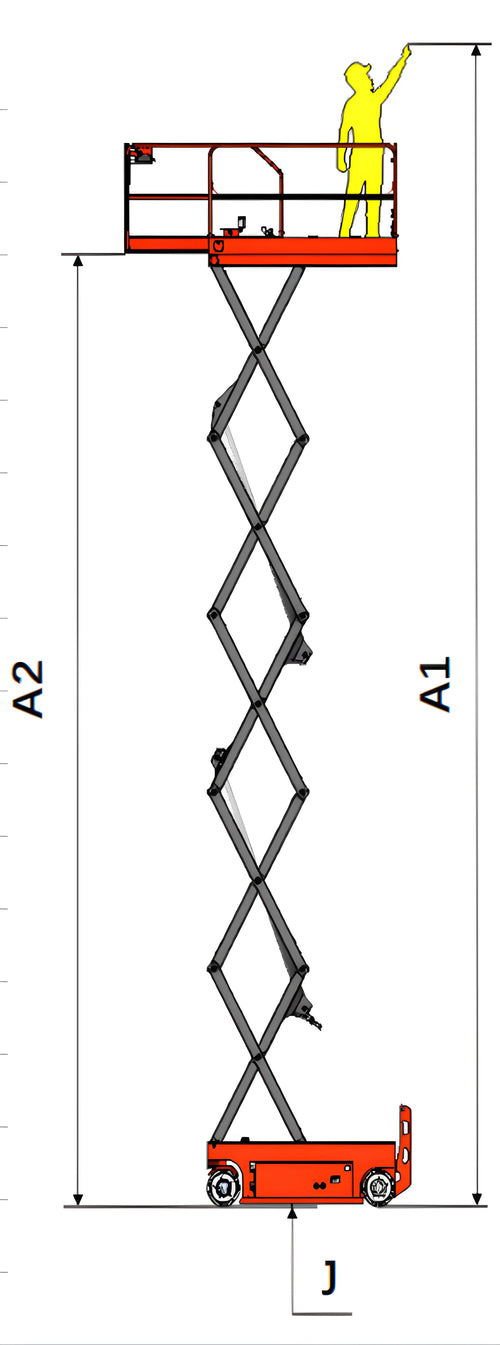

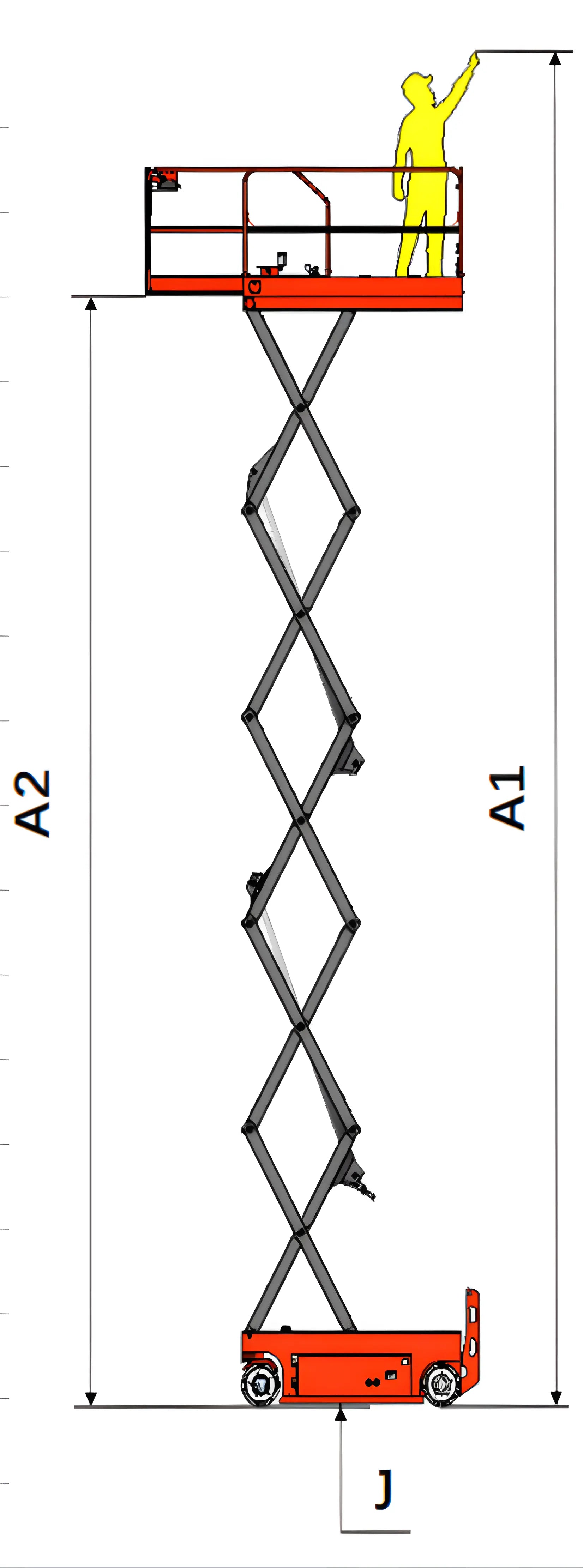

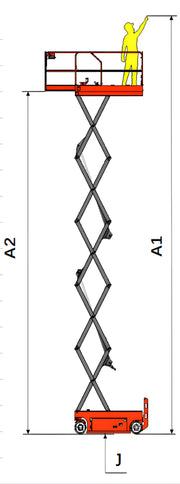

Diagram of EKKO ES120E scissor lift showing extended height with person standing on platform

EKKO ES120E electric scissor lift with yellow platform and black scissor mechanism for elevated work

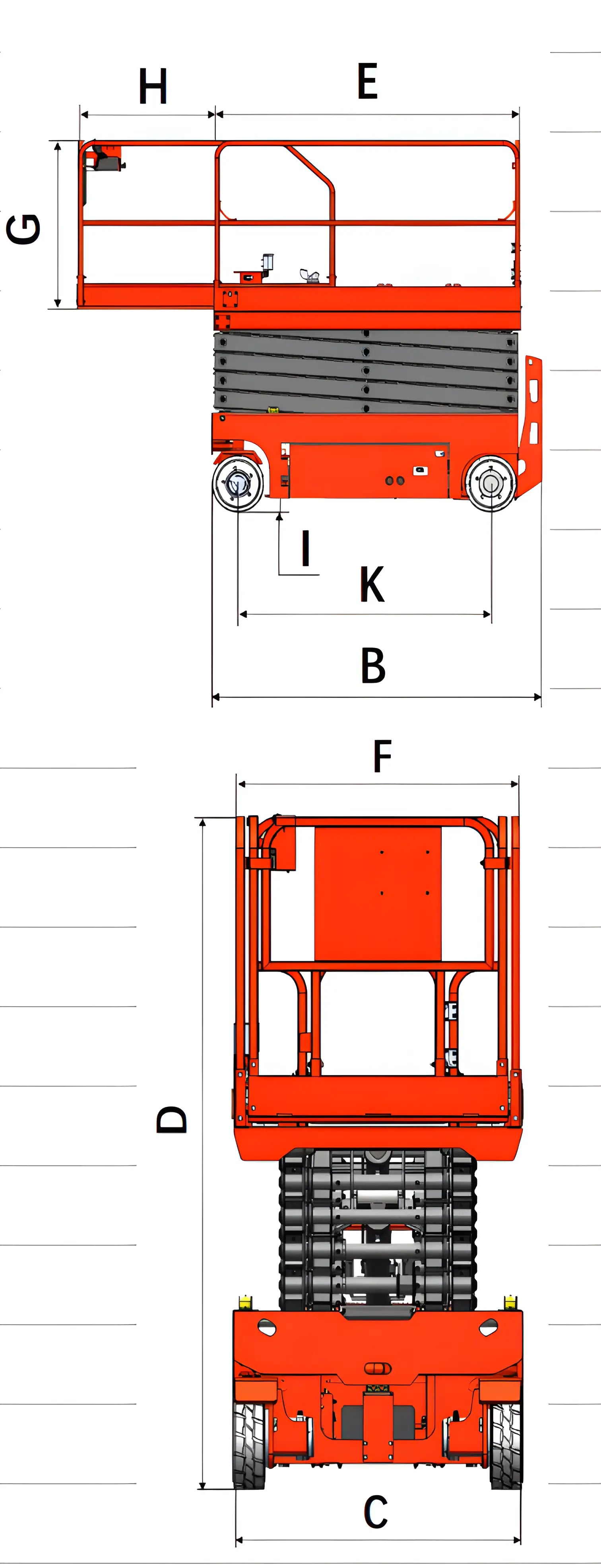

Technical drawing of EKKO ES120E scissor lift showing front, side, and top views with dimensions

EKKO ES120E | Aerial Work Platform | Lift Height 39' (468'')

Name: EKKO ES120E | Aerial Work Platform | Lift Height 39' (468'')
Brand: EKKO
SKU: ES120E
Price: 34958.1 USD
Availability: InStock

See more by EKKO

$1,839.90 Off Limited time deal

$36,798.00

$36,798.00 - $36,798.00

$36,798.00

$34,958.10

$34,958.10 - $34,958.10

$34,958.10

In stock

SKU ES120E

Quantity

Product Overview

In short

The EKKO ES120E is an industrial aerial work platform designed for elevated access tasks such as HVAC, lighting, ceiling work, and facility repair. It delivers a maximum platform height of 39 ft (468 in) and a maximum working height of 45 ft (547 in), with a load rating of 700 lbs. It uses a powered lift system with proportional control for stable, precise positioning during maintenance, warehousing, and high-bay service work.

The EKKO ES120E is an aerial work platform engineered for elevated access tasks across industrial and warehouse environments. With a maximum platform height of 39' (468'') and a maximum working height of 45' (547''), it provides operators with reliable, stable reach for overhead work. Its proportional control system and compact turning radius make it well-suited for maneuvering in tight facility spaces.

Key Performance Features

Solid Load Capacity: Supports a platform load rating of 700 lbs, with an extended platform load rating of 265 lbs for added task flexibility.
Tight Maneuverability: A minimum inside turning radius of 0 inches and outside radius of 86.61 inches allow navigation through confined warehouse aisles.
Proportional Control: Smooth, precise operation is enabled through proportional controls, allowing accurate positioning at height.
Compact Ground Clearance Design: Ground clearance of 3.74 inches (closed) and 0.78 inches (lifting) supports stable positioning during operation.
Efficient Lift Cycle: Rise and fall times of 52/52 seconds keep workflow moving between tasks.
Capable Gradeability: A 30% gradeability rating supports operation across varied floor surfaces within industrial facilities.

The EKKO ES120E is designed for industrial maintenance, warehousing, and high-bay service work where safe, stable elevated access is required. It is well suited for tasks such as HVAC service, lighting installation, ceiling work, facility repair, and inventory access on higher storage racks. Facilities seeking a powered lift alternative to ladders or scaffolding for improved safety and productivity will find the ES120E a practical fit for daily elevated-access operations.

Specification Table

ES120E · Platform Scissor LiftSKU ES120E
A1 Max working height	45' (547'') Inch
A2 Max platform height	39' (468'') Inch
B Length	94.5 Inch
C Width	45.27 Inch
D Overall height (guardrail not folded)	102.36 Inch
Overall height (folding guardrail)	77 Inch
Platform size (length EX width FX height G)	88.58x45.27 Inch
G Guardrail height	43.3 Inch
H Platform extension size	39.37 Inch
I Ground clearance (closed state)	3.74 Inch
J Ground clearance (lifting state)	0.78 Inch
K Wheelbase	72.83 Inch
Maximum number of workers (indoor/outdoor)	2 / -
load rating	700 LBS
Extended platform load rating	265 LBS
Driving speed (folding state)	0-3.2 km/h
Driving speed (lifting condition)	0~0.8 km/h
Minimum Turning radius (inside)	0 Inch
Minimum turning radius (outside)	86.61 Inch
Rise/fall time	52/52 s
Maximum allowable tilting Angle (front/left/right)	3°/1.5°
Maximum allowable wind speed (indoor/outdoor)	0/0 m/s
Maximum allowable lateral force (indoor/outdoor)	400/0 N
Gradeability	30 %
control	proportional control
actuator	Double front wheels
braking	Double rear wheels
Tyre specification/type	15*5 Inch
Lift/drive motor	3.3/0.7x2 kw
Battery voltage/capacity	12x4/300 V/Ah
Charger input voltage	100-240 VAC
Charger output current	36 A
control voltage	24 VDC
Hydraulic tank capacity	22 L
total weight	6490 lbs
Brand / Model	EKKO ES120E
Maximum Lift Height	39 ft (468 in)
Maximum Lift Height (Metric)	Approx. 11.9 m
Application	Industrial Maintenance, Warehousing, High-Bay Service Work
Primary Use	Elevated access for repairs, installation, and overhead handling
Lift Operation	Powered Lift System
Platform Type	Elevated Work Platform
Key Benefits	Improved safety vs ladders, higher productivity, stable positioning
Typical Tasks	HVAC, lighting, ceiling work, facility repair, inventory access

FAQ about this model

What applications and load capacities does the ES120E support?

The ES120E is built for industrial maintenance, warehousing, and high-bay service work, covering typical tasks like HVAC service, lighting, ceiling work, facility repair, and inventory access. It carries a load rating of 700 lbs on the main platform, with an extended platform load rating of 265 lbs, and supports up to 2 workers indoors.

What do the key height and platform specs mean?

The ES120E reaches a maximum platform height of 39 ft (468 in) and a maximum working height of 45 ft (547 in), giving operators elevated access for overhead tasks. The platform itself measures 88.58 x 45.27 inches with a guardrail height of 43.3 inches, and includes a platform extension of 39.37 inches for added reach.

How is the ES120E powered and operated?

The ES120E uses a powered lift system controlled through proportional control, allowing smooth, precise adjustments during elevation. It is actuated via double front wheels with braking on the double rear wheels, and can travel at 0-3.2 km/h in the folded (driving) state or 0-0.8 km/h while in the lifted condition.

How does the ES120E compare within the aerial work platform category?

Compared to ladder-based access, the ES120E improves safety, increases productivity, and provides stable positioning for elevated tasks. It offers a 30% gradeability rating and uses 15x5 inch tires, making it suitable for maneuvering across industrial and warehouse floors while maintaining a compact footprint for elevated maintenance work.

Compare models

	ES60E Aerial Work Platform Lift	26.2 Aerial Work Platform Lift	32.8 Aerial Work Platform Lift	ES40E Aerial Work Platform Lift	ES120E Aerial Work Platform Lift THIS
B Length	72.44 Inch	94.5 Inch	94.5 Inch	57.1 Inch	94.5 Inch
C Width	29.92 Inch	45.27 Inch	45.27 Inch	29.9 Inch	45.27 Inch
Charger output current	36 A	36A	36A	10 A	36 A
D Overall height (guardrail not folded)	85.75 Inch	91.5" Inch	96" Inch	76.8 Inch	102.36 Inch
Price	$23,998.00 $22,798.10	$31,998.00 $30,398.10	$35,198.00 $33,438.10	$12,798.00 $10,638.10	$36,798.00 $34,958.10
	Check ›	Check ›	Check ›	Check ›	Viewing

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@vovlift.com

More information on shipping and returns can be found here.

Warranty

EKKO 3-Year Limited Warranty. EKKO covers the frame, forks and mast for three (3) years. Electrical and drive components — including the transmission, weldments, traction motor, steering (SBW) motor and decoders, wheel controller and charger — are covered for one (1) year. Where equipped, lithium battery packs carry a five (5) year warranty against defects. Warranty excludes normal wear and tear, abuse, improper storage and labor.

Documents

EKKO ES120E Manual PDF
