What capacity does the FG-Series 5 Ton gantry crane handle?
This crane is rated for 5 tons across all HUB height and span configurations listed. The model number does not change the capacity rating, only the hub height and span dimensions, so you can pick the size that fits your space while keeping the same 5 ton lift capacity.

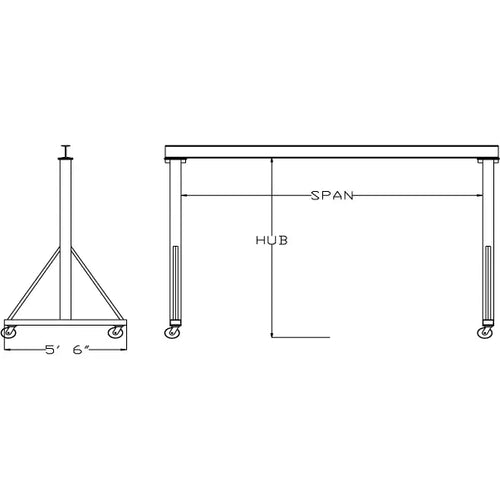

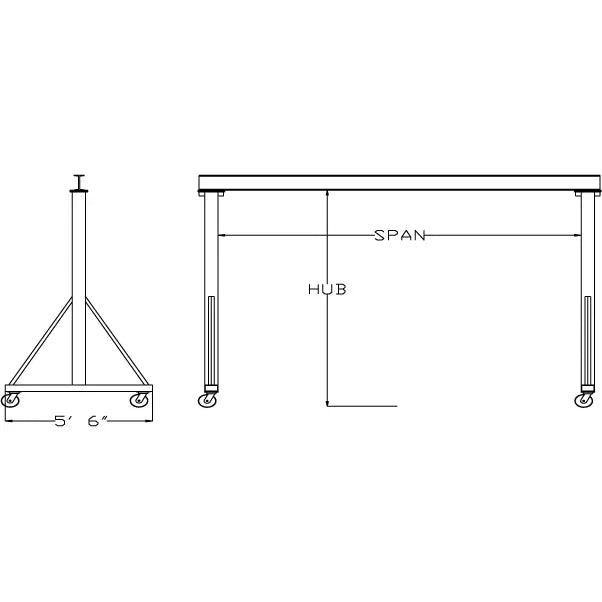

What hub heights and spans are available?
Hub heights come in 8 ft, 10 ft, 12 ft, and 16 ft, each paired with span options of 12 ft, 14 ft, or 16 ft. For example, the FG5-812 has an 8 ft hub height and 12 ft span, while the FG5-1616 has a 16 ft hub height and 16 ft span. Choose based on your ceiling clearance and load travel distance.
How much does the crane weigh, and does that vary by size?
Yes, weight scales with hub height and span. The smallest configuration, FG5-812, weighs 1,718 lbs, while the largest, FG5-1616, weighs 2,683 lbs. Use the model chart to match weight to your floor loading and any rigging or transport requirements before ordering.
Which model should I pick if I need 16 ft of span but limited overhead height?
For a 16 ft span, you can choose FG5-816 (8 ft hub, 2,227 lbs), FG5-1016 (10 ft hub, 2,341 lbs), FG5-1216 (12 ft hub, 2,455 lbs), or FG5-1616 (16 ft hub, 2,683 lbs). Pick the lowest hub height that still clears your load and equipment height requirements.
Is this a fixed height or adjustable gantry crane?
This is a fixed height gantry crane, meaning the hub height is set at the factory per model and is not adjustable after installation. If you need a different height, you select the corresponding model number rather than adjusting one unit.
