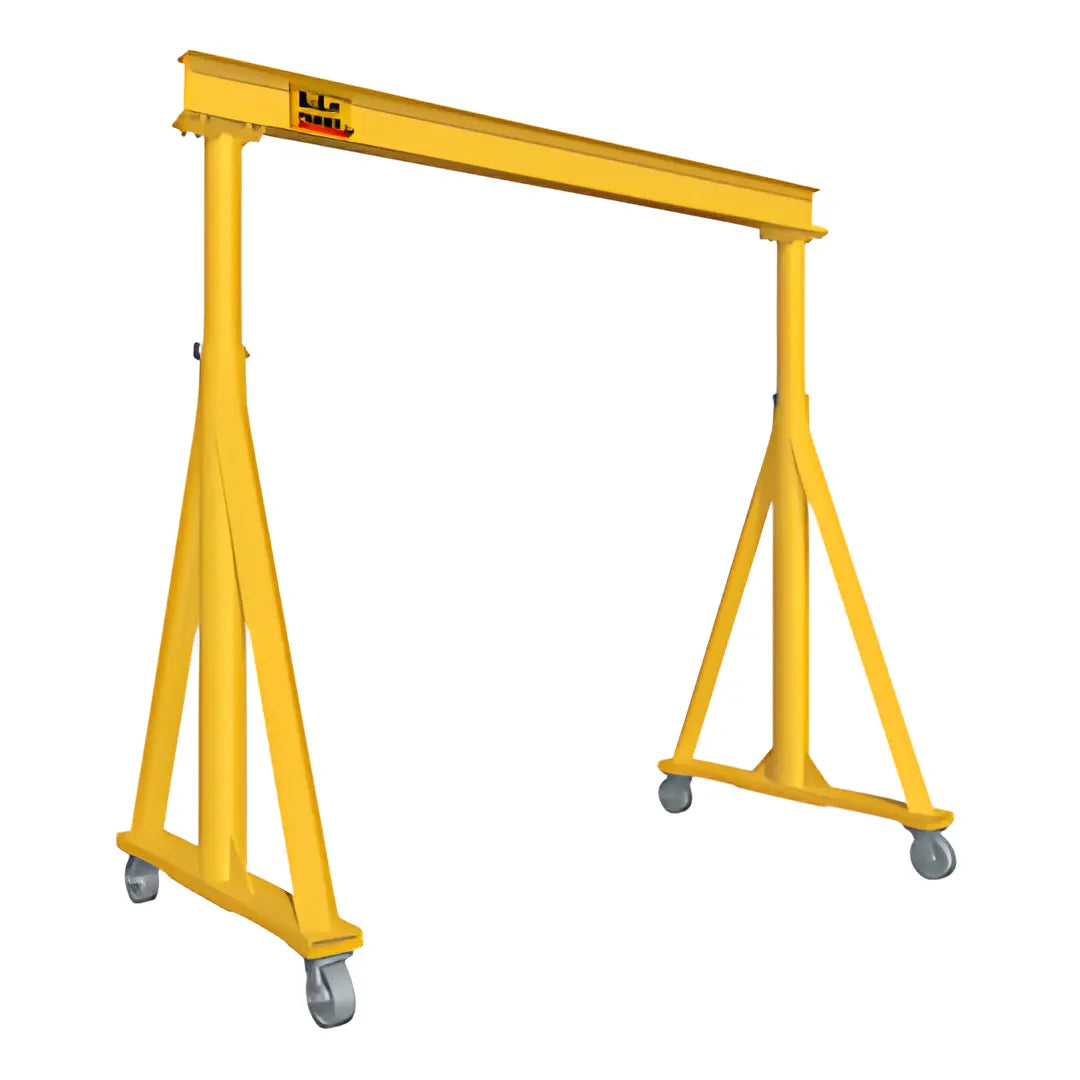

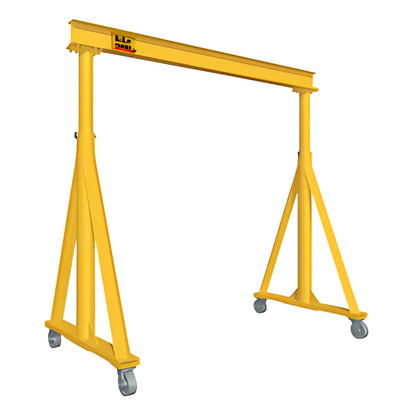

What is the load capacity of this gantry crane?
All models in the FG4-Series are rated for 4 tons capacity. The capacity is the same across every hub height and span combination listed, from the FG4-812 up to the FG4-1616, so you choose the model based on height and span rather than capacity.

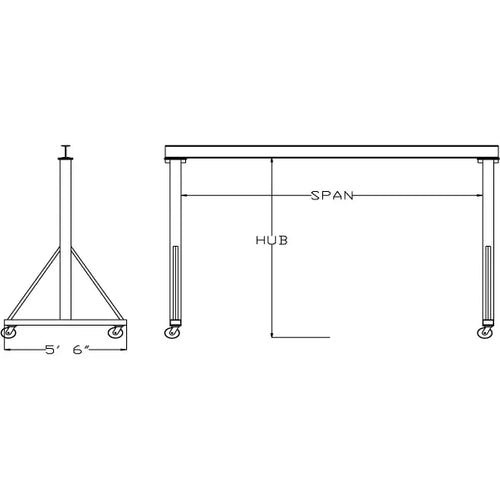

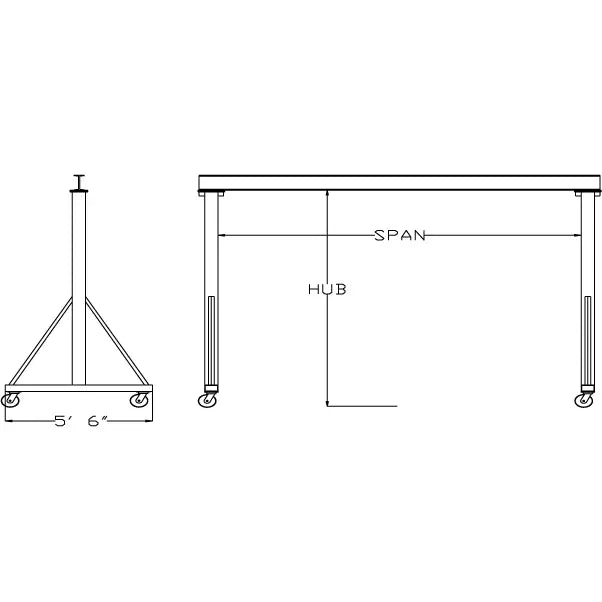

What height and span options are available?
Hub heights come in 8 ft, 10 ft, 12 ft, and 16 ft, with spans of 12 ft, 14 ft, or 16 ft depending on the model. For example, the FG4-812 has an 8 ft hub height and 12 ft span, while the FG4-1616 has a 16 ft hub height and 16 ft span. Check the model chart to match your ceiling clearance and working width.
How much does the crane weigh, and does weight change with size?
Yes, weight increases with hub height and span. The smallest, FG4-812, weighs 1,678 lbs, while the largest, FG4-1616, weighs 2,554 lbs. This matters for shipping and for confirming your floor or foundation can support the unit.
Which model should I pick if I have limited overhead clearance?
Choose one of the 8 ft hub height models—FG4-812 (1,678 lbs), FG4-814 (1,669 lbs), or FG4-816 (2,130 lbs)—if vertical clearance is tight. These give you the lowest hub height in the FG4-Series while still offering spans of 12, 14, or 16 ft.
What span do I need to cover my work area?
Spans range from 12 ft to 16 ft depending on the model. For a 16 ft span, you can select FG4-816 (8 ft hub), FG4-1216 (12 ft hub), or FG4-1616 (16 ft hub), all rated at 4 tons capacity but differing in weight and hub height.
