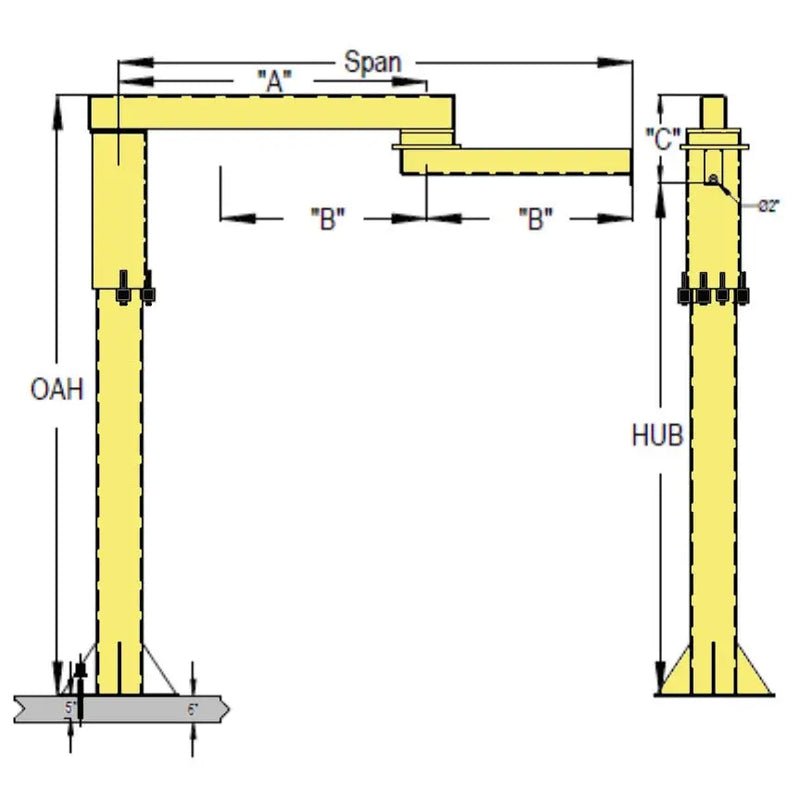

What hub heights and spans are available for this crane?
The FL-FAR series comes in hub heights of 8 ft, 10 ft, or 12 ft, paired with spans of 8 ft, 10 ft, 12 ft, 14 ft, or 16 ft. Each combination has its own model number, so you can match the boom height and reach to your workstation before ordering.
How much does the crane weigh?
Weight depends on the hub height and span you choose. It ranges from 704 lbs for the smallest configuration (8 ft hub, 8 ft span) up to 1,352 lbs for the largest (12 ft hub, 16 ft span). Larger spans, especially 14 ft and 16 ft, add noticeably more weight regardless of hub height.
Does this crane need a poured foundation?
No. This is a foundationless design, meaning it does not require a dedicated concrete footing like a standard mounted jib crane. This makes it suited to facilities that want jib coverage without the cost and downtime of foundation work.
What is the starting price?
Pricing starts at $9,466. The final price depends on which hub height and span combination you select, since each model has a different frame size and weight.
Which model should I pick for a 14 ft or 16 ft reach?
For a 14 ft span, choose FL25814-FAR (8 ft hub, 1,021 lbs), FL251014-FAR (10 ft hub, 1,066 lbs), or FL251214-FAR (12 ft hub, 1,111 lbs). For a 16 ft span, options are FL25816-FAR (1,212 lbs), FL251016-FAR (1,296 lbs), or FL251216-FAR (1,352 lbs), depending on the hub height you need.
