What is the lifting capacity of the FL-FAR series?
Every model in the FL-FAR series is rated at 1/4 ton. That rating applies to the crane structure, so your load plus the hoist, rigging and any below-the-hook attachment all have to stay within it. If the parts you move run heavier than 1/4 ton, this series is not the right choice and you should look at a higher-rated jib.

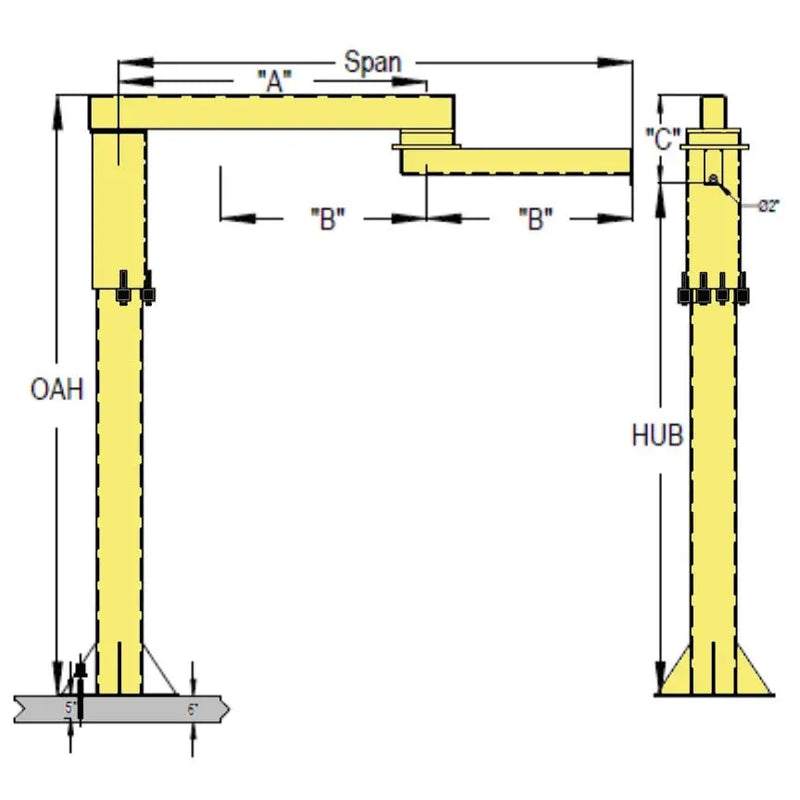

What spans and heights are available?
Spans of 8, 10, 12, 14 and 16 feet are offered with HUB heights of 8, 10 or 12 feet, for fifteen combinations in total. They run from the FL588-FAR at 8 ft HUB height and 8 ft span up to the FL51216-FAR at 12 ft HUB height and 16 ft span. Span sets reach from the mast; HUB height sets working clearance.
How much does the crane weigh?
Between 778 lbs and 1,446 lbs depending on the model. The FL588-FAR is the lightest at 778 lbs and the FL51216-FAR the heaviest at 1,446 lbs. Weight climbs mainly with span: at 8 ft HUB height it goes from 778 lbs at 8 ft span to 1,306 lbs at 16 ft span. Account for this in floor loading and receiving.
What does foundationless mean for installation?
It mounts to an existing floor slab instead of requiring a separate poured foundation beneath the mast. That removes the concrete work and cure time a foundation-mounted jib needs, and it makes later relocation more practical. The slab still has to be adequate for the crane weight and its rated load, so have the floor evaluated before you set the unit.
How is an articulating jib different from a standard jib crane?
The boom is built in two hinged sections rather than one straight arm, so the hook can travel around obstructions instead of only tracing a single arc. That helps when you need to reach into a machine opening, around a column, or between workstations inside the span. A straight-boom jib covers the same span with less freedom in the path the load takes.
Which applications is this crane not suited to?
Anything above 1/4 ton, wider than a 16 ft span, or needing more clearance than the 12 ft maximum HUB height. Within those limits it fits workstation duties such as machine tending, loading and unloading fixtures, and moving parts between adjacent stations. For heavier or longer-reach work you need a different crane class rather than a larger model in this series.
