Product Overview

In short

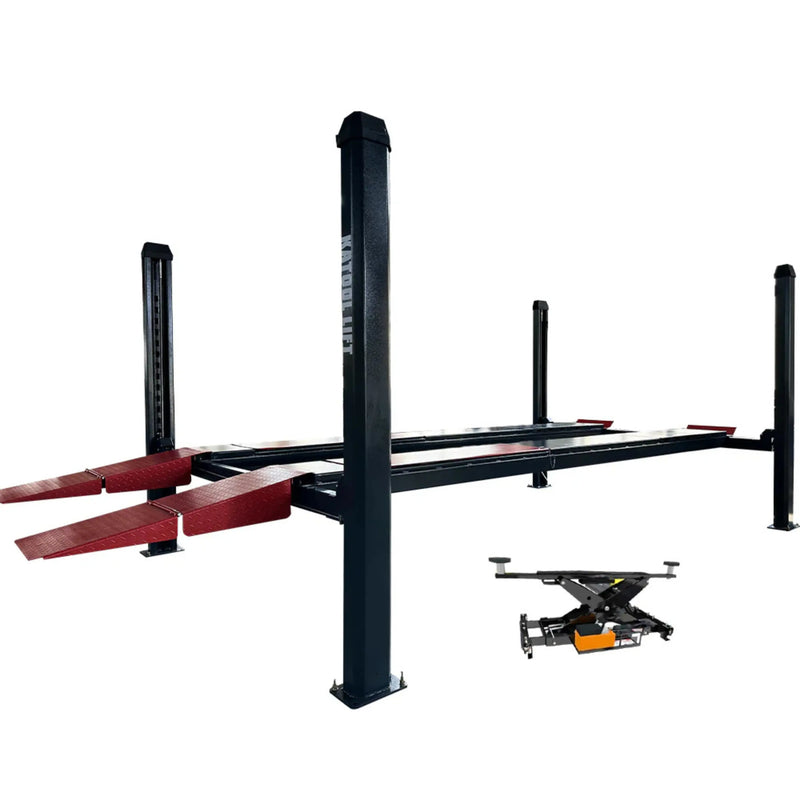

The Katool KT-4H120X is a four post vehicle lift with a 12,000 lb (5,443 kg) lifting capacity and a maximum lifting height of 86.9″ (2208 mm), powered by a 220V supply. This listing also includes the KT-RJ70.

Heavy duty four post lifting

The Katool KT-4H120X is a four post vehicle lift rated for 12,000 lbs (5,443 kg), giving you the headroom and stability to service larger vehicles. With a maximum lifting height of 86.9″ (2208 mm), it raises work to a comfortable level for inspection, repair, and storage.

Built for the busy shop

A raising time of 83 seconds or less and a controlled lowering time of 40 seconds or more keep your workflow moving while maintaining smooth, steady operation. The four post design spreads the load across all columns for confident lifting on a 220V power supply.

Key features

12,000 lb capacity — rated for 12,000 lbs (5,443 kg)
86.9″ lift height — maximum lifting height of 2208 mm
Fast cycle — raises in ≤ 83 seconds, lowers in ≥ 40 seconds
Four post stability — load shared across all four columns
112.81″ between columns — 2865 mm clearance, 135.2″ (3435 mm) overall width
220V power — standard shop voltage requirement
Includes KT-RJ70 — bundled with this listing

Space planning

Plan your bay around an overall width of 135.2″ (3435 mm) and a machine height of 94.88″ (2410 mm), with 112.81″ (2865 mm) between the columns. The lift has a net weight of approximately 3,373 lbs (1,530 kg).

Specification Table

KT-4H120X · 4-Post Car LiftSKU KT-4H120X
Lift Type	Four Post Vehicle Lift
Lifting Capacity	12,000 lbs (≈ 5,443 kg)
Maximum Lifting Height	86.9″ (2208 mm)
Raising Time	≤ 83 seconds
Lowering Time	≥ 40 seconds
Width Between Columns	112.81″ (2865 mm)
Overall Width	135.2″ (3435 mm)
Machine Height	94.88″ (2410 mm)
Net Weight	≈ 3,373 lbs (1,530 kg)
Power Requirement	220 V

Compare models

	KT-4H110 Katool 11,000 lb	KT-4H150 Katool 15,000lbs 4	4H950 Katool 9,500 lbs	KT-4H120X Katool 12,000 lb THIS
Lifting capacity	11,000 lb	15,000 lb	9,500 lb	12,000 lb
Power	110 V (opt. 220)	220 V	110 V (opt. 220)	220 V
Overall width	126"	136"	113"	135"
Rolling jack	Optional	Included	Optional	Optional
Alignment-ready	—	Yes	—	—
Best for	Service	Alignment + HD	Storage	HD service
Capacity	11,000 lbs (4,990 kg)	15,000 lbs (6,804 kg)	9,500 lbs (4.3 t)	12,000 lbs (≈ 5,443 kg)
Lift Height	84.3" (2,140 mm)	76" (1,930 mm)	84.5″ (~2,146 mm)	86.9″ (2208 mm)
Overall Width	126" (3,200 mm)	136" (3,456 mm)	112.7″ (~2,863 mm)	135.2″ (3435 mm)
Width Between Columns	112.8" (2,865 mm)	118" (3,000 mm)	99.4″ (~2,525 mm)	112.81″ (2865 mm)
Price	$3,799.00 $3,299.00	$5,700.00	$2,999.00	$4,500.00
	Check ›	Check ›	Check ›	Viewing

Specs from Katool manuals. Prices update live and reflect current promotions.

FAQ about this model

What is the lifting capacity of the KT-4H120X?
The KT-4H120X is rated for 12,000 lbs (5,443 kg).

How high does this lift raise a vehicle?
It has a maximum lifting height of 86.9″ (2208 mm).

What power supply does it require?
The lift requires a 220V power supply.

How fast does the lift operate?
It raises in 83 seconds or less and lowers in 40 seconds or more.

How much space do I need for installation?
Plan for an overall width of 135.2″ (3435 mm), a machine height of 94.88″ (2410 mm), and 112.81″ (2865 mm) between the columns.

What is included with this listing?
This listing includes the KT-4H120X four post lift along with the KT-RJ70.
