Katool AM120SD 12,000 lb 2-Post Lift

Katool AM120SD 12,000lbs 2 Post Lift Katool

Katool AM120SD 12,000 lbs Clear-Floor 2-Post Car Lift

See more by Katool

$2,799.00 - $2,799.00

$2,799.00

$2,799.00 - $2,799.00

$2,799.00

In stock

SKU KT-AM120SD

Delivery Option: Warehouse Pickup

Warehouse Pickup Location

Quantity

Product Overview

In short

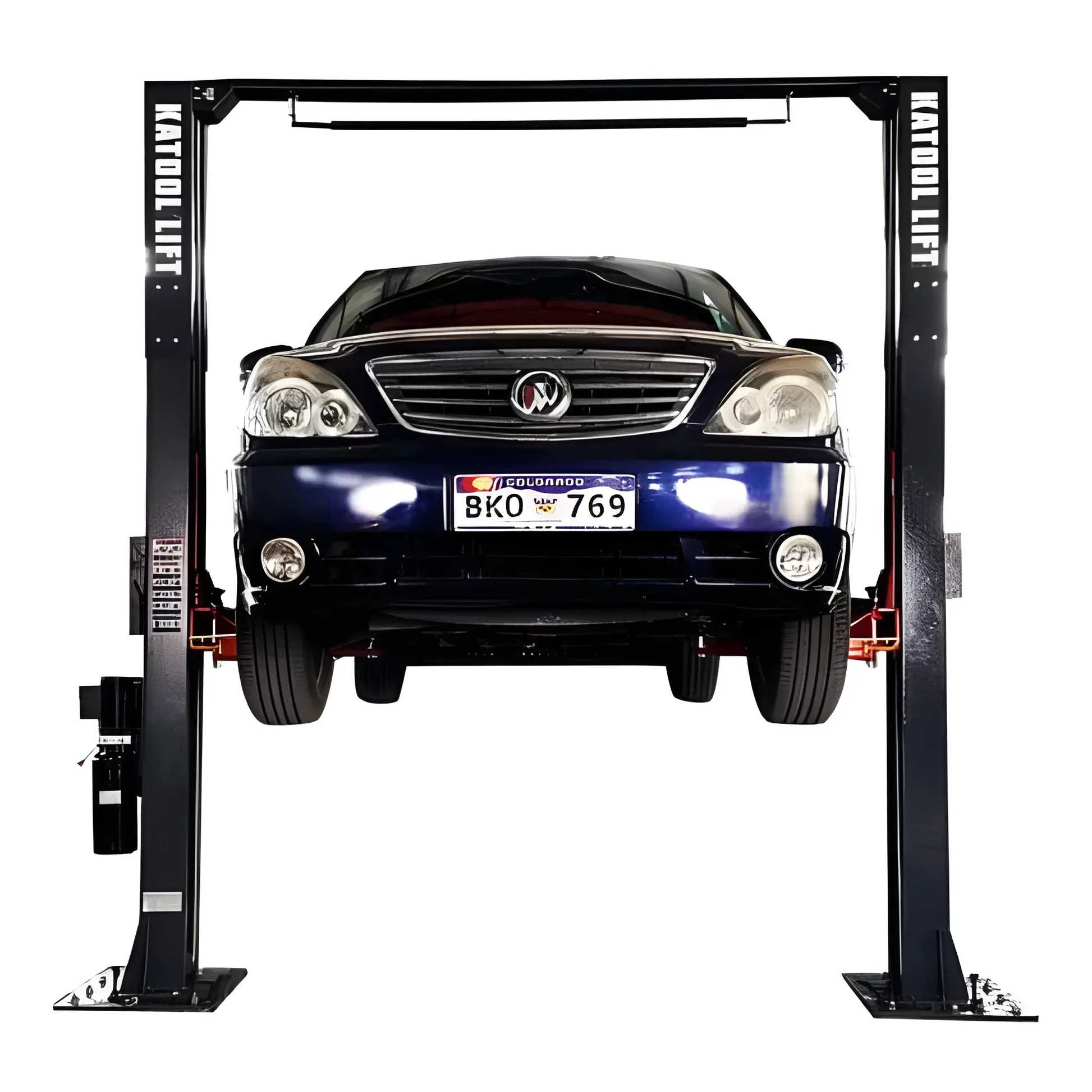

The Katool AM120SD is a clear-floor, two-post automotive lift with a 12,000 lb (5,443 kg) lifting capacity, symmetrical arms, and a maximum lifting height of 70.87″ (1800 mm). It runs on a 4.0 HP, 220 V single-phase motor.

Heavy-duty lifting for the professional shop

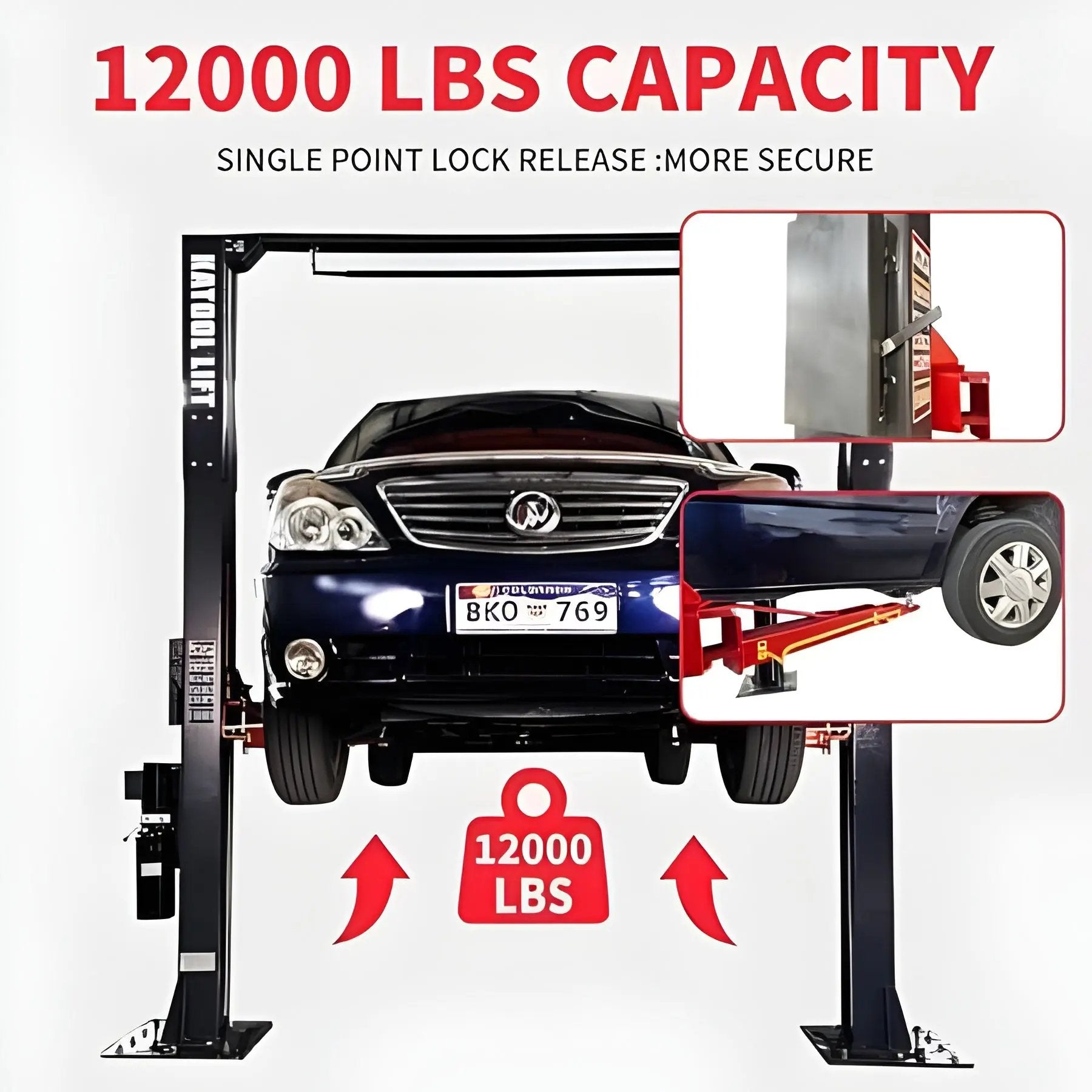

The Katool AM120SD delivers a 12,000 lb (5,443 kg) lifting capacity, making it suited for trucks, vans, and heavier vehicles that exceed the limits of lighter two-post lifts. Its clear-floor design keeps the bay free of obstructions, while symmetrical lifting arms provide balanced load support during raising and lowering.

Power and reach

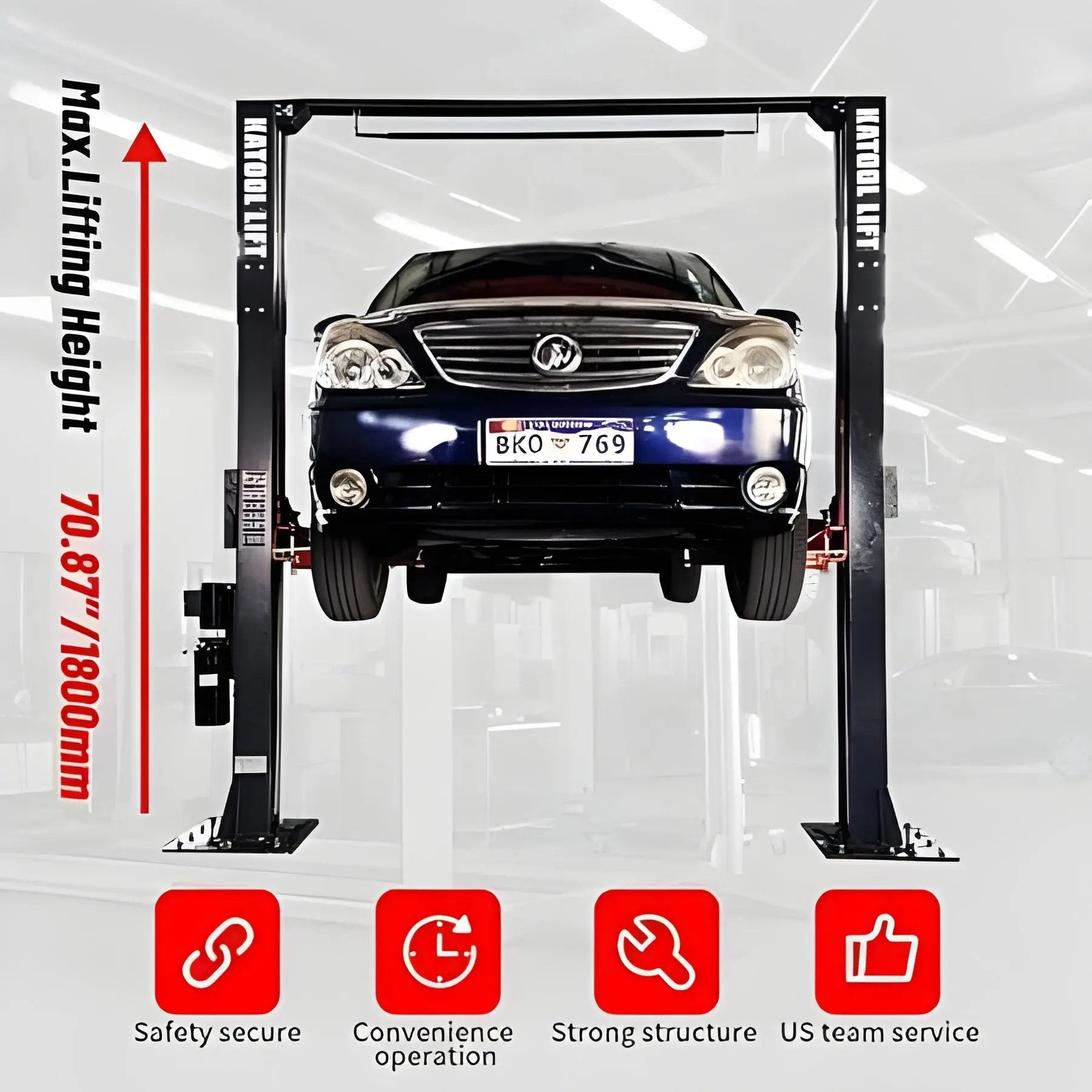

A 4.0 HP, 220 V single-phase motor raises the lift to a maximum height of 70.87″ (1800 mm), giving generous clearance for undercarriage work. The minimum pad height of 4.25″ (110 mm) helps accommodate low-profile vehicles, and 12 locking positions let you set the working height with confidence.

Key features

12,000 lb capacity (5,443 kg) for trucks, vans, and heavier vehicles
Clear-floor two-post design keeps the bay free of cross beams and trip hazards
Symmetrical lifting arms for balanced vehicle support
4.0 HP, 220 V single-phase motor with a max lift height of 70.87″ (1800 mm)
12 locking positions for secure, adjustable working heights
Single-point lock release simplifies lowering the vehicle
Low 4.25″ minimum pad height to reach low-clearance vehicles

Built around shop dimensions

With an overall height of 144″ (3658 mm) and overall width of 131.5″ (3340 mm), the AM120SD is sized for standard service bays — confirm your ceiling clearance and floor specifications before installation. The lift weighs approximately 1369 lbs (621 kg).

Specification Table

KT-AM120SD · 2-Post Car LiftSKU KT-AM120SD
Lifting Capacity	12,000 lbs (5,443 kg)
Maximum Lifting Height	70.87″ (1800 mm)
Minimum Pad Height	4.25″ (110 mm)
Motor Power	4.0 HP, 220 V, Single-Phase
Locking Positions	12
Design	Clear-floor two-post
Arm Type	Symmetrical lifting arms
Safety Lock	Single-point release
Overall Height	144″ (3658 mm)
Overall Width	131.5″ (3340 mm)
Product Weight	~1369 lbs (621 kg)

Compare models

	KT-AS110D	KT-M120	KT-AM120SD THIS	KT-M140XD
Lifting capacity	11,000 lb	12,000 lb	12,000 lb	14,000 lb
Max lifting height	75"	70.75"	70.9"	73"
Configuration	Asymmetric	Clear-Floor	Clear-Floor	Overhead
Power	220 V	220 V (opt. 110)	220 V	220 V
Overall width	148"	165.5"	131.5"	158"
Best for	Cars & SUVs (asymmetric)	Extra-wide bays	Clear floor, single-point lock	Heavy-duty / large trucks
Price	$3,599.00 $2,599.00	$3,899.00 $2,599.00	$2,799.00	$3,699.00
	Check ›	Check ›	Viewing	Check ›

Specs from Katool manuals. Prices update live and reflect current promotions.

FAQ about this model

What is the lifting capacity of the Katool AM120SD?
The AM120SD has a lifting capacity of 12,000 lbs (5,443 kg), suitable for trucks, vans, and heavier vehicles.

What power supply does the AM120SD require?
It uses a 4.0 HP motor running on 220 V single-phase power.

How high does the AM120SD lift a vehicle?
The maximum lifting height is 70.87″ (1800 mm), with a minimum pad height of 4.25″ (110 mm) for low-clearance vehicles.

Is the AM120SD a clear-floor lift?
Yes. It uses a clear-floor two-post design with symmetrical lifting arms, keeping the bay floor free of obstructions.

How many locking positions does it have?
The AM120SD offers 12 locking positions with a single-point safety lock release.

What clearance do I need to install the AM120SD?
The lift has an overall height of 144″ (3658 mm) and an overall width of 131.5″ (3340 mm). Confirm your ceiling height and floor specifications before installation.
