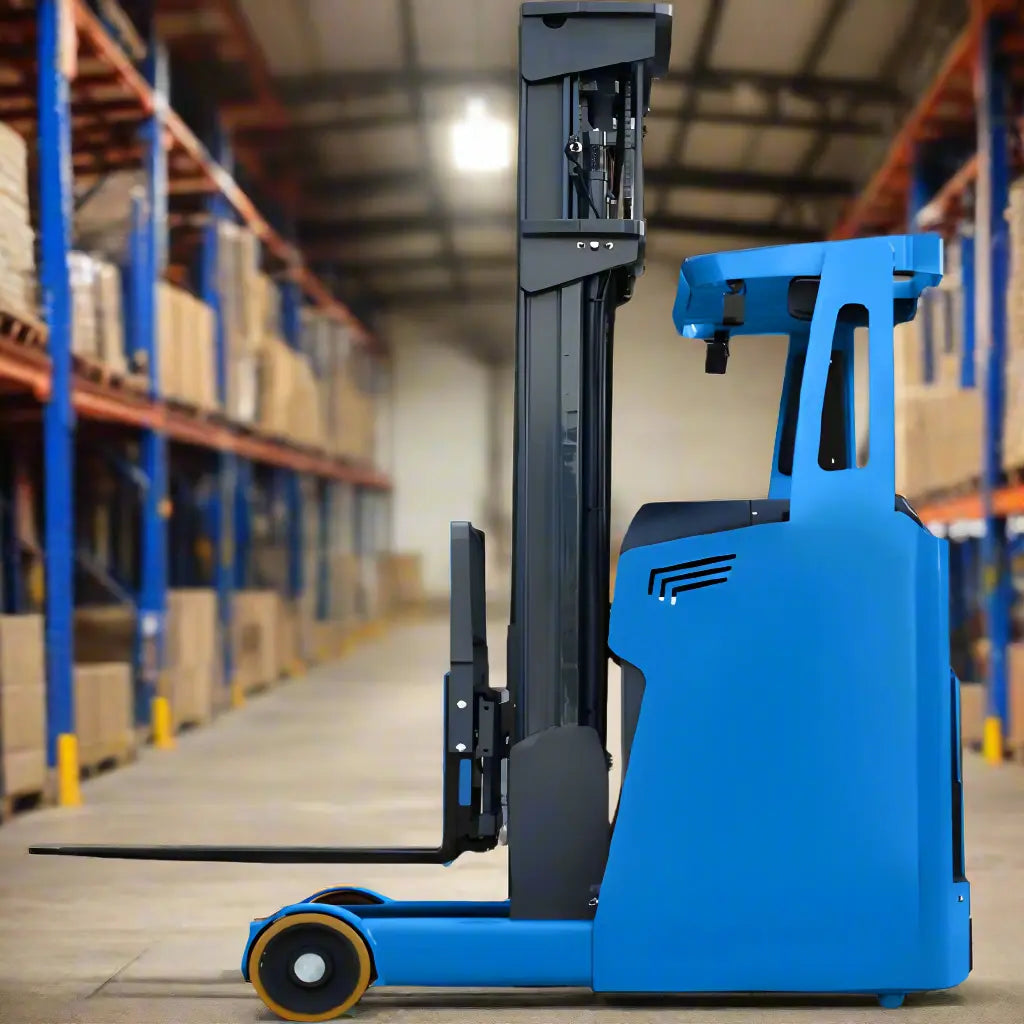

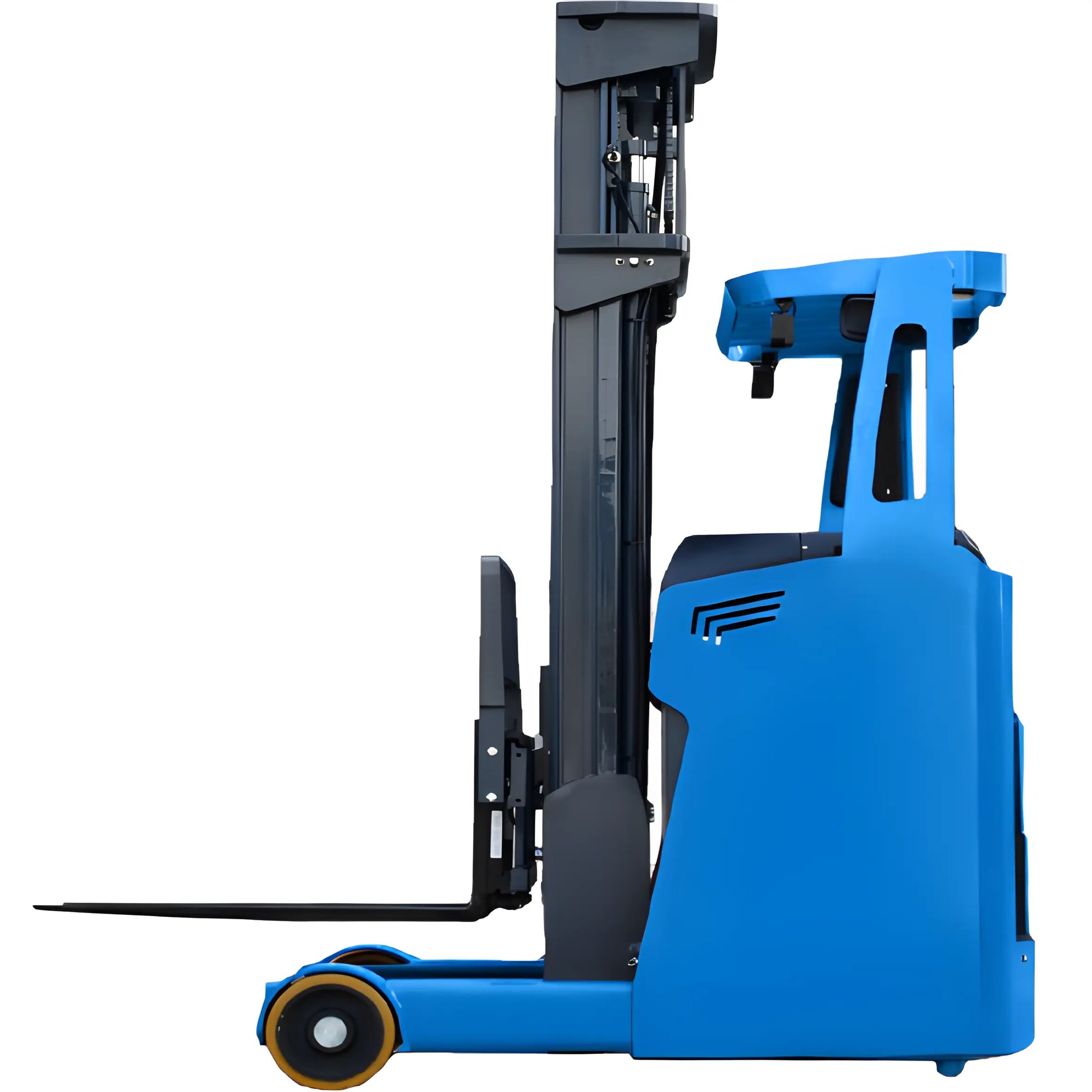

EOSLift LFC16H/20H | Electric Stand-Up Movable Mast Truck, 3527 lb / 4409 lb Cap

High-Performance Electric Reach Trucks with Powerful Battery System

LFC16H and LFC20H combine high lifting, smooth operation and maximum safety. They're built for heavy industry with AC motors, ergonomic seats and heavy load capacity.

Features:

• Machine Lifting Capabilities: LFC16H up to max 3527.39 lbs, LFC20H up to max 4409.24 lbs
• AC Motors: High-efficiency, high-energy use DCIMotor: Advanced AC motors.
• Safety Feature: Auto deceleration when approaching curves, four-wheel breaking mechanism and stability and safety through mechanical brakes
• Comfort: Joystick controls and multifunction display, adjustable seat, fingertip controls.
• Batteries: LFC16H 48V/420 Ah; LFC20H 48V/560 Ah.

Product Description:

Performance seekers won't have to look any further than the LFC16H and LFC20H electric reach trucks. This state-of-the-art drive system allows these high-performance trucks to benefit from powerful AC motors, making them the ideal candidates for applications that involve getting up high, lifting heavy loads, or getting into tight space. Both are designed for indoor environments, including warehouses, distribution centers, and manufacturing plants, where they improve safety and provide sophisticated control systems for smooth, trouble-free operation.

Design and Performance:

LFC16H & LFC20H feature AC Motors which means better performance and energy savings. It provides 6.5kW of power for the driving motor, and 12.8kW for the lifting motor ensuring that the trucks remain capable of dealing with tough jobs. The trucks feature AC motors for long life, smooth operation and low maintenance.

With a rated lifting capacity of 3527.39 lbs for the LFC16H and 4409.24 lbs for the LFC20H, these could fit many applications. Generate maximum lift heights of 314.96 inches and has a triplex full free mast design for outstanding vertical reach when stacking and retrieving. A free lift feature ensures that mast raises the load without requiring additional lift, minimizing a truck's overall height for increased handling precision in cramped quarters.

Features such as Safety and Stability

The LFC16H and LFC20H are also equipped with numerous advanced safety features to offer you peace of mind. This includes four-wheel braking that improves the braking force and performance, especially when weather or other factors cause slippery surfaces. In addition to this, the system maintains stability and holding of the truck wheels, even in adverse environments.

There is even a feature of automatic deceleration that comes with both models, by which the car slows down when the driver makes turns in a curve. A mechanical braking system ensures additional safety, and the overhead guard gives operators some added protection. Bi-directional anti-skid braking system enabling to hold a truck on a slope or a rough surface even in full load condition for LFC16H / LFC20H.

Work-Friendly and Ergonomics Design

Another great feature of the LFC16H and LFC20H is that they are engineered to be ergonomic, allowing for operators to work longer without discomfort. Each model is outfitted with a suspension seat that absorbs vibration and makes the machine more comfortable to operate.

The straightforward joystick and multipurpose display also give you real-time details about the truck’s performance, including wheel position, status of the batteries and operational parameters. This user-friendly interface allows operators to keep track of the truck's condition and make adjustments as needed, ensuring it operates efficiently and safely.

Battery and Power Systems

Both the LFC16H and LFC20H are powered by lead-acid batteries of different capacities, with the LFC16H using a 48V/420 Ah lead-acid battery, and the LFC20H using a 48V/560 Ah lead-acid battery. These batteries deliver enough power for prolonged functioning. The two models can also be fitted with lithium-ion batteries that have improved energy efficiency and faster charging times.

To maintain the battery, a battery replacement rack reduces downtime. Electric reach trucks don't need much time to work, thanks to their long battery life and energy-efficient design.

Additional Features

Alongside the essential functions, the LFC16H and LFC20H provide a few extra functions for use and safety. Some of these are a Cascade side shifter for exact positioning of the load, video and camera display system for better visibility during work and toolbox kit for easy maintenance or emergency repairs. Using CURTIS controller in provides smooth and dependable control to the truck movements while efficient charger to minimize charging cycles to save on energy.
