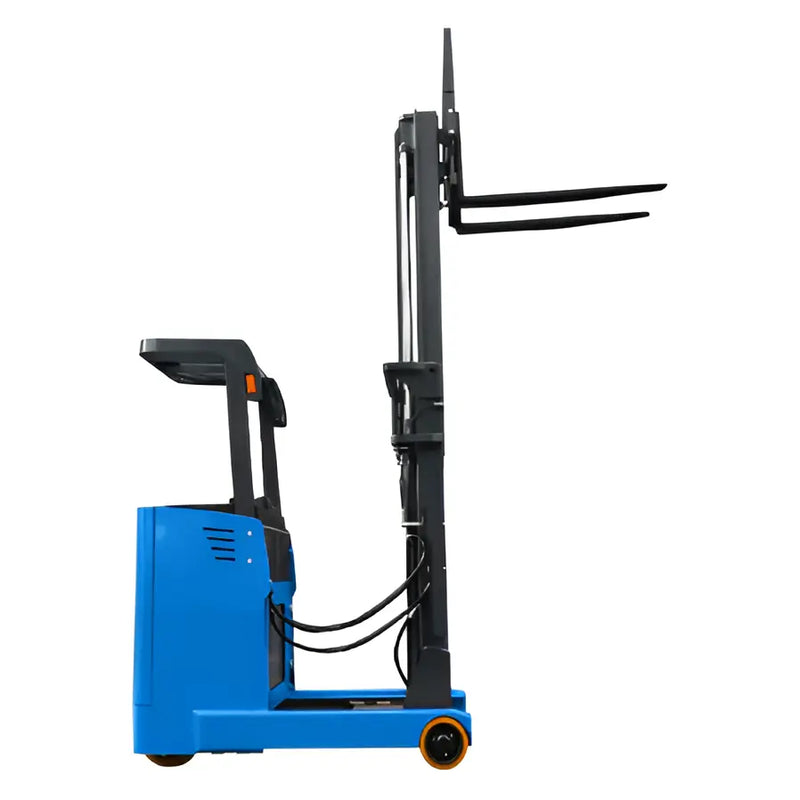

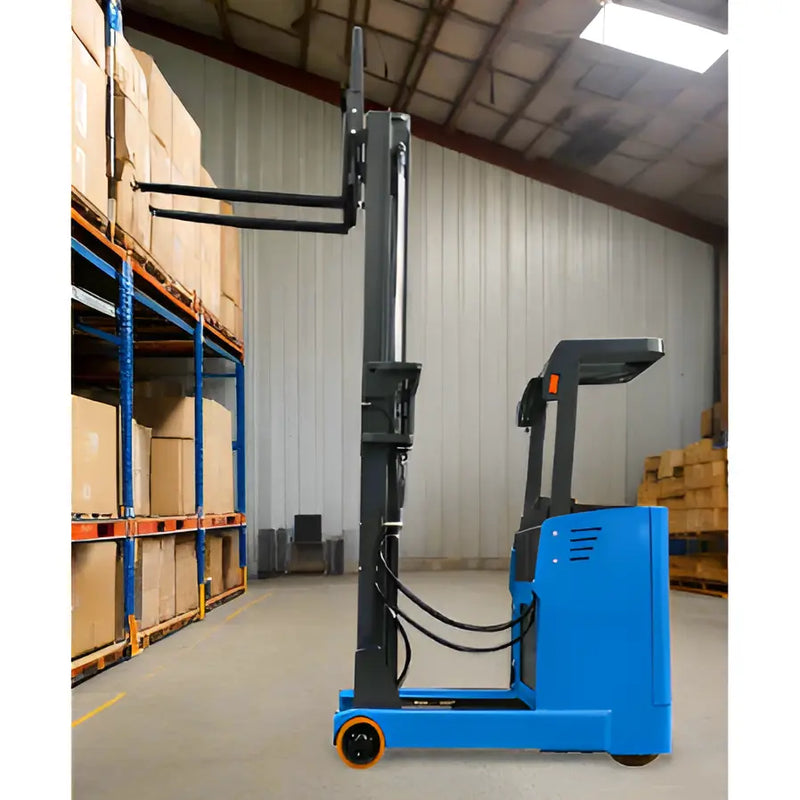

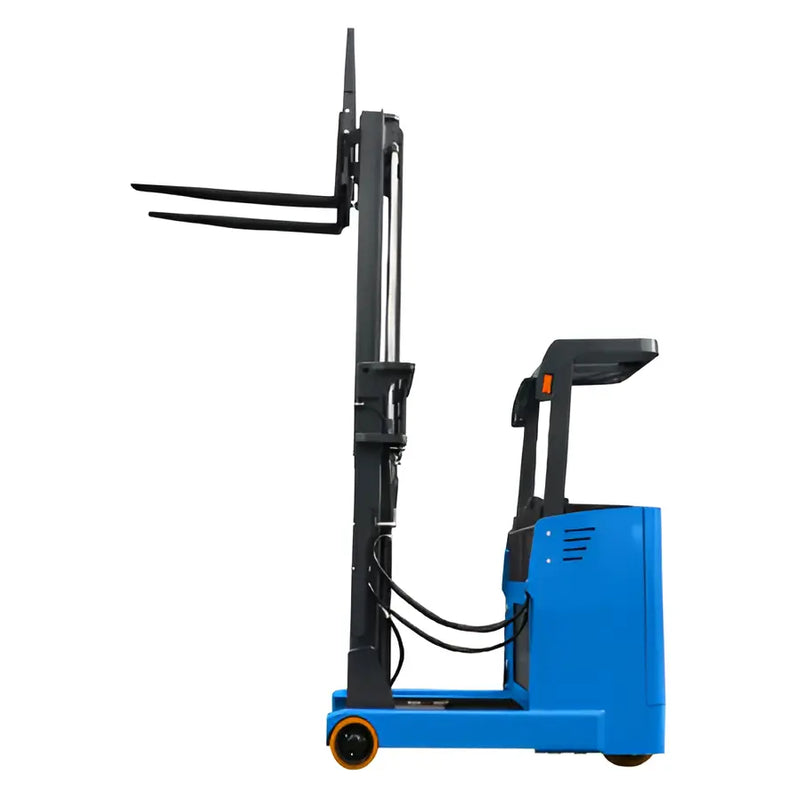

Eoslift LF20 Electric Stand-Up Mast Truck – 4,409 lb, 118" Lift Height

Original price $38,742.05 - Original price $50,754.63
Original price
$38,742.05
$38,742.05 - $50,754.63
Current price $38,742.05
In stock
SKU LF20 Duplex
$100 off orders $2,000+ code WELCOME at checkout
No sales tax in most states savings applied at checkout

Product Overview
In short
The Eoslift LF20 is an electric stand-up movable mast (reach) truck designed for narrow-aisle racking and high-density storage applications. It features a 4,409 lb rated capacity and a 118.11-inch lift height. Its stand-on operation and duplex mast make it efficient for optimizing warehouse space, supported by a 48 V / 300 Ah battery.

The EosLift LF20 is an electric stand-up movable mast truck that has a 4,400 lb rated capacity with high visibility and precision control. It was designed to be used in the warehouse on narrow aisle space and provide efficient, environmentally friendly operation while increasing operator safety.

Features:

β€’ 4,400 lbs rated capacity - provides easy handling of medium duty material handling tasks
β€’ stand up design for the operator - increases visibility and control in tight spaces
β€’ movable mast system - provides accurate placement of loads and smooth lifting of loads
β€’ electric drive system - provides quiet, emissions free, and energy efficient operation
β€’ compact and maneuverable - ideal for use in narrow aisle applications, warehouses and distribution centers.

Specification Table
Eoslift LF20 Electric Stand-Up Mast Truck – 4,409 lb, 118" Lift He
ModelLF20(duplex mast)Β  Β  Β  Β  Β  Β  Β  Β  LF15(duplex mast)
Power TypeBattery
Operation typeStand On
Rated Capacity4409.24 lbs 3306.93 lbs
Load Center19.68 in.
Front Overhang7.08 in.
Wheelbase60.82 in. 52.95 in.
Service weight(incl.battery )6062.71 lbsΒ  Β  Β  Β  Β  Β  Β  Β  Β  Β  Β  5401.32 lbs
Axle capacity with no load,drive side/ load size4188.783/1873.93 lbs. 3582.51 lbs./1818.81 lbs.
Axle capacity with full load(fork forward) drive side/l1543.24/8928.72 lbs. 1455.05 lbs./7253.208 lbs.
Axle capacity with full load(fork back- ward)drive side4409.245/6062.712 lbs. 3328.98 lbs./5379.27 lbs.
Wheel typePU
Front wheel10 x 4.09 in.
Drive wheel13.50 x 4.25 in.
FAQ about this model

What is the lifting capacity and primary application of the Eoslift LF20?

The Eoslift LF20 has a rated capacity of 4,409 lb (2000 kg) with a load center of 19.68 inches. Its stand-on design and movable duplex mast make it ideal for narrow-aisle racking and high-density storage applications, capable of lifting loads up to 118.11 inches.

What type of power does the LF20 use and how is it operated?

The LF20 is an electric battery-powered mast truck, utilizing a 48 V / 300 Ah battery for operation. It features a stand-on operation type, allowing the operator to stand while maneuvering the truck for efficient material handling.

What are the key dimensions for fitting the LF20 into a workspace?

The Eoslift LF20 has an overall length of 90.51 inches and an overall width of 42.91 / 46.06 inches. Its turning radius is 70.23 inches, and the mast closed height is 81.96 inches, making it suitable for navigating and operating in tight warehouse aisles.

Compare models
 LF20 Electric Stand-
THIS
LFC20 Electric StandLFC16 Electric StandLF15 Electric Stand-
ModelLF20(duplex mast)Β  Β  Β  Β  Β  Β  Β  Β  LF15(duplex mast)LFC 20LFC 20LF20(duplex mast)Β  Β  Β  Β  Β  Β  Β  Β  LF15(duplex mast)
Power TypeBatteryBatteryBatteryBattery
Operation typeStand OnSeatedSeatedStand On
Rated Capacity4409.24 lbs 3306.93 lbs4409.24 lbs 3527.39 lbs.4409.24 lbs 3527.39 lbs.4409.24 lbs 3306.93 lbs
Price$38,742.05$48,983.52$33,719.63$33,621.30
ViewingCheck ›Check ›Check ›

Specs from Amulet manufacturer data. Prices update live and reflect current promotions.

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@vovlift.com

More information on shipping and returns can be found here.

Warranty

EOSLift Limited Warranty (Policy W2015-001), Electric & Semi-Electric Equipment β€” EOSLift USA Corporation warrants this product to the original purchaser: 24 months on frame, transmission (gearbox/shaft), weldments, traction motor, SBW motor/decoder and wheel controller; 12 months on lift motor, hydraulic pump, SBW sensor, built-in chargers and wiring harness; 6 months on transistor controls, control cables, tires, motor brushes, contact tips, switches and bearings; batteries and chargers 180–360 days (first 90 days unconditional, then pro-rata). The first 90 days are unconditional against defects in material and workmanship. Warranty covers parts only (labor and travel excluded) and is void under abnormal use, unauthorized repair or modification, abuse, overloading beyond rated capacity, improper installation or transport damage. Original purchaser only. Contact: EOSLift USA Corporation, 1590 S. Milliken Ave Unit H, Ontario CA 91761 Β· 1-888-264-5008.
