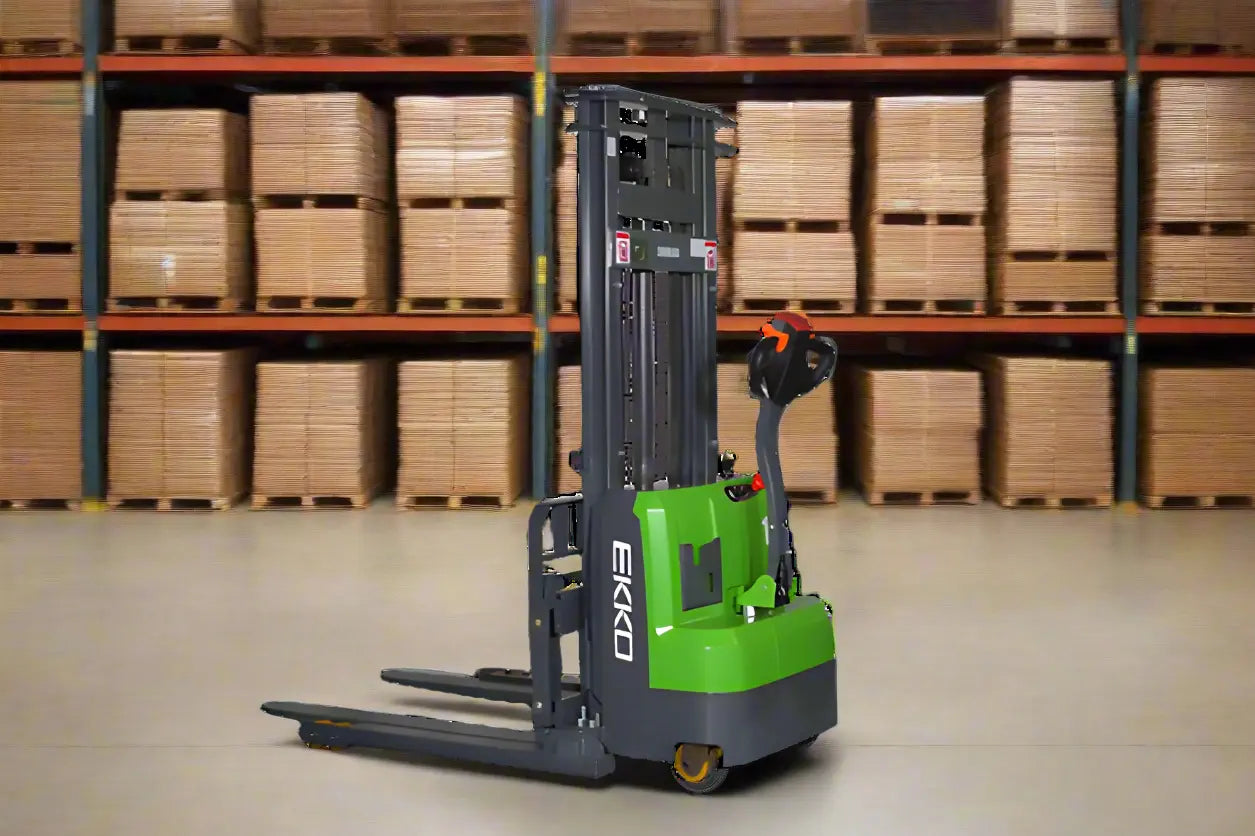

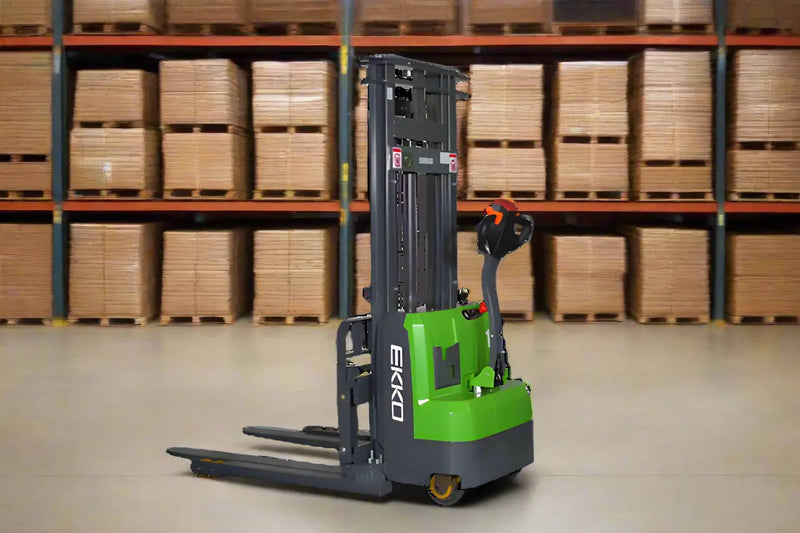

EKKO Electric Pallet Stacker in green and black used for lifting pallets in a warehouse

EKKO electric pallet stacker in green and black with ergonomic handle and lifting forks

EKKO Electric Pallet Stacker with black and green frame and ergonomic handle for material handling

EKKO EB14C-138Li | Electric Pallet Stacker | 138" Lift, 3000 lbs

Name: EKKO EB14C-138Li | Electric Pallet Stacker | 138" Lift, 3000 lbs
Brand: EKKO
SKU: EB14C-138LI
Price: 6329.85 USD
Availability: InStock

See more by EKKO

$333.15 Off Limited time deal

$6,663.00

$6,663.00 - $6,663.00

$6,663.00

$6,329.85

$6,329.85 - $6,329.85

$6,329.85

In stock

SKU EB14C-138LI

Quantity

Product Overview

In short

The EKKO EB14C-138Li is an electric straddle stacker that combines the capabilities of a forklift, reach truck, and walkie stacker. It offers a maximum lifting height of 138 in (11.5 ft) and a load capacity of 3000 lbs, making it well suited for lifting, transporting, and handling goods in warehouses, manufacturing floors, and loading docks.

The EKKO EB14C-138Li Electric Pallet Stacker delivers a powerful combination of lift height and load capacity for demanding material-handling operations. With a 3000 lb load capacity and a maximum lift height of 138 inches (11.5 ft), this stacker is engineered for warehouse, stockroom, dock loading, and manufacturing floor applications. Its adjustable fork and leg configuration allows it to adapt to a variety of pallet sizes and job requirements.

Key Features & Benefits

High Lift Capacity: Handles loads up to 3000 lbs with a max lifting height of 138 in (11.5 ft), ideal for high-stack tasks.
Lithium Power System: Runs on a 24V/50Ah lithium battery with an internal 24V/20 charger for reliable, consistent power.
Adjustable Configuration: Fork adjustment width of 8.7-32.1 in and adjustable legs from 35.4-51.2 in accommodate different pallet types and load widths.
Compact Maneuverability: A 57.5 in turning radius and 73.7 in overall length support navigation in tight warehouse aisles.
Durable Construction: Heavy-duty steel frame construction combined with polyurethane wheels ensures long-term durability and smooth operation.
Efficient Lifting Motor: Equipped with a 2.2 kW lifting motor and DC drive motor for dependable performance in demanding environments.

This electric pallet stacker is well-suited for businesses that need a reliable, maneuverable lifting solution for warehouse, stockroom, dock loading, and manufacturing floor environments. Its adjustable fork and leg widths make it versatile for handling a variety of pallet sizes, while its compact turning radius supports operation in confined spaces. The EB14C-138Li is a practical choice for operations requiring efficient vertical lifting combined with easy load positioning.

Specification Table

EB14C-138LI · Full Electric Pallet StackerSKU EB14C-138LI
Load capacity	3000 (lbs)
The max. lifting height	138 (in)
Load center distance	20 (in)
Fork length	45.3 (in)
Single fork width	4 (in)
Fork Adjustment Width	8.7-32.1 (in)
Lowered fork height	2.6 (in)
Adjustable legs	35.4-51.2 (in)
Turning radius	57.5 (in)
Overall length	73.7 (in)
Max Overall width	61 (in)
Extended mast height	166.9 (in)
Lowered mast height	94.2 (in)
Battery voltage	24V/50Ah Lithium (V/Ah)
Internal Charger	24V/20 V/A
Lifting Motor	2.2 kw Kw
Driving Motor	DC Drive Motor
Service Weight	1470 (lbs)
Max Lifting Height	138 in (11.5 ft)
Leg Adjustment Width	35.4 – 51.2 in
Overall Width (Max)	61 in
Battery	24 V / 50 Ah Lithium
Wheel Material	Polyurethane
Frame Construction	Heavy-Duty Steel

FAQ about this model

What applications and loads is the EKKO EB14C-138Li suited for?

This electric straddle stacker is designed for lifting, transporting, and handling goods in warehouses, manufacturing floors, and loading docks. It combines the capabilities of a forklift, reach truck, and walkie stacker, giving it flexibility across different material handling tasks.

What are the key capacity and lift height specs?

The EB14C-138Li has a load capacity of 3000 lbs and a maximum lifting height of 138 in (11.5 ft). The load center distance is 20 in, the fork length is 45.3 in, and fork adjustment width ranges from 8.7 to 32.1 in, allowing it to accommodate various pallet and load configurations.

How is the EB14C-138Li powered and operated?

It runs on a 24V/50Ah lithium battery paired with a 24V/20A internal charger. Lifting is handled by a 2.2 kW lifting motor, while a DC drive motor powers movement. The unit features polyurethane wheels and a heavy-duty steel frame construction.

How does this model compare within the straddle stacker category?

The EB14C-138Li stands out by combining forklift, reach truck, and walkie stacker functionality in one unit. With a service weight of 1470 lbs, a turning radius of 57.5 in, and adjustable legs from 35.4 to 51.2 in, it is built for maneuverability while still handling a 3000 lb load capacity and reaching heights up to 138 in.

Compare models

	3000 Electric Pallet Stacker 138" THIS	3000 Electric Pallet Stacker 118"
Lift Height	138 (in)	118” (in)
Load center distance	20 (in)	24 (in)
Service Weight	1470 (lbs)	1430 (lbs)
Capacity	3000 (lbs)	3000 (lbs)
Price	$6,663.00 $6,329.85	$6,198.00 $5,888.10
	Viewing	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
