EKKO EB12EA | Electric Pallet Stacker | 145" Lift Height, 3000 lb Capacity

$427.70 Off Limited time deal Save $427.70
Original price $8,554.00
Original price $8,554.00 - Original price $8,554.00
Original price $8,554.00
Current price $8,126.30
$8,126.30 - $8,126.30
Current price $8,126.30
In stock
SKU EB12EA
$100 off orders $2,000+ code WELCOME at checkout
No sales tax in most states savings applied at checkout

Product Overview
In short
The EKKO EB12EA is an electric pallet stacker with a 3000 lb load capacity and a maximum lift height of 145 inches. It combines features of a forklift, reach truck, and walkie stacker, with a heavy-duty steel hoist, adjustable forks, and adjustable legs. It is designed for warehouse, distribution, and storage facility applications.

The EKKO EB12EA Electric Pallet Stacker is built to move palletized loads efficiently within warehouses, distribution centers, and storage facilities. With a 3000 lb load capacity and a 145.67-inch maximum lift height, it enables safe placement of pallets on higher racking levels. Its fully electric drive and lift system delivers smooth, controlled operation for daily material handling tasks.

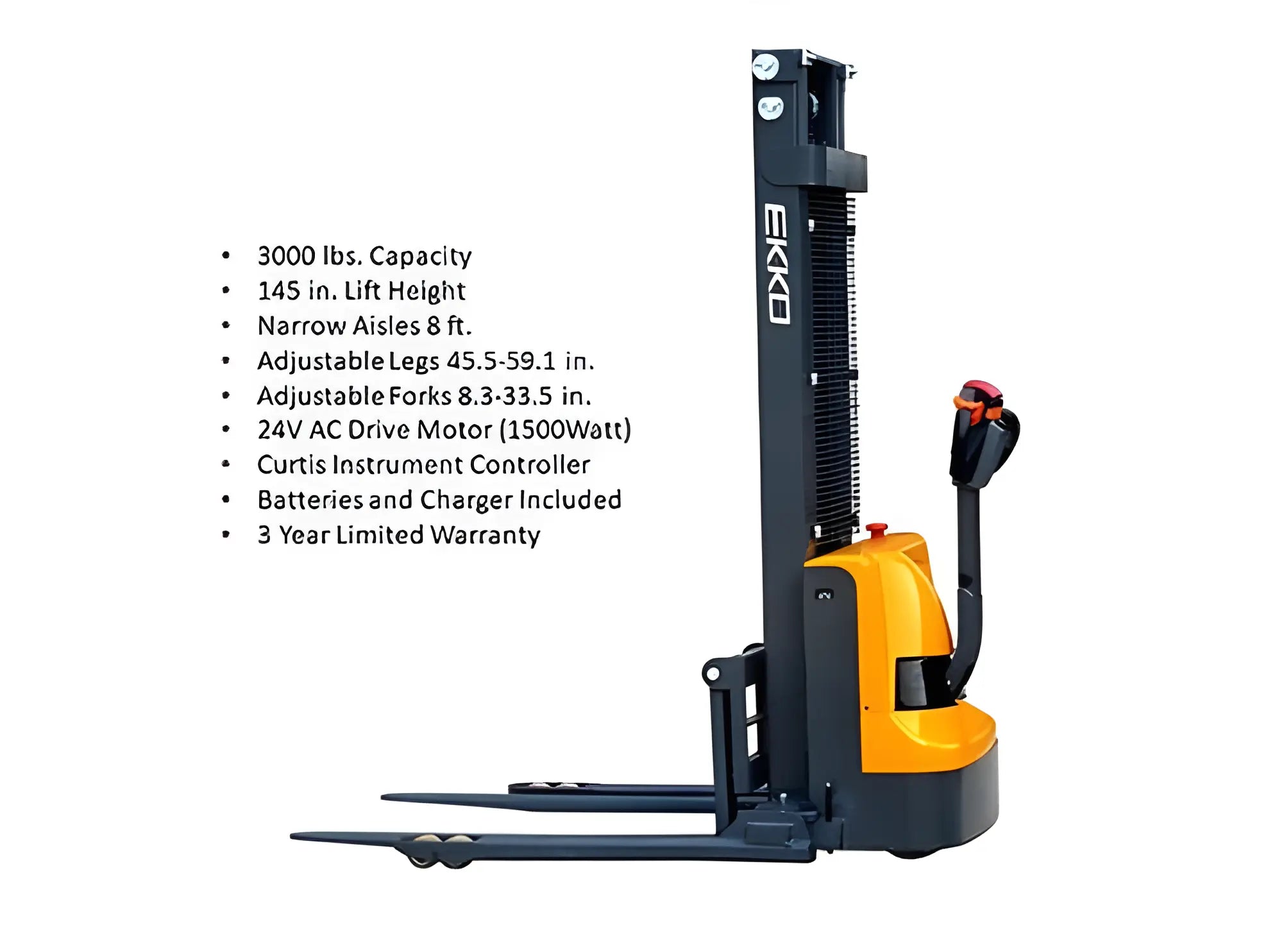

Key Benefits

  • High Lift Reach: A maximum lifting height of 145.67 inches allows pallets to be placed on upper racking levels, maximizing vertical storage space.
  • Strong Load Capacity: Rated for 3000 lb loads with a 24-inch load center, supporting reliable pallet handling.
  • Electric Drive & Lift: A 2200-watt lifting motor and 1500-watt driving motor power smooth, controlled lifting and travel, with laden/unladen lift speeds of 92/136 mm/s and driving speeds of 4.0/4.2 km/h.
  • Compact Maneuverability: A 52.6-inch turning radius and 61-inch max overall width support movement through warehouse aisles.
  • Adjustable Fork & Leg Configuration: Overall fork width adjusts from 8.3 to 33.5 inches, while adjustable legs range from 45.5 to 59.1 inches, accommodating different pallet types.
  • Onboard Charging: An internal 24V/15A charger keeps the unit ready for continued operation.

The EB12EA is well suited for warehouse, distribution, and storage facility operations that require high-lift pallet handling in a compact, walk-behind format. It serves operators looking for an electric-powered alternative to traditional forklifts for tasks involving vertical pallet stacking and retrieval in narrower aisle environments.

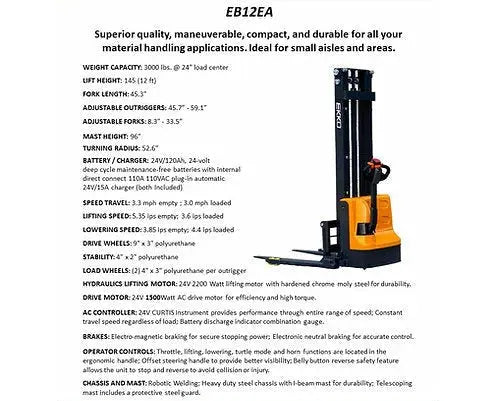

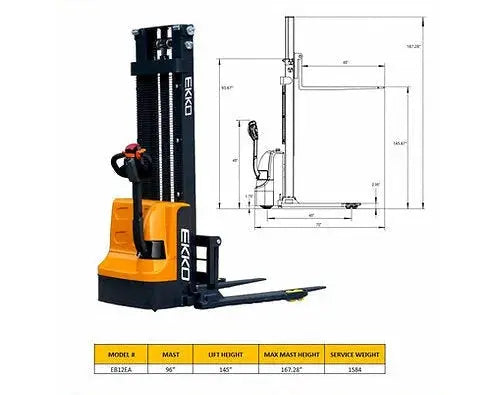

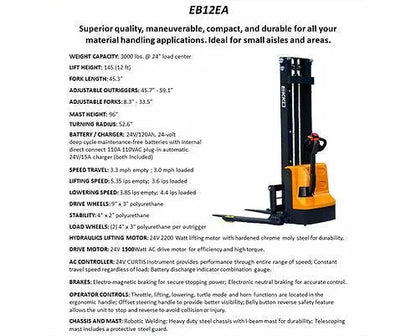

Specification Table
EB12EA · Full Electric Pallet StackerSKU EB12EA
Load capacity3000 (lb)
The max. lifting height145.67” (in)
Load center distance24 (in)
Fork length45.3 (in)
Single fork width4 (in)
Overall fork width8.3-33.5 (in)
Lowered fork height2.35 (in)
Fixed leg length36.5 (in)
Adjustable legs45.5-59.1 (in)
Turning radius52.6 (in)
Overall length70 (in)
Max Overall width61 (in)
Extended mast height167.28 (in)
Lowered mast height95.67 (in)
Battery voltage (dimensions)2×12V/120AH(10/6.6/8.5) (in)
Internal Charger24V/15A (V/A)
Lifting Motor2200 Watt, Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s (V/W)
Driving Motor1500 Watt, Driving speed: laden/unladen: 4.0/4.2km/h (W)
Service Weight1584 (lb)
Brand / ModelEKKO EB12EA
Power SourceElectric
Maximum Lift Height145 in (Approx. 3683 mm)
Operation StyleWalk-Behind
Drive SystemElectric Drive
Lift SystemElectric Lift
Primary ApplicationsWarehouse, Distribution, Storage Facilities
Key BenefitsHigh lift reach, compact handling, improved productivity
FAQ about this model

What applications and loads is the EKKO EB12EA suited for?

The EB12EA is built for warehouses, distribution centers, and storage facilities. It handles loads up to 3000 lb (approximately 1360 kg) and is suited for general material-handling tasks such as loading docks and manufacturing floor use, thanks to its heavy-duty steel hoist and adjustable forks and legs.

What do the key specifications mean for this stacker?

The EB12EA has a load capacity of 3000 lb and a maximum lift height of 145 inches (approximately 3683 mm), giving it strong lift reach for a walk-behind unit. It also features adjustable forks and adjustable legs, allowing it to accommodate different pallet and load configurations.

How is the EKKO EB12EA powered and operated?

The EB12EA is fully electric, using an electric drive system and an electric lift system. It is operated in a walk-behind style, with the operator guiding the unit rather than riding on it.

How does the EB12EA compare within the pallet stacker category?

The EB12EA is described as a cross between a forklift, a reach truck, and a walkie stacker, combining compact handling with a high lift reach. This blend of features is intended to improve productivity in warehouse and distribution settings compared to more basic walkie stackers.

Compare models
 2640 Electric Pallet Stacker 119"2640 Electric Pallet Stacker 138"2800 Electric Pallet Stacker 138"3000 Electric Pallet Stacker 145"
THIS
4000 Electric Pallet Stacker 138"
Capacity2800 (lbs)2800 (lbs)2800 (lbs)3000 (lb)4000 (lb)
Engine / Motor2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering spee…2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering spee…2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering spee…2200 Watt, Lift speed, laden/unladen:92/136mm/s Lowering …3000 Watt, Lift speed, laden/unladen:92/136mm/s Lowering …
Lift Height138” (in)138” (in)138” (in)145.67” (in)138 (in)
Overall fork width8.3-33.5 (in)8.3-33.5 (in)8.3-33.5 (in)8.3-33.5 (in)9.8-31.5 (in)
Price$5,888.00 $5,593.60$6,043.00 $5,593.60$6,043.00 $5,740.85$8,554.00 $8,126.30$12,478.00 $11,854.10
Check ›Check ›Check ›ViewingCheck ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
