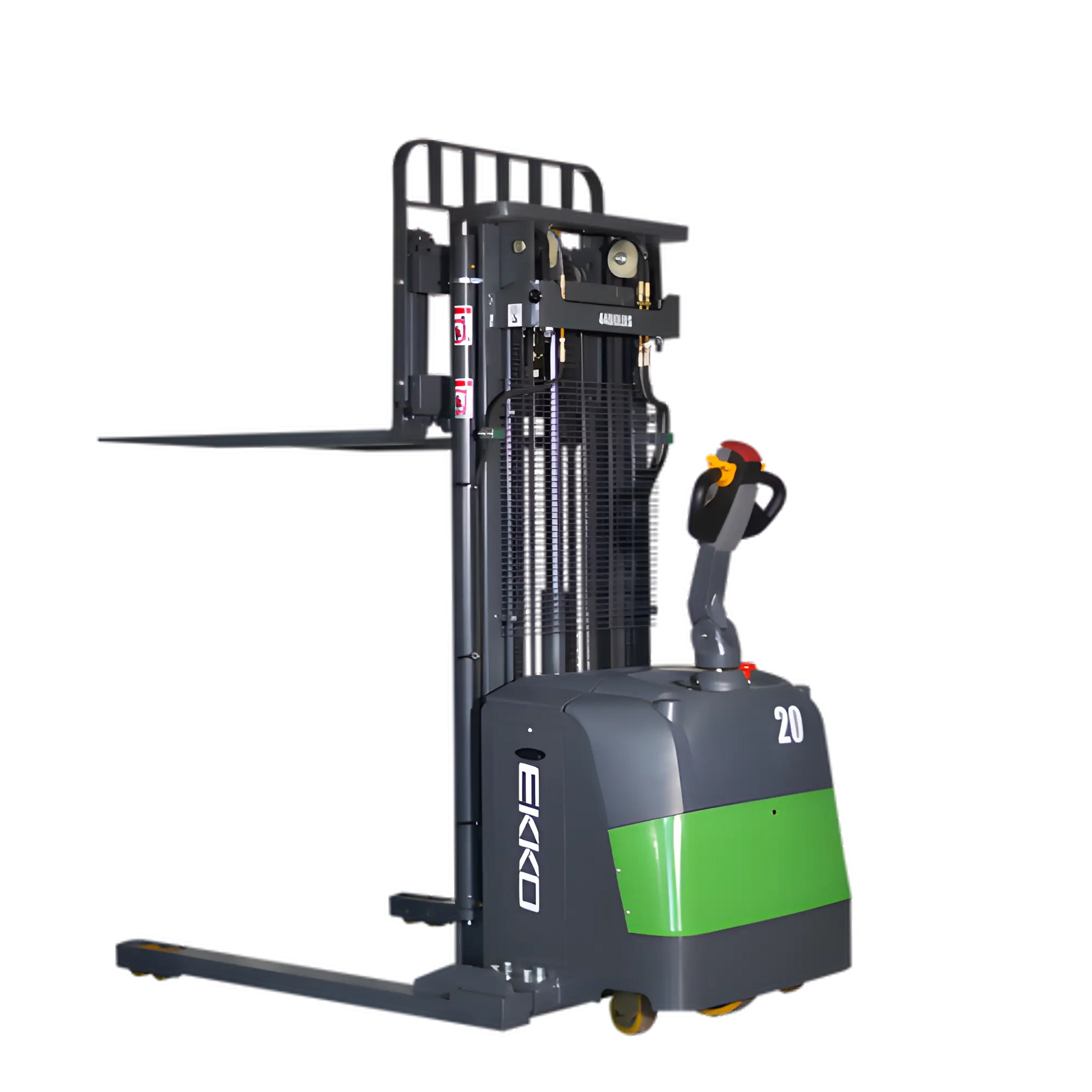

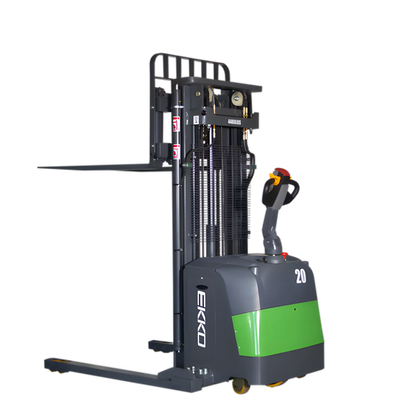

EKKO Electric Pallet Stacker with black and green body and elevated forks for lifting pallets

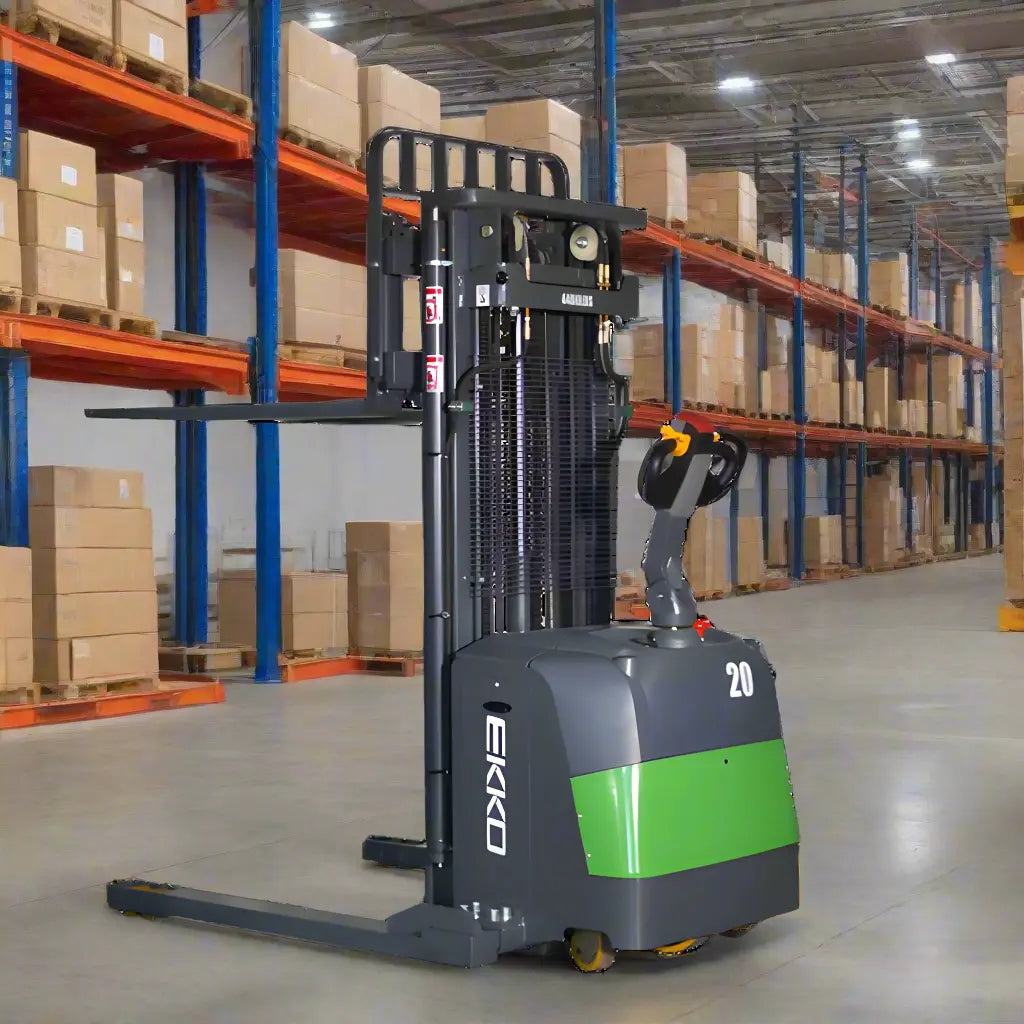

EKKO Electric Pallet Stacker in warehouse with tall shelving and stacked boxes

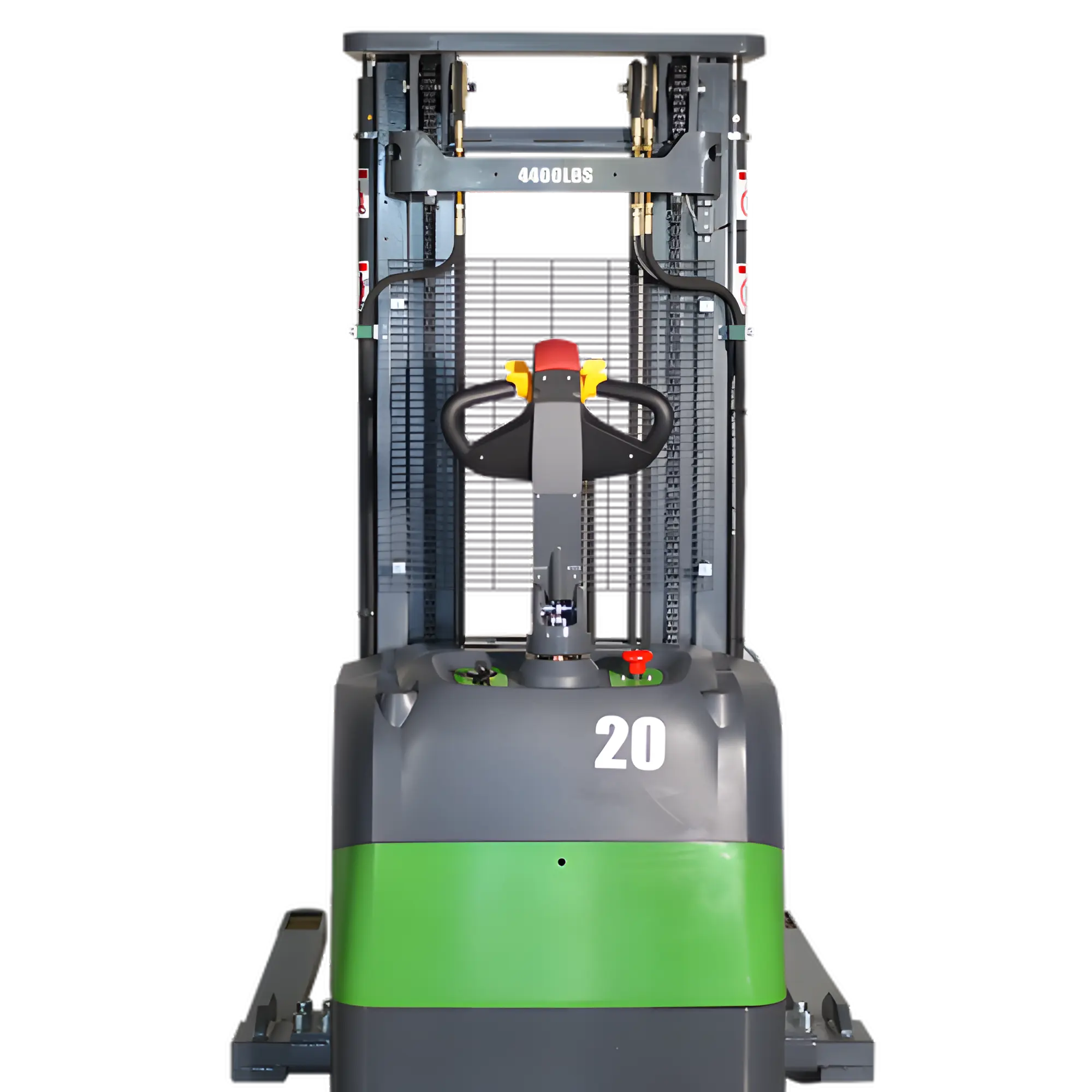

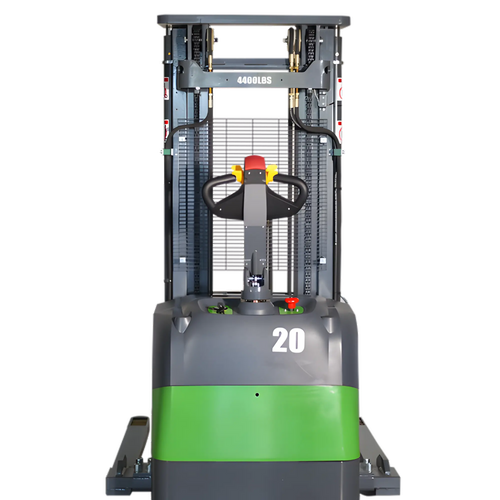

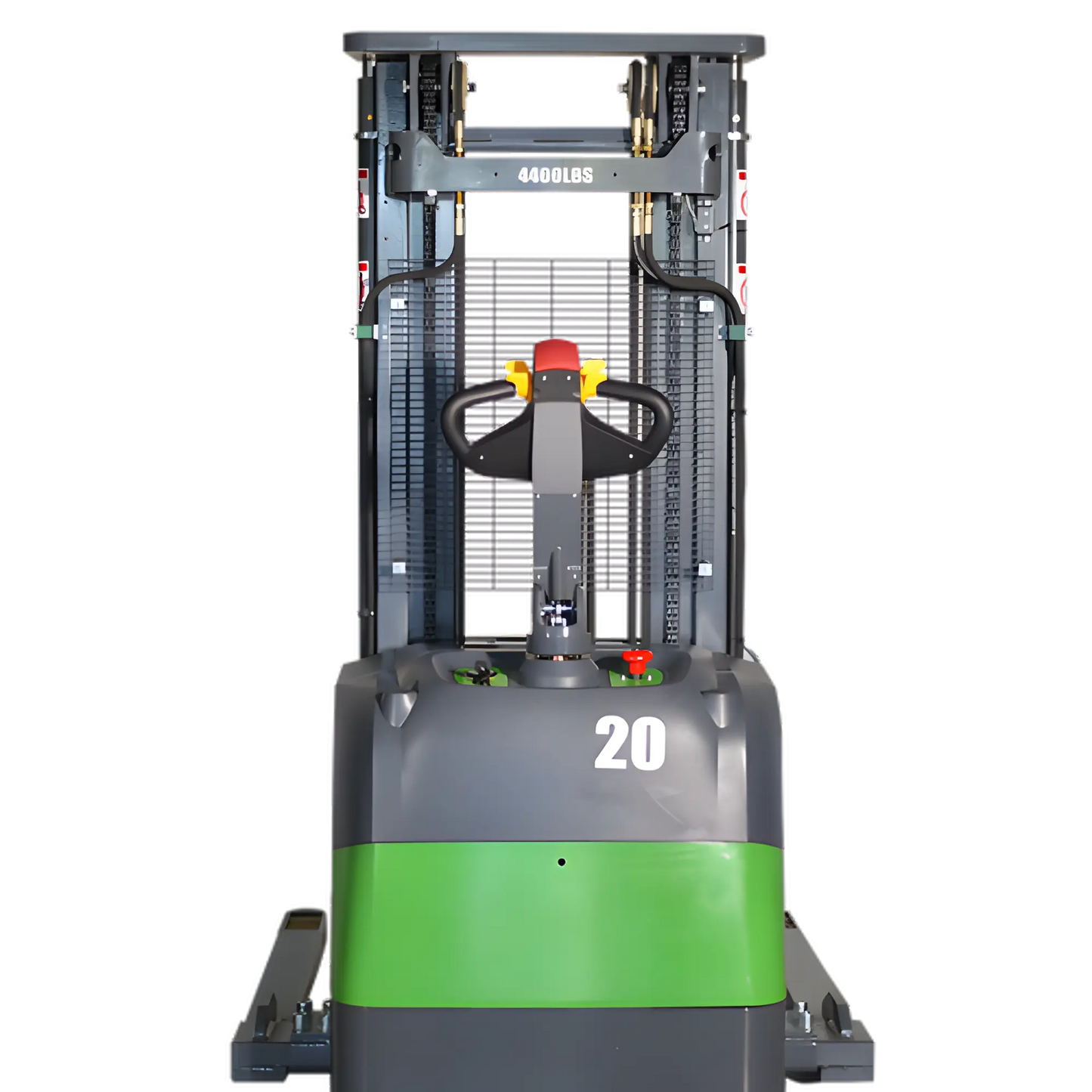

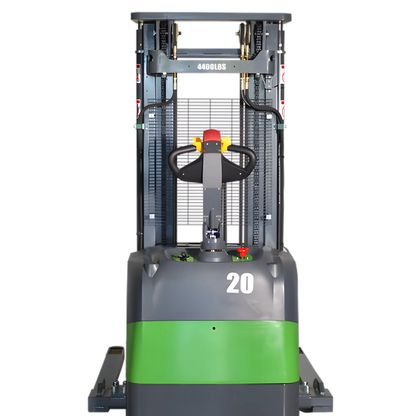

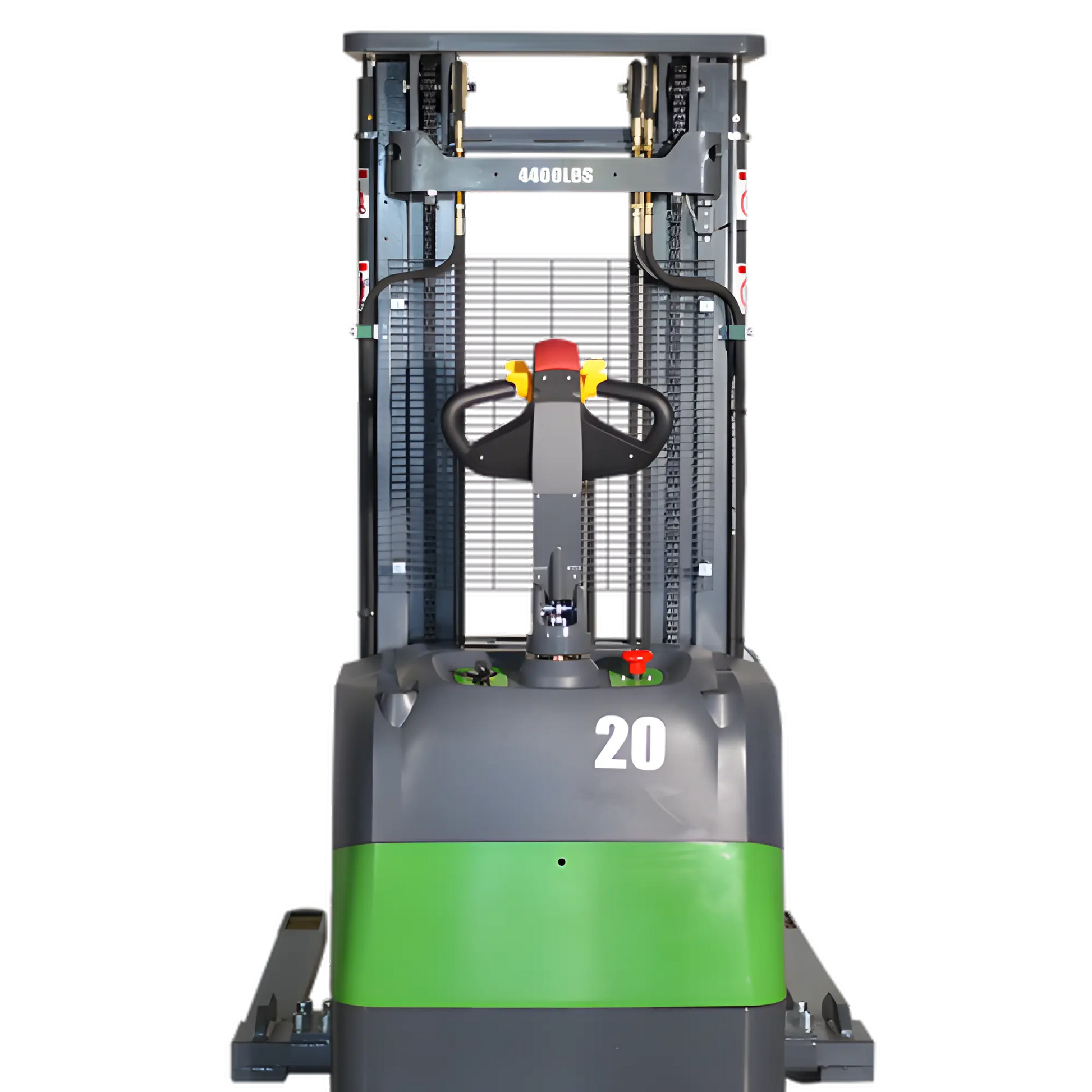

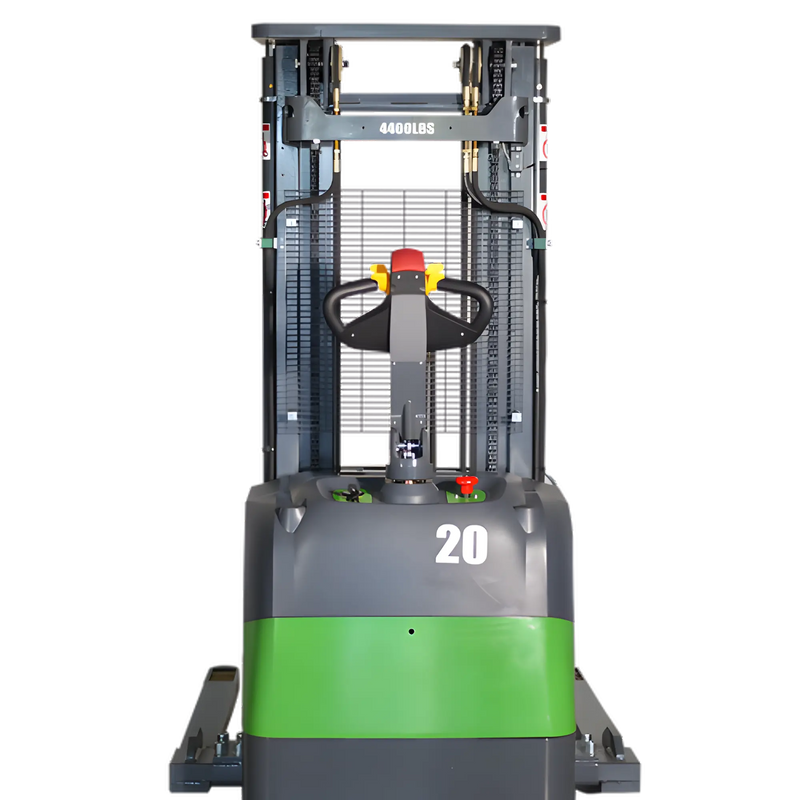

EKKO electric pallet stacker in gray and green with control handle and 4400 lbs capacity

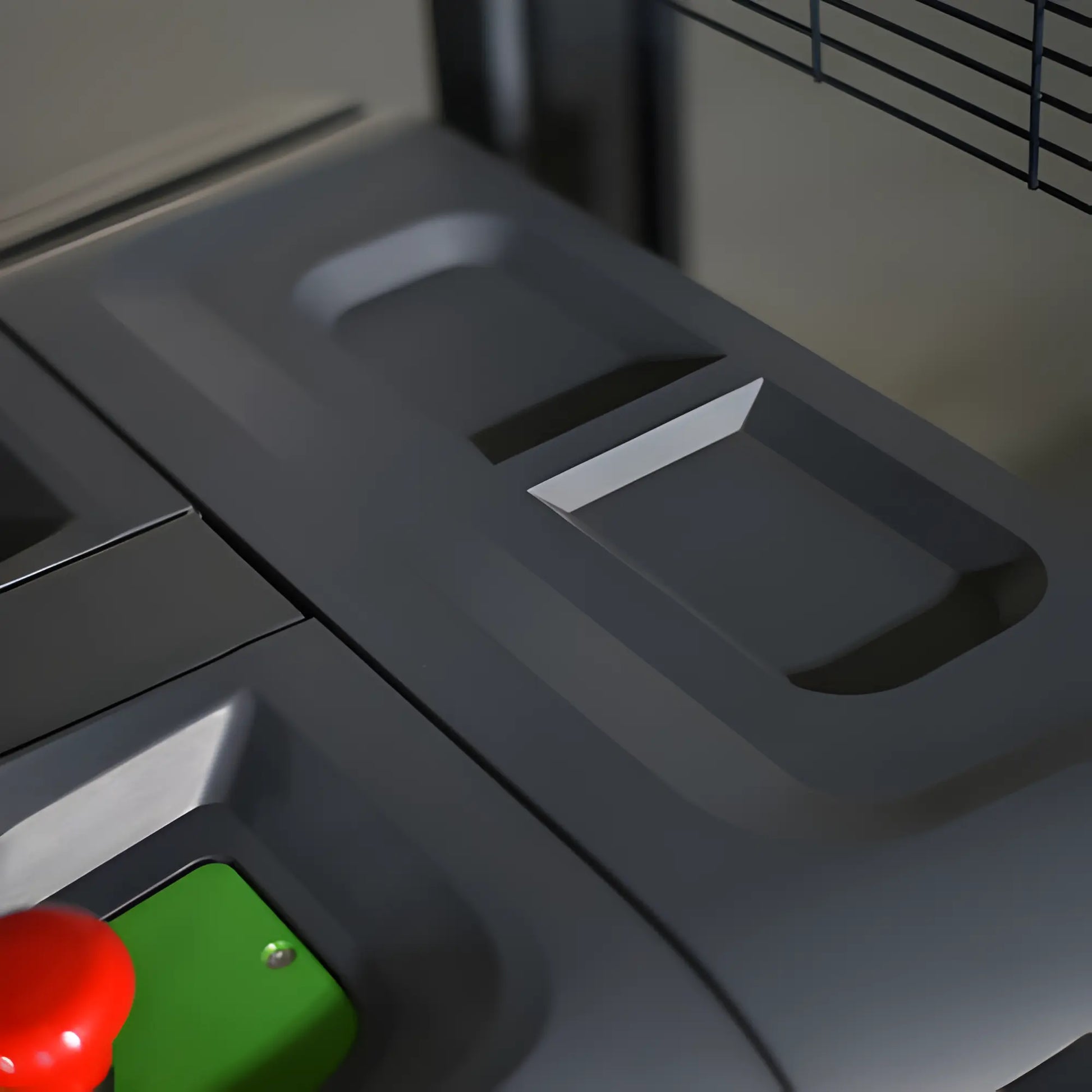

Close-up of EKKO EB20CS-189Li machine control panel with black and green buttons

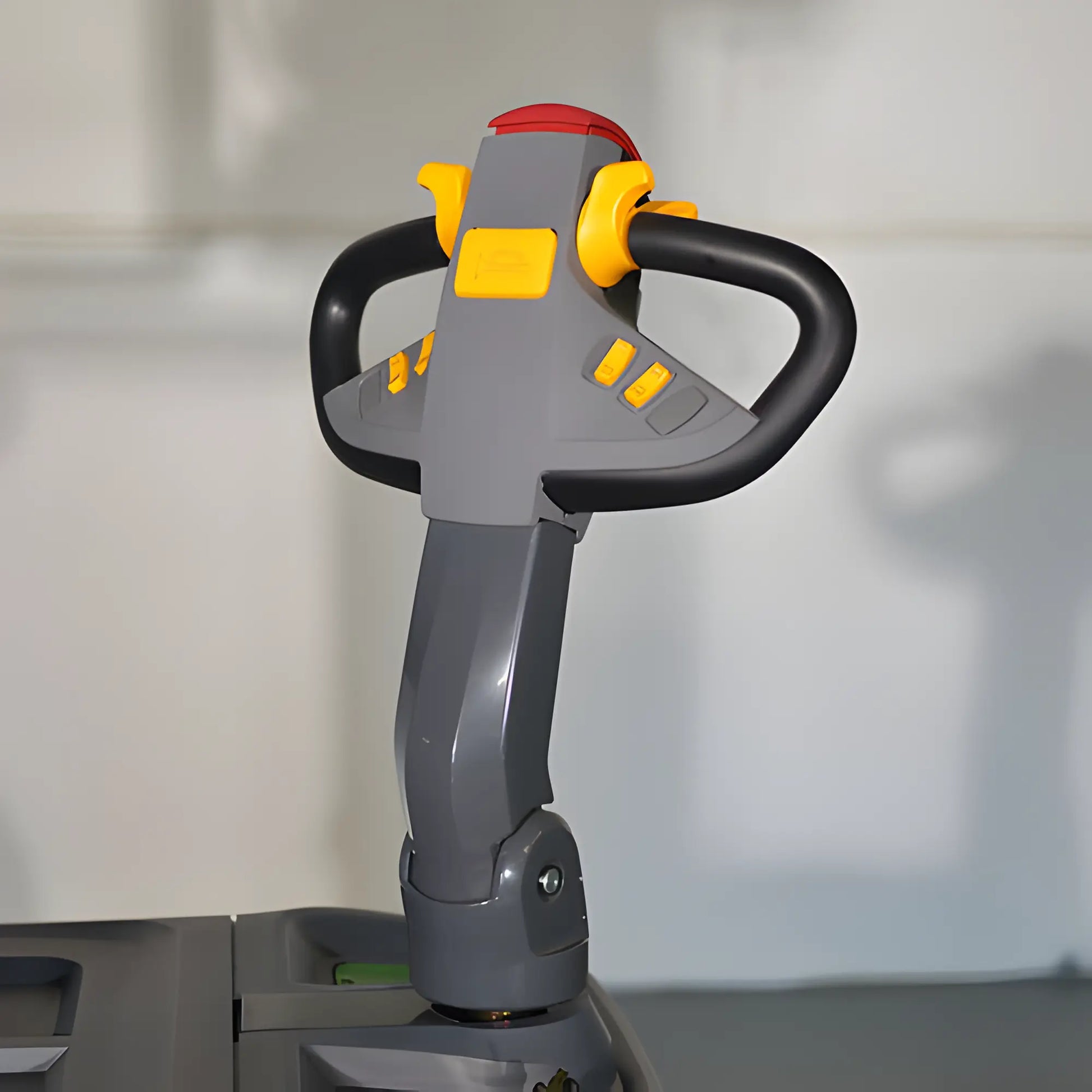

EKKO EB20CS-189Li electric pallet jack handle with ergonomic controls and safety features

EKKO EB20CS-189Li | Electric Pallet Stacker | 189" Lift, 4400 lbs

Name: EKKO EB20CS-189Li | Electric Pallet Stacker | 189" Lift, 4400 lbs
Brand: EKKO
SKU: EB20CS-189LI
Price: 18238.1 USD
Availability: InStock

See more by EKKO

$959.90 Off Limited time deal

$19,198.00

$19,198.00 - $19,198.00

$19,198.00

$18,238.10

$18,238.10 - $18,238.10

$18,238.10

In stock

SKU EB20CS-189LI

Quantity

Product Overview

In short

The EKKO EB20CS-189Li is a lithium electric straddle stacker built for heavy-duty lifting, offering a 4400 lbs load capacity and a maximum lift height of 189 inches. It combines the reach, lift power, and maneuverability needed for loading docks, truck loading/unloading, and general warehouse material handling.

The EKKO EB20CS-189Li is a lithium-powered electric pallet stacker built for high-reach applications requiring both lifting capacity and maneuverability. With a maximum lift height of 189 inches and a 4400 lb load capacity, it combines straddle stacker versatility with the precision of a reach truck. Its robotically welded steel construction and AC drive system make it a durable choice for demanding warehouse environments.

Key Advantages

High Lift Capability: Reach a maximum lift height of 189 inches with an extended mast height of 217.7 inches for accessing upper racking.
Robust Load Handling: Manage loads up to 4400 lbs with a 24-inch load center for stable, controlled lifting.
Lithium-Ion Power: Operate on a 24V/150Ah lithium battery paired with an included 24V/50A charger for efficient uptime.
AC Drive System: Benefit from a Curtis AC controller and 1500W AC drive motor for smooth, responsive handling.
Adjustable Configuration: Customize fork width from 8.7 to 32.1 inches and leg span from 39.8 to 55.5 inches to suit varied pallet types.
Durable Build: Count on robotically welded steel construction and polyurethane wheels for long-term reliability.

The EKKO EB20CS-189Li is well-suited for warehouses, distribution centers, and manufacturing facilities that require efficient vertical storage and retrieval of palletized loads. Its adjustable legs and forks make it adaptable to a range of pallet sizes, while its electric lithium-ion power system supports repeated use throughout demanding shifts. This stacker is ideal for operations seeking a versatile, electric-powered alternative to traditional forklifts or reach trucks in space-constrained environments.

Specification Table

EB20CS-189LI · Full Electric Pallet StackerSKU EB20CS-189LI
Load capacity	4400 (lb)
The max. lifting height	189 (in)
Load center distance	24 (in)
Fork length	45.3 (in)
Single fork width	3.9 (in)
Overall fork width	8.7-32.1 (in)
Lowered fork height	2.6 (in)
Overall Length	81.9 (in)
Adjustable legs	39.8-55.5 (in)
Turning radius	65 (in)
Min. Ground clearance	1.2 (in)
Extended mast height	217.7 (in)
Lowered mast height	83.1 (in)
Battery voltage	24/150Ah Lithium (V/Ah)
The charger	24V/50A (V/A)
Lifting Motor	3,000 (W)
Driving Motor	1500W (W)
Service Weight	3000 (lb)
Power Type	Electric (Lithium-ion)
Maximum Lift Height	189 in
Adjustable Fork Width	8.7 – 32.1 in
Adjustable Leg Span	39.8 – 55.5 in
Overall Width	up to 55.5 in
Battery	24V/150Ah Lithium-ion
Charger	24V/50A Included
Lift Motor	3000 W
Drive Motor	1500 W AC
Controller	Curtis AC
Wheels	Polyurethane
Construction	Steel, robotically welded

FAQ about this model

What applications and loads is the EKKO EB20CS-189Li suited for?

This straddle stacker is designed for loading and unloading trucks, managing loading dock operations, and other warehouse material handling tasks. With a load capacity of 4400 lbs and a load center distance of 24 in, it is built to handle standard palletized loads efficiently in industrial and warehouse environments.

What do the key specifications of the EB20CS-189Li mean for performance?

The unit offers a maximum lift height of 189 in, with an extended mast height of 217.7 in and a lowered mast height of 83.1 in, allowing it to reach elevated storage while maintaining a compact profile when lowered. The adjustable fork width (8.7–32.1 in) and adjustable leg span (39.8–55.5 in) allow the stacker to accommodate a variety of pallet sizes and load configurations, while a turning radius of 65 in and minimum ground clearance of 1.2 in support maneuverability in tight warehouse aisles.

How does the EKKO EB20CS-189Li operate?

The EB20CS-189Li is powered by a 24V/150Ah lithium-ion battery paired with a 24V/50A charger, and includes a 3000 W lift motor and a 1500 W drive motor managed by a Curtis AC controller. This electric powertrain drives the unit's lifting and movement functions, supporting efficient handling operations without manual force.

How does this model compare within the EKKO stacker lineup?

Combining the lifting capabilities of a forklift, the reach of a reach truck, and the maneuverability of a walkie stacker, the EB20CS-189Li is positioned as a versatile straddle stacker within EKKO's material handling range. Its robotically welded steel construction and polyurethane wheels reflect a durable build intended for demanding, repetitive dock and warehouse operations.

Compare models

	4400 Electric Pallet Stacker 189" THIS	4400 Electric Pallet Stacker 177"	4400 Electric Pallet Stacker 216"	4000 Electric Pallet Stacker 145"	4000 Electric Pallet Stacker 138"
Capacity	4400 (lb)	4400 (lb)	4400 (lb)	4000 (lb)	4000 (lb)
Engine / Motor	3,000 (W)	3,000 (W)	3,000 (W)	3000 Watt (W)	3000 Watt (W)
Lift Height	189 (in)	177 (in)	216 (in)	145 (in)	138 (in)
Lowered fork height	2.6 (in)	2.6 (in)	2.6 (in)	2.56 (in)	2.56 (in)
Price	$19,198.00 $18,238.10	$18,430.00 $17,508.50	$20,798.00 $19,758.10	$12,798.00 $12,158.10	$12,478.00 $11,854.10
	Viewing	Check ›	Check ›	Check ›	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
